Parking Aid
>>
Notes
Parking Aid: Notes

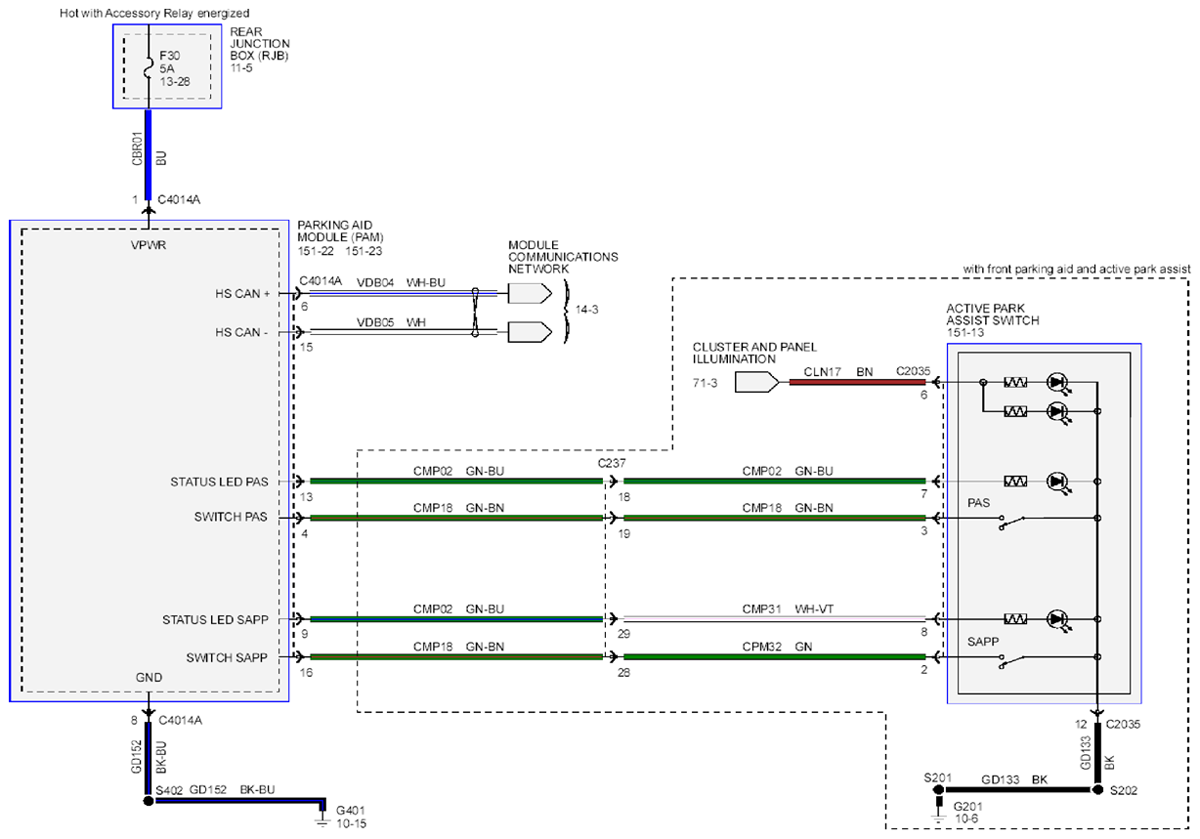

Fig 1: Parking Aid - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Parking Aid - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
