OEM Wiring Diagrams -- Except Electric
>>
Luggage Compartment
>>
With IA
With IA

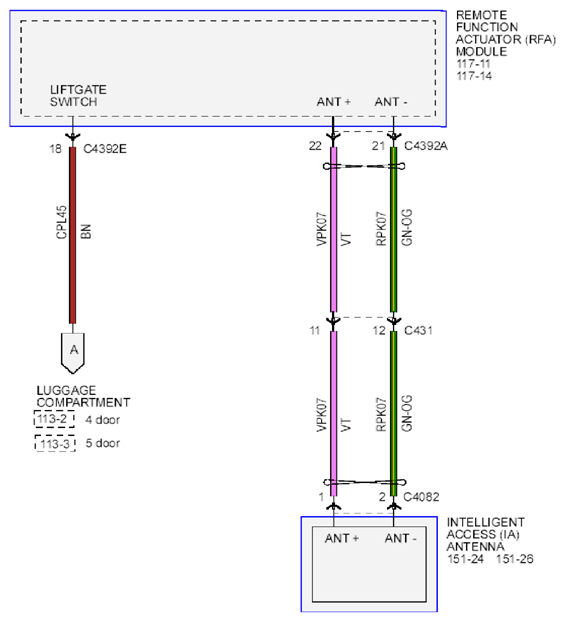

Fig 1: Luggage Compartment - Wiring Diagram (With IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
