Without Roof Opening Panel

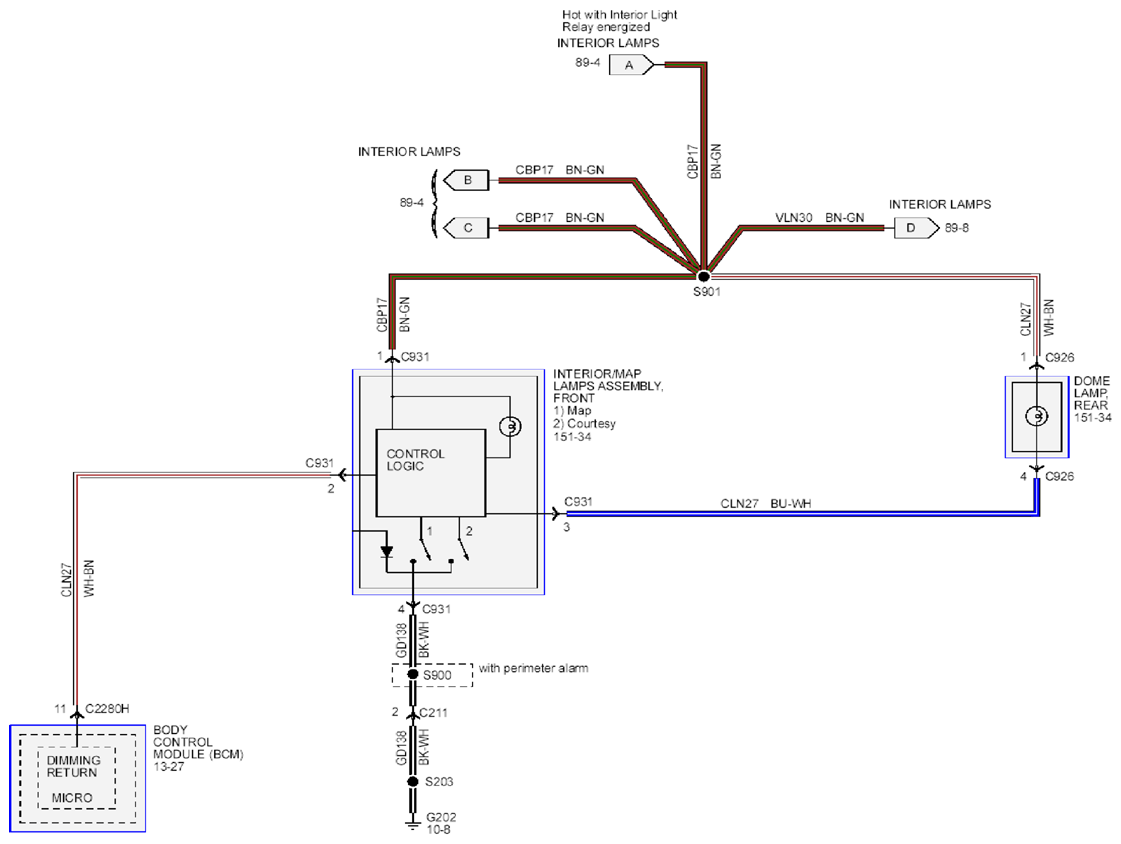

Fig 1: Interior Lamps - Wiring Diagram (Without Roof Opening Panel)

G09255311

Courtesy of FORD MOTOR CO.
