Without Door Modules

Fig 1: Interior Lamps - Wiring Diagram (1 Of 4)
G09255307Courtesy of FORD MOTOR CO.

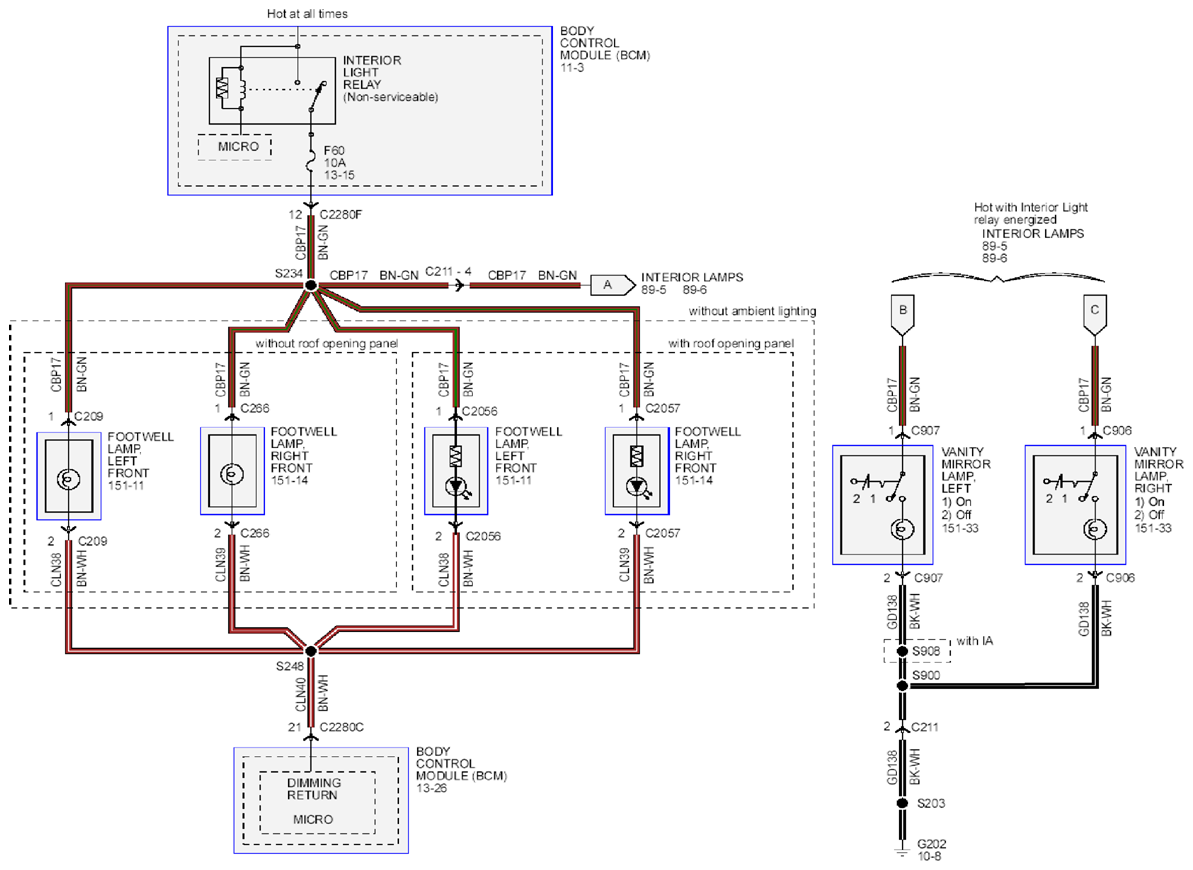

Fig 2: Interior Lamps - Wiring Diagram (2 Of 4)
G09255310Courtesy of FORD MOTOR CO.

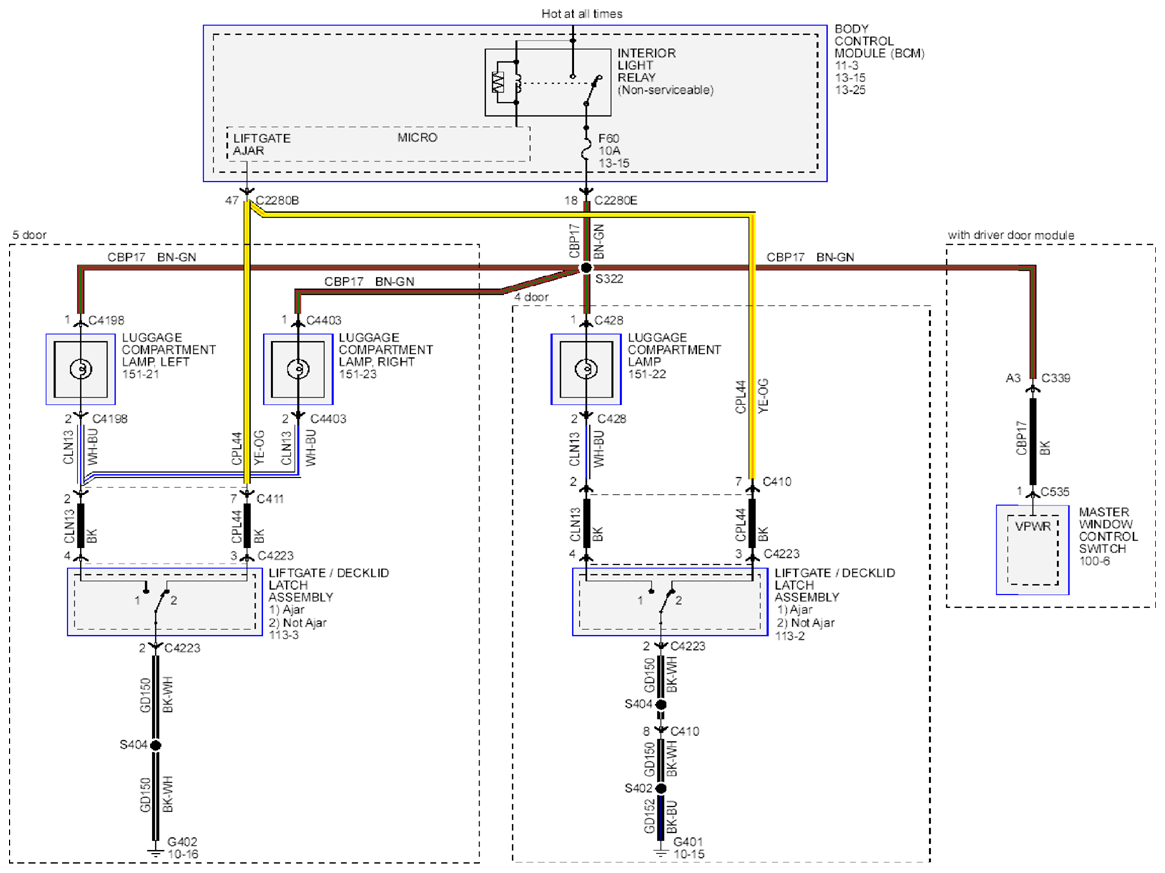

Fig 3: Interior Lamps - Wiring Diagram (3 Of 4)
G09255313Courtesy of FORD MOTOR CO.

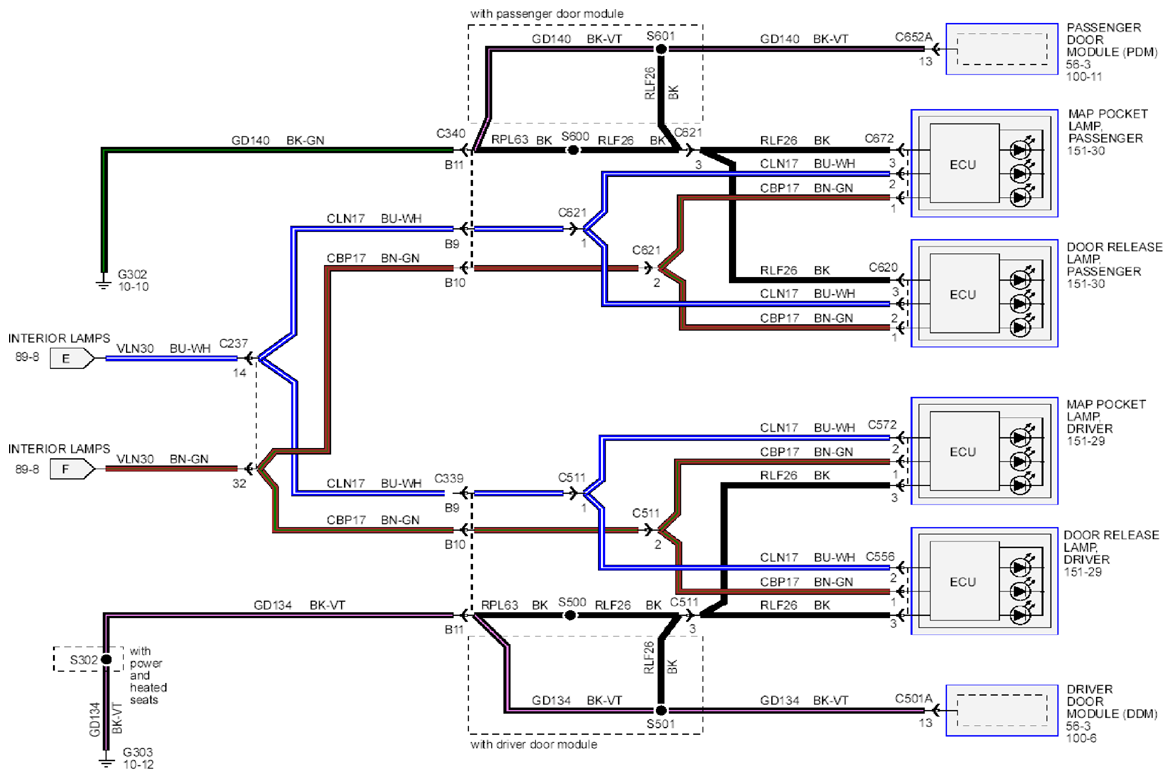

Fig 4: Interior Lamps - Wiring Diagram (4 Of 4)
G09255315Courtesy of FORD MOTOR CO.
