OEM Wiring Diagrams -- Except Electric
>>
Interior Lamps
>>
With Roof Opening Panel
With Roof Opening Panel

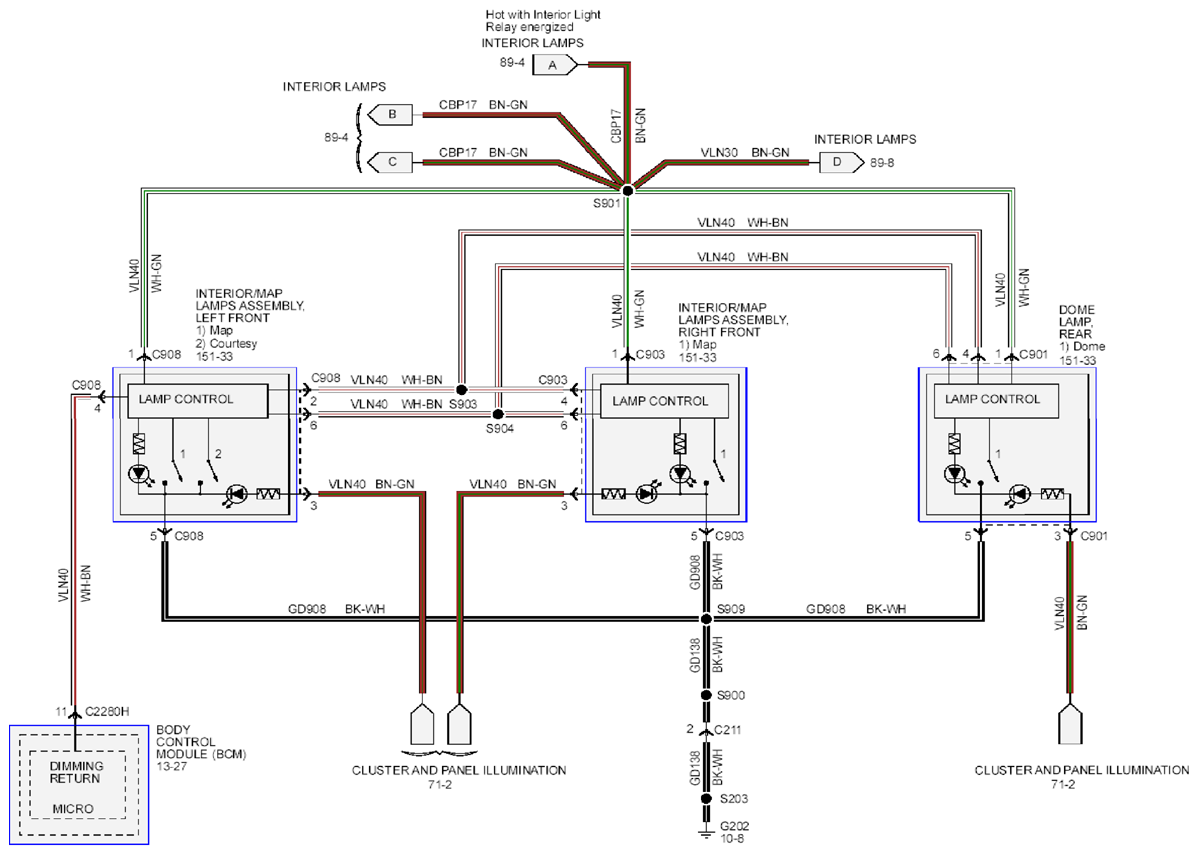

Fig 1: Interior Lamps - Wiring Diagram (With Roof Opening Panel)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
