Home >> Ford >> 2014 >> Focus ST >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- Except Electric >> Interior Lamps >> With Door Modules

With Door Modules

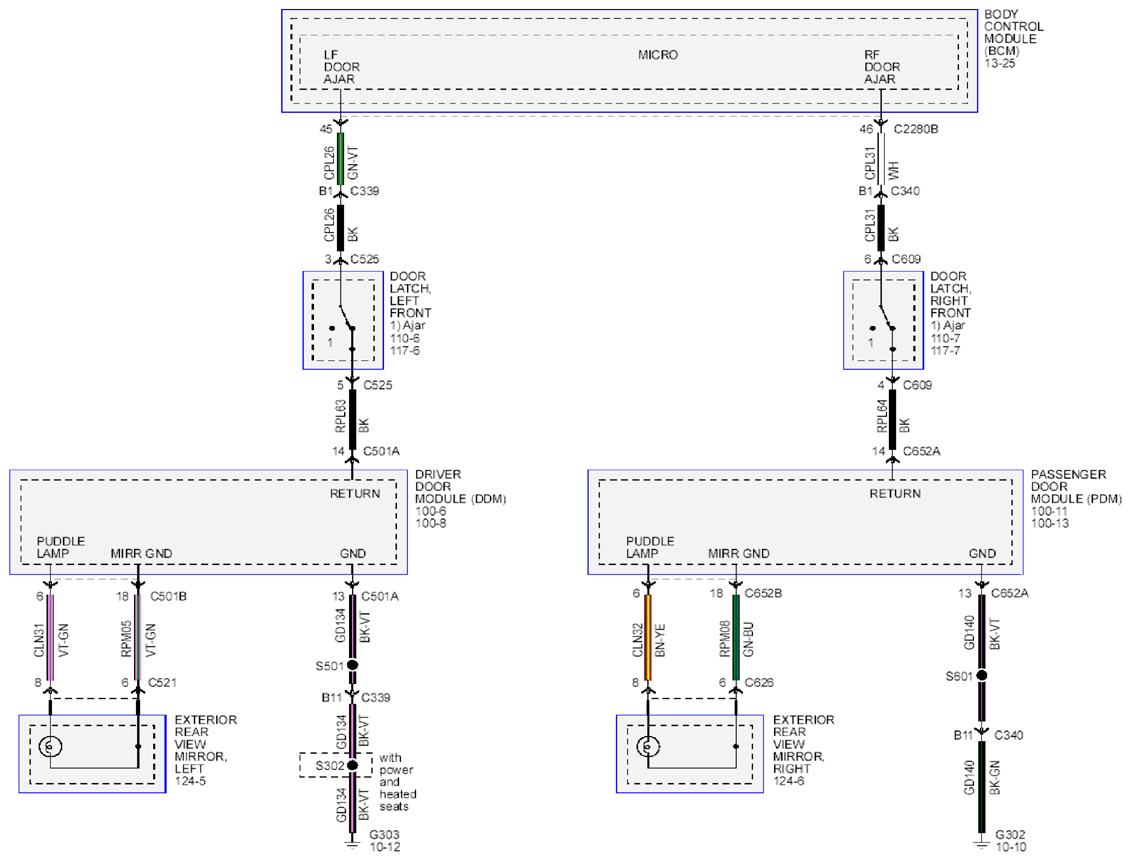

Fig 1: Interior Lamps - Wiring Diagram (With Door Modules; 1 Of 2)
G09255308Courtesy of FORD MOTOR CO.

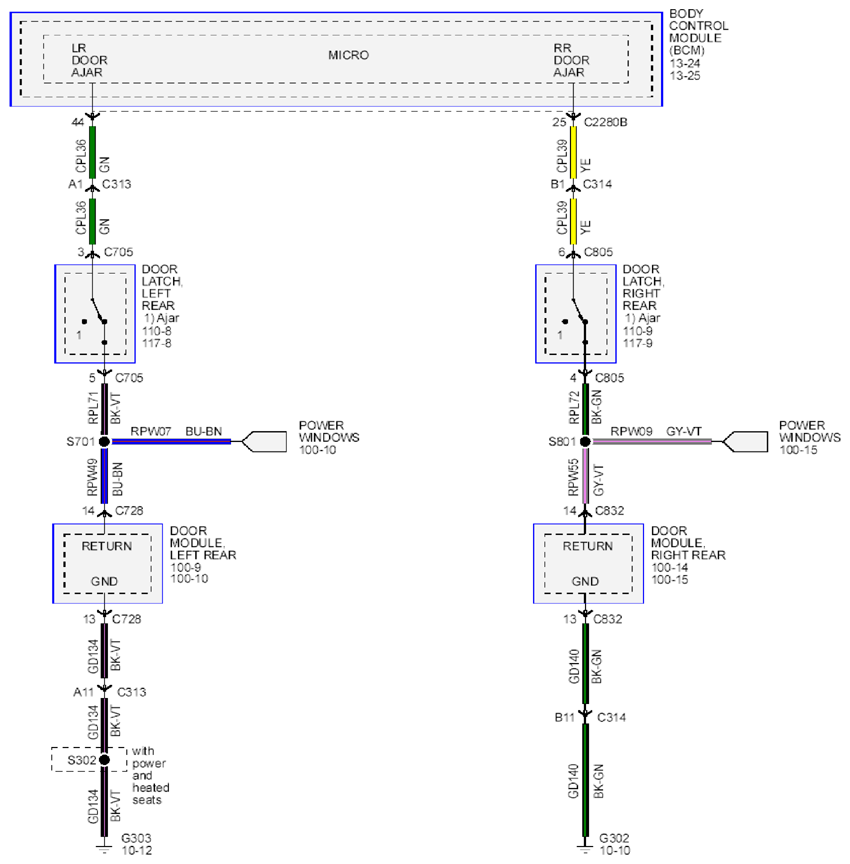

Fig 2: Interior Lamps - Wiring Diagram (With Door Modules; 2 Of 2)
G09255309Courtesy of FORD MOTOR CO.
