SONY Audio LH Upper Switch
SONY Audio LH Upper Switch

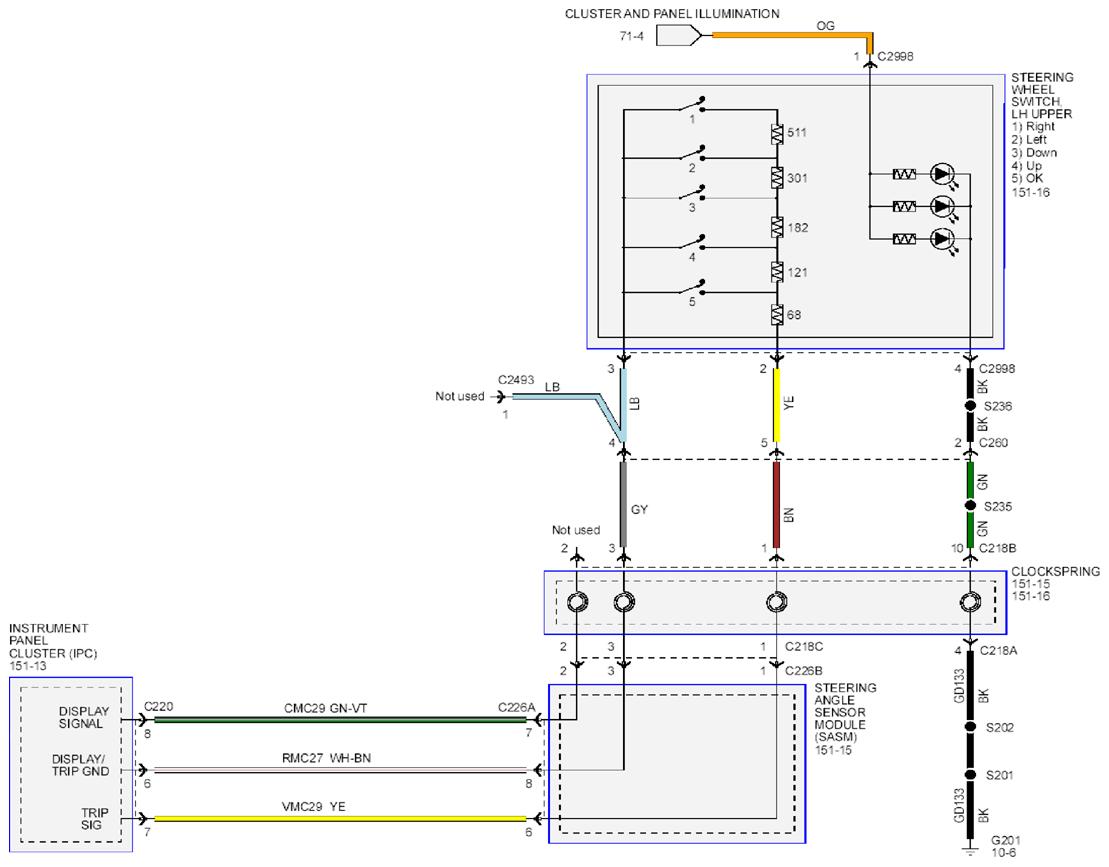

Fig 1: Instrument Cluster - Wiring Diagram (Sony Audio LH Upper Switch)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
