OEM Wiring Diagrams -- Except Electric
>>
Instrument Cluster
>>
Premium Audio LH Upper Switch
Premium Audio LH Upper Switch

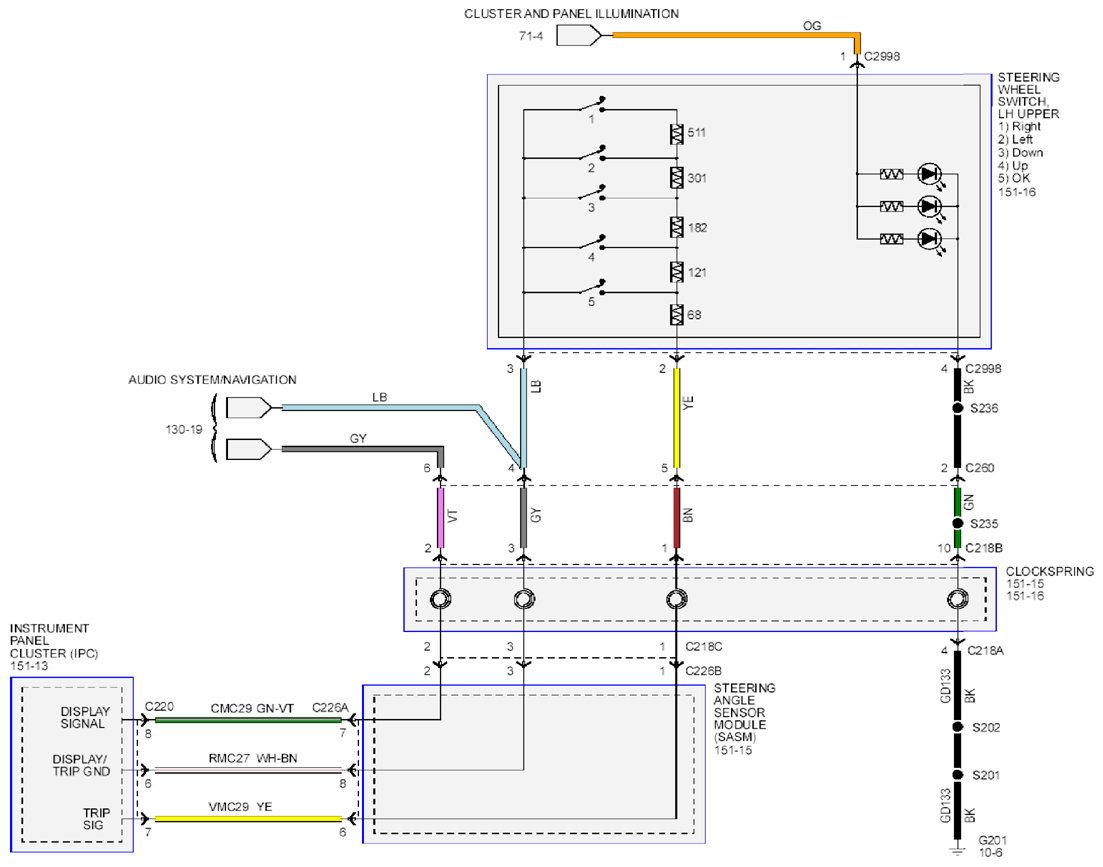

Fig 1: Instrument Cluster - Wiring Diagram (Premium Audio LH Upper Switch)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
