Ford
>>
2014
>>
Focus ST
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Except Electric
>>
Instrument Cluster
>>
Notes
Instrument Cluster: Notes

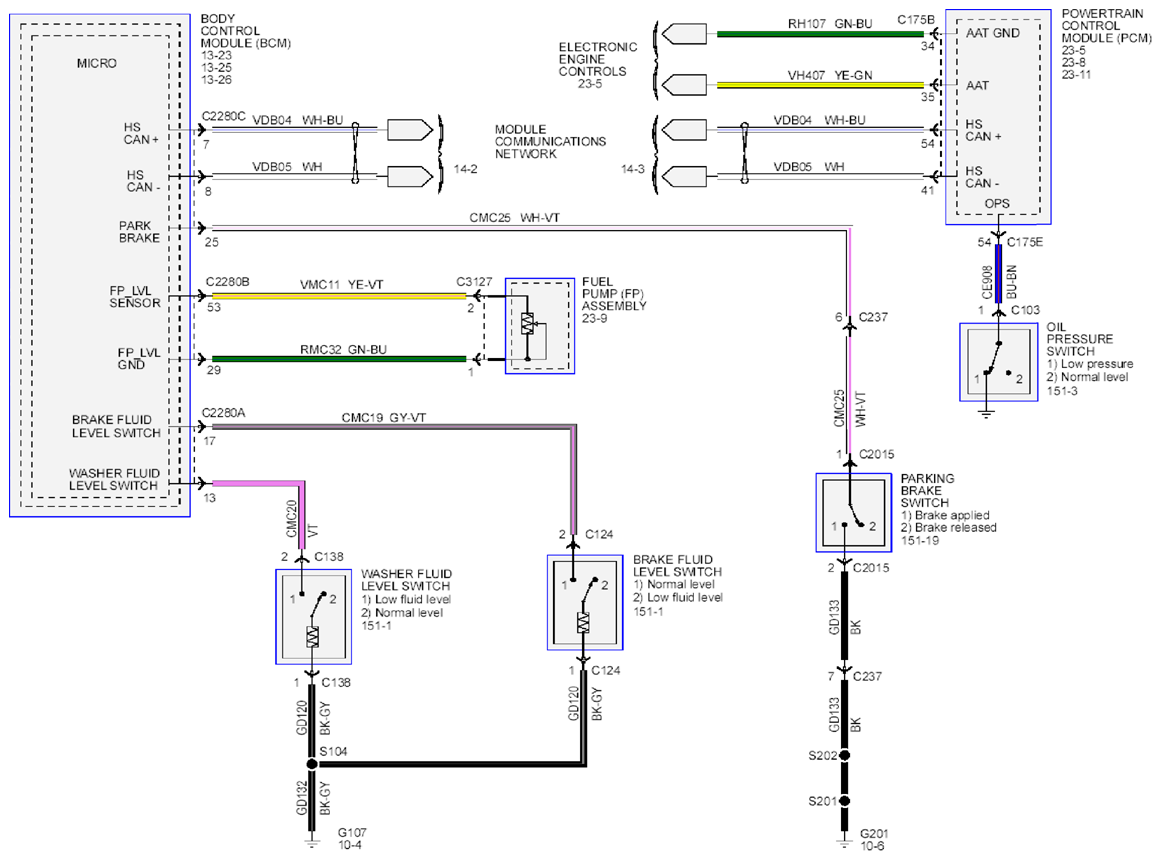

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

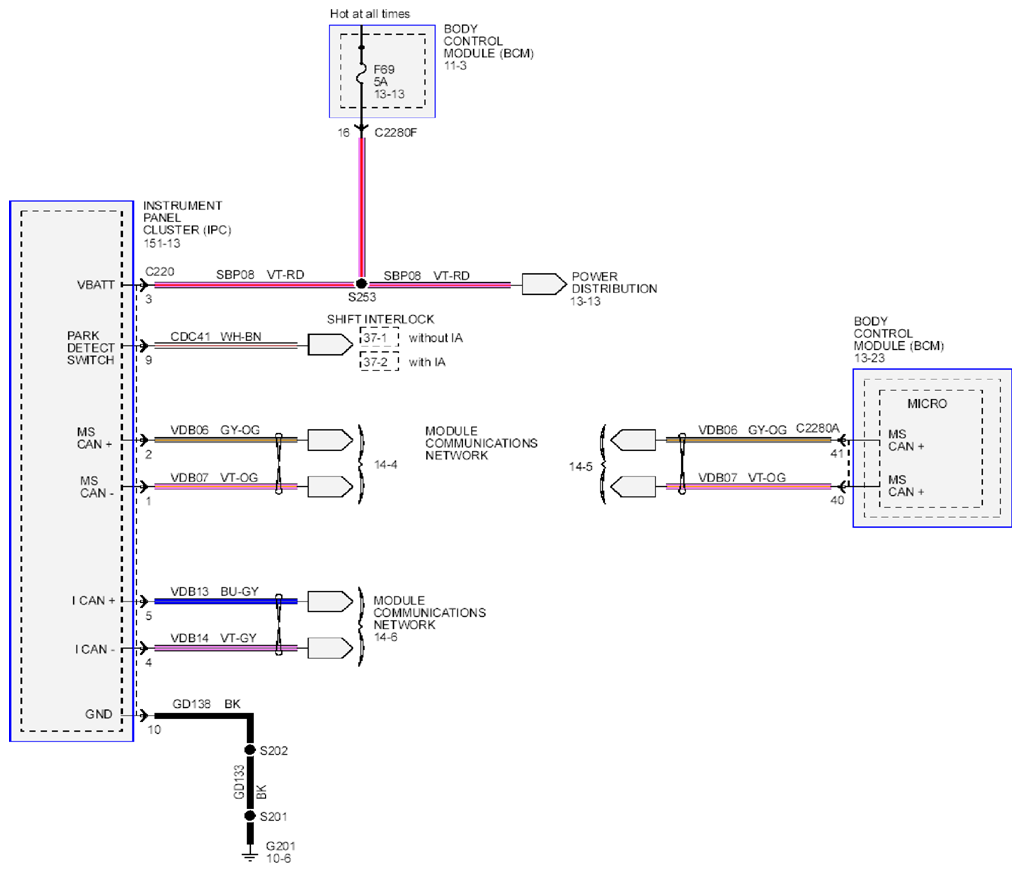

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
