Instrument Cluster: GTDI

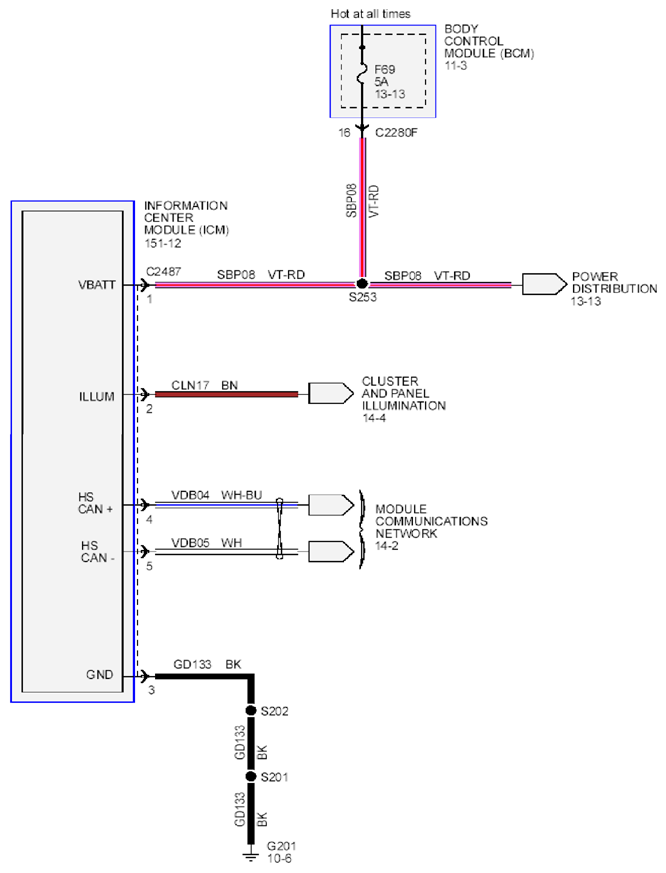

Fig 1: Instrument Cluster - Wiring Diagram (GTDI)
G09255292Courtesy of FORD MOTOR CO.
