Horn/Cigar Lighter
Horn/Cigar Lighter

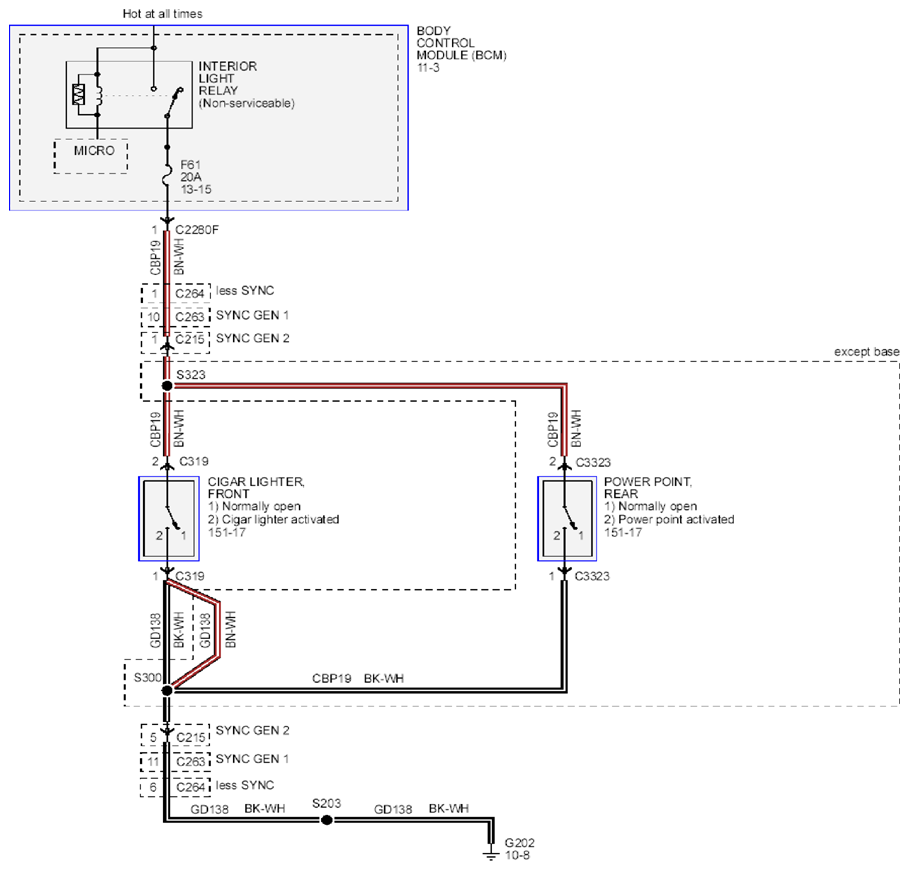

Fig 1: Horn/Cigar Lighter - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

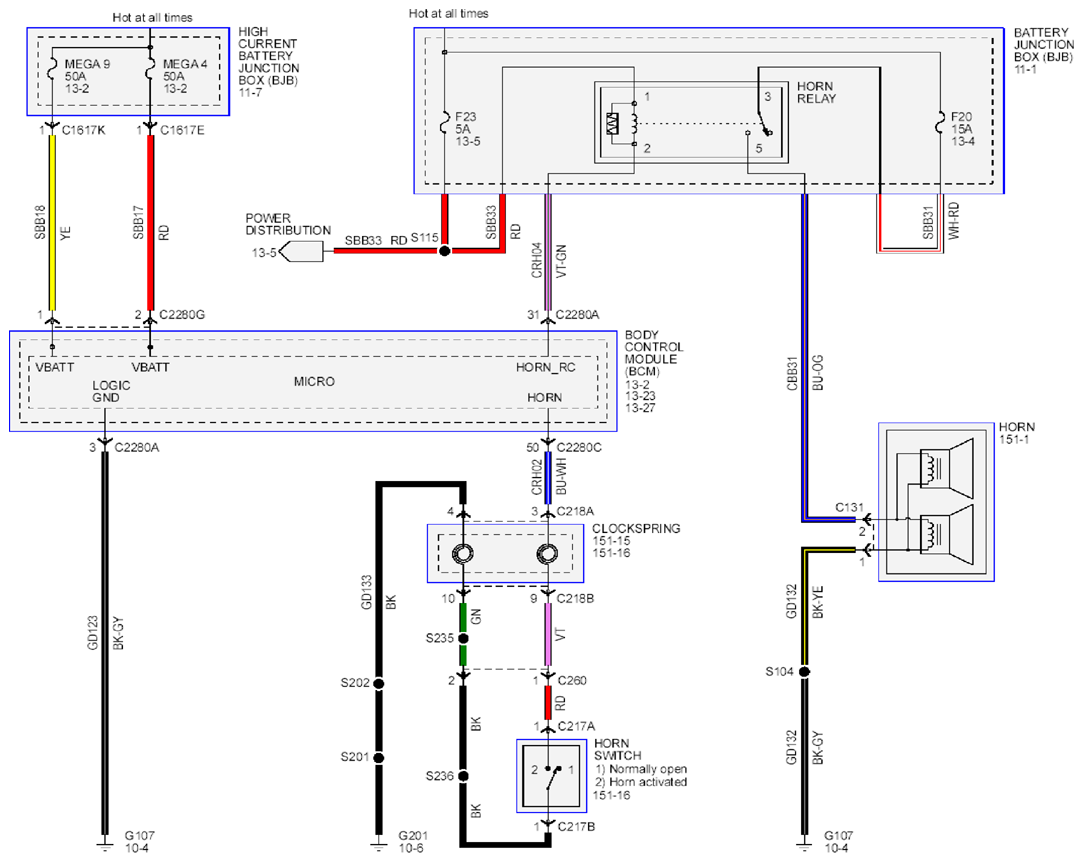

Fig 2: Horn/Cigar Lighter - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
