OEM Wiring Diagrams -- Except Electric: Headlamps/AUTOLAMPS: Notes

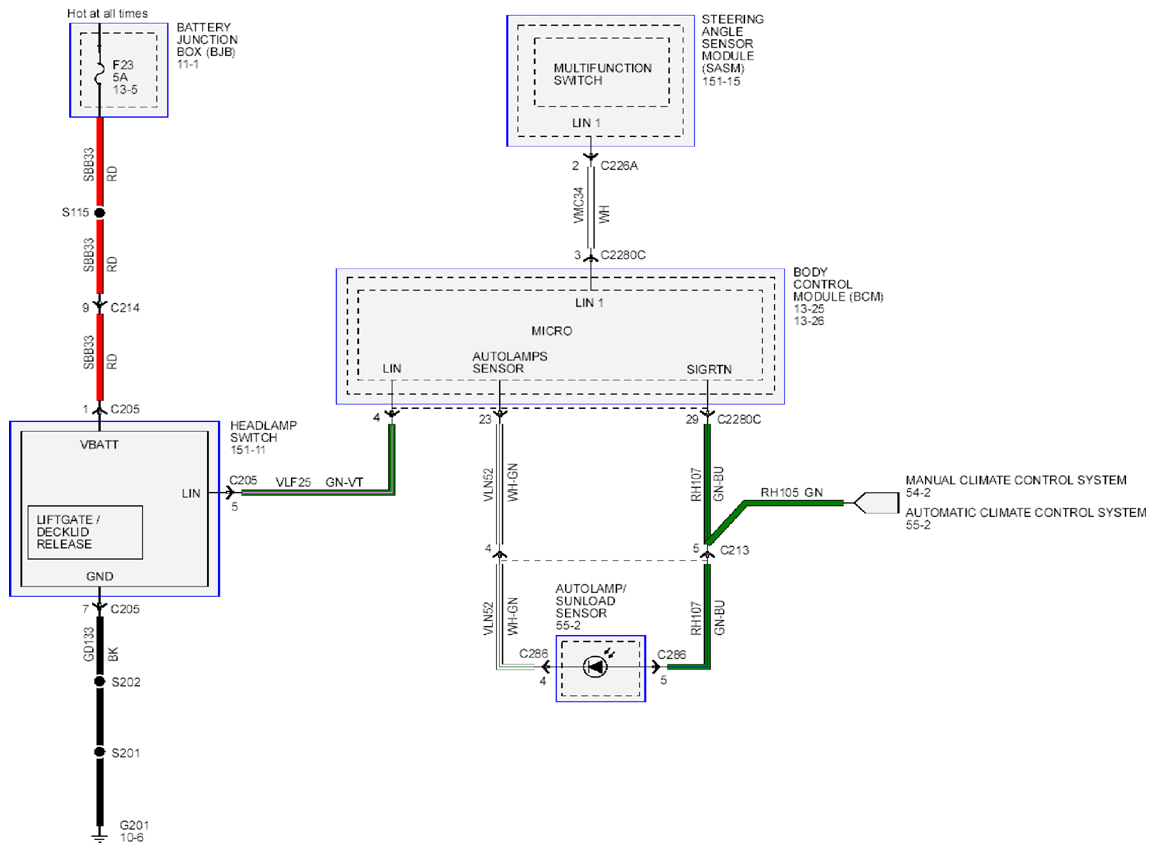

Fig 1: Headlamps Autolamps - Wiring Diagram

G09255302

Courtesy of FORD MOTOR CO.
