OEM Wiring Diagrams -- Except Electric: Headlamps/AUTOLAMPS: Hid

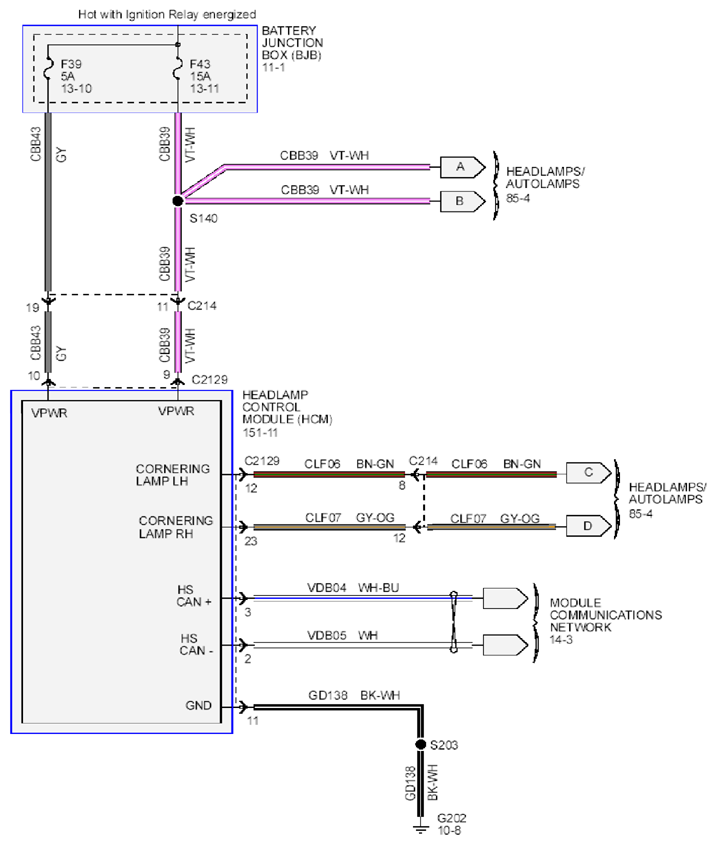

Fig 1: Headlamps Autolamps - Wiring Diagram (HID; 1 Of 2)

Courtesy of FORD MOTOR CO.

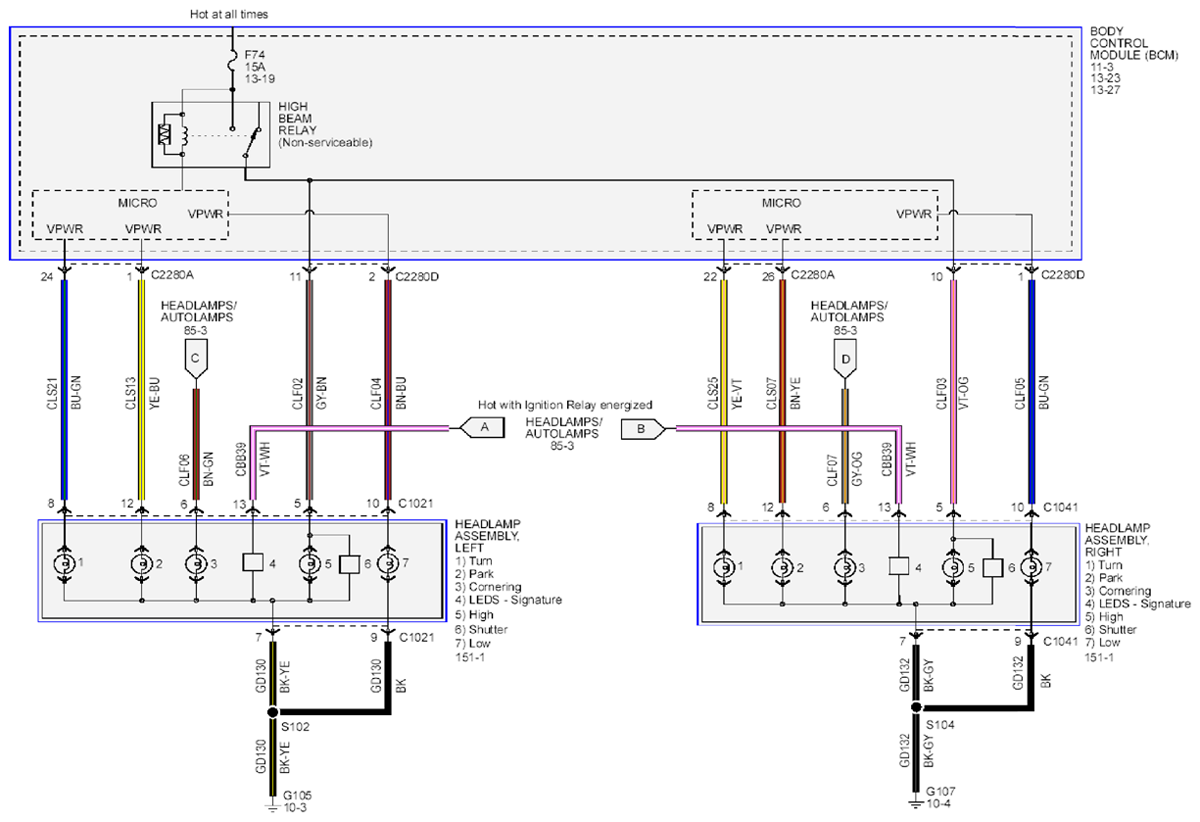

Fig 2: Headlamps Autolamps - Wiring Diagram (HID; 2 Of 2)

Courtesy of FORD MOTOR CO.
