Electronic Engine Controls - 2.0L GTDI

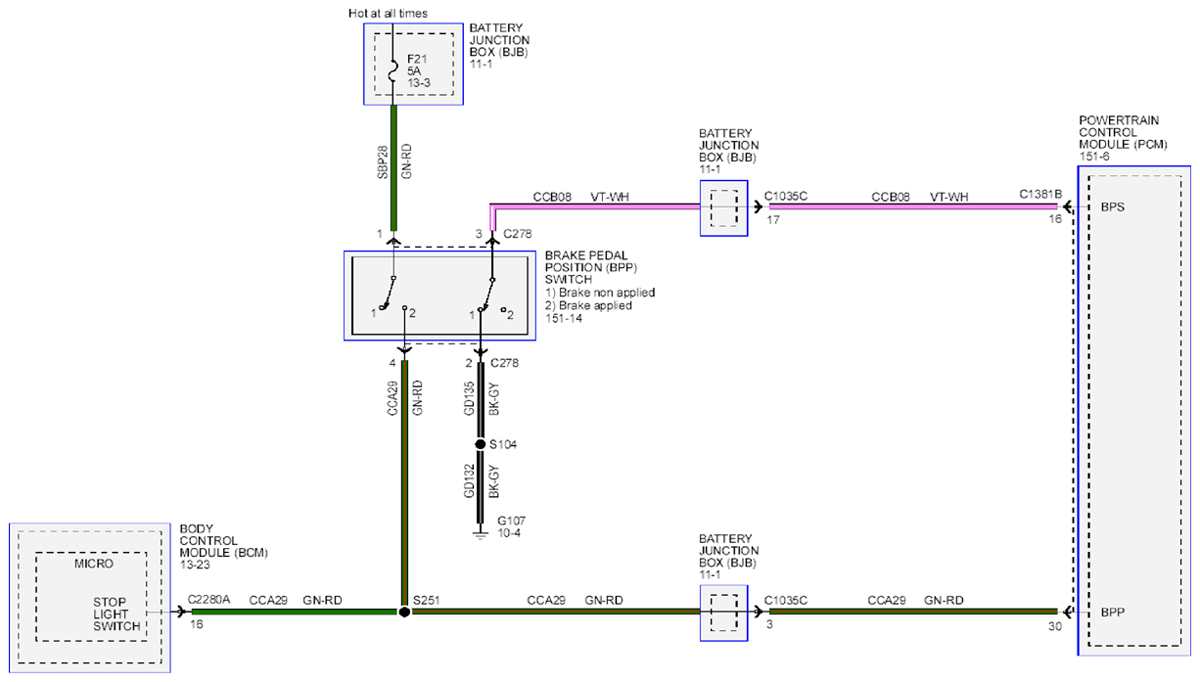

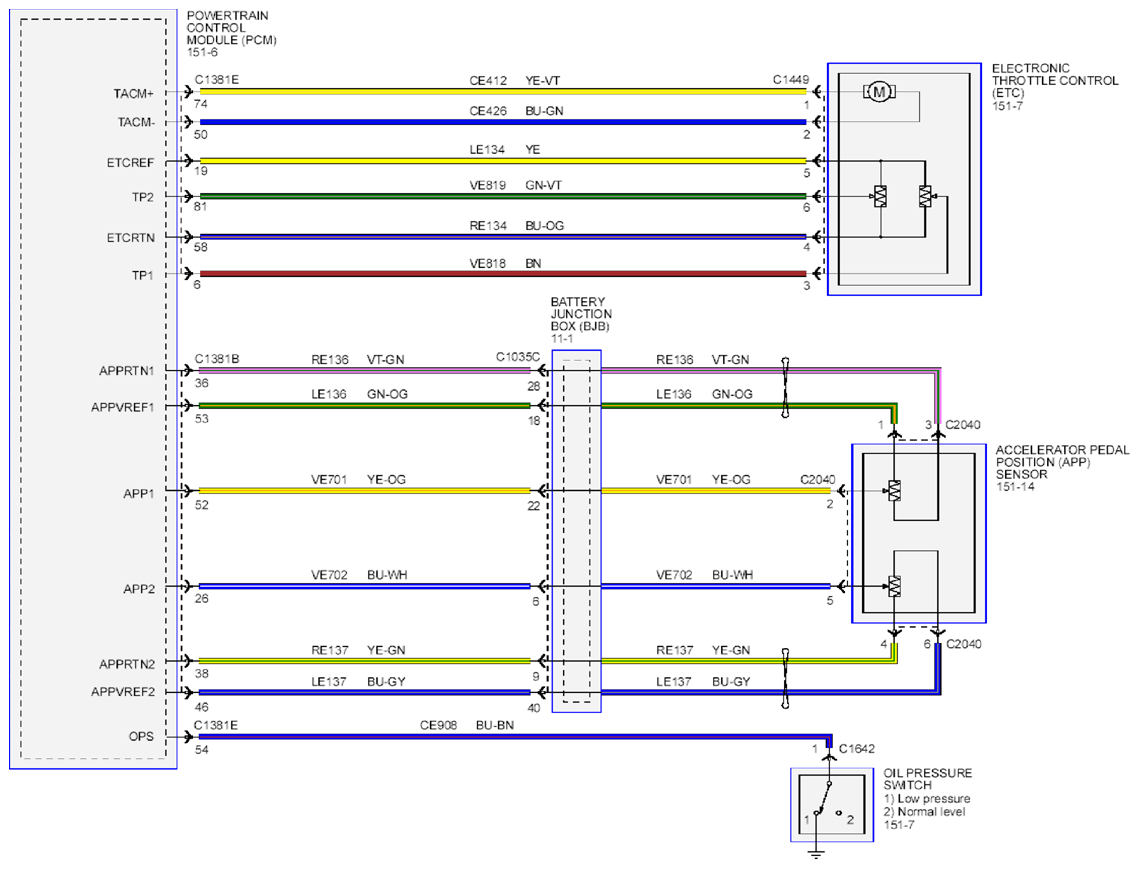

Fig 1: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (1 Of 12)

Courtesy of FORD MOTOR CO.

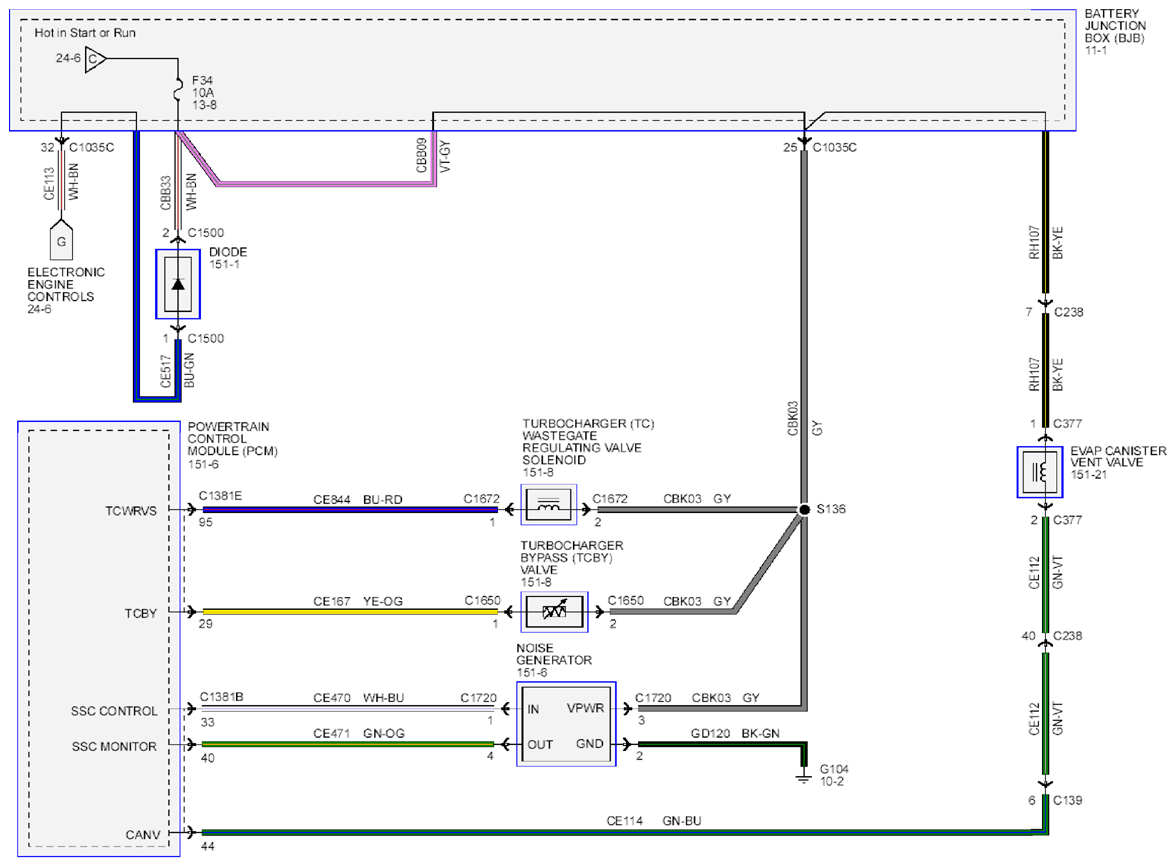

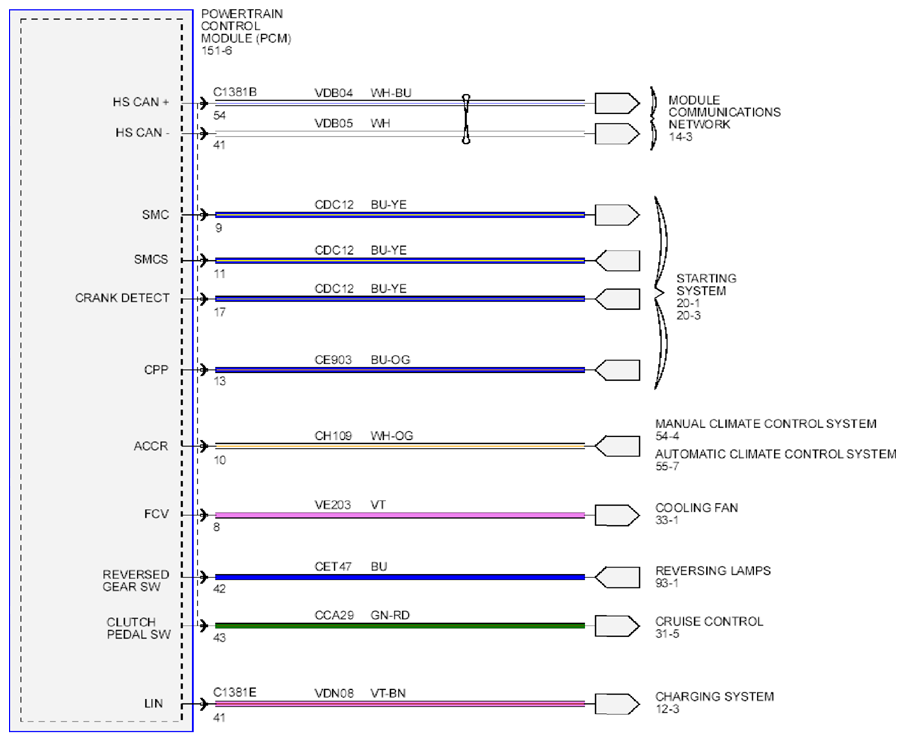

Fig 2: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (2 Of 12)

Courtesy of FORD MOTOR CO.

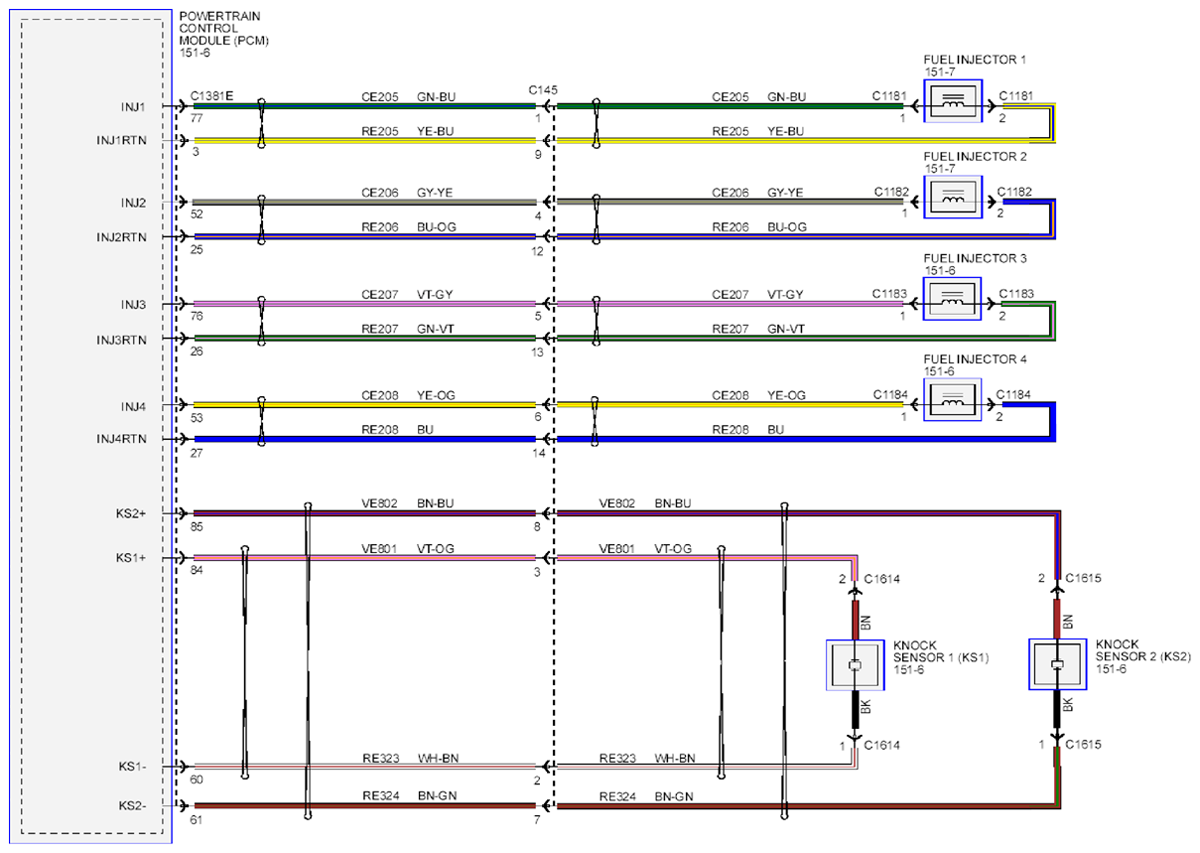

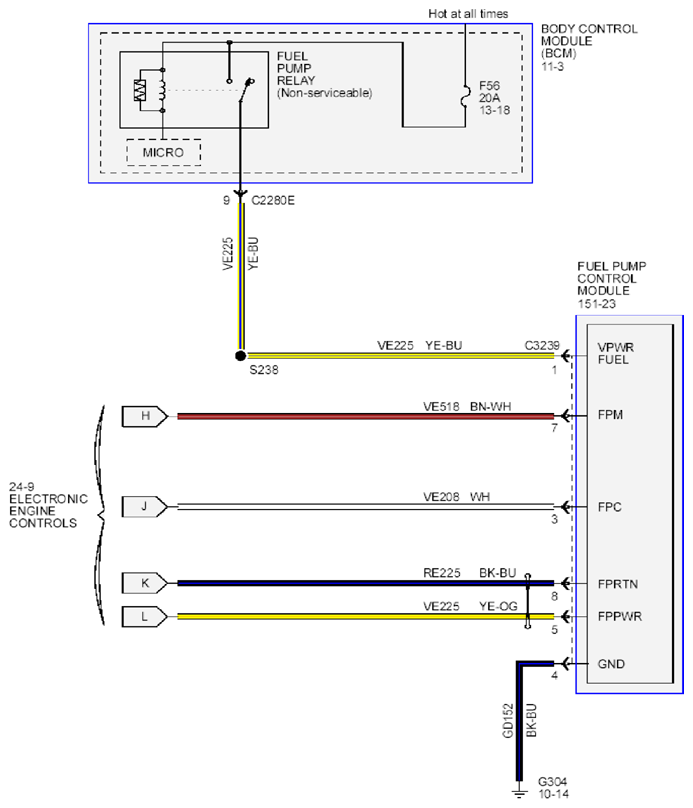

Fig 3: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (3 Of 12)

Courtesy of FORD MOTOR CO.

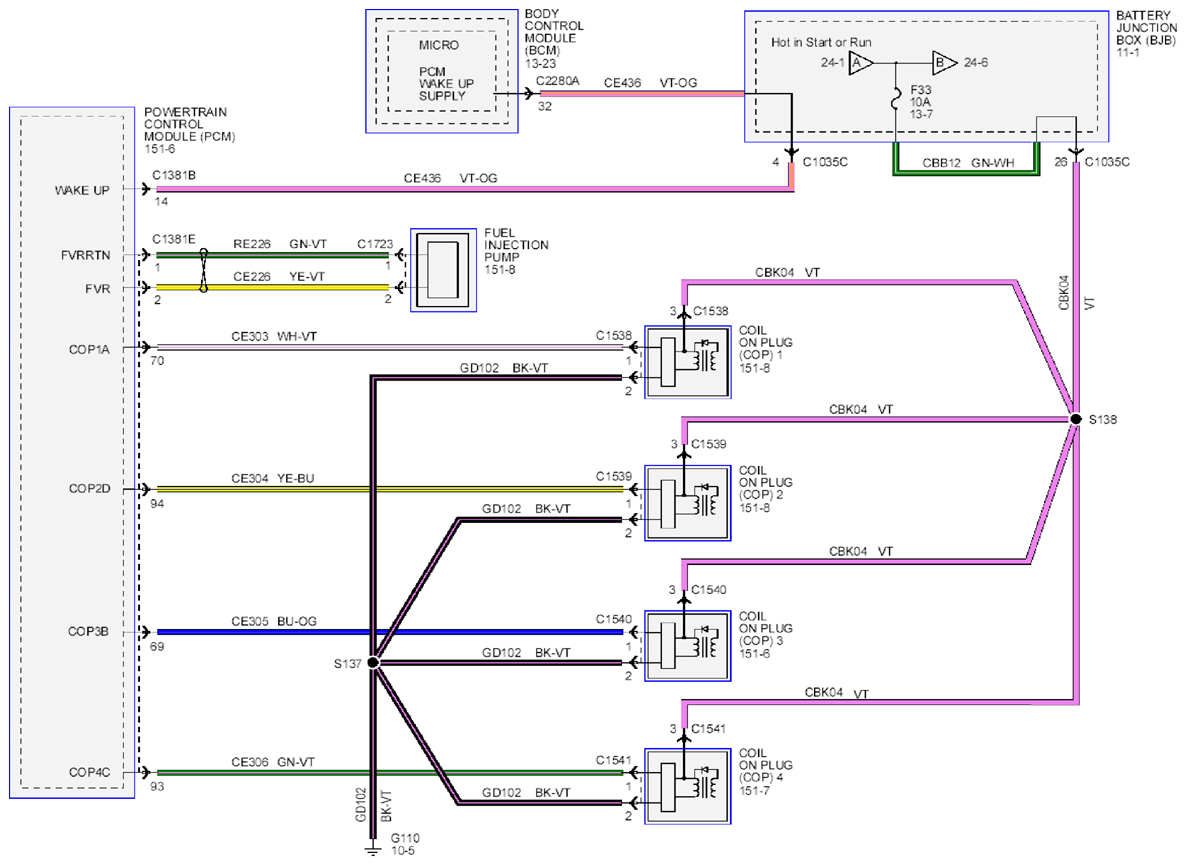

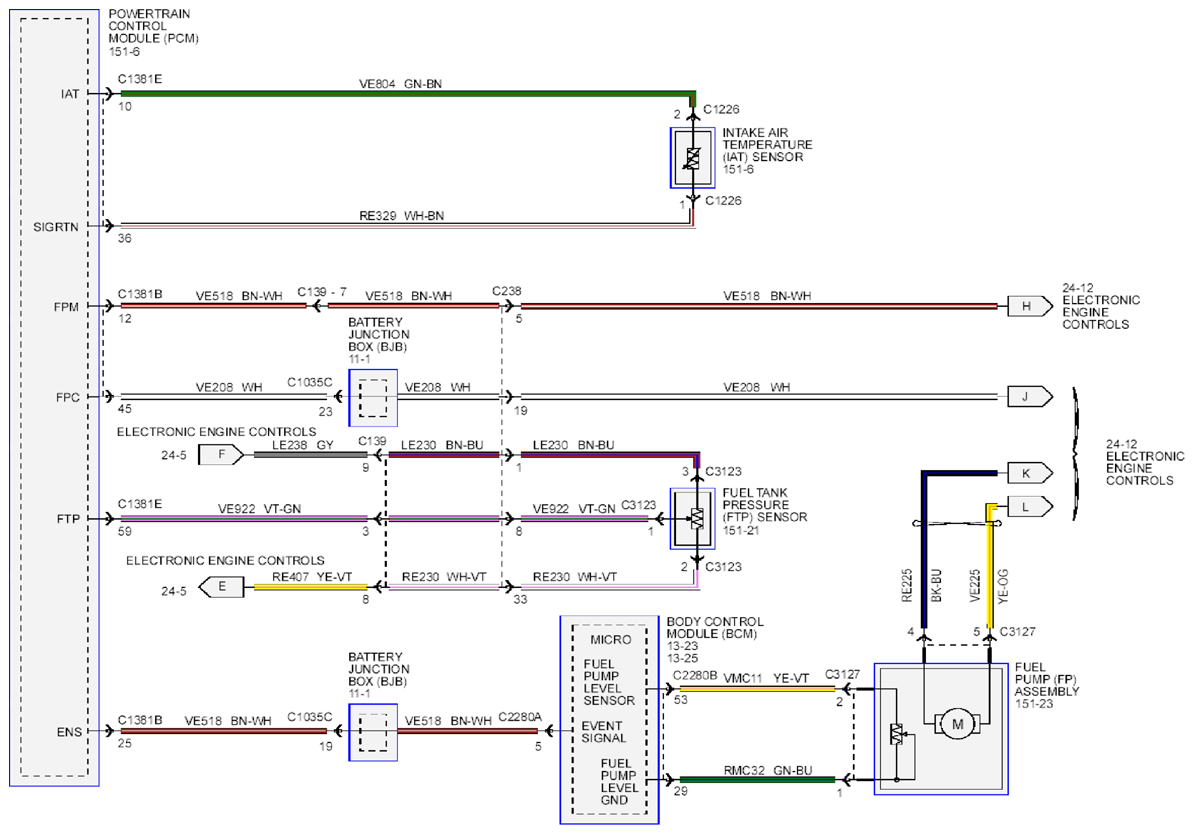

Fig 4: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (4 Of 12)

Courtesy of FORD MOTOR CO.

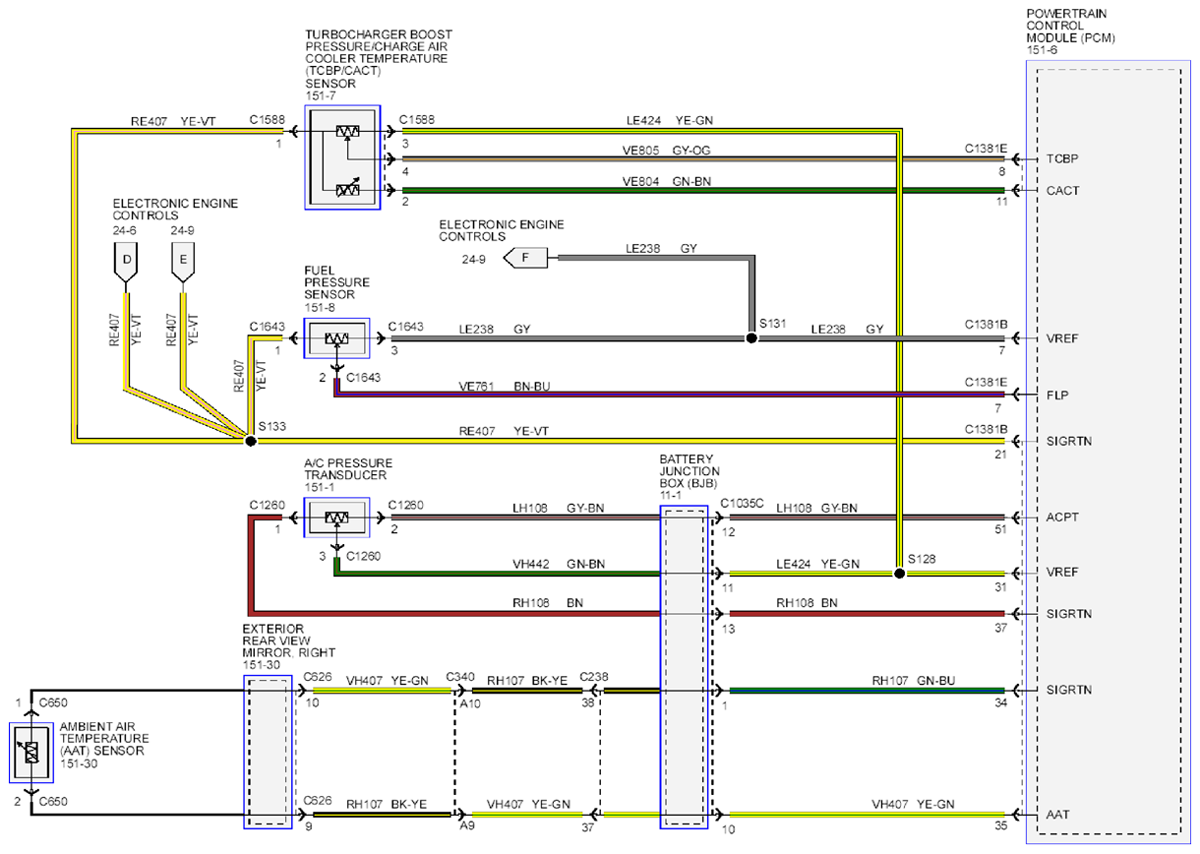

Fig 5: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (5 Of 12)

Courtesy of FORD MOTOR CO.

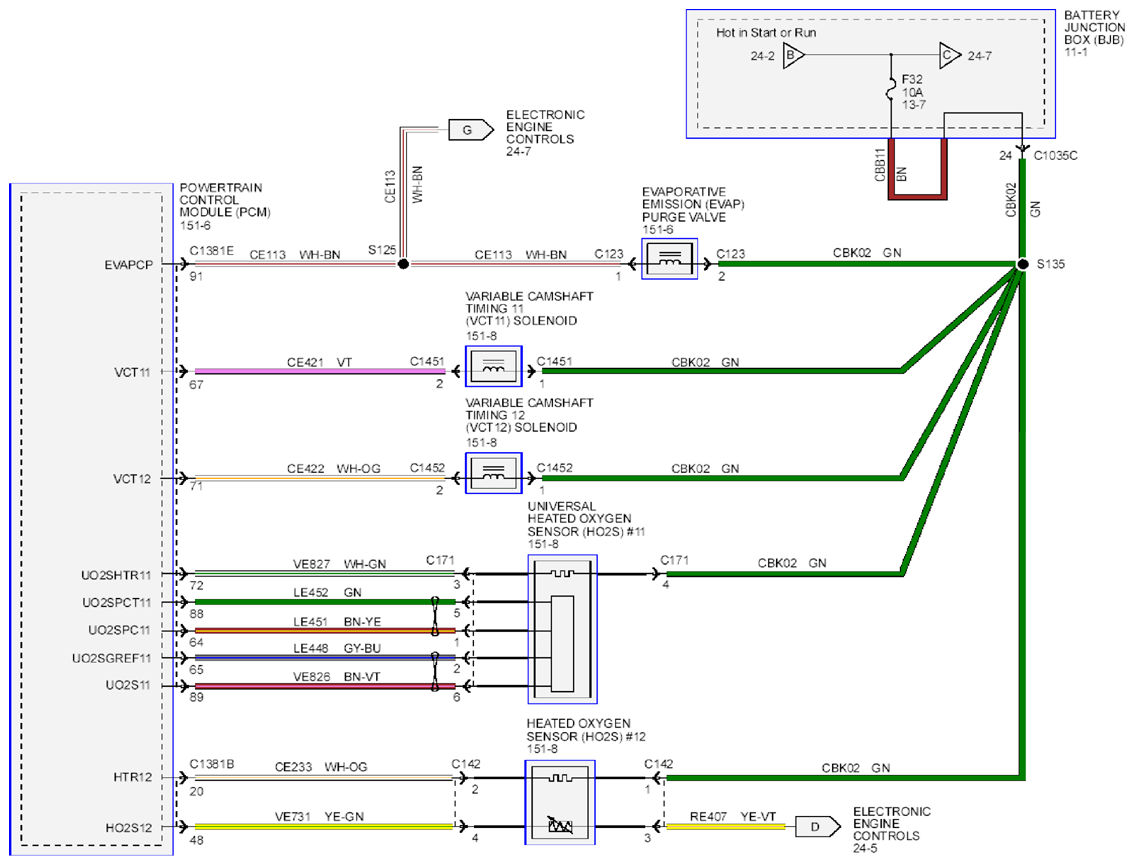

Fig 6: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (6 Of 12)

Courtesy of FORD MOTOR CO.

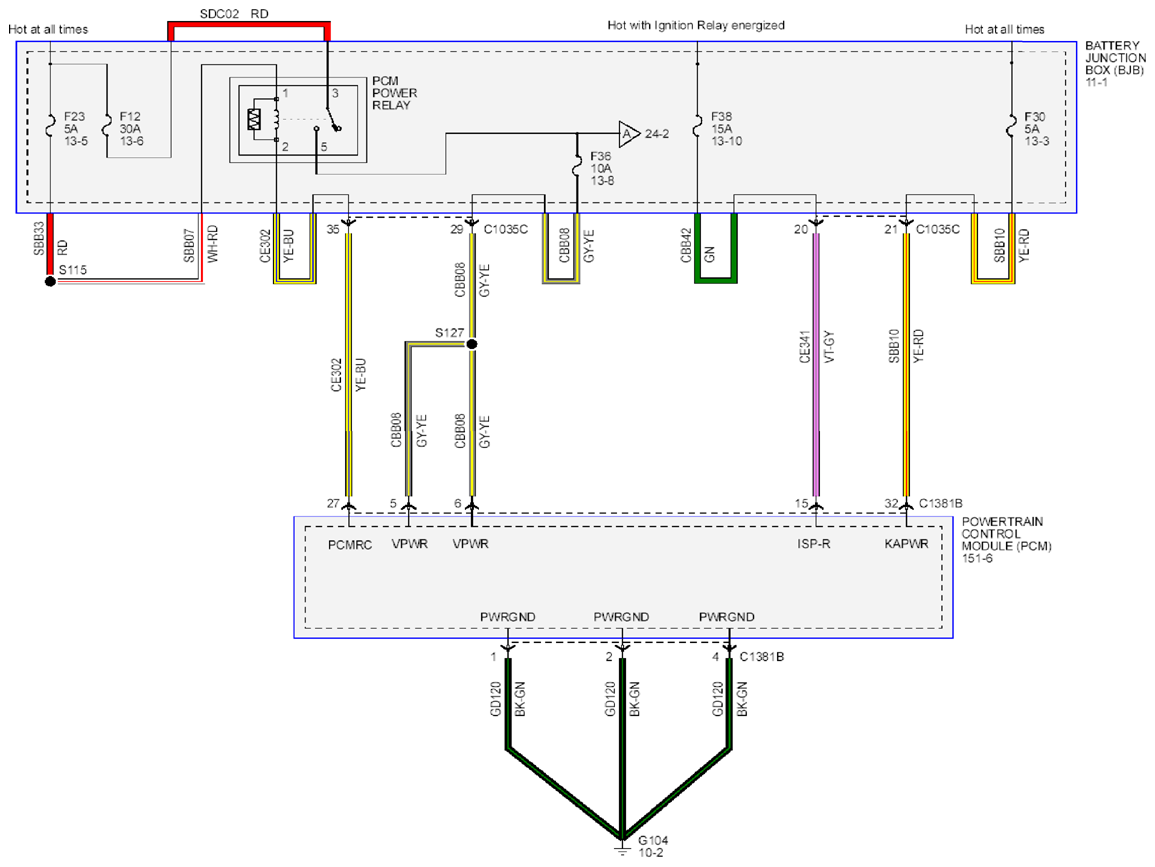

Fig 7: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (7 Of 12)

Courtesy of FORD MOTOR CO.

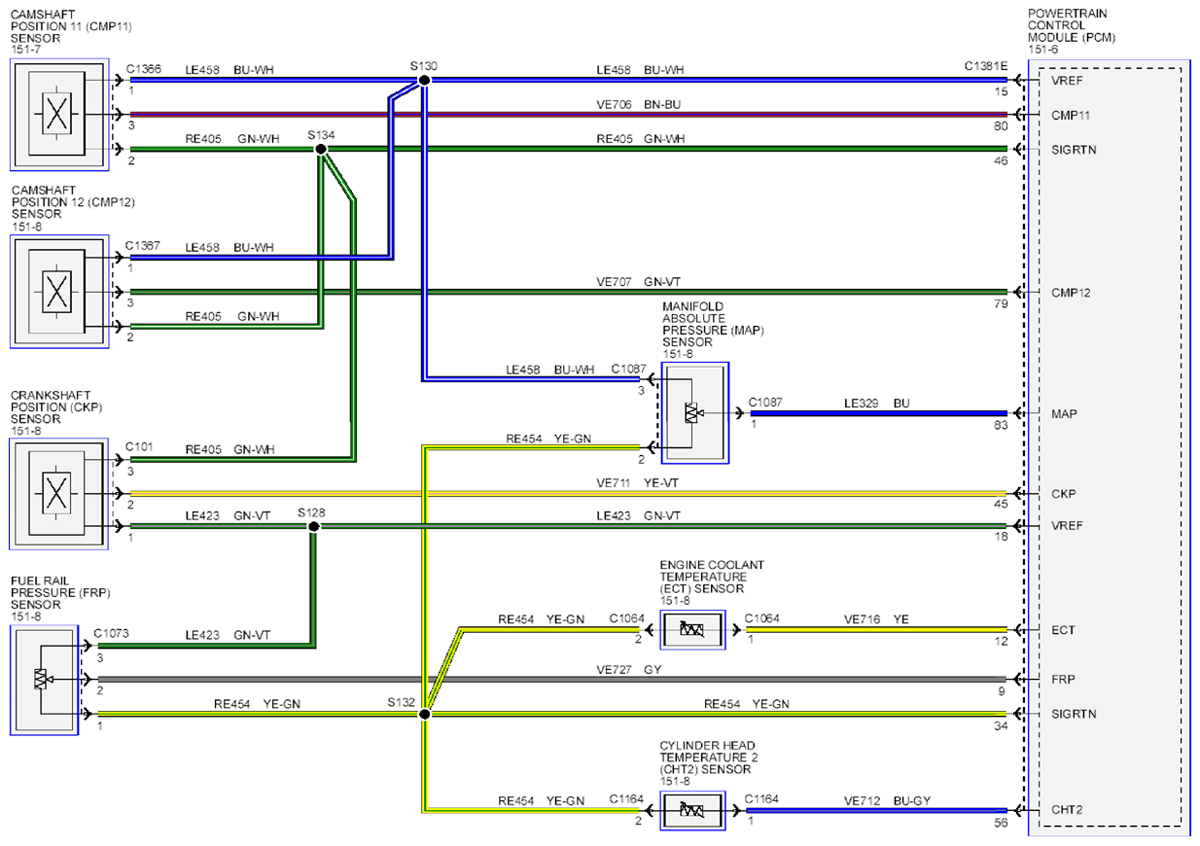

Fig 8: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (8 Of 12)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (9 Of 12)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (10 Of 12)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (11 Of 12)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls - Wiring Diagram - 2.0L GTDI (12 Of 12)

Courtesy of FORD MOTOR CO.
