Electronic Engine Controls - 2.0L GDI

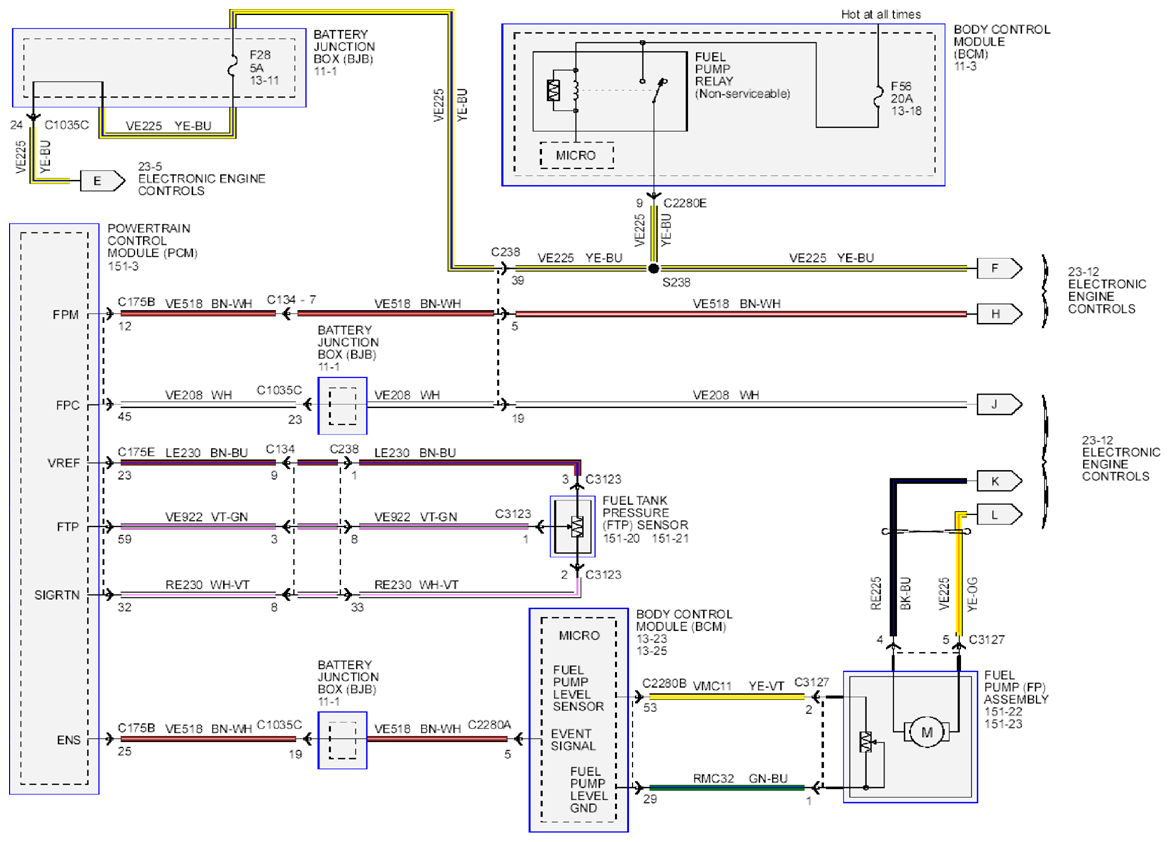

Fig 1: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (1 Of 12)

Courtesy of FORD MOTOR CO.

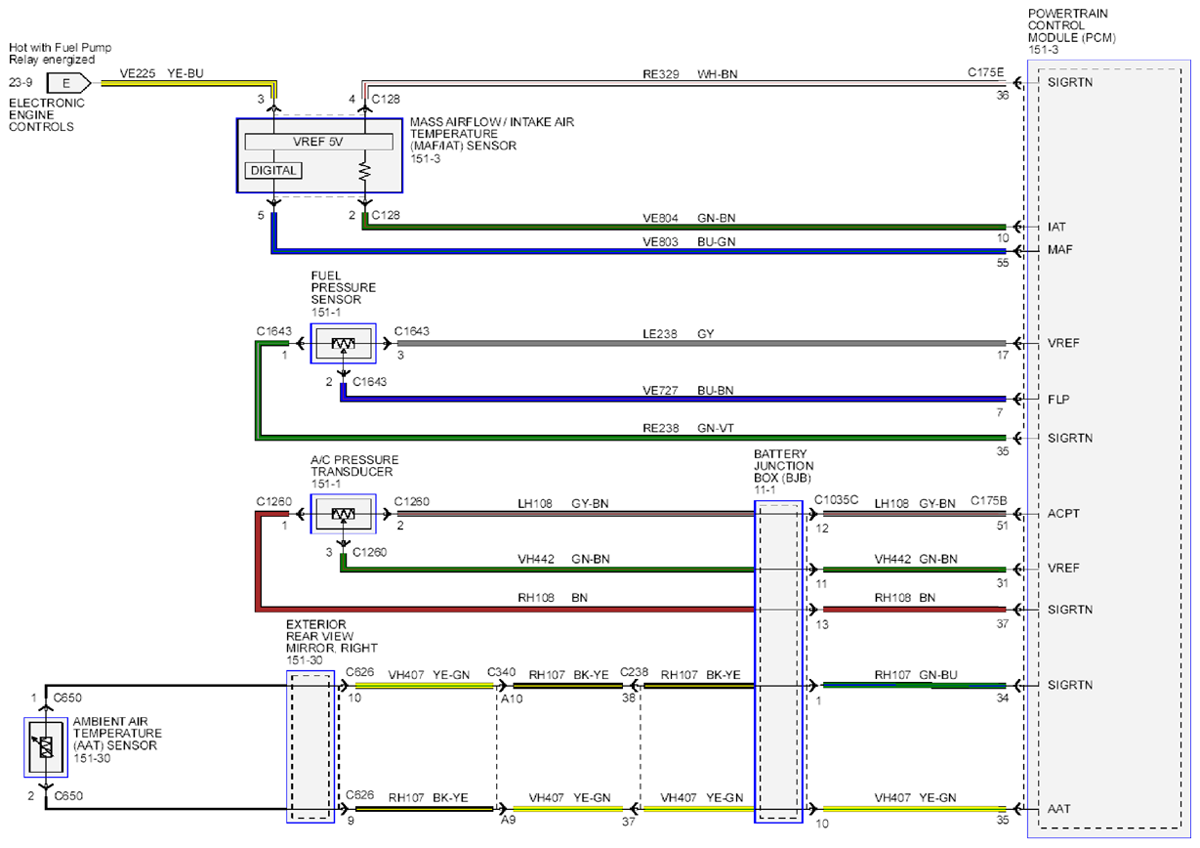

Fig 2: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (2 Of 12)

Courtesy of FORD MOTOR CO.

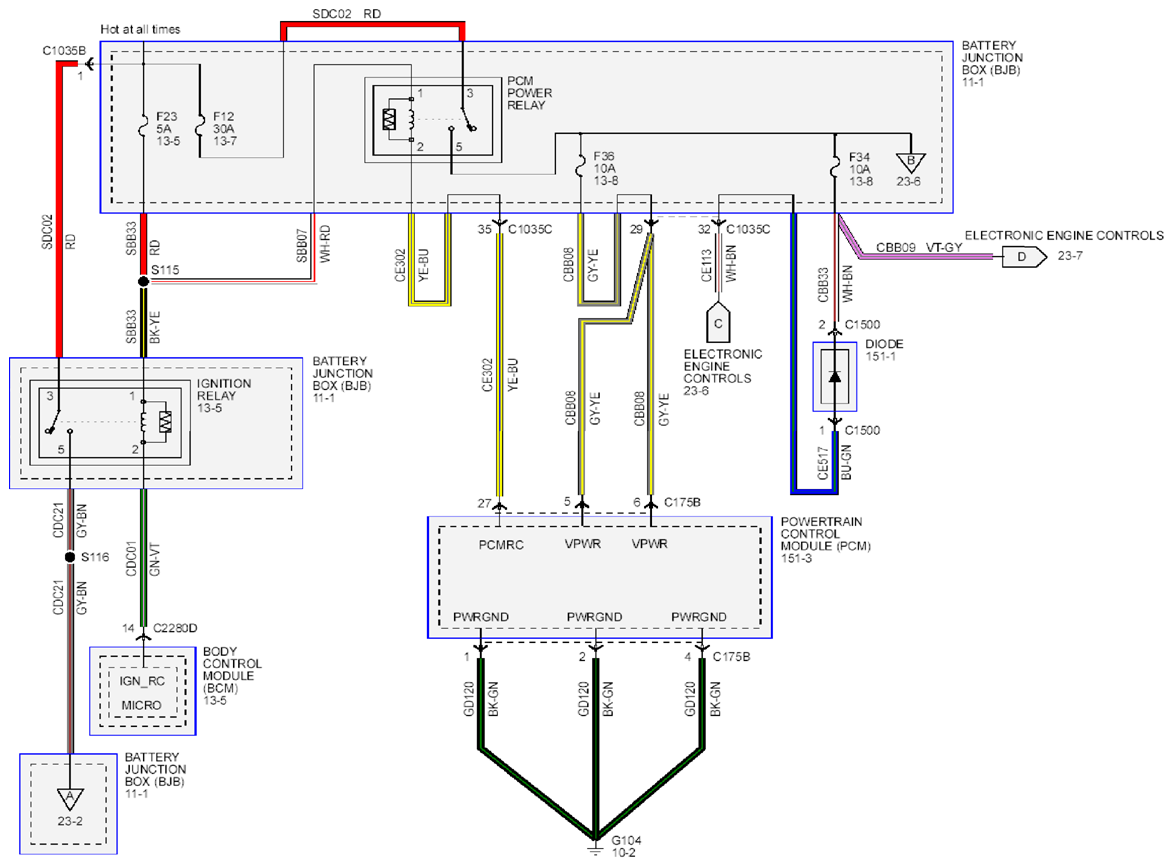

Fig 3: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (3 Of 12)

Courtesy of FORD MOTOR CO.

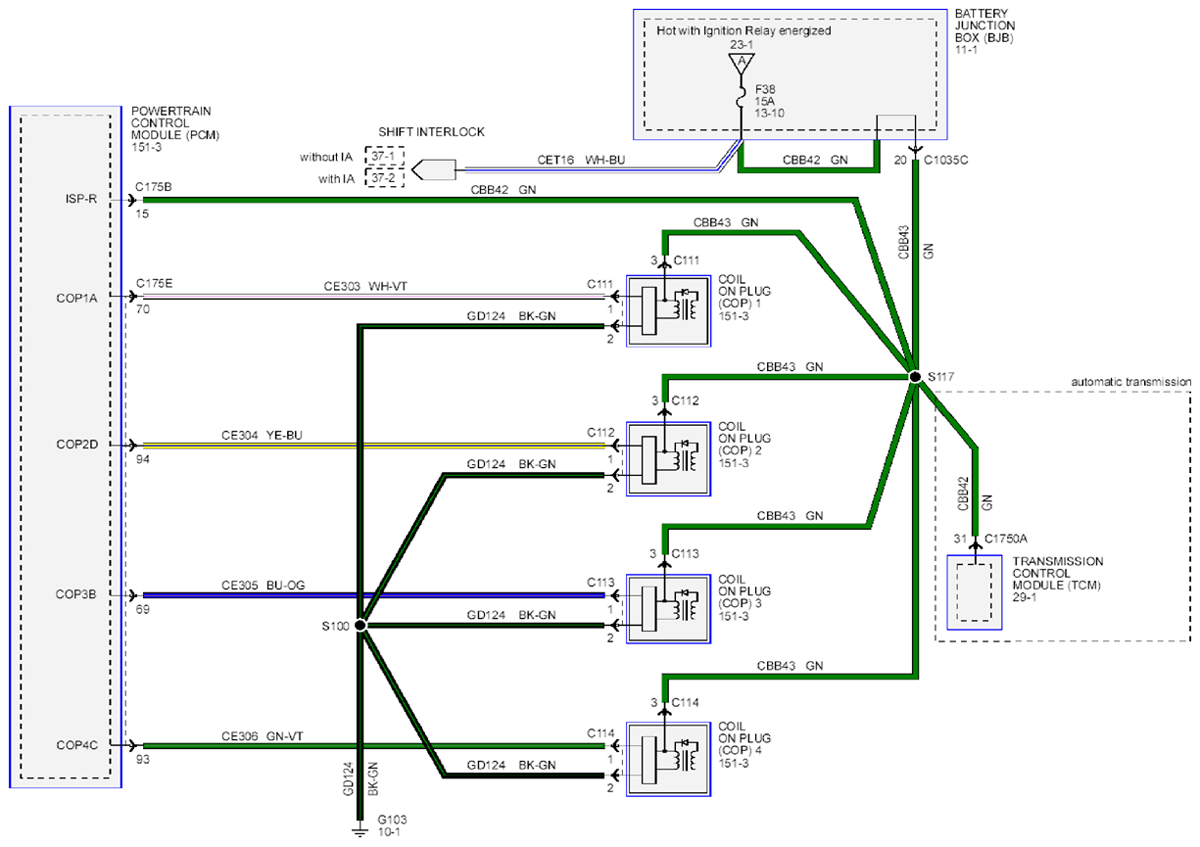

Fig 4: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (4 Of 12)

Courtesy of FORD MOTOR CO.

Fig 5: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (5 Of 12)

Courtesy of FORD MOTOR CO.

Fig 6: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (6 Of 12)

Courtesy of FORD MOTOR CO.

Fig 7: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (7 Of 12)

Courtesy of FORD MOTOR CO.

Fig 8: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (8 Of 12)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (9 Of 12)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (10 Of 12)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (11 Of 12)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls - Wiring Diagram - 2.0L GDI (12 Of 12)

Courtesy of FORD MOTOR CO.
