Cruise Control
Cruise Control

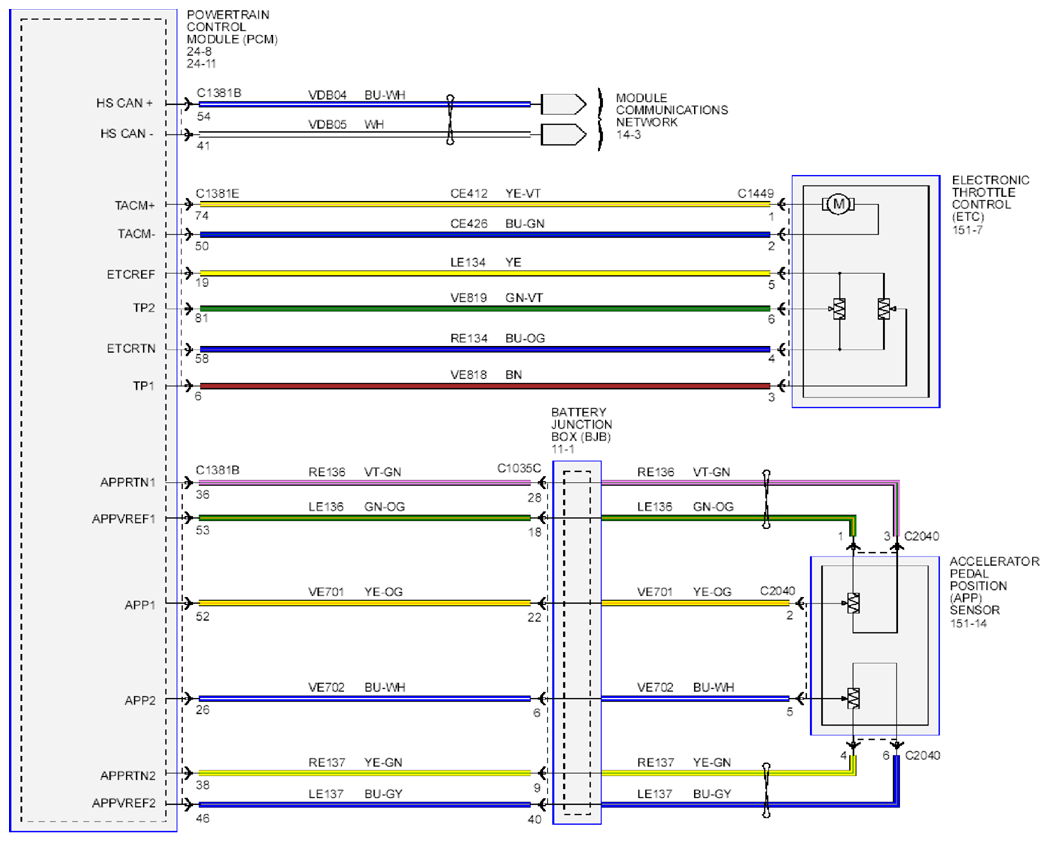

Fig 1: Cruise Control - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

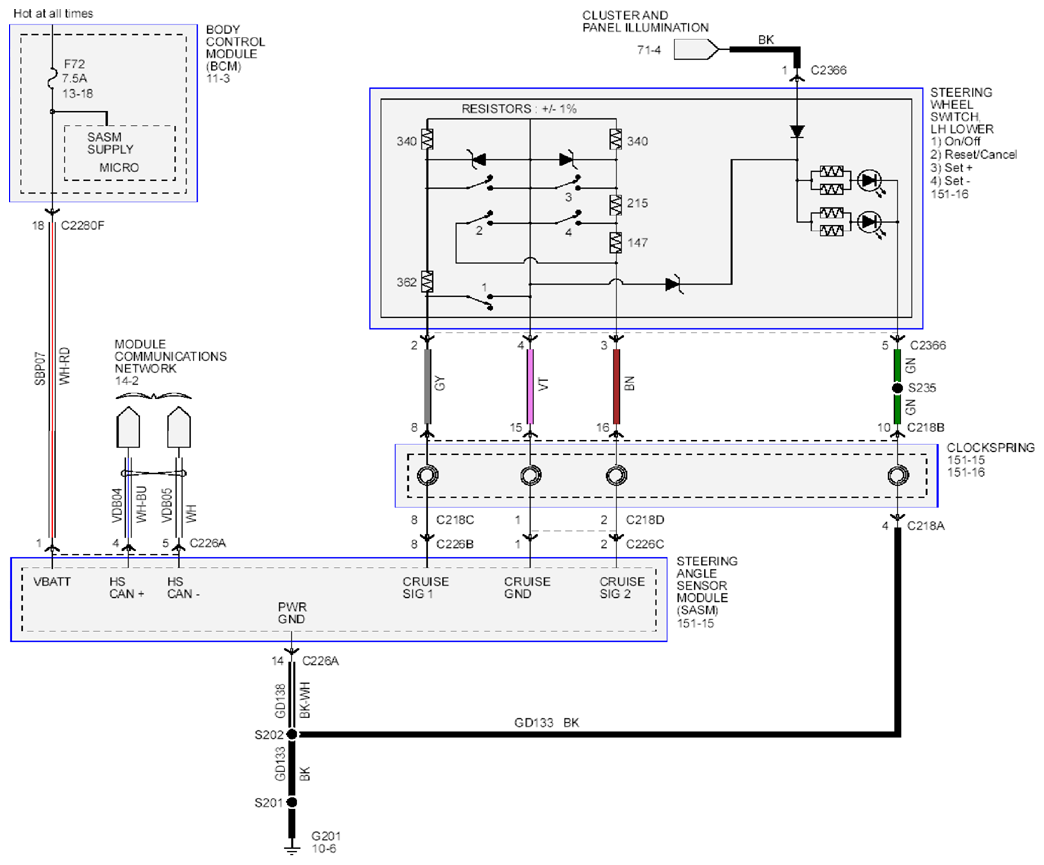

Fig 2: Cruise Control - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

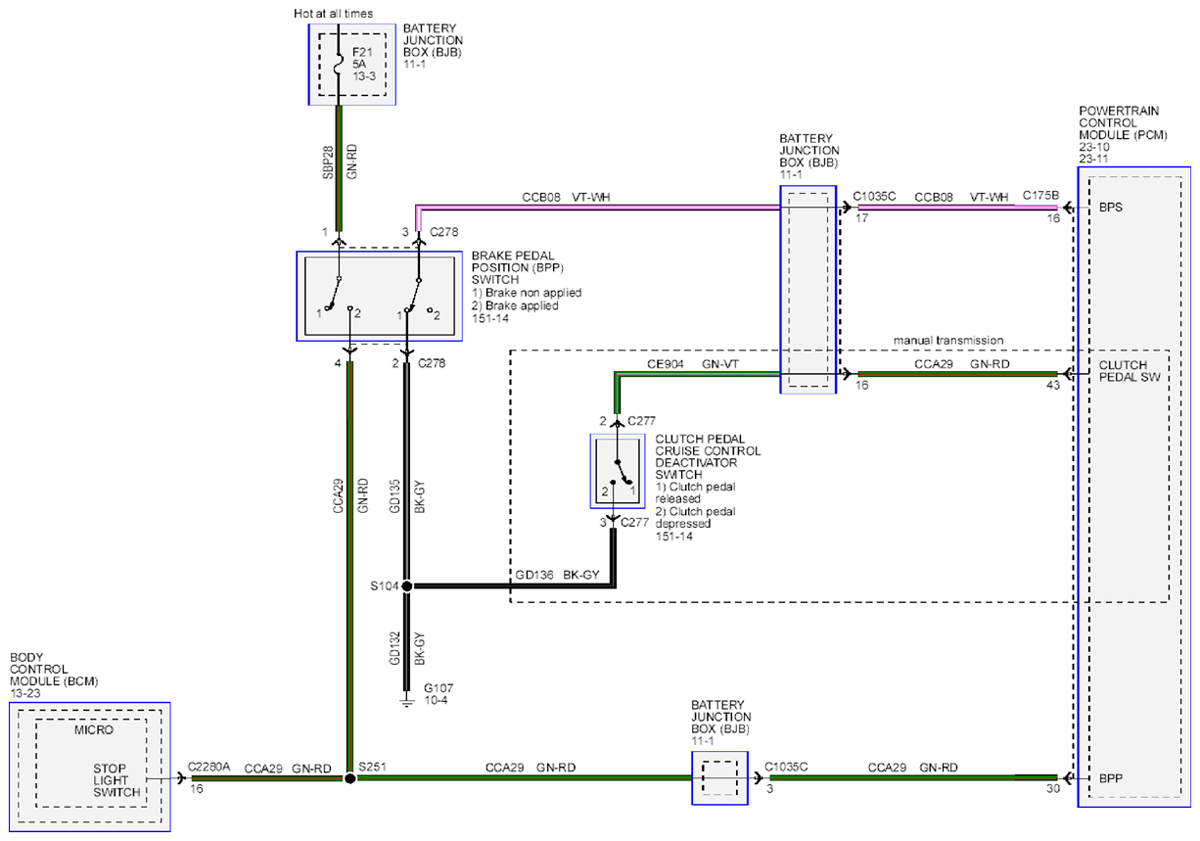

Fig 3: Cruise Control - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

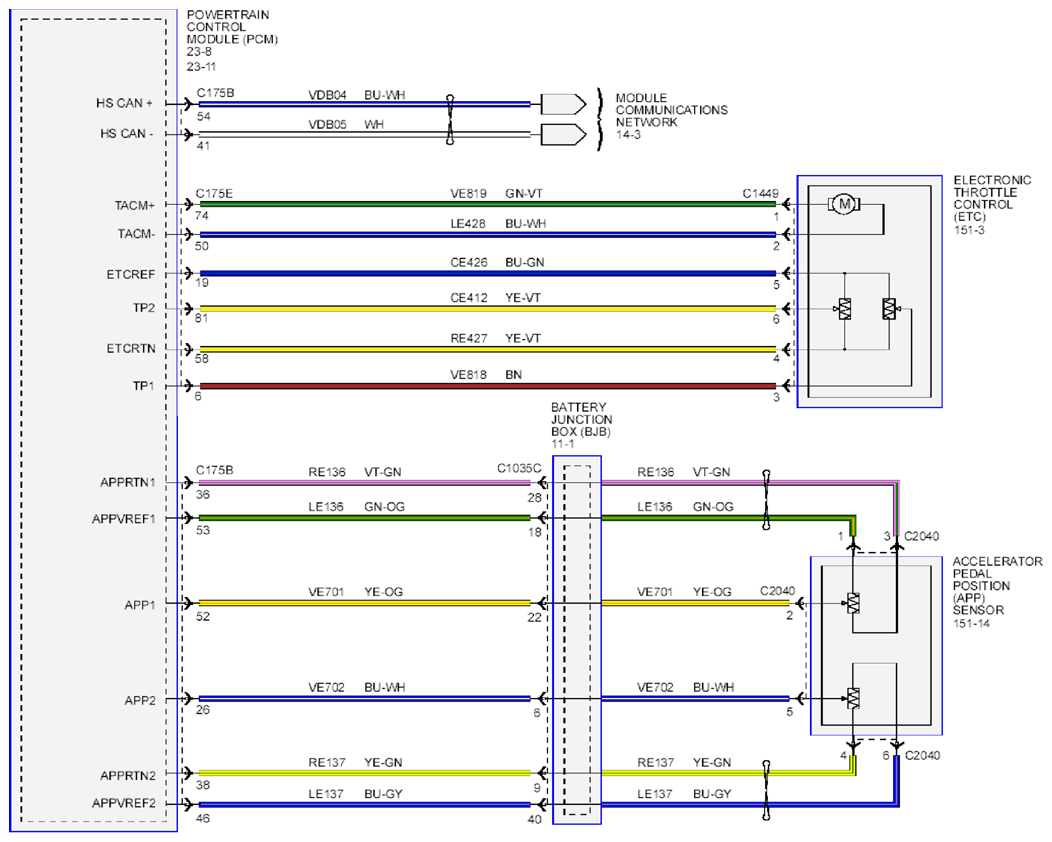

Fig 4: Cruise Control - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 5: Cruise Control - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
