Focus ST
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Except Electric
>>
Cooling Fan
Cooling Fan

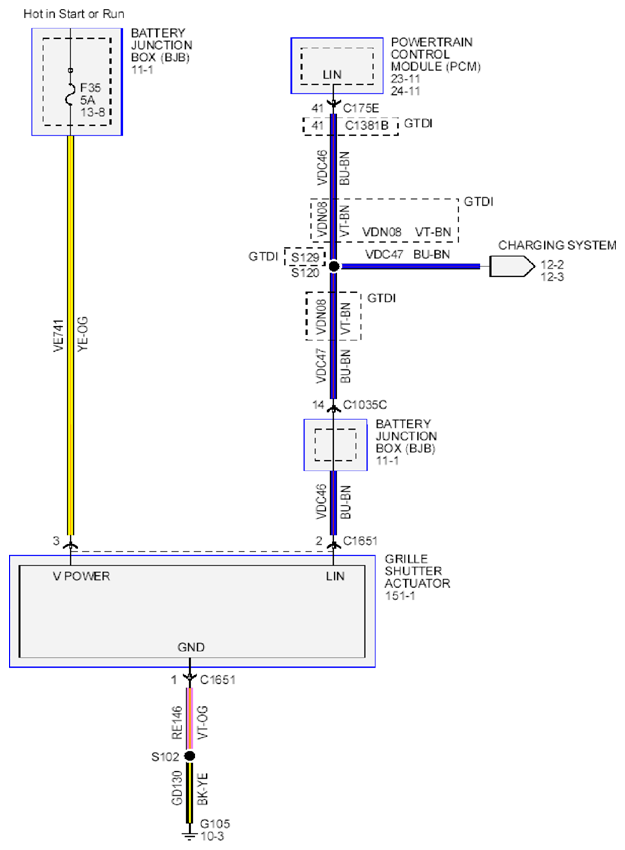

Fig 1: Cooling Fan - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

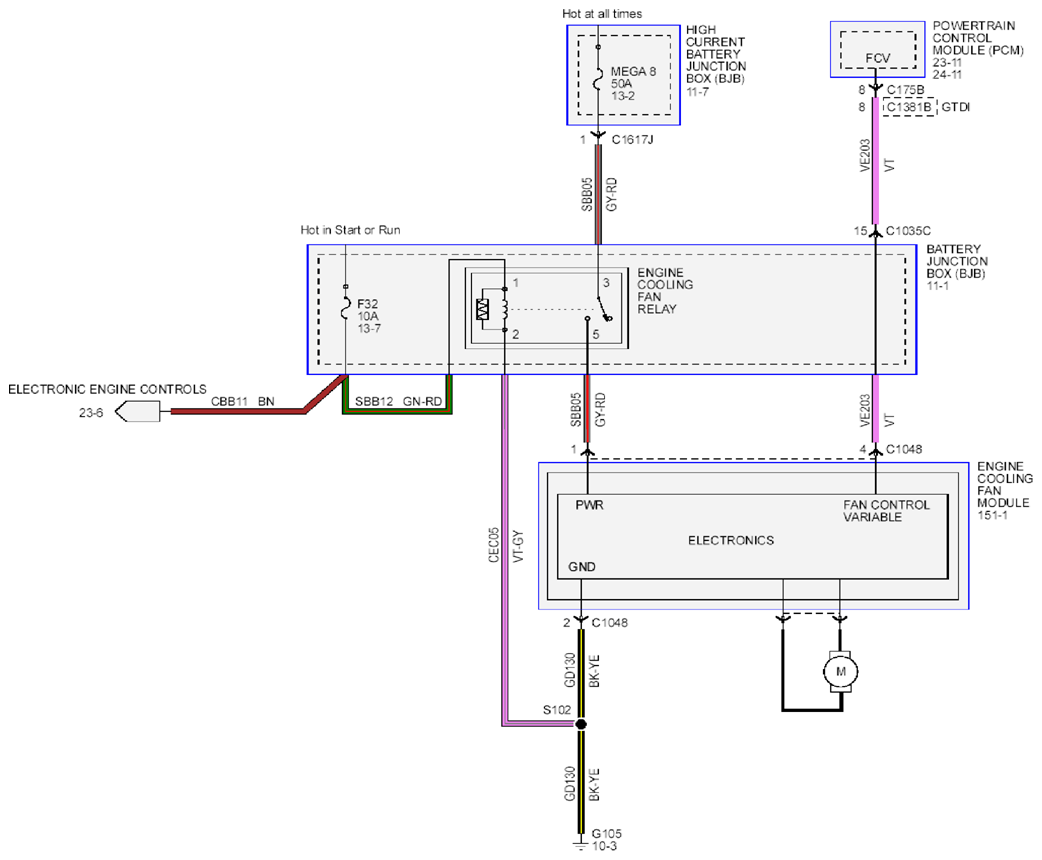

Fig 2: Cooling Fan - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
