Home >> Ford >> 2014 >> Focus ST >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- Except Electric >> Audio System/Navigation >> With SONY® Sound

With SONY® Sound

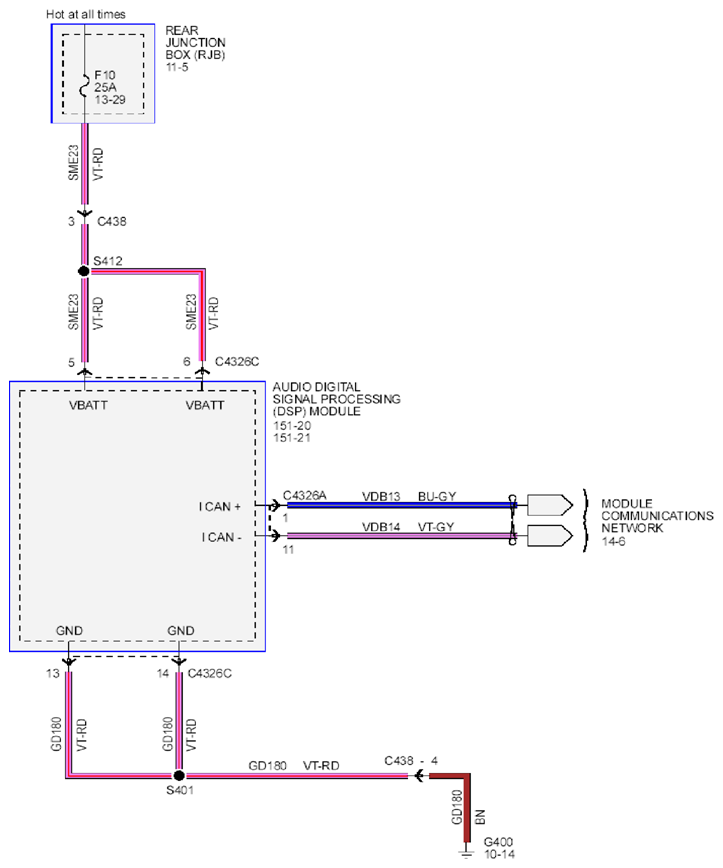

Fig 1: Audio System Navigation - Wiring Diagram (With Sony® Sound; 1 Of 4)
G09255390Courtesy of FORD MOTOR CO.
Fig 2: Audio System Navigation - Wiring Diagram (With Sony® Sound; 2 Of 4)
G09255391Courtesy of FORD MOTOR CO.
Fig 3: Audio System Navigation - Wiring Diagram (With Sony® Sound; 3 Of 4)
G09255392Courtesy of FORD MOTOR CO.

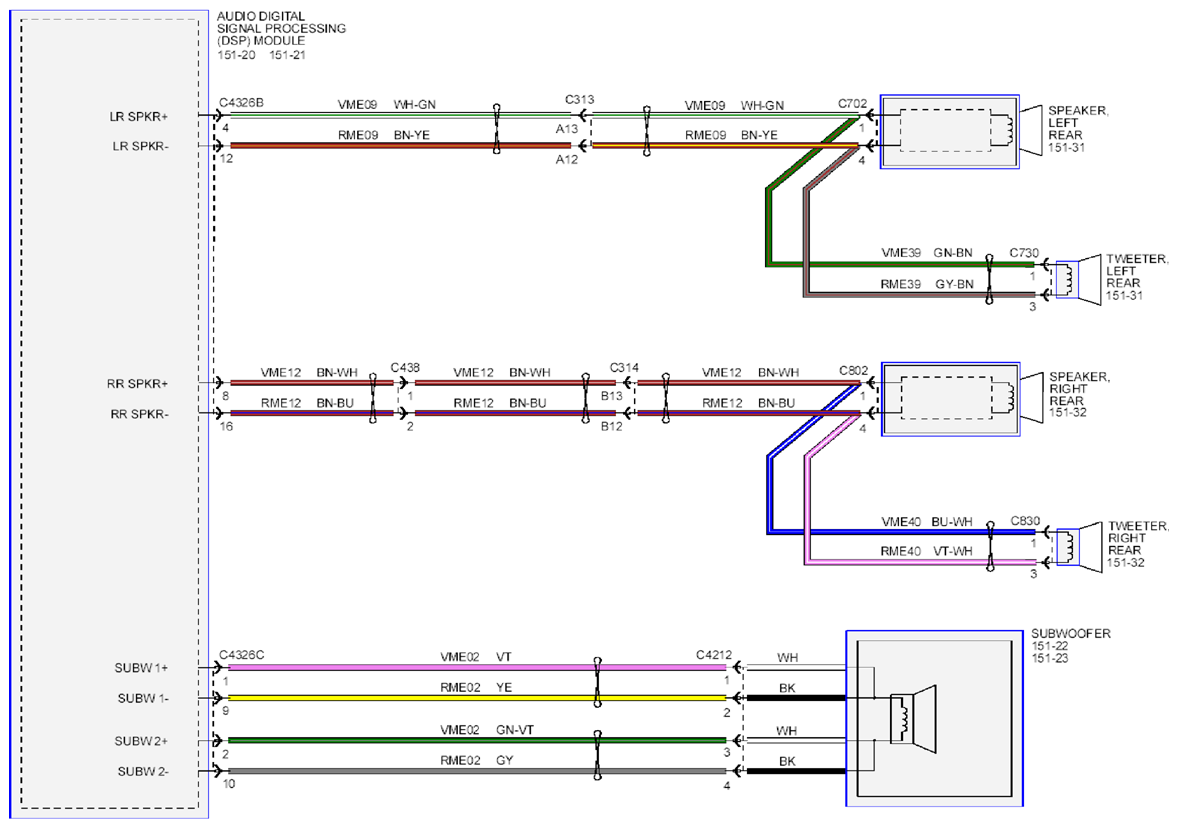

Fig 4: Audio System Navigation - Wiring Diagram (With Sony® Sound; 4 Of 4)
G09255393Courtesy of FORD MOTOR CO.
