Sync Gen 2

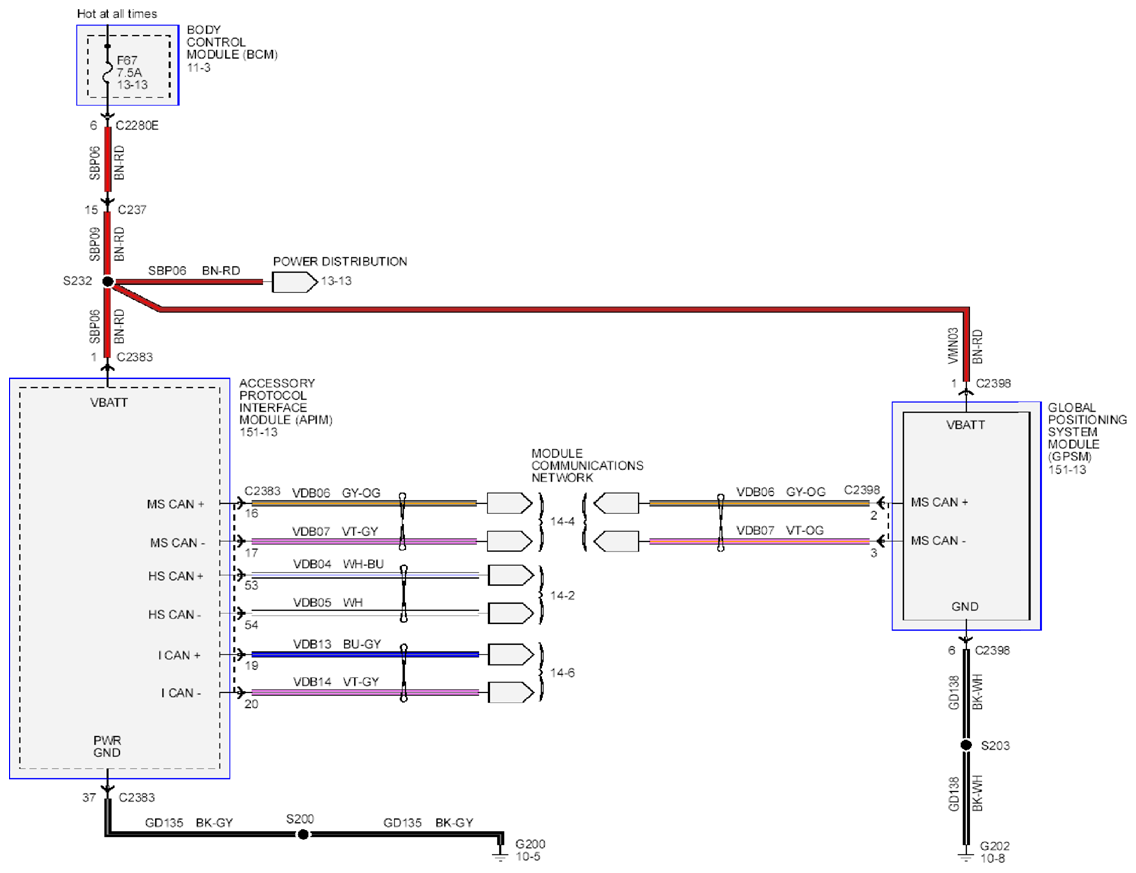

Fig 1: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 1 Of 4)
G09255396Courtesy of FORD MOTOR CO.

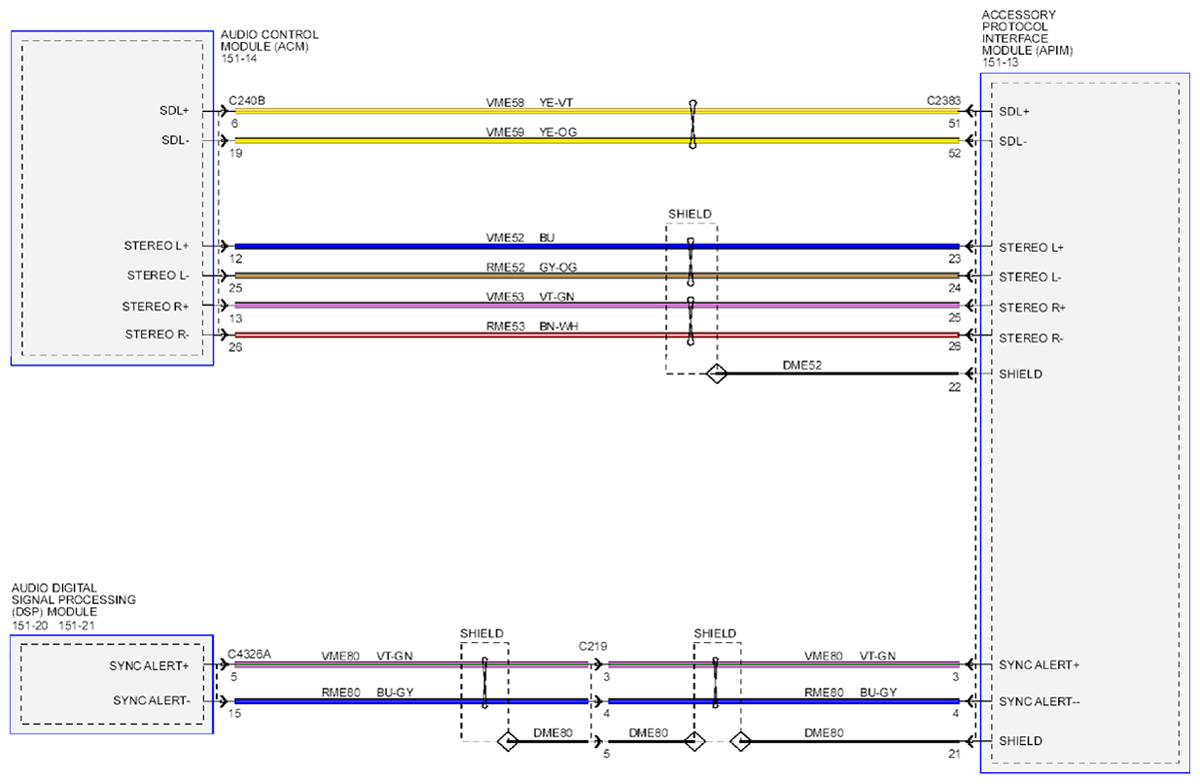

Fig 2: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 2 Of 4)
G09255397Courtesy of FORD MOTOR CO.

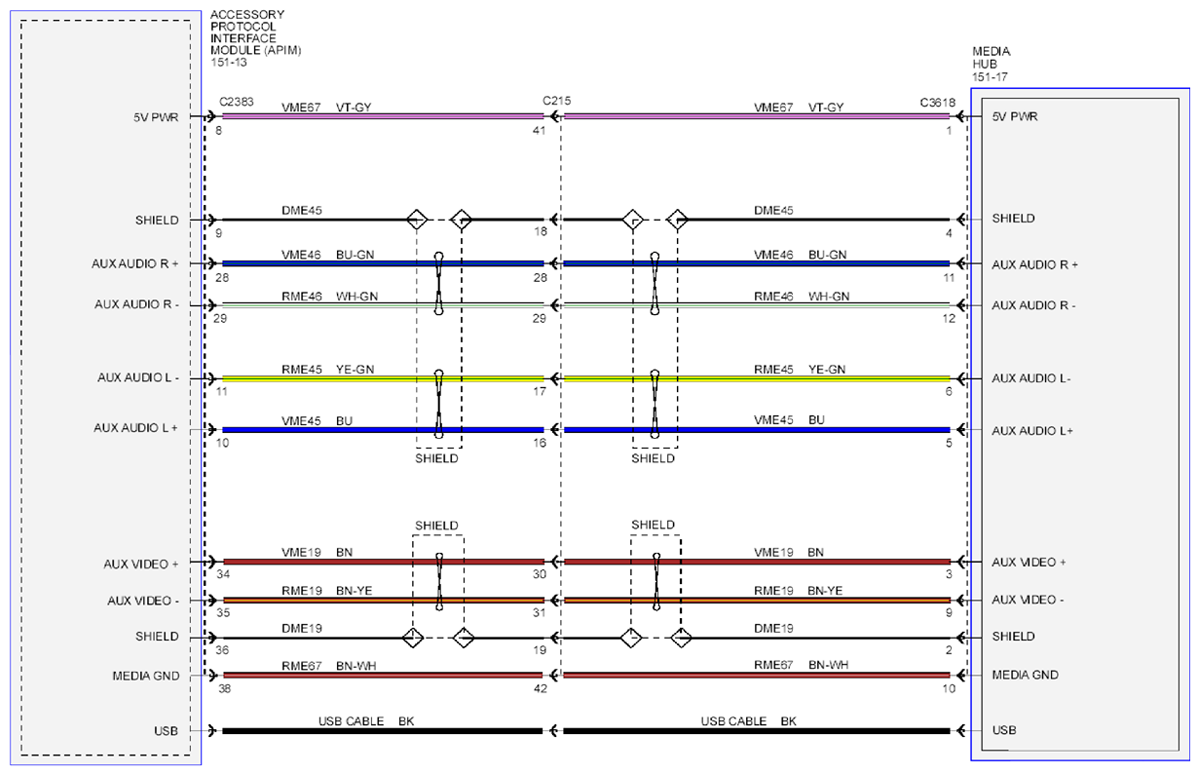

Fig 3: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 3 Of 4)
G09255398Courtesy of FORD MOTOR CO.

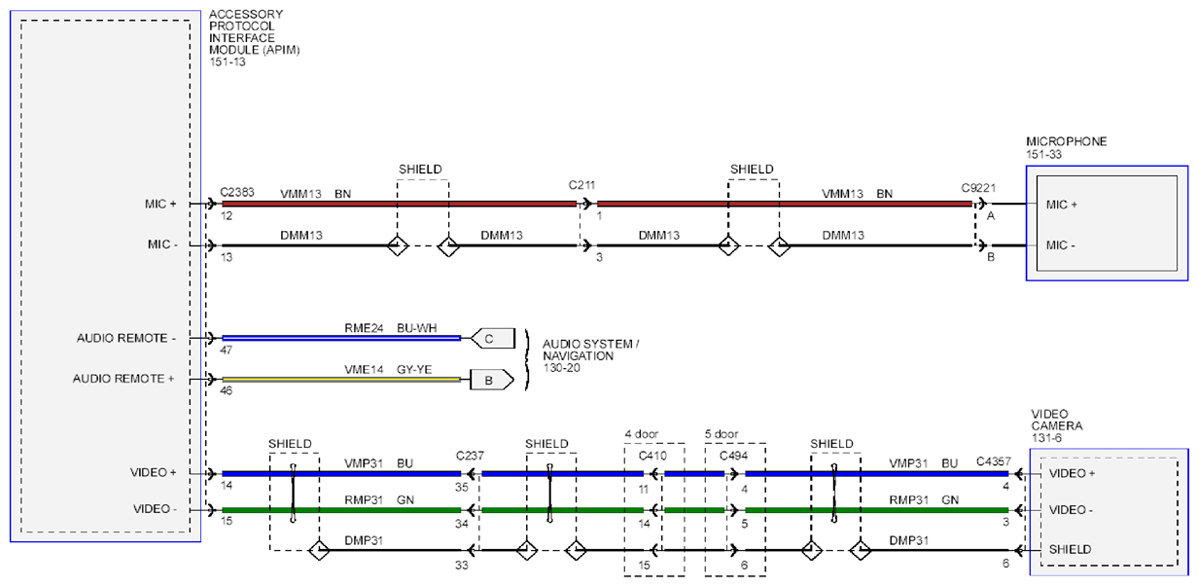

Fig 4: Audio System Navigation - Wiring Diagram (SYNC GEN 2; 4 Of 4)
G09255399Courtesy of FORD MOTOR CO.
