Sync Gen 1
Sync Gen 1

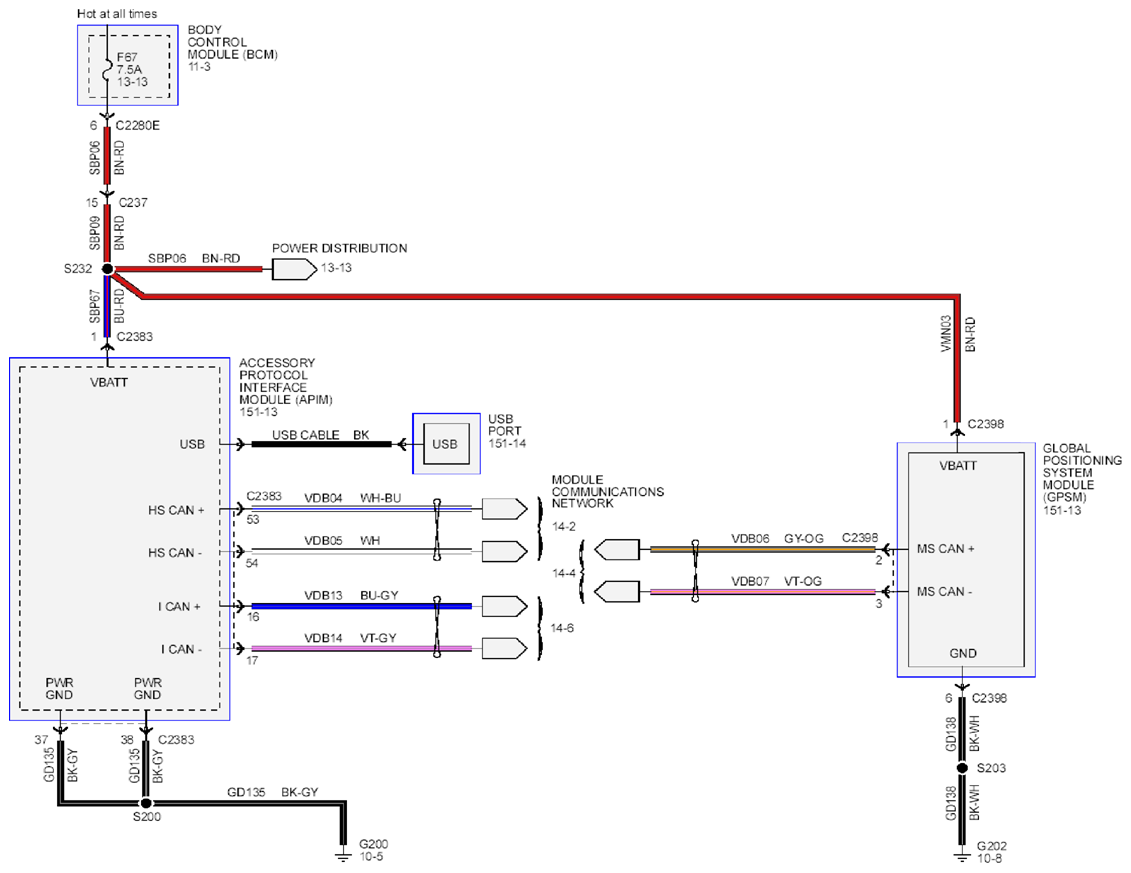

Fig 1: Audio System Navigation - Wiring Diagram (SYNC GEN 1; 1 Of 2)
Courtesy of FORD MOTOR CO.

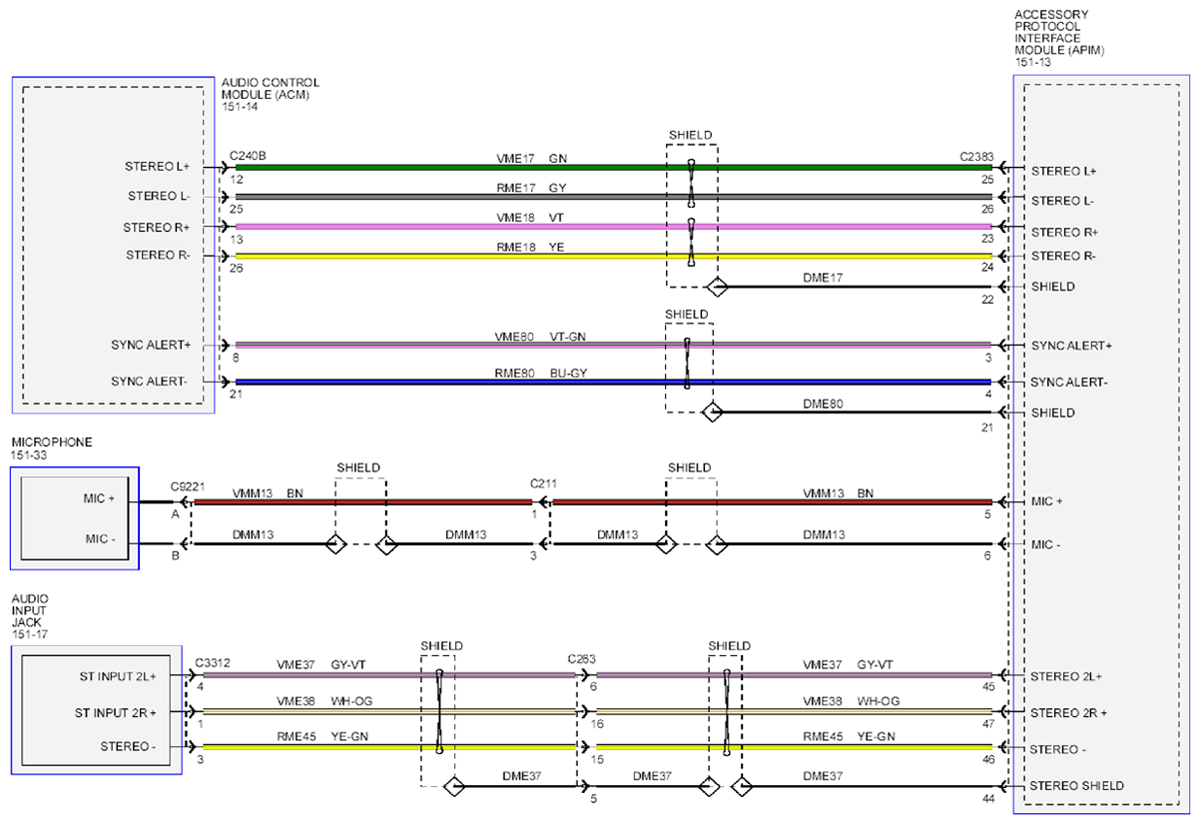

Fig 2: Audio System Navigation - Wiring Diagram (SYNC GEN 1; 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
