Premium Audio RH Upper Switch
Premium Audio RH Upper Switch

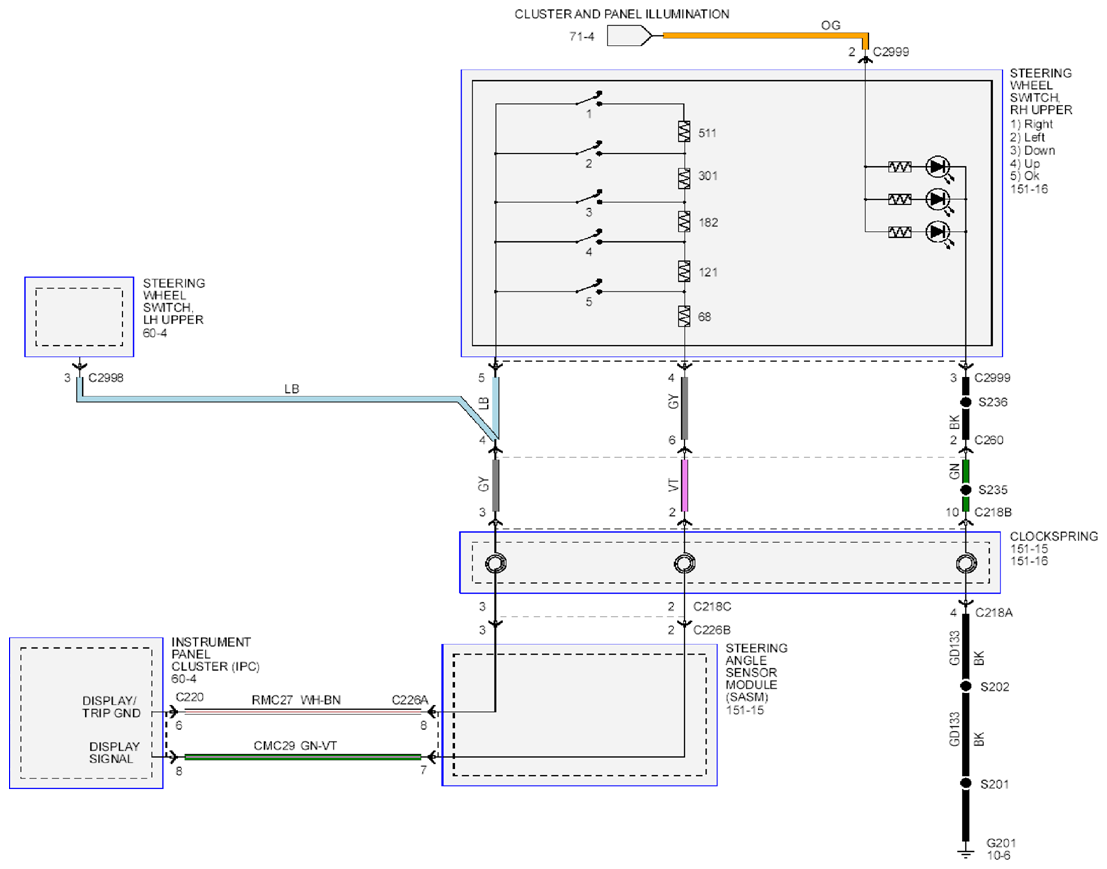

Fig 1: Audio System Navigation - Wiring Diagram (Premium Audio RH Upper Switch)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
