Audio System/Navigation: Notes

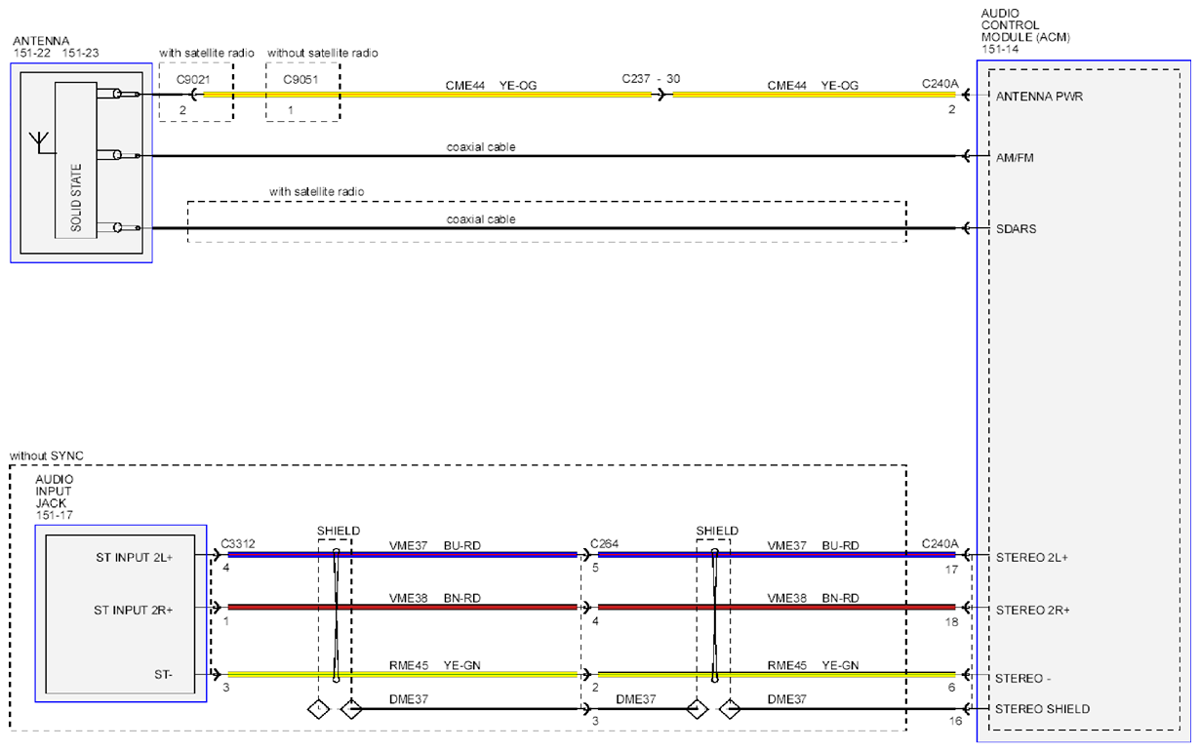

Fig 1: Audio System Navigation - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

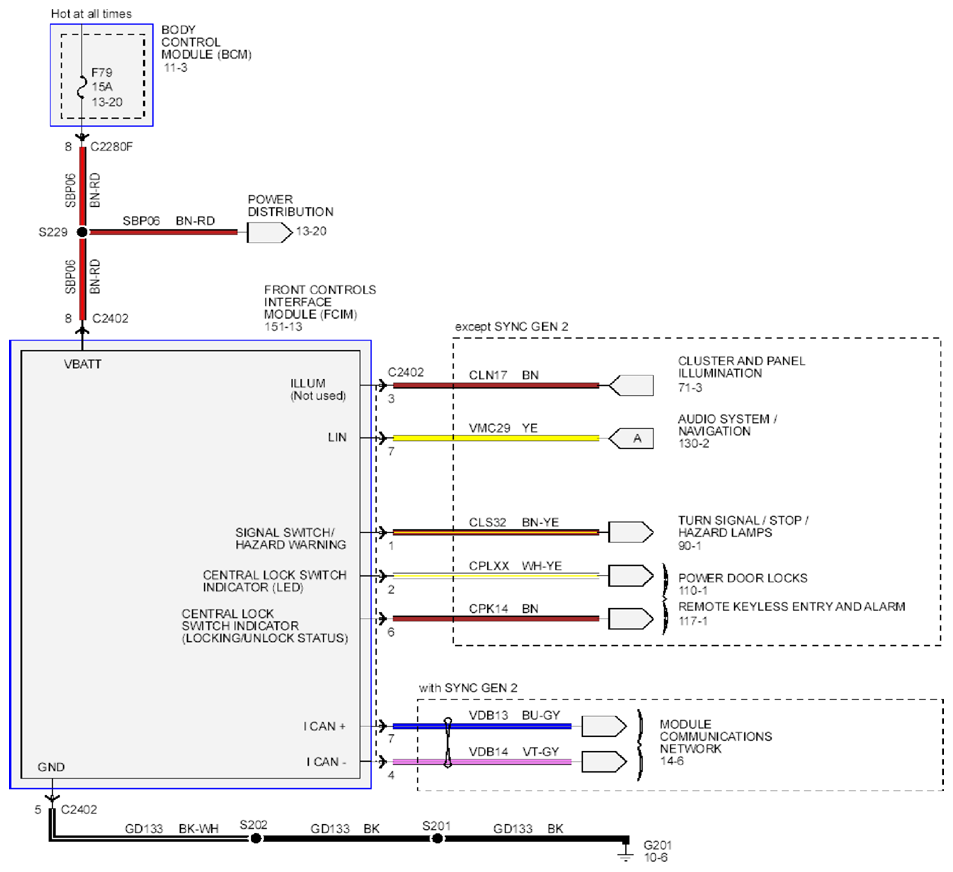

Fig 2: Audio System Navigation - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

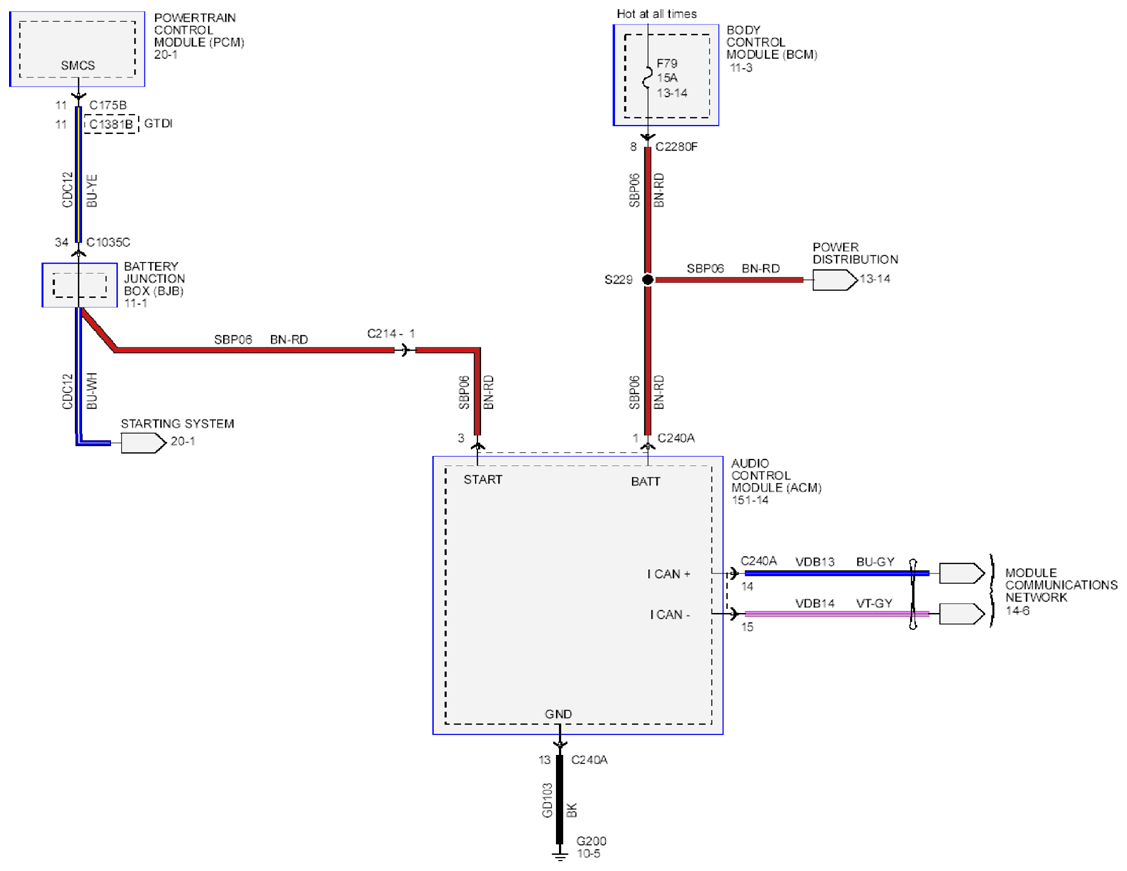

Fig 3: Audio System Navigation - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

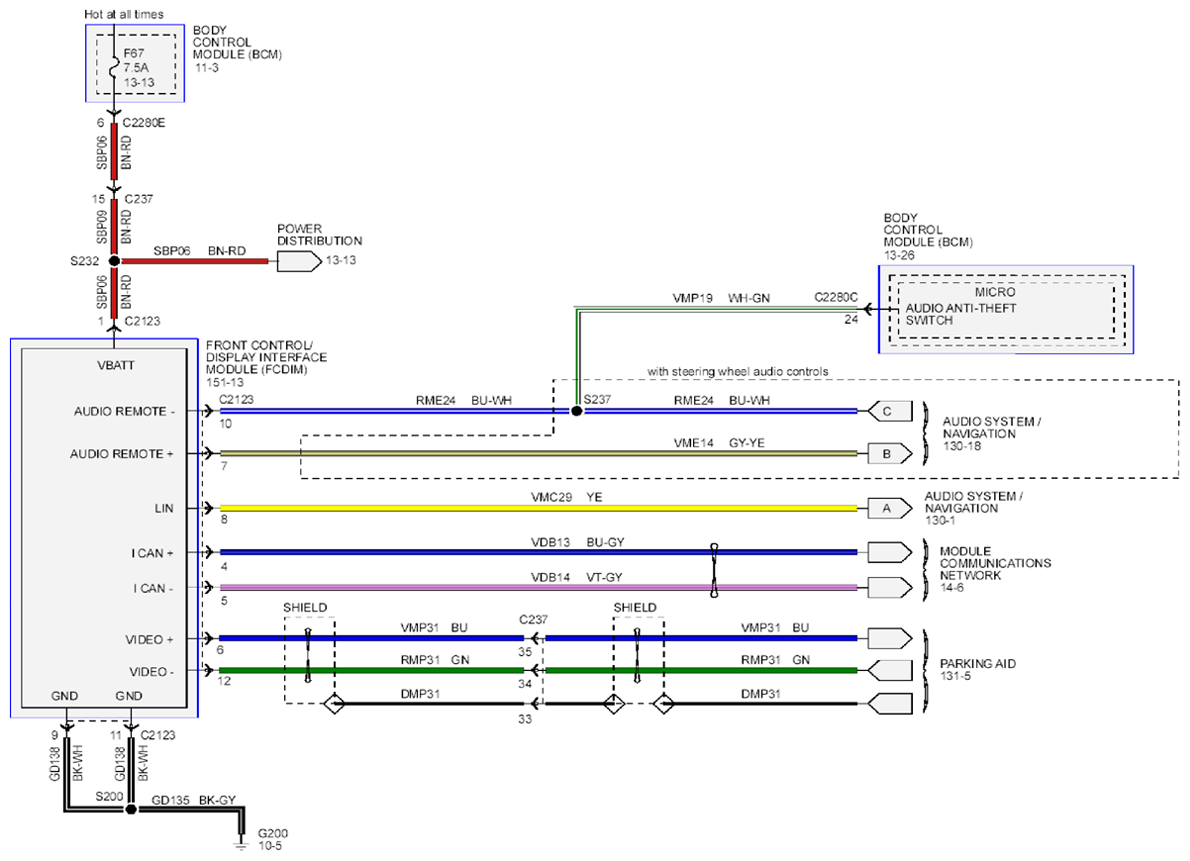

Fig 4: Audio System Navigation - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 5: Audio System Navigation - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
