Base Audio
Base Audio

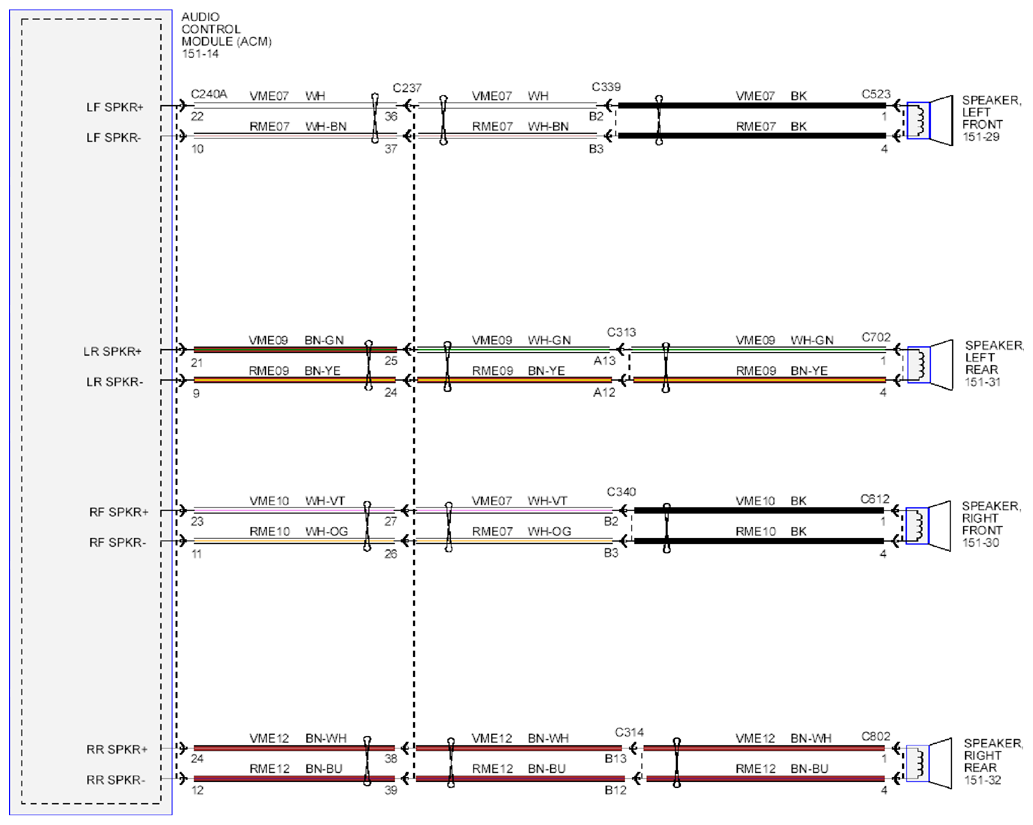

Fig 1: Audio System Navigation - Wiring Diagram (Base Audio)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
