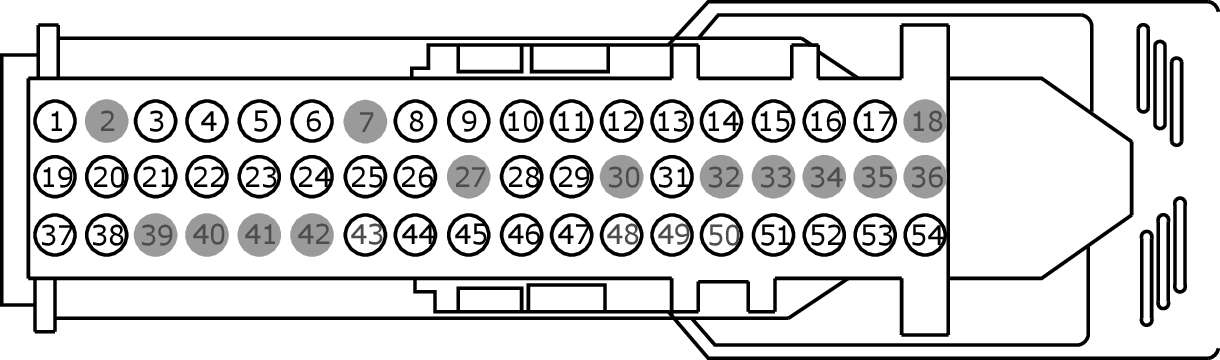

Connector End View (C2383) - ACCESSORY PROTOCOL INTERFACE MODULE (APIM)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBP06 (BN-RD)

22

FUSE OUTPUT OR CIRCUIT BREAKER

SYNC GEN 2

1

SBP67 (BU-RD)

22

FUSE OUTPUT OR CIRCUIT BREAKER

SYNC GEN 1

2

*

*

Not Used

3

VME80 (VT-GN)

20

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)

4

RME80 (BU-GY)

20

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)

5

VMM13 (YE-GN)

20

MICROPHONE - PHONE/VOICE CONTROL

SYNC 1

6

RMM13 (BU)

20

MICROPHONE - PHONE/VOICE CONTROL SHIELD

SYNC1

7

*

*

Not Used

8

VME67 (VT-GY)

20

CTRL MOD. - 5V MEDIA POWER

SYNC 2

9

DME45 (*)

20

JACK - AUDIO # EXT. AUX SHIELD

SYNC 2

10

VME45 (BU)

20

JACK - AUDIO # EXT. AUX IN LEFT (+)

SYNC 2

11

RME45 (YE-GN)

20

JACK - AUDIO # EXT. AUX IN LEFT (-)

SYNC 2

12

VMM13 (BN)

20

MICROPHONE - PHONE/VOICE CONTROL

SYNC 2

13

RMM13 (BU)

20

MICROPHONE - PHONE/VOICE CONTROL SHIELD

SYNC 3

14

VMP31 (BU)

20

REAR VIEW CAMERA SIGNAL

SYNC 2

15

RMP31 (GN)

20

REAR VIEW CAMERA RETURN

SYNC 2

16

VDB06 (GY-OG)

22

CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH

SYNC 2

16

VDB13 (BU-GY)

22

INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH

SYNC 1

17

VDB07 (VT-GY)

22

CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW

SYNC 2

17

VDB14 (VT-GY)

22

INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW

SYNC 1

18

*

*

Not Used

19

VDB13 (BU-GY)

22

INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH

SYNC 2

20

VDB14 (VT-GY)

22

INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW

SYNC 2

21

DME80 (*)

20

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1

22

DME52 (*)

20

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO]

SYNC GEN 2

23

VME18 (VT)

22

CTRL MOD. - AUDIO # RADIO RIGHT

SYNC GEN 1

23

VME52 (BU)

20

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT +

SYNC GEN 2

24

RME18 (YE)

22

CTRL MOD. - AUDIO # RADIO RIGHT

SYNC GEN 1

24

RME52 (GY-OG)

20

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT-

SYNC GEN 2

25

VME17 (GN)

22

CTRL MOD. - AUDIO # RADIO LEFT

SYNC GEN 1

25

VME53 (VT-GN)

20

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT +

SYNC GEN 2

26

RME17 (GY)

22

CTRL MOD. - AUDIO # RADIO LEFT

SYNC GEN 1

26

RME53 (BN-WH)

20

CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT -

SYNC GEN 2

27

*

*

Not Used

28

VME46 (BU-GN)

20

JACK - AUDIO # EXT. AUX IN RIGHT (+)

29

RME46 (WH-GN)

20

JACK - AUDIO # EXT. AUX IN RIGHT (-)

29

DMM13 (*)

20

MICROPHONE - PHONE/VOICE CONTROL SHIELD

SYNC 1

30

*

*

Not Used

31

DMM13 (*)

20

MICROPHONE - PHONE/VOICE CONTROL SHIELD

SYNC GEN 2

32

*

*

Not Used

33

*

*

Not Used

34

*

*

Not Used

35

*

*

Not Used

36

*

*

Not Used

37

GD135 (BK-GY)

20

GROUND - PILLAR A LEFT # 3RD STUD

38

GD135 (BK-GY)

20

GROUND - PILLAR A LEFT # 3RD STUD

SYNC GEN 1

38

RME67 (BN-WH)

22

MEDIA GROUND

SYNC GEN 2

39

*

*

Not Used

40

*

*

Not Used

41

*

*

Not Used

42

*

*

Not Used

43

*

*

Not Used

44

DME37 (*)

22

CTRL MOD. - AUDIO # EXT. AUX IN

SYNC GEN 1

45

VME37 (GY-VT)

22

CTRL MOD. - AUDIO # EXT. AUX IN L

SYNC GEN 1

46

RME45 (YE-GN)

22

JACK - AUDIO # EXT. AUX IN LEFT (-)

SYNC GEN 1

46

VME14 (GY-YE)

22

SWITCH - REDUNDANT AUDIO

SYNC GEN 2

47

RME24 (BU-WH)

22

CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO

SYNC GEN 2

47

VME38 (WH-OG)

22

CTRL MOD. - AUDIO # EXT. AUX IN R

SYNC GEN 1

48

*

*

Not Used

49

*

*

Not Used

50

*

*

Not Used

51

VME58 (YE-VT)

22

CTRL MOD. - AUDIO # OUTPUT LEFT 2 +

SYNC 2

52

VME59 (YE-OG)

22

CTRL MOD. - AUDIO # OUTPUT RIGHT 2 +

SYNC 2

53

VDB04 (WH-BU)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH

54

VDB05 (WH)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
