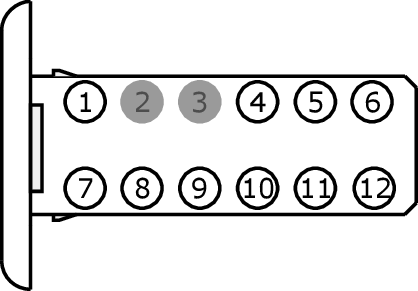

Connector End View (C2123) - FRONT CONTROL / DISPLAY INTERFACE MODULE (FCDIM)

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2123

Description

FRONT CONTROL / DISPLAY INTERFACE MODULE (FCDIM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP06 (BN-RD)	20	FUSE OUTPUT OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	VDB13 (BU-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH
5	VDB14 (VT-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW
6	VMP31 (BU)	20	REAR VIEW CAMERA SIGNAL
7	VME14 (GY-YE)	22	SWITCH - REDUNDANT AUDIO
8	VMC29 (YE)	22	SWITCH - INFORMATION / MESSAGE CENTER SELECT
9	GD138 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT
10	RME24 (BU-WH)	22	CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO
11	GD138 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT
12	RMP31 (GN)	20	REAR VIEW CAMERA RETURN

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Message Center

Module - Driver Information

Module - Front Interface
