Fuel Lines: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Fuel System Pressure Release
- 2.
Refer to: Battery Tray
- 3.WARNING: Fuel may remain pressurized in some fuel lines after the Fuel System Pressure Release procedure. Wear safety gloves and a face shield when disconnecting pressure lines to avoid skin and eye contact. Failure to follow this instruction may result in serious personal injury.
- 1.

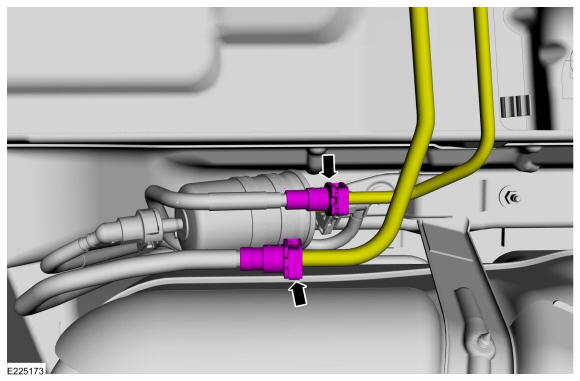

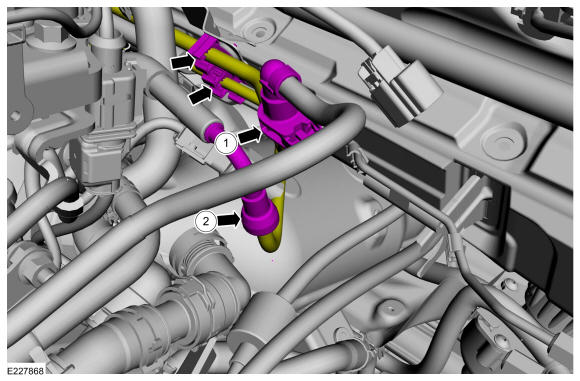

Always wrap the fuel line connection with a towel before disconnecting it. Refer to: Quick Release Coupling
- 2.
Always wrap the fuel line connection with a towel before disconnecting it. Refer to: Spring Lock Couplings
- 1.
- 4.
Refer to: Jacking and Lifting - Overview
- 10.
Refer to: Quick Release Coupling
