Fuel Lines: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

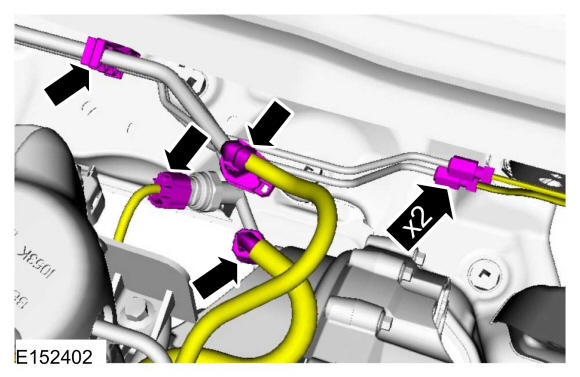

3.
- Disconnect the brake lines.
  Torque: 133 lb.in (15 Nm)
- Disconnect the electrical connector and fuel line retainer.
- Disconnect the vapor tube and fuel line quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

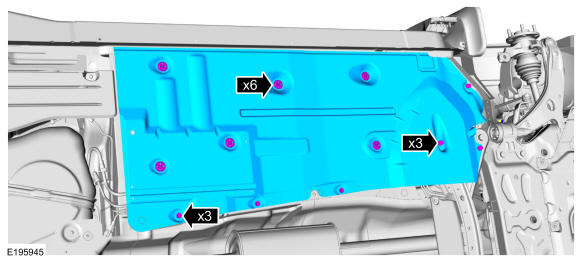

4.

NOTE: RH shown LH similar.

Remove the retainers and the splash shields.

Courtesy of FORD MOTOR COMPANY

5.
- Remove the retainers and the cross member.
  Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

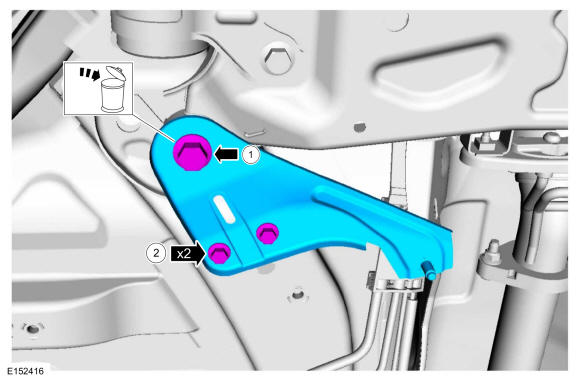

6.
- 1.

  Remove the retainer.
  Torque:

  Stage 1: 103 lb.ft (140 Nm)

  Stage 2: 180 °
- 2.

  Remove the retainers.
  Torque: 46 lb.ft (62 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Remove the retainers and position the heat shield aside.

Courtesy of FORD MOTOR COMPANY

8.
- Disconnect the brake lines.
  Torque: 133 lb.in (15 Nm)
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .

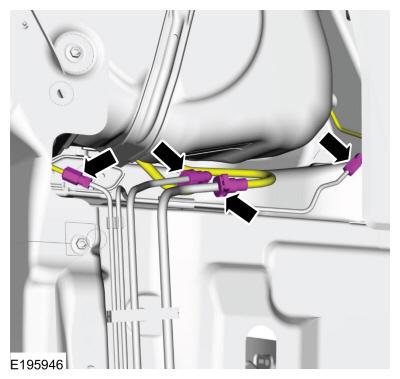

Courtesy of FORD MOTOR COMPANY

9.

Disconnect the fuel line retainers and remove the fuel lines from the vehicle.
