Parking Brake Control: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the floor console. REFER to: Floor Console - Vehicles With: Center Armrest . REFER to: Floor Console - Vehicles With: Center Armrest .

2.

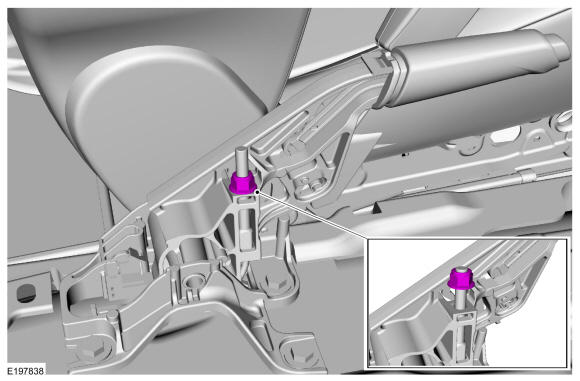

Loosen the parking brake cable adjustment nut.

GFD64985

Courtesy of FORD MOTOR COMPANY

3.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

4.

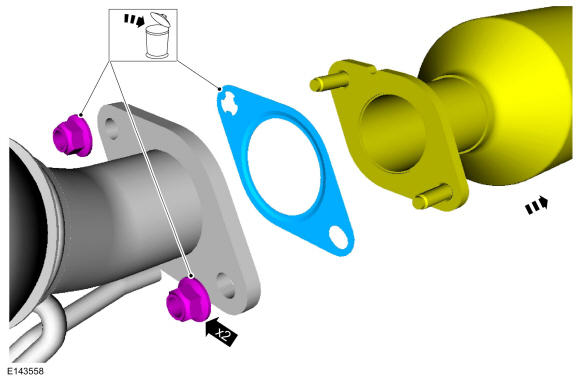

Remove and discard the nuts, detach the exhaust pipe and discard the gasket.
Torque

: 35 lb.ft (48 Nm)

GFD64986

Courtesy of FORD MOTOR COMPANY

5.

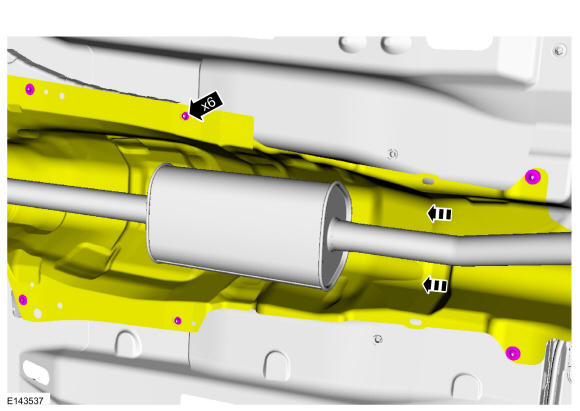

Remove the nuts and position the exhaust heat shield forward.
Torque

: 97 lb.in (11 Nm)

GFD64987

Courtesy of FORD MOTOR COMPANY

6.

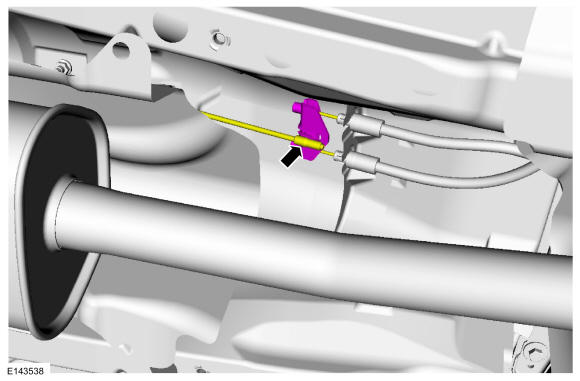

Detach the front parking brake cable from the equalizer.

GFD64988

Courtesy of FORD MOTOR COMPANY

7.

NOTE: During installation, make sure the cable seal is fully seated.

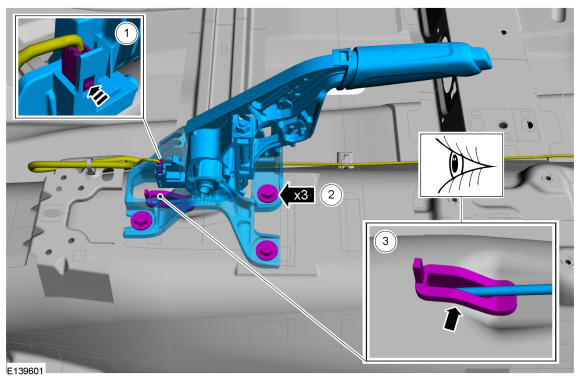

Remove the parking brake control.
- 1.

  Disconnect the parking brake switch electrical connector
- 2.

  Remove the bolts.
  Torque

  : 26 lb.ft (35 Nm)
- 3.

  Detach the cable seal and remove the parking brake control.

GFD64989

Courtesy of FORD MOTOR COMPANY
