Parking Brake Cable: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation instructions.
- 3.
Remove the high voltage lower battery. REFER to: High Voltage Lower Battery .
- 4.

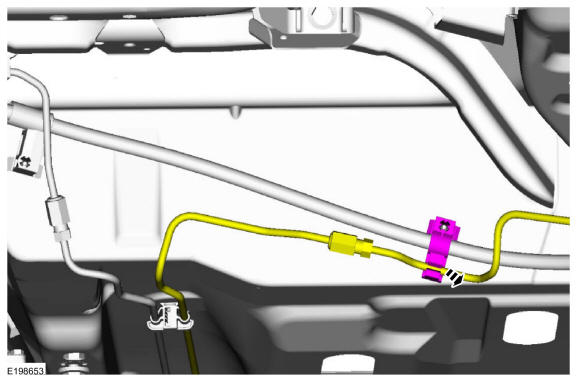

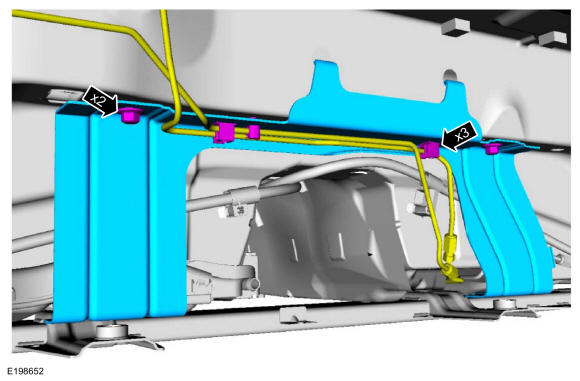

Detach the brake tubes from the routing clips, remove the bolts and the high voltage lower battery bracket.Torque
: 18 lb.ft (25 Nm)
- 5.

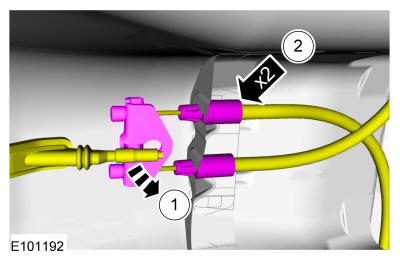

Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.
- 7.

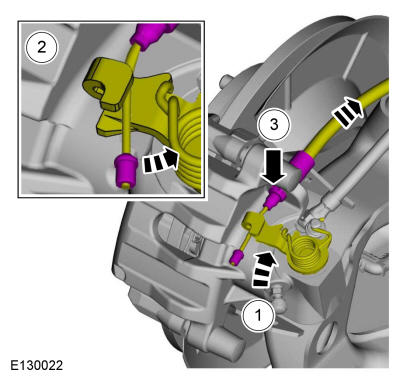

Detach the parking brake cables from the brake calipers on both sides.- 1.
Rotate the brake caliper lever.
- 2.
Detach the parking brake caliper from the brake caliper lever.
- 3.
Detach the parking brake cable from the brake caliper bracket.
- 1.
- 8.
- 1.

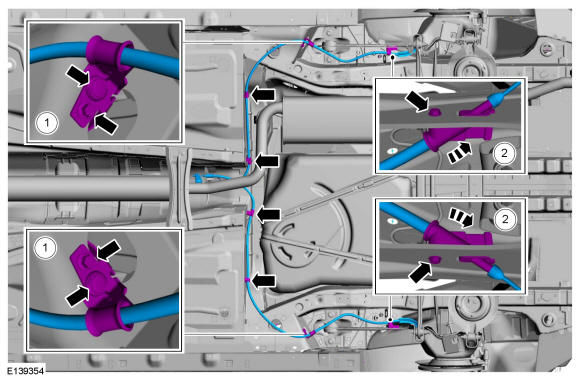

Remove the bolts and detach the parking brake cable brackets from the body on both sides.Torque
: 97 lb.in (11 Nm)
- 2.
Remove the bolts and detach the parking brake cable brackets from the suspension arms on both sides.Torque
: 17 lb.in (1.9 Nm)
- Detach the remaining parking brake cable brackets and remove the parking brake cables.
- 1.
