Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .

2.

Remove the cooling module. REFER to: Cooling Module .

3.

Remove the lower radiator support from the cooling module.

GFD61884

Courtesy of FORD MOTOR COMPANY

4.

Remove and discard the foam pad.
Use the General Equipment: Knife

GFD61885

Courtesy of FORD MOTOR COMPANY

5.

Remove the clips and remove the active grill shutter assembly.

GFD61886

Courtesy of FORD MOTOR COMPANY

6.

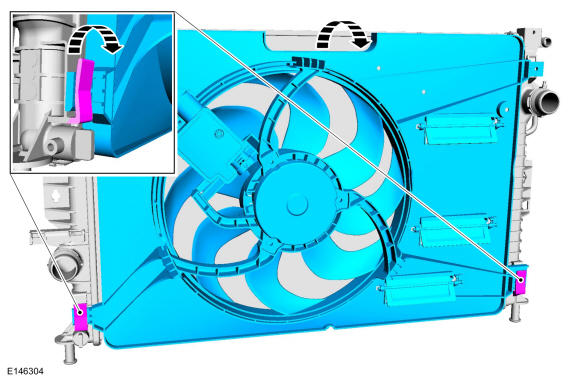

Release the clips and remove the cooling fan motor and shroud.

GFD61870

Courtesy of FORD MOTOR COMPANY

7.

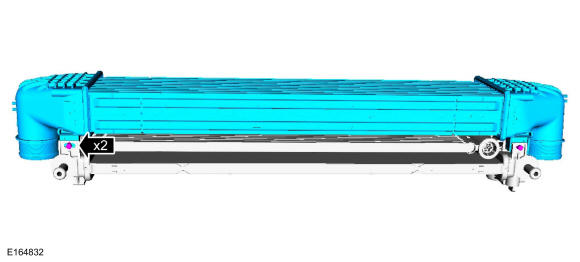

Remove the bolts and the CAC.
Torque

: 44 lb.in (5 Nm)

GFD61887

Courtesy of FORD MOTOR COMPANY

8.

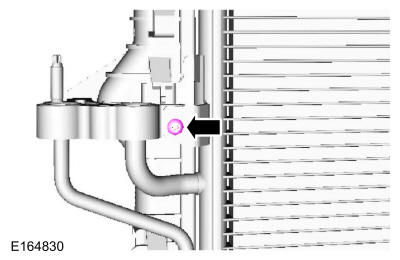

Remove the bolt.
Torque

: 62 lb.in (7 Nm)

GFD61888

Courtesy of FORD MOTOR COMPANY

9.

10.

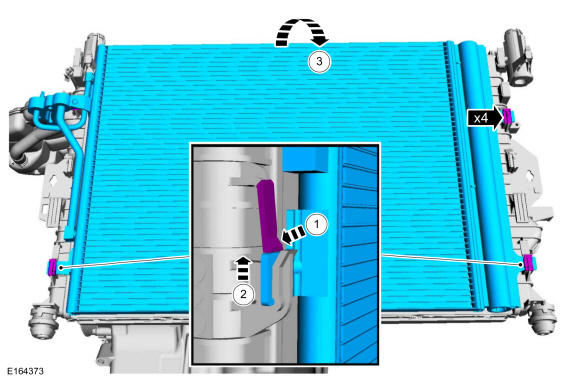

Release the clips and remove the A/C condenser.

GFD61889

Courtesy of FORD MOTOR COMPANY

11.

Remove the lower radiator mounts.
