Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .

2.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

3.

Remove the air cleaner. REFER to: Air Cleaner .

4.

Disconnect the electrical connector and detach the wiring harness retainer.

GFD61823

Courtesy of FORD MOTOR COMPANY

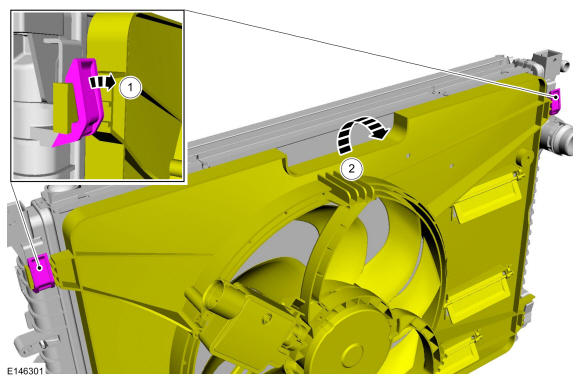

5.
- 1.

  Using a suitable tool release the upper tabs.
- 2.

  Position the cooling fan motor and shroud upward.

GFD61865

Courtesy of FORD MOTOR COMPANY

6.

NOTE: If equipped.

Remove the retainers and the shield.

GFD60914

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If equipped.

Remove the retainers and the underbody shield.

GFD61822

Courtesy of FORD MOTOR COMPANY

8.

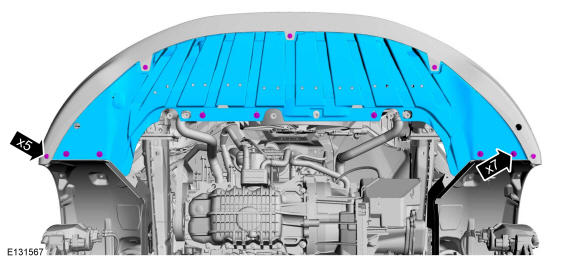

Remove the pin-type retainers, the screws and the lower radiator air deflector.

GFD61866

Courtesy of FORD MOTOR COMPANY

9.

Detach the electrical connectors and the wiring harness retainer from the lower radiator support.

GFD61867

Courtesy of FORD MOTOR COMPANY

10.

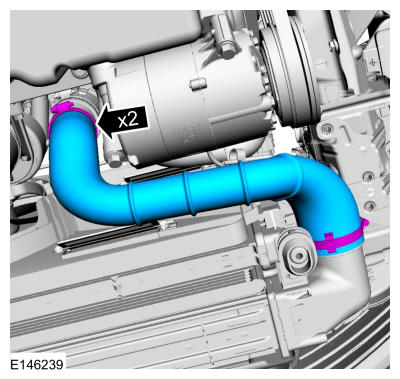

Loosen the clamps and remove the CAC pipe.
Torque

: 44 lb.in (5 Nm)

GFD61868

Courtesy of FORD MOTOR COMPANY

11.

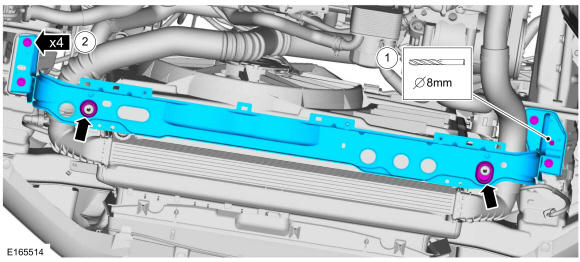

- 1.

  NOTE: If equipped, a new rivet nut must be installed during installation.
If equipped, remove the rivet using a drill bit.

2.

Remove the bolts and the lower radiator support.
Torque

: 18 lb.ft (25 Nm)

GFD61869

Courtesy of FORD MOTOR COMPANY

12.

Remove the cooling fan motor and shroud.

GFD61870

Courtesy of FORD MOTOR COMPANY
