Engine Ignition - Component Location
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

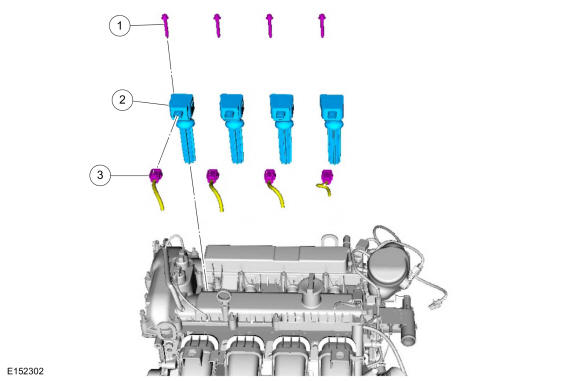

Ignition Coil-On-Plug 2.0L Gasoline Direct Injection (GDI)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Ignition coil-on-plug bolt (4 required) |
| 2 |
Ignition coil-on-plug (4 required) |
| 3 |
Ignition coil-on-plug electrical connector |

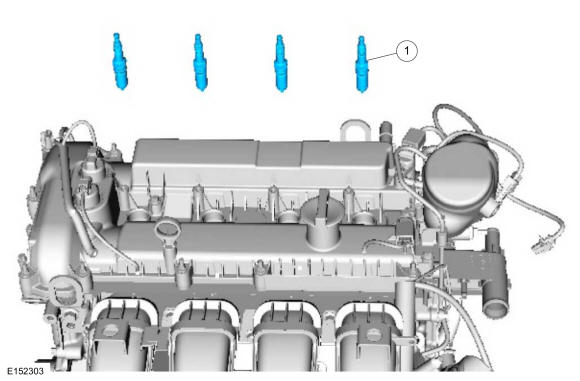

Spark Plugs 2.0L Gasoline Direct Injection (GDI)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Spark plug (4 required) |
