Removal And Installation: Turbocharger: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

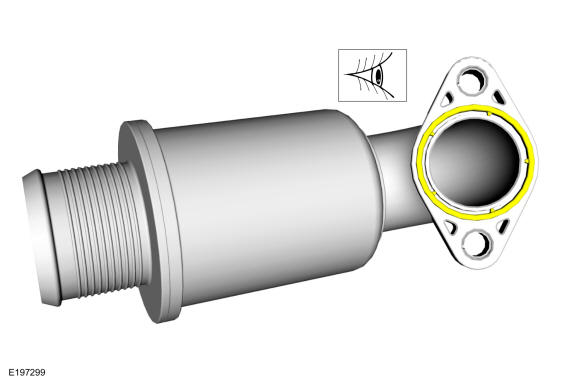

If the turbocharger outlet pipe was removed, then inspect and replace the turbocharger outlet pipe gasket as needed.

Courtesy of FORD MOTOR COMPANY

2.

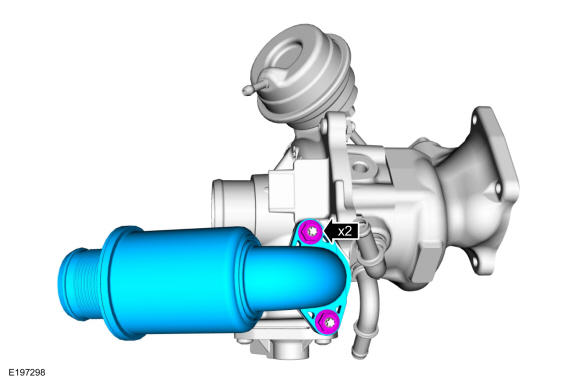

If removed, install the turbocharger outlet pipe to the turbocharger, then install and tighten the turbocharger outlet pipe nuts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

3.

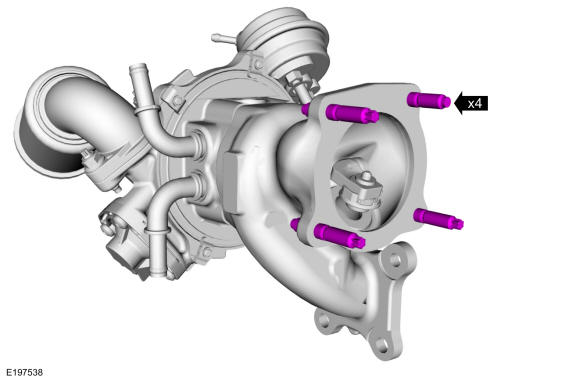

If removed, install and tighten the turbocharger exhaust studs.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

4.

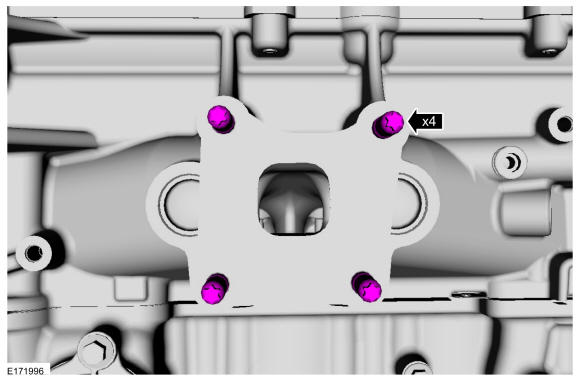

If removed, install and tighten the turbocharger mounting studs.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Lubricate the turbocharger oil supply tube O-ring seals with clean engine oil. REFER to: Specifications .

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

NOTE: Make sure that a new turbocharger oil supply tube assembly is installed.

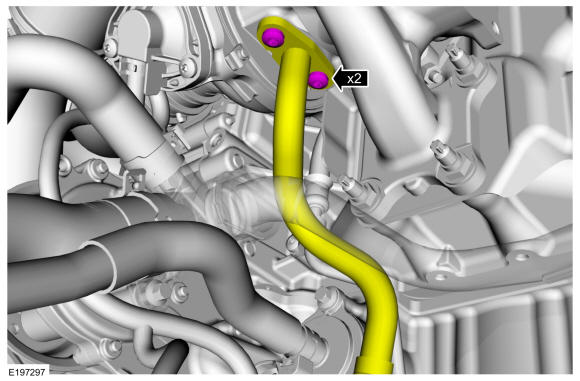

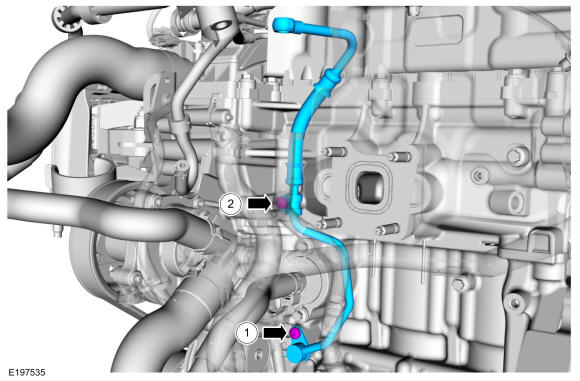

Install the new turbocharger oil supply tube and the turbocharger oil supply tube bolts finger tight.
- 1.

  Tighten the turbocharger oil supply tube bolt.
  Material

  : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque

  : 89 lb.in (10 Nm)
- 2.

  Tighten the turbocharger oil supply tube bolt.
  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

7.

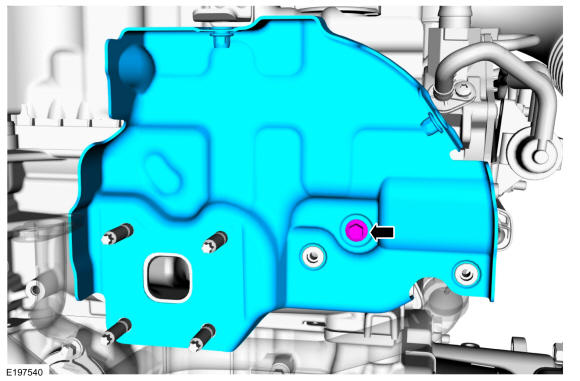

Install the new the turbocharger heat shield and gasket assembly, then install and tighten the turbocharger heat shield bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Only tighten the 4 turbocharger nuts finger tight at this stage.

Install the turbocharger and the new turbocharger nuts. Tighten in the following 5 stages.

Torque:

1-4

:Stage 1: Tighten in the sequence shown in illustration: 35 lb.in (4 Nm)

Stage 2: Tighten in the sequence shown in illustration: 168 lb.in (19 Nm)

Stage 3: Tighten in the sequence shown in illustration: 18 lb.ft (24 Nm)

Stage 4: Wait 30 s

Stage 5: Tighten in the sequence shown in illustration: 18 lb.ft (24 Nm)

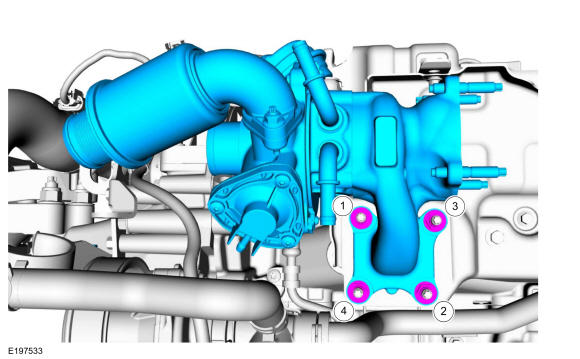

Fig 1: Turbocharger Nuts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

9.

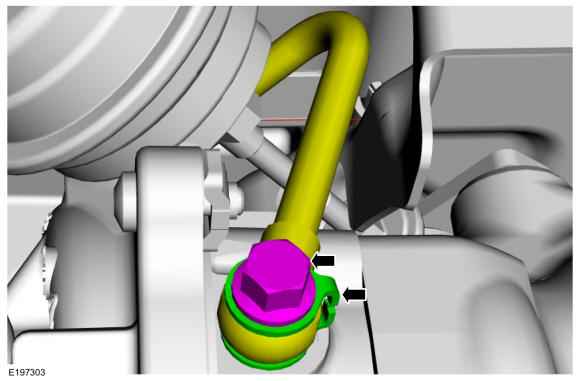

Install the new turbocharger oil supply tube sealing washers, then install and tighten the new turbocharger oil supply tube bolt.
Torque

: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

10.

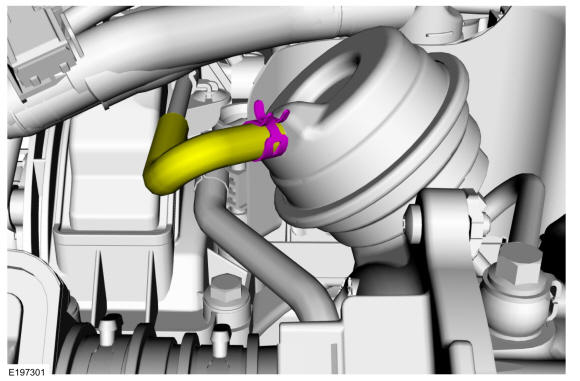

Connect the turbocharger wastegate control hose and the hose clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

11.

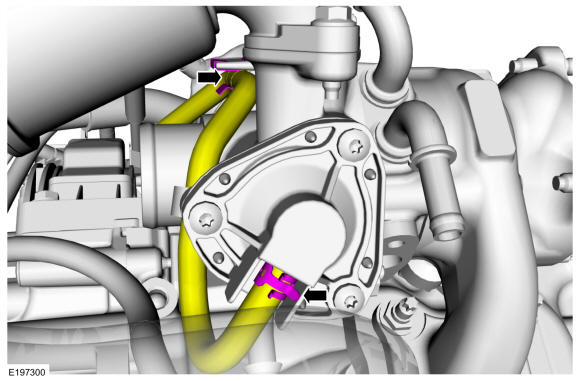

Connect the turbocharger bypass valve control hose and the hose clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

12.

Install the new turbocharger oil return tube gasket.

Courtesy of FORD MOTOR COMPANY

13.

Install and tighten the turbocharger oil return tube retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

14.
- 1.

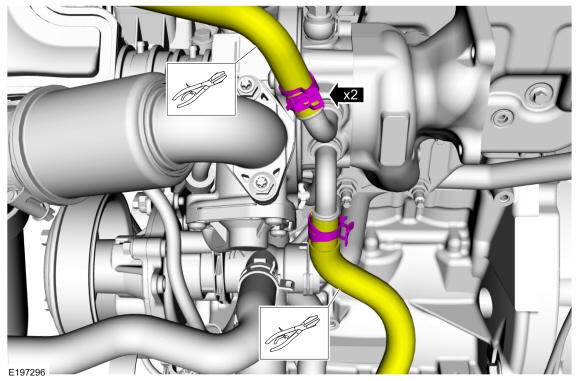

  Connect the turbocharger coolant tubes and the hose clamps.
  Use the General Equipment: Hose Clamp Remover/Installer
- 2.

  Unclamp the turbocharger coolant tubes.
  Use the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY

15.

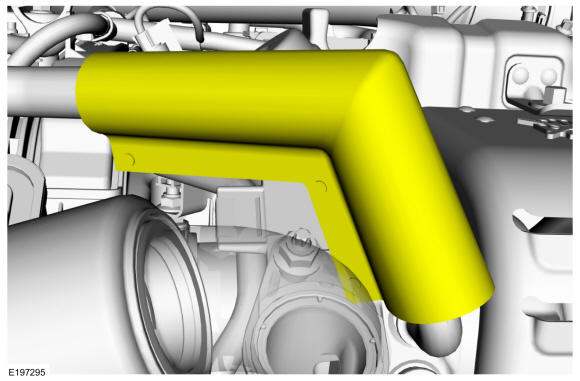

Position back the turbocharger coolant return tube heat shield.

Courtesy of FORD MOTOR COMPANY

16.

Install the catalytic converter. REFER to: Catalytic Converter .

17.

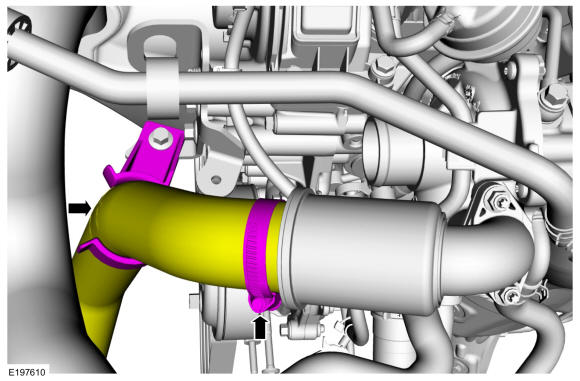

Install the turbocharger outlet tube and then tighten the clamp.
Torque

: 44 lb.in (5.0 Nm)

Courtesy of FORD MOTOR COMPANY

18.
- 1.

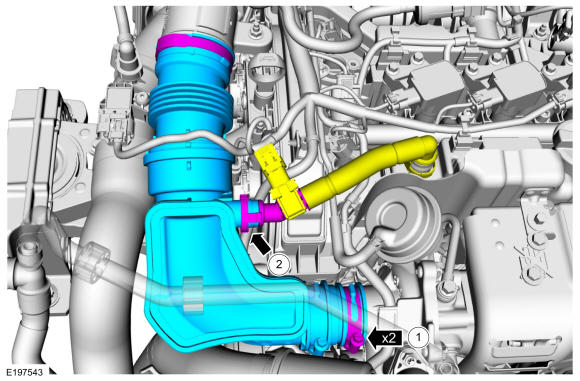

  Install the turbocharger inlet pipe and then tighten the clamps.
  Torque

  : 36 lb.in (4.1 Nm)
- 2.

  Connect the quick release coupling. REFER to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

19.

Fill and bleed the cooling system. REFER to: COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .

20.

Check and top off the engine oil as needed. REFER to: Specifications .
