Turbocharger Coolant Supply Tube: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

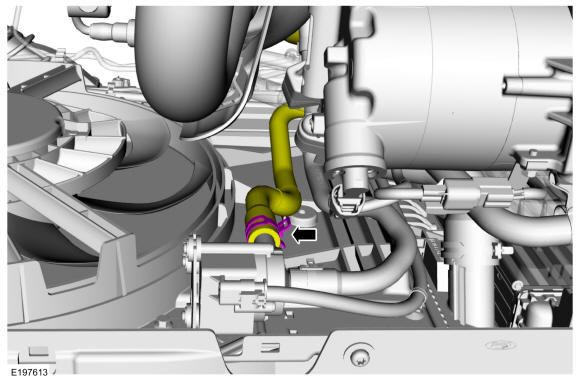

Install and connect the turbocharger coolant supply tube and the hose clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

2.

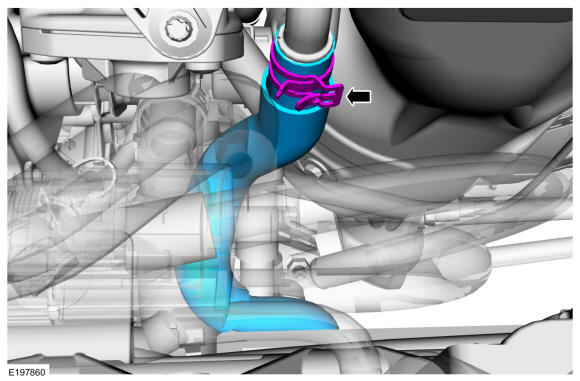

Connect the turbocharger coolant supply tube and the hose clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

3.

Fill and bleed the cooling system. REFER to: COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
