Component Location Views

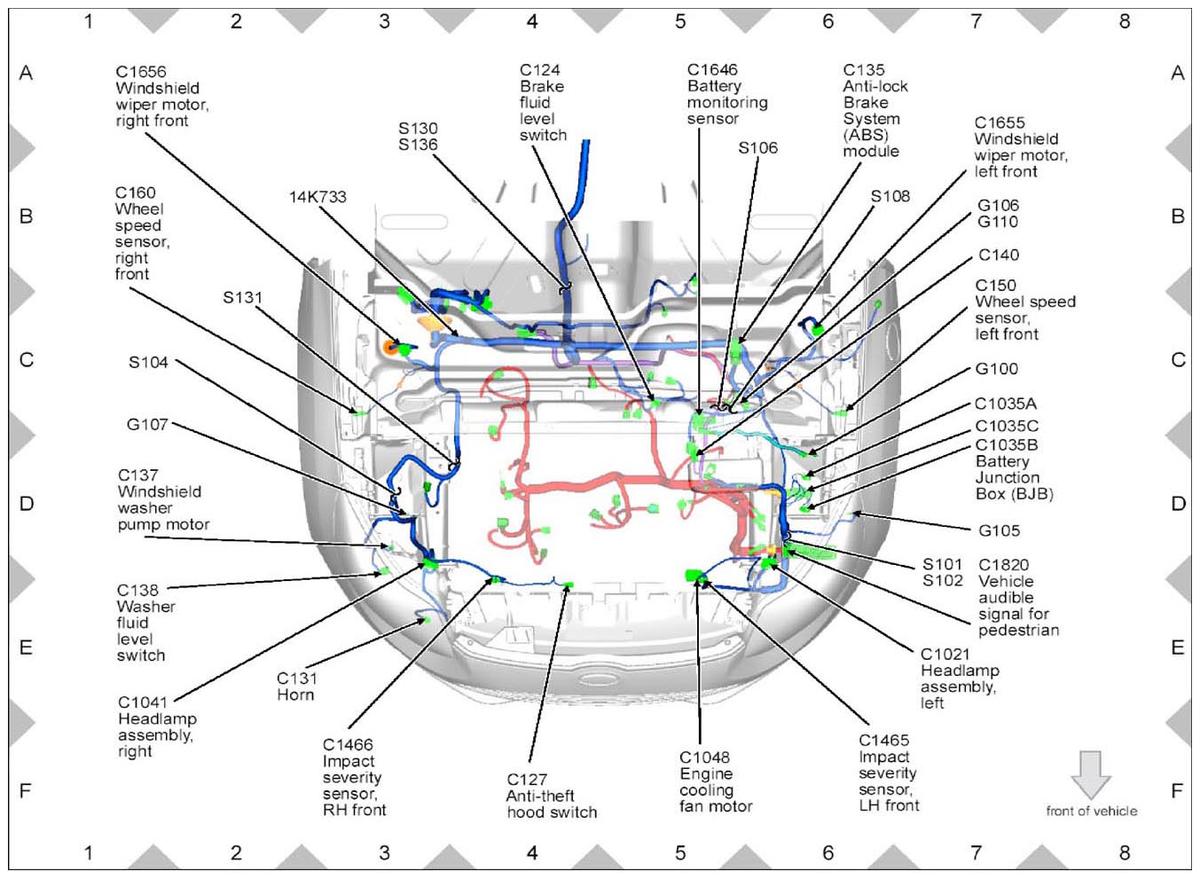

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 2)
G09260971Courtesy of FORD MOTOR CO.

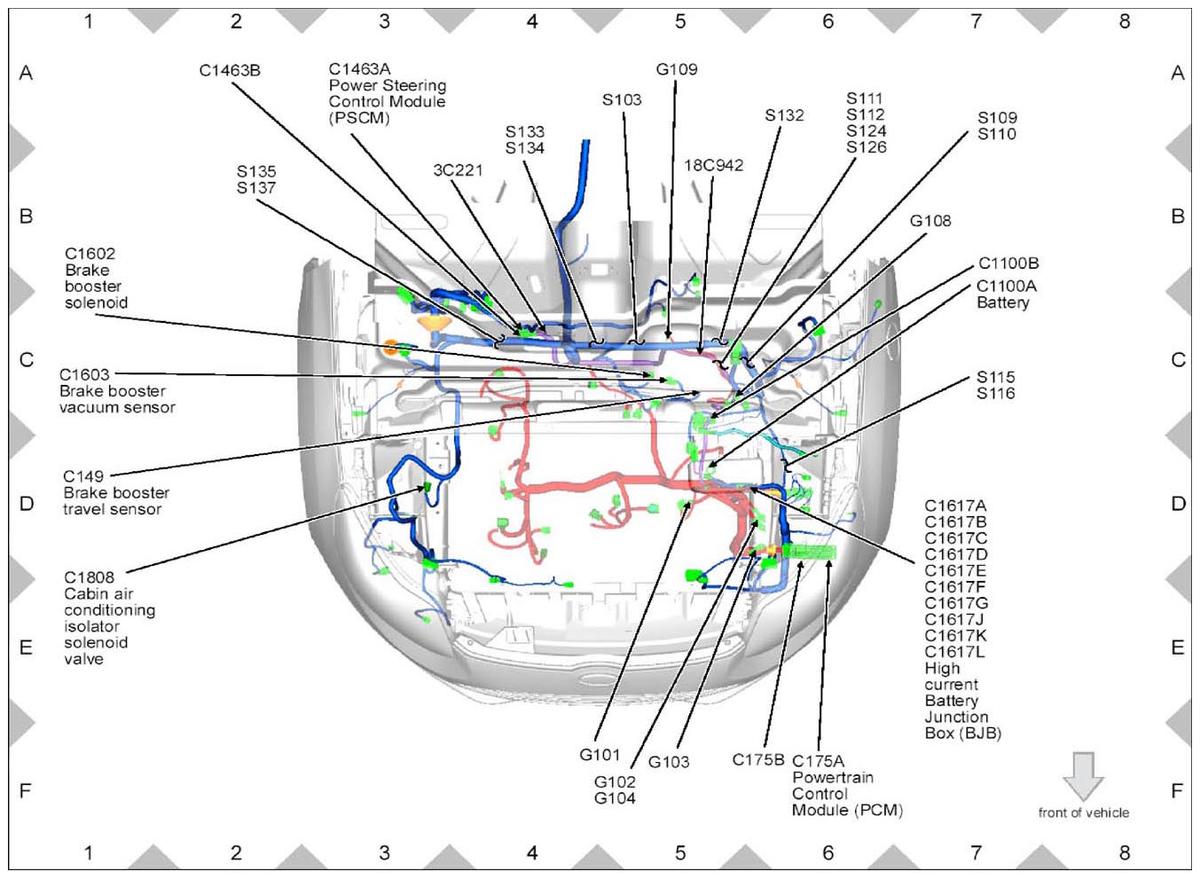

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 2)
G09260972Courtesy of FORD MOTOR CO.

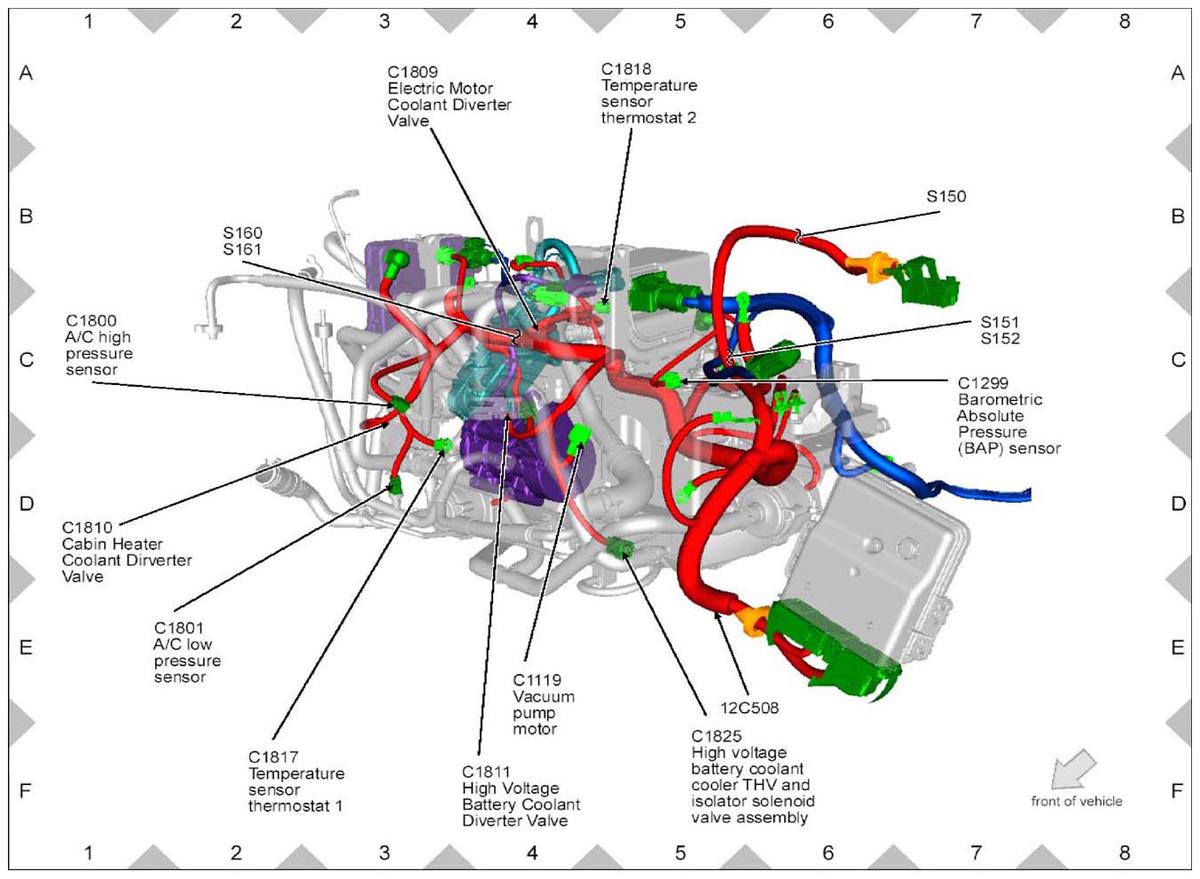

Fig 3: Engine Wiring Harness Connectors Location (1 Of 2)
G09260973Courtesy of FORD MOTOR CO.

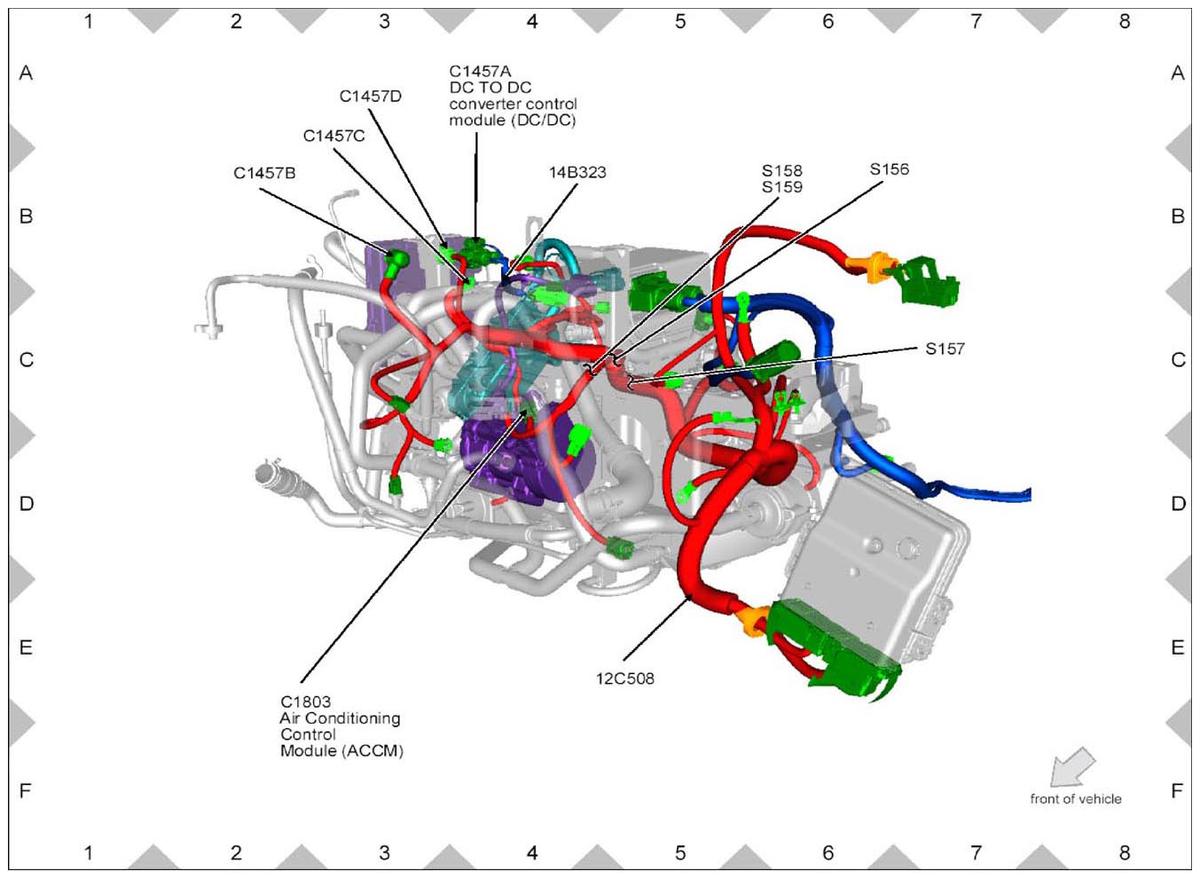

Fig 4: Engine Wiring Harness Connectors Location (2 Of 2)
G09260974Courtesy of FORD MOTOR CO.

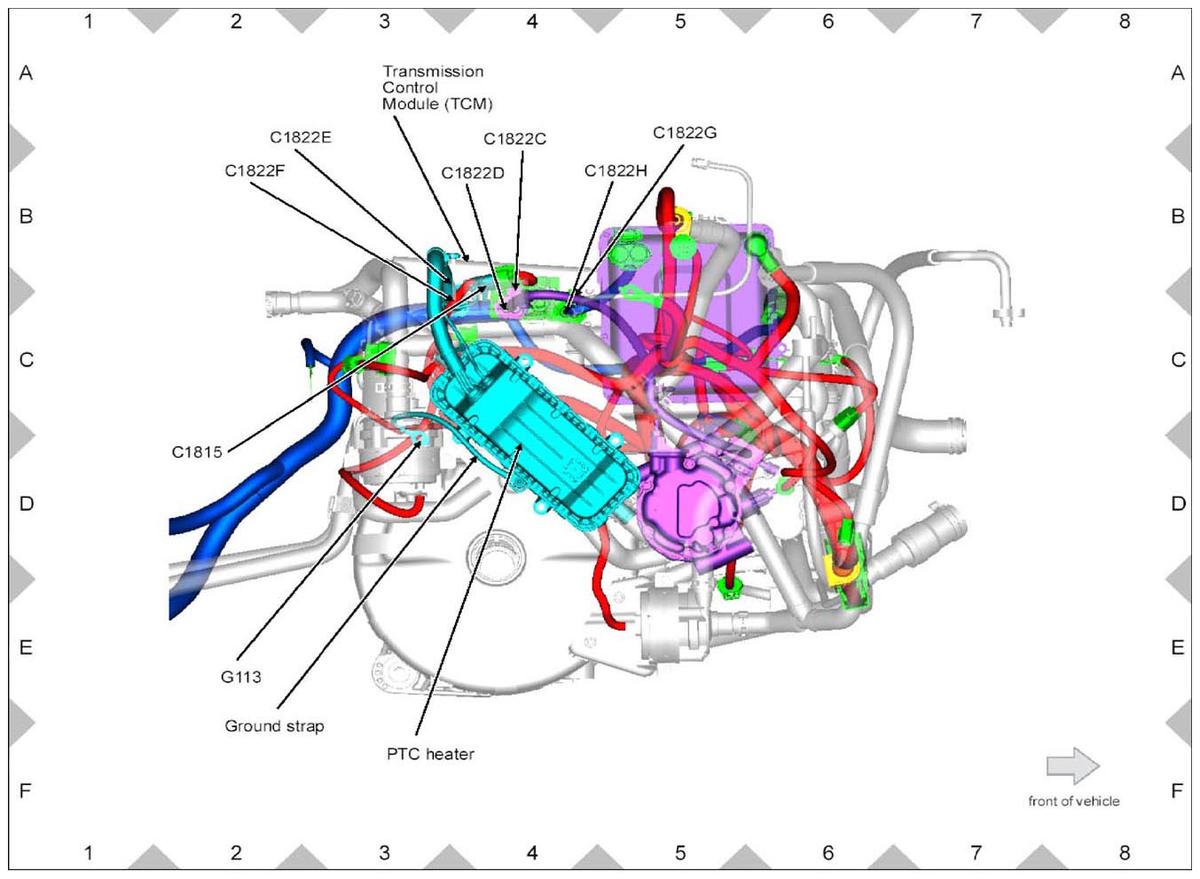

Fig 5: Transmission Control Module Wiring Harness Connectors Location (1 Of 2)
G09260975Courtesy of FORD MOTOR CO.

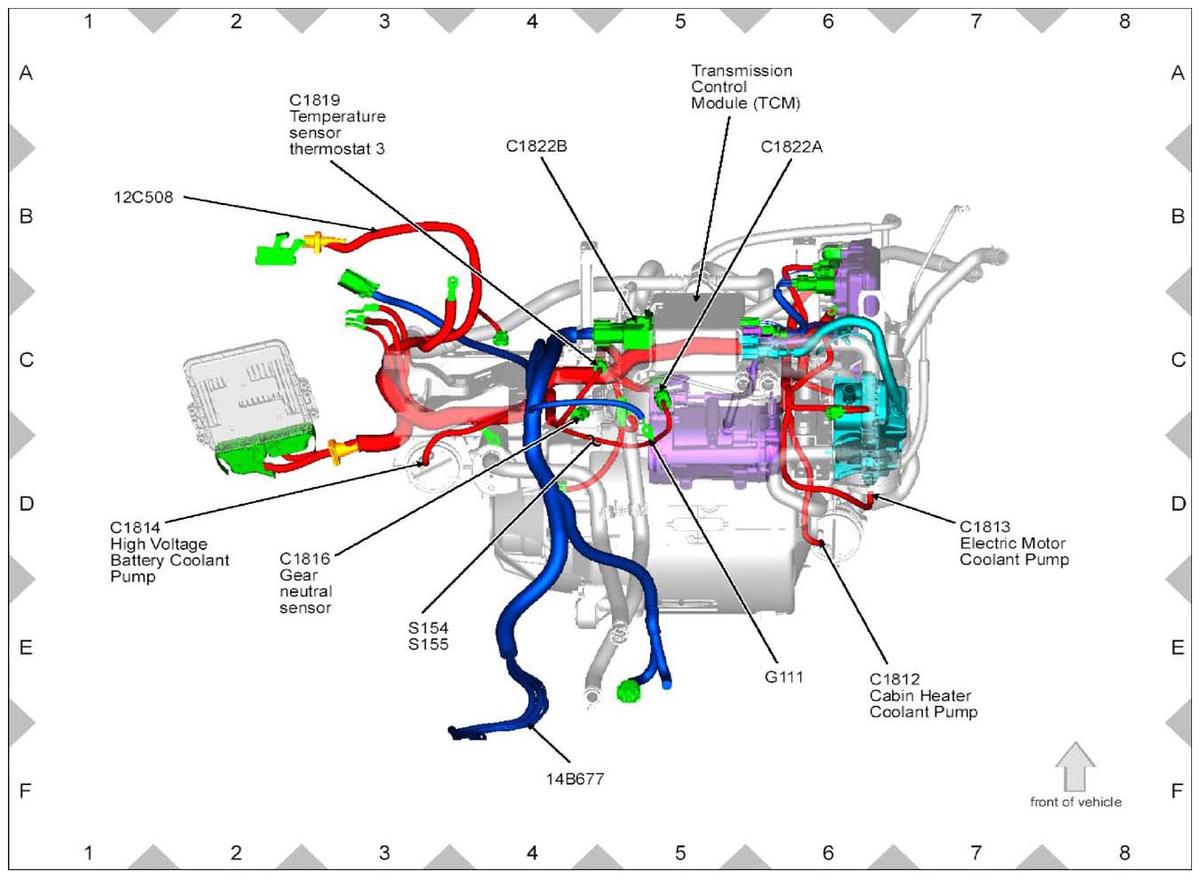

Fig 6: Transmission Control Module Wiring Harness Connectors Location (2 Of 2)
G09260976Courtesy of FORD MOTOR CO.

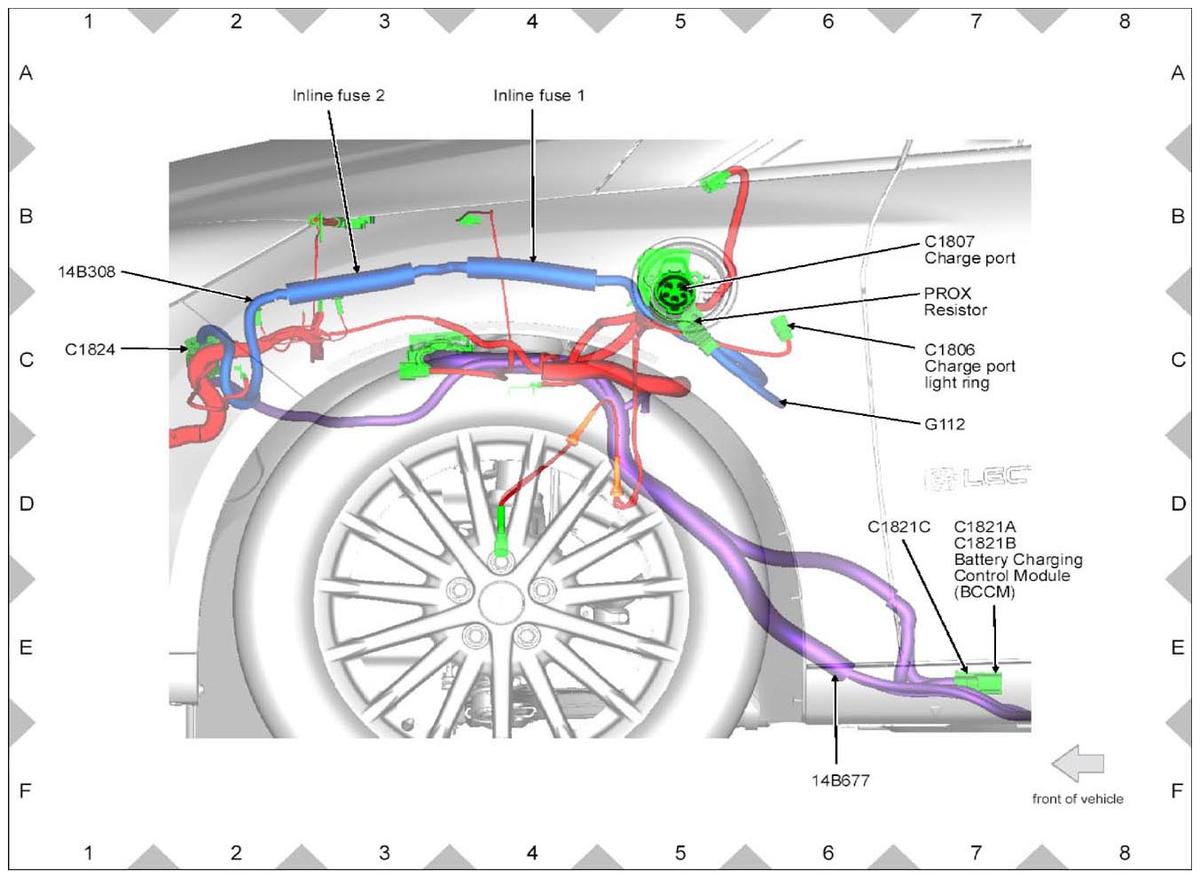

Fig 7: Battery Charging Control Module Wiring Harness Connectors Location
G09260977Courtesy of FORD MOTOR CO.

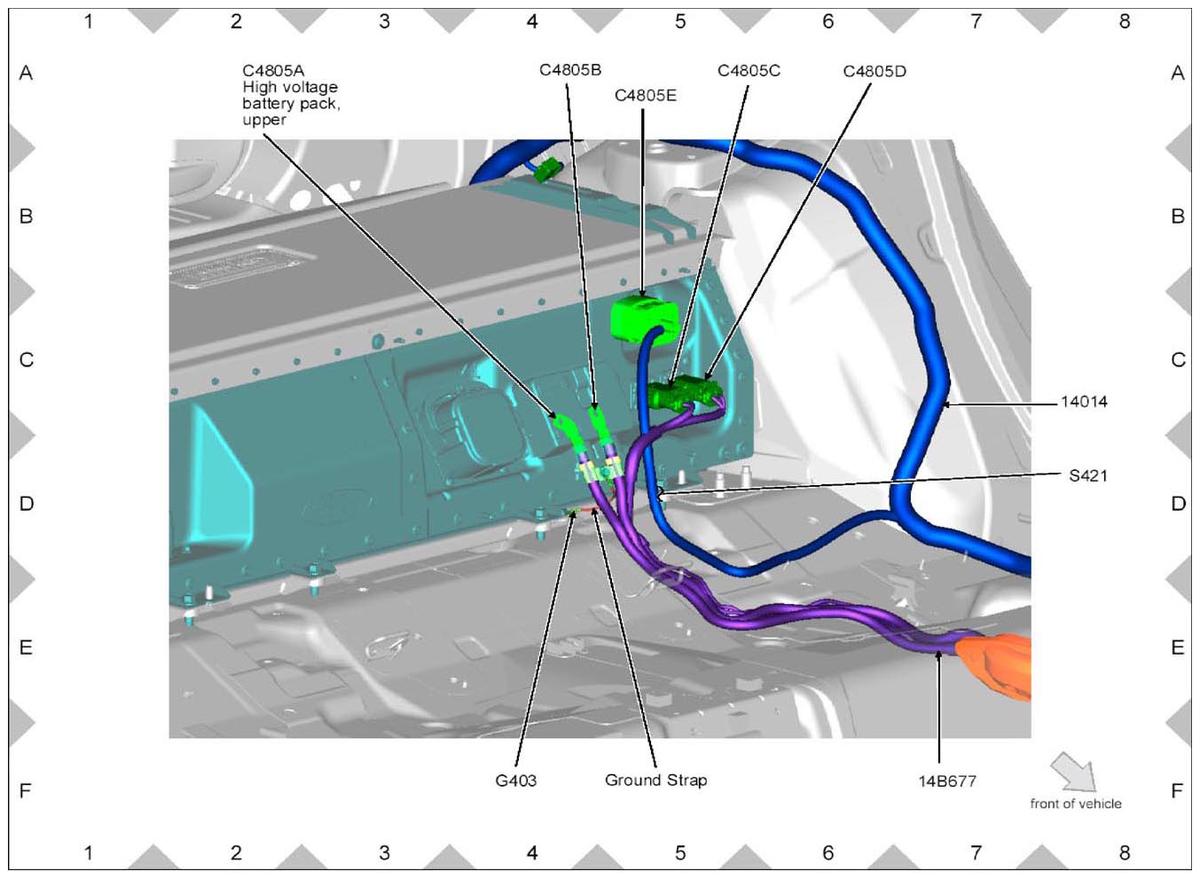

Fig 8: High Voltage Battery Pack (Upper) Wiring Harness Connectors Location (1 Of 2)
G09260978Courtesy of FORD MOTOR CO.

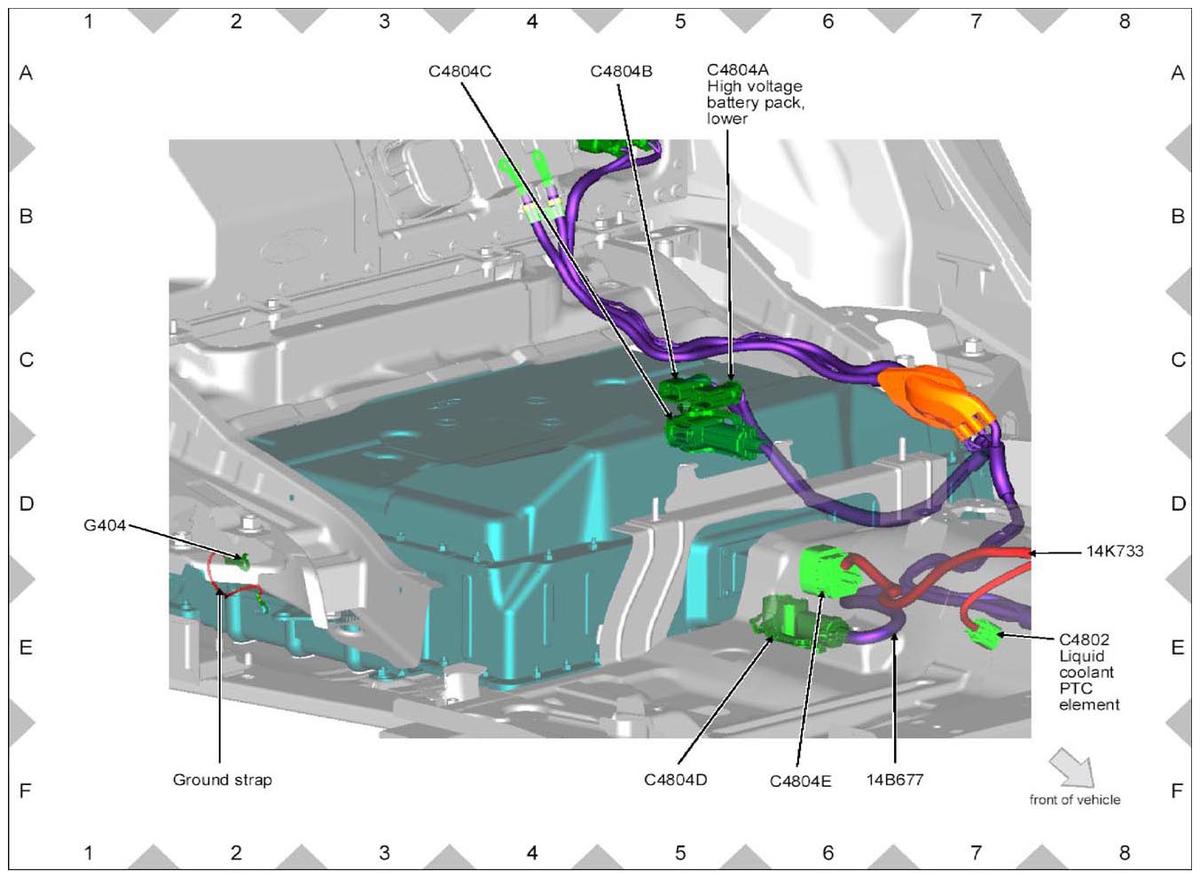

Fig 9: High Voltage Battery Pack (Lower) Wiring Harness Connectors Location (2 Of 2)
G09260979Courtesy of FORD MOTOR CO.

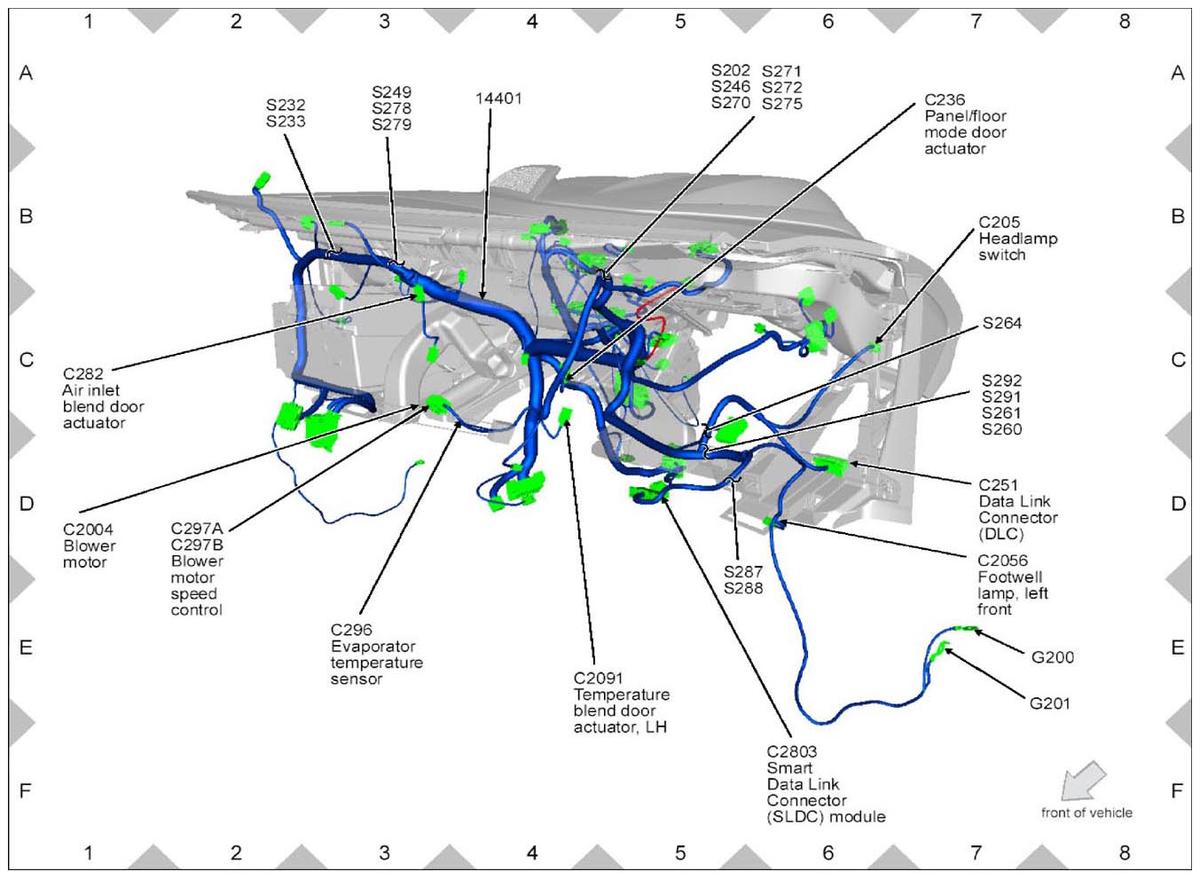

Fig 10: Front Dashboard Wiring Harness Connectors Location (1 Of 4)
G09260980Courtesy of FORD MOTOR CO.

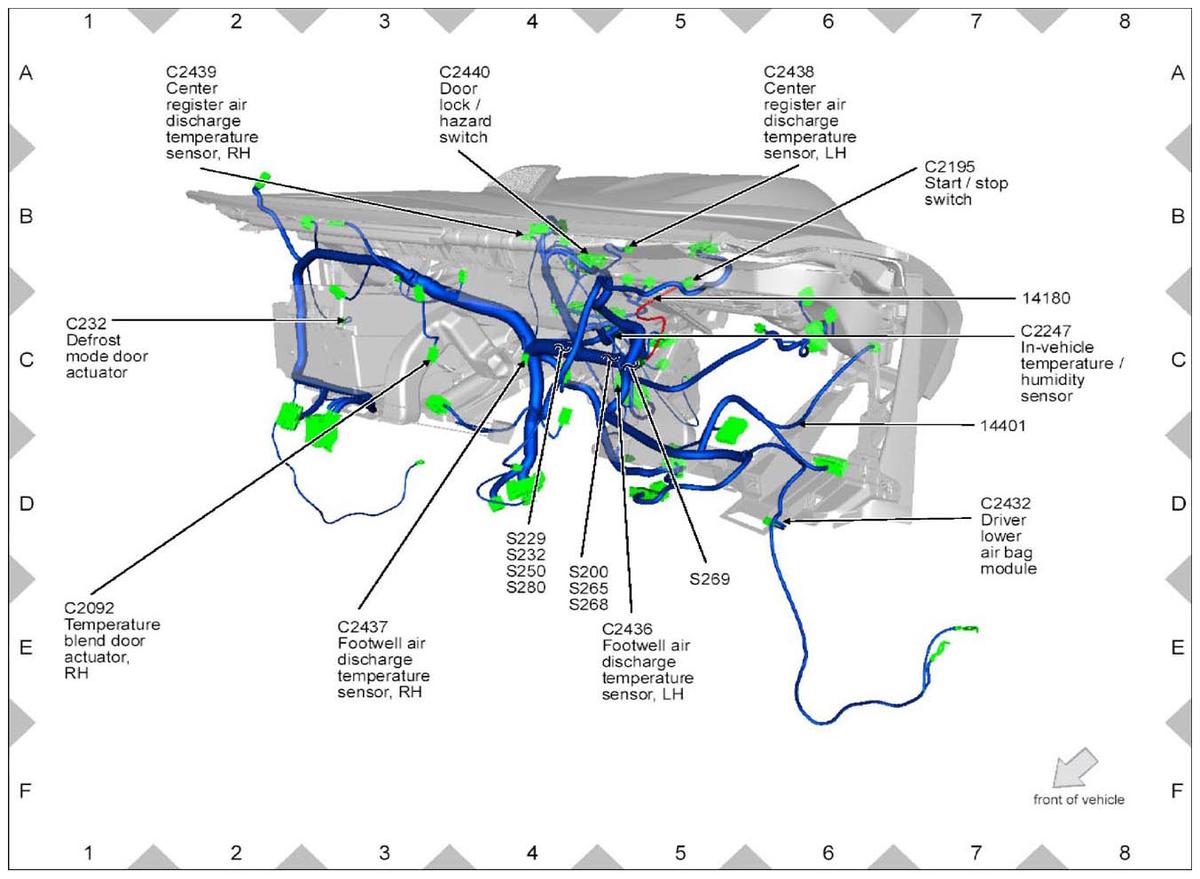

Fig 11: Front Dashboard Wiring Harness Connectors Location (2 Of 4)
G09260981Courtesy of FORD MOTOR CO.

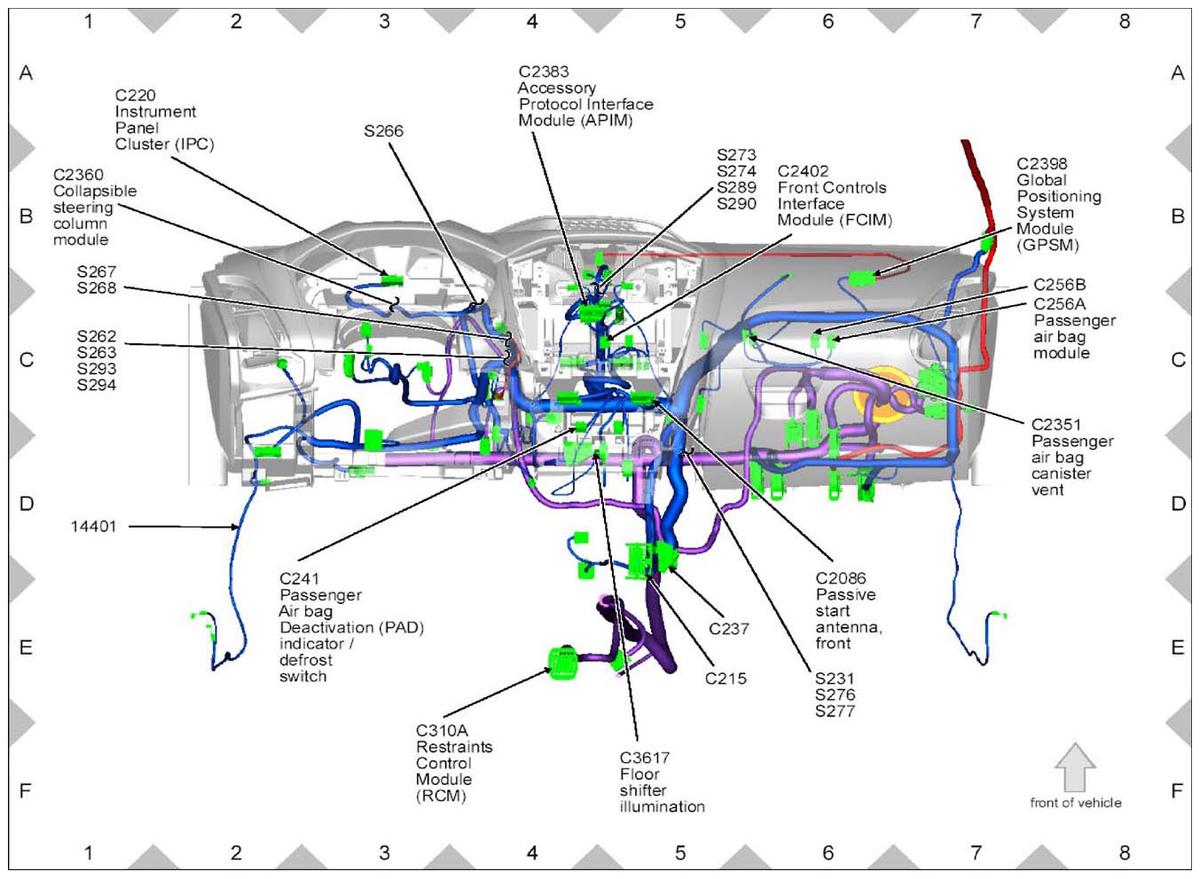

Fig 12: Front Dashboard Wiring Harness Connectors Location (3 Of 4)
G09260982Courtesy of FORD MOTOR CO.

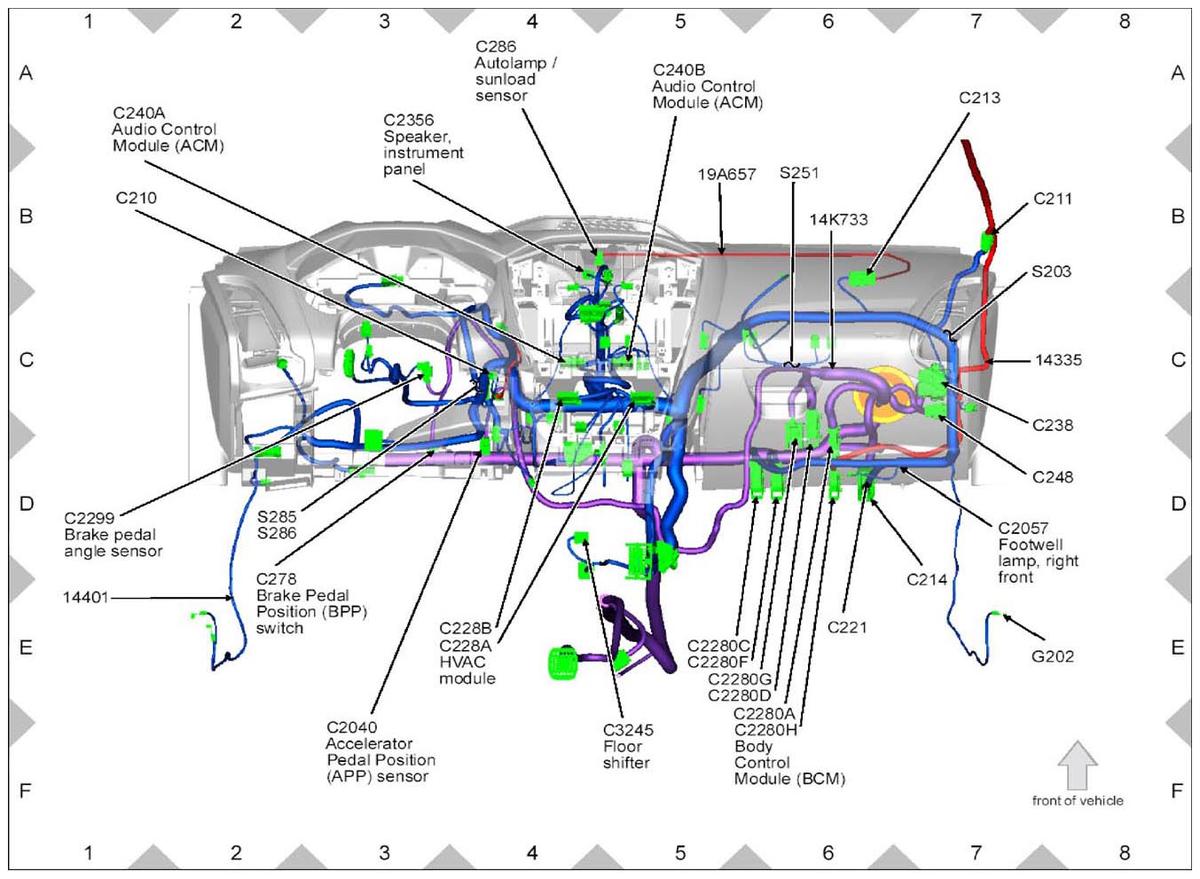

Fig 13: Front Dashboard Wiring Harness Connectors Location (4 Of 4)
G09260983Courtesy of FORD MOTOR CO.

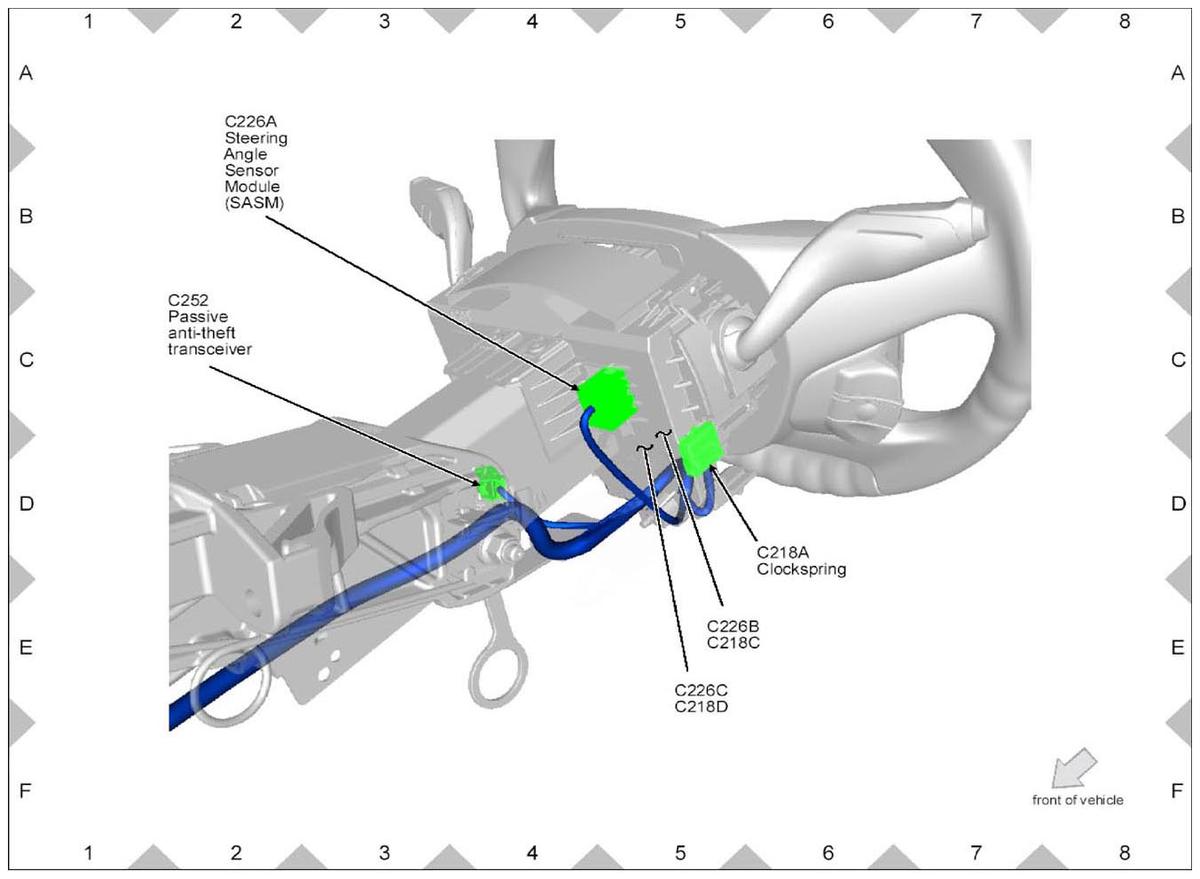

Fig 14: Steering Column Wiring Harness Connectors Location
G09260984Courtesy of FORD MOTOR CO.

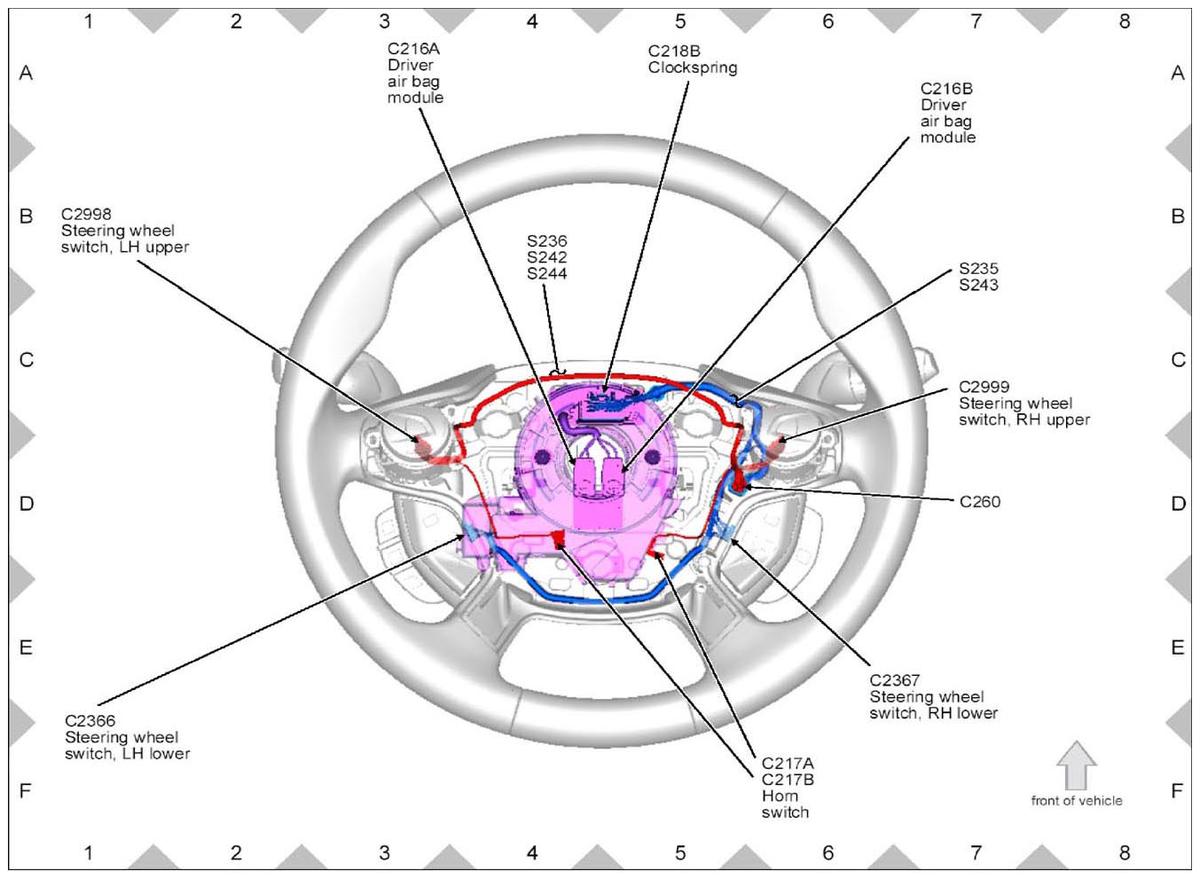

Fig 15: Steering Wheel Wiring Harness Connectors Location
G09260985Courtesy of FORD MOTOR CO.

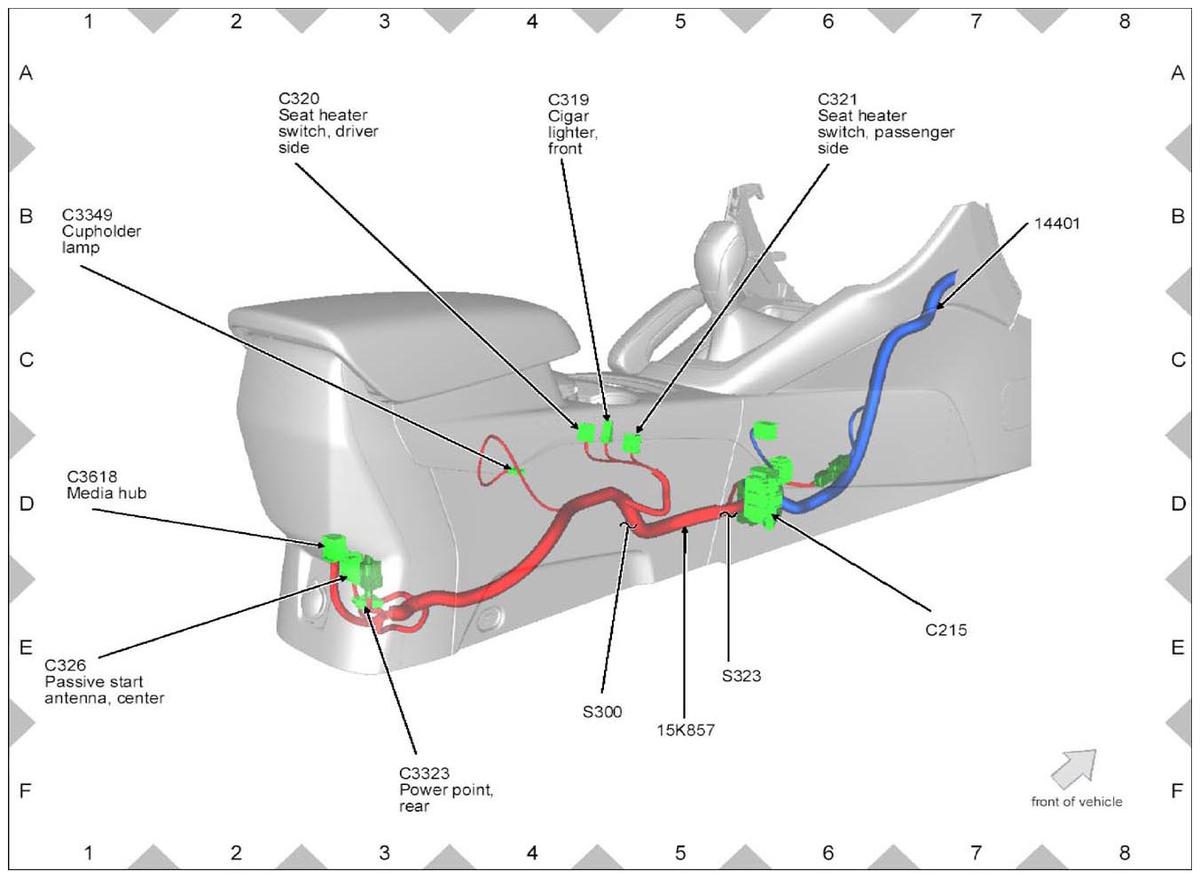

Fig 16: Center Console Wiring Harness Connectors Location
G09260986Courtesy of FORD MOTOR CO.

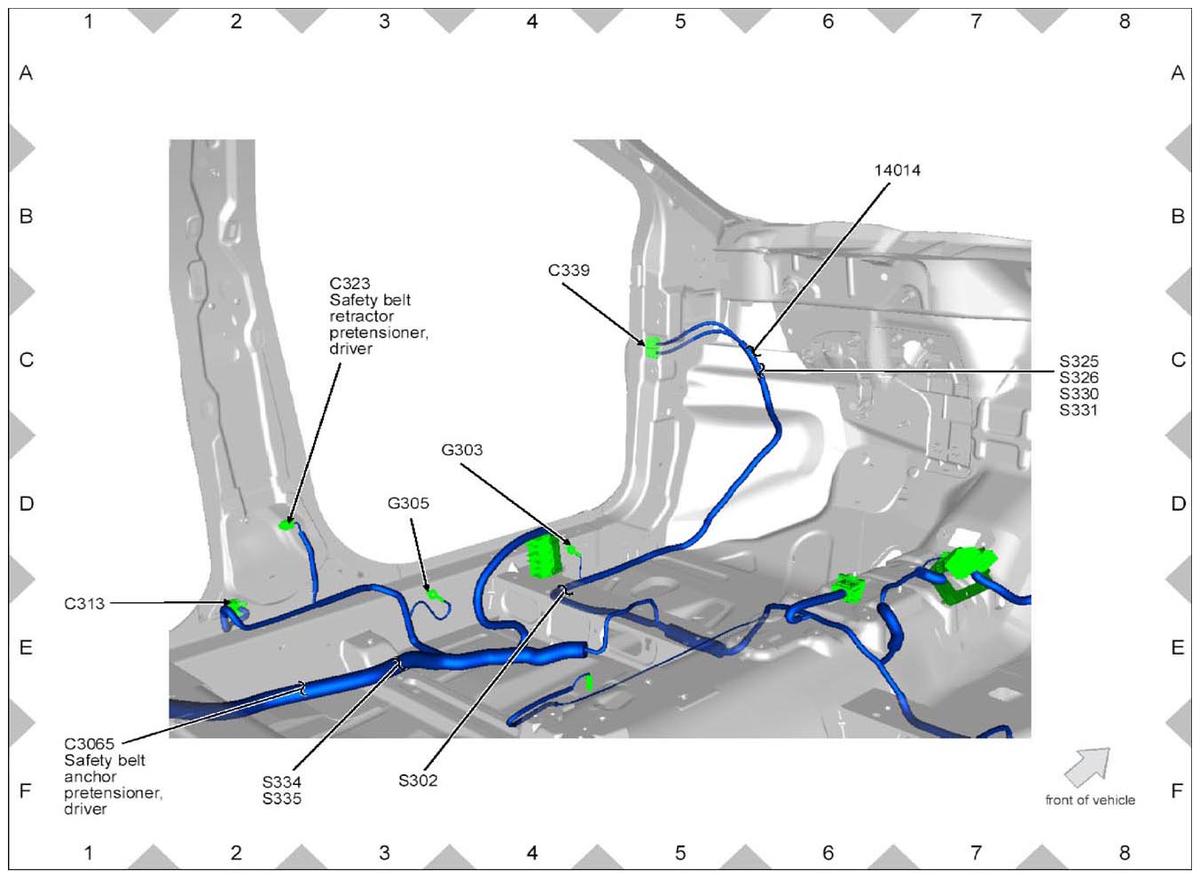

Fig 17: LH Front Compartment Wiring Harness Connectors Location
G09260987Courtesy of FORD MOTOR CO.

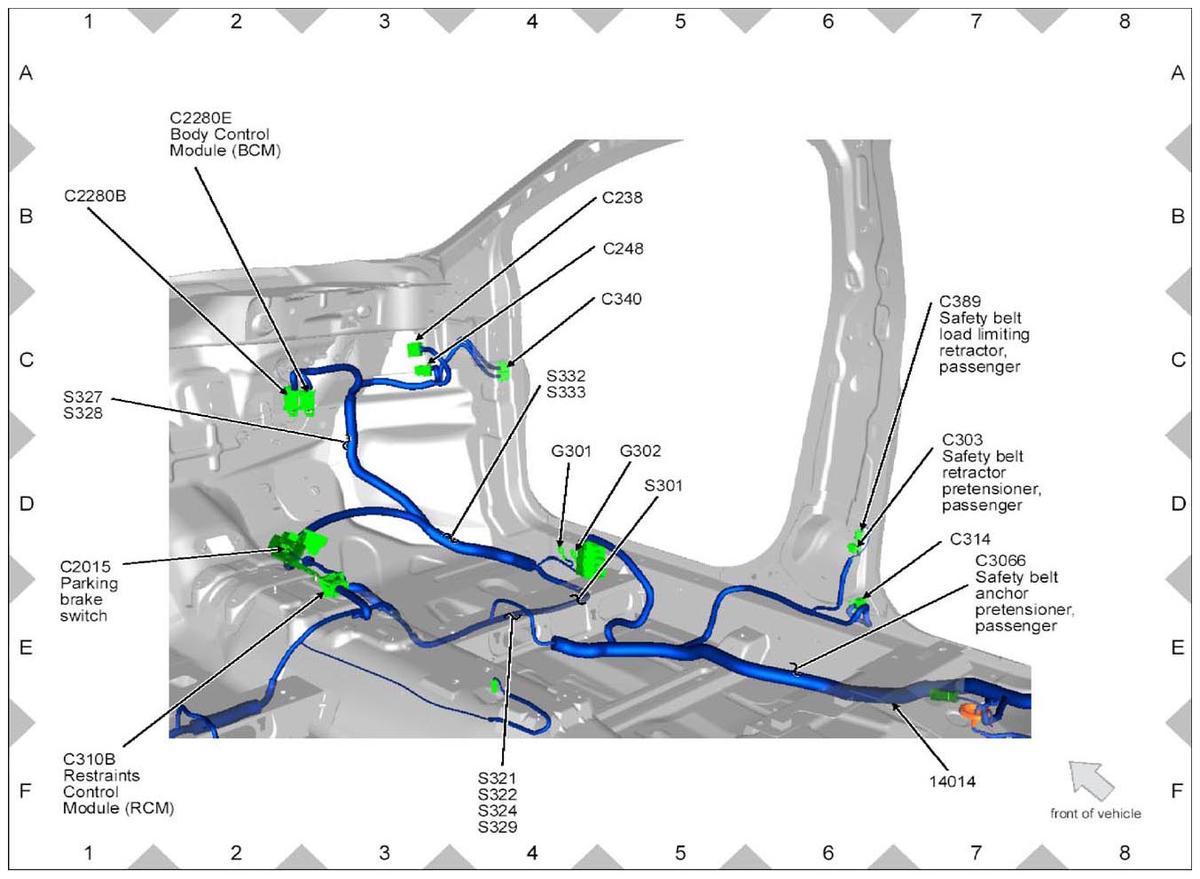

Fig 18: RH Front Compartment Wiring Harness Connectors Location
G09260988Courtesy of FORD MOTOR CO.

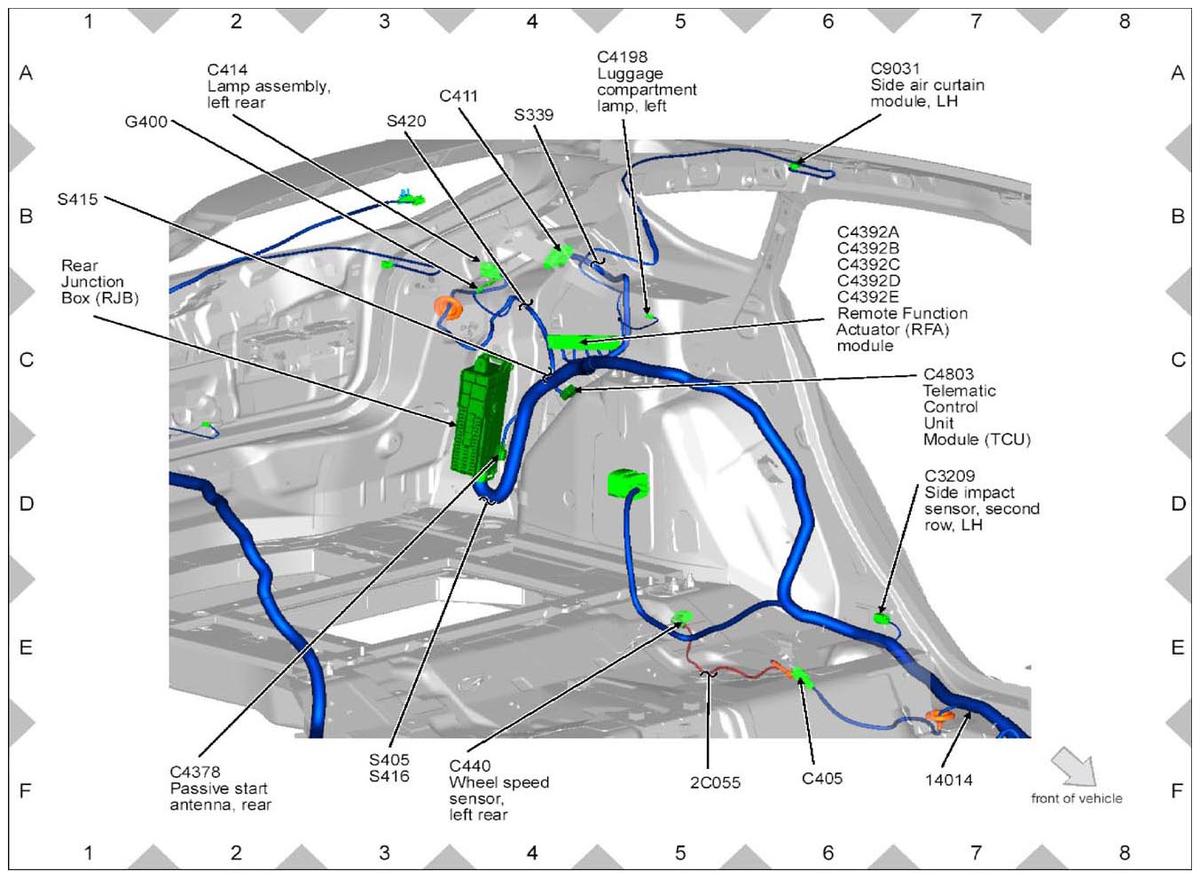

Fig 19: LH Rear Compartment Wiring Harness Connectors Location
G09260989Courtesy of FORD MOTOR CO.

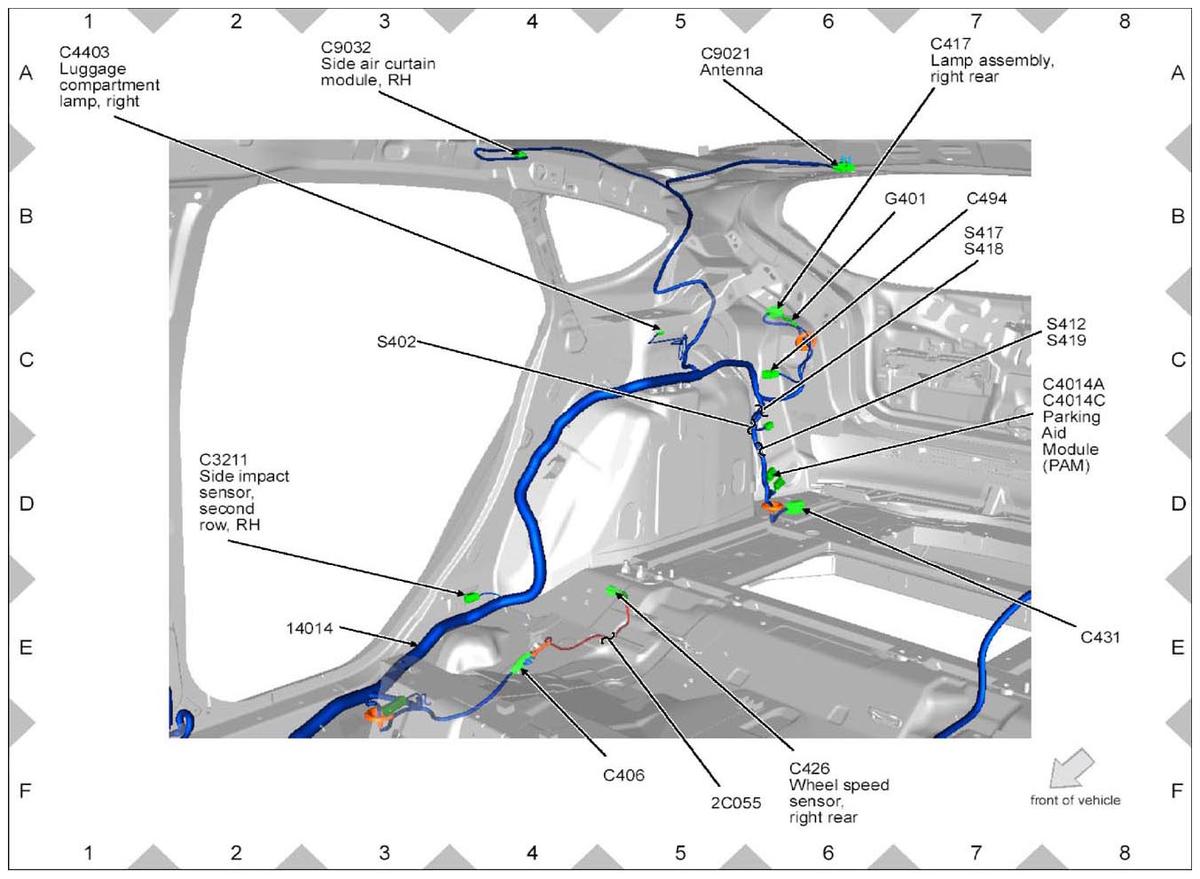

Fig 20: RH Rear Compartment Wiring Harness Connectors Location
G09260990Courtesy of FORD MOTOR CO.

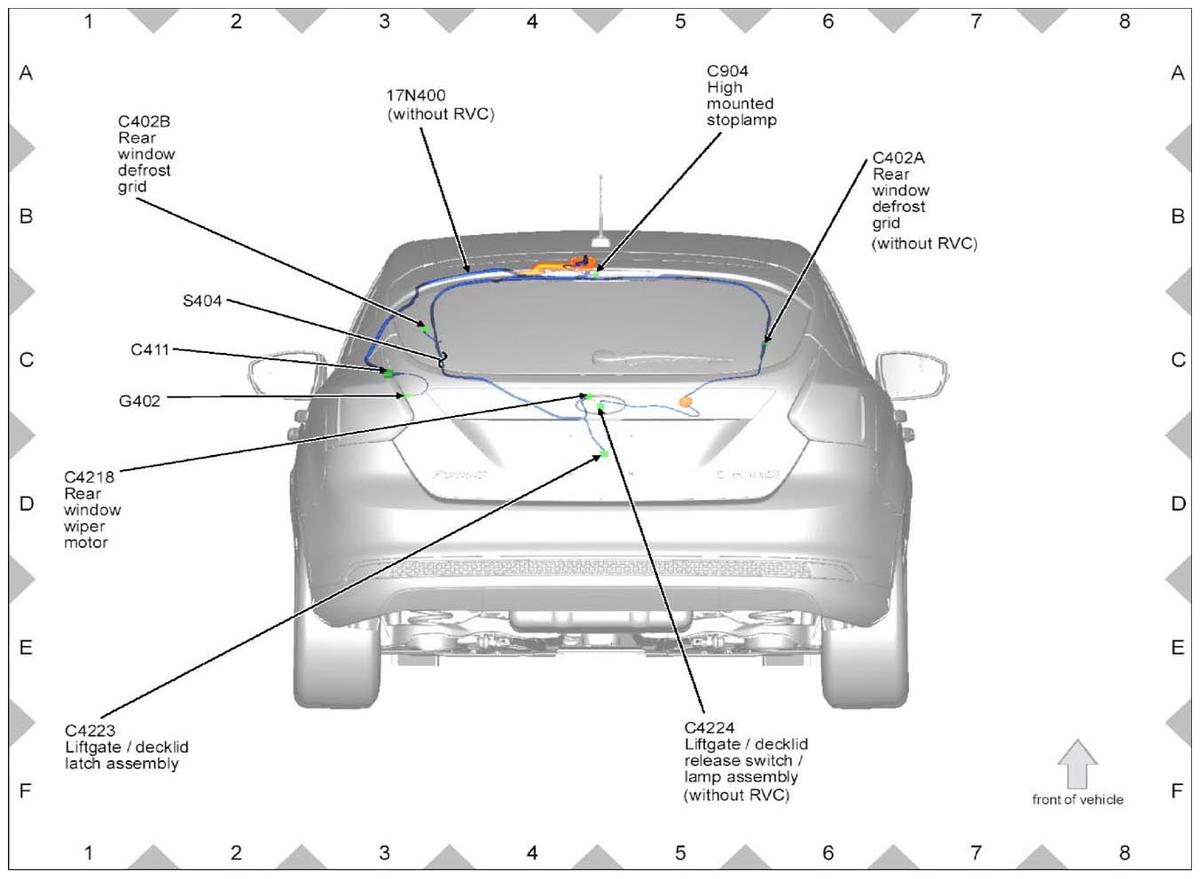

Fig 21: Liftgate Wiring Harness Connectors Location
G09260991Courtesy of FORD MOTOR CO.

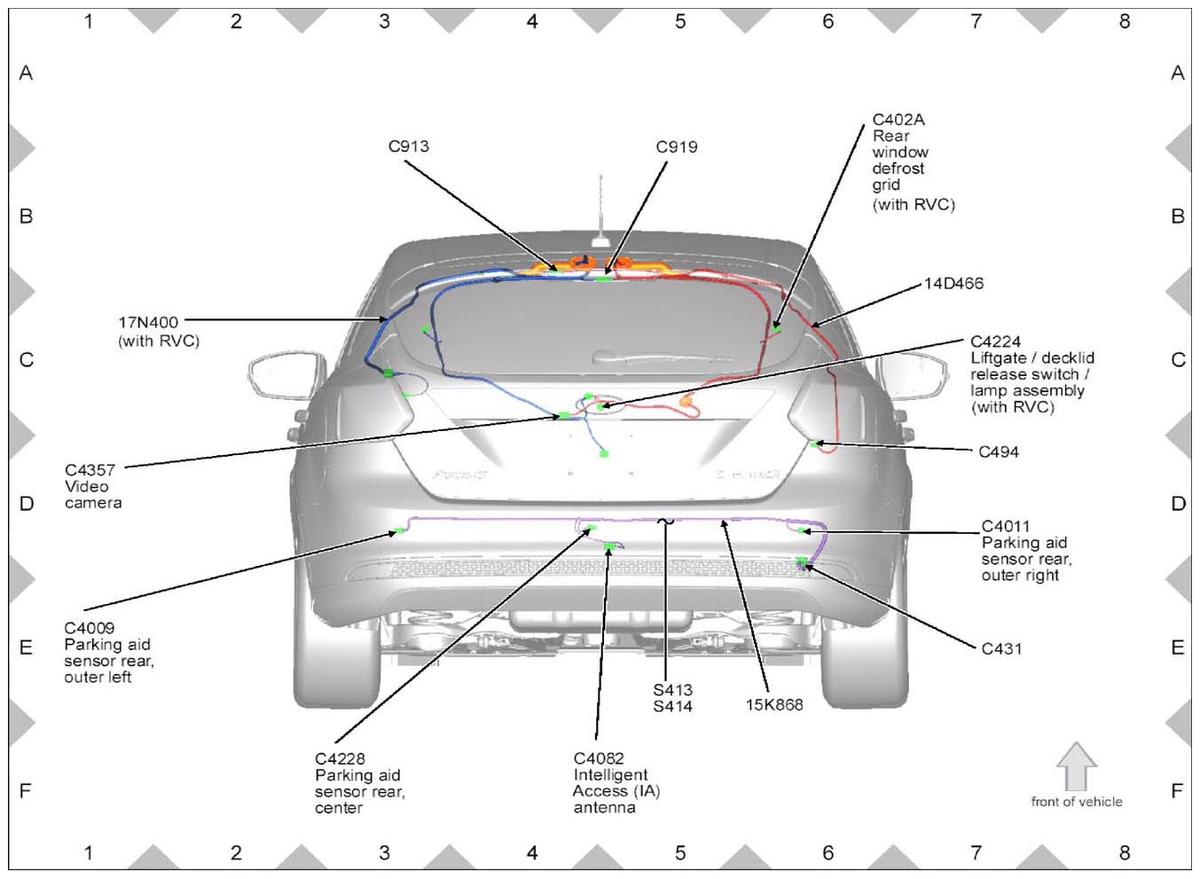

Fig 22: Liftgate And Rear Bumper Wiring Harness Connectors Location
G09260992Courtesy of FORD MOTOR CO.

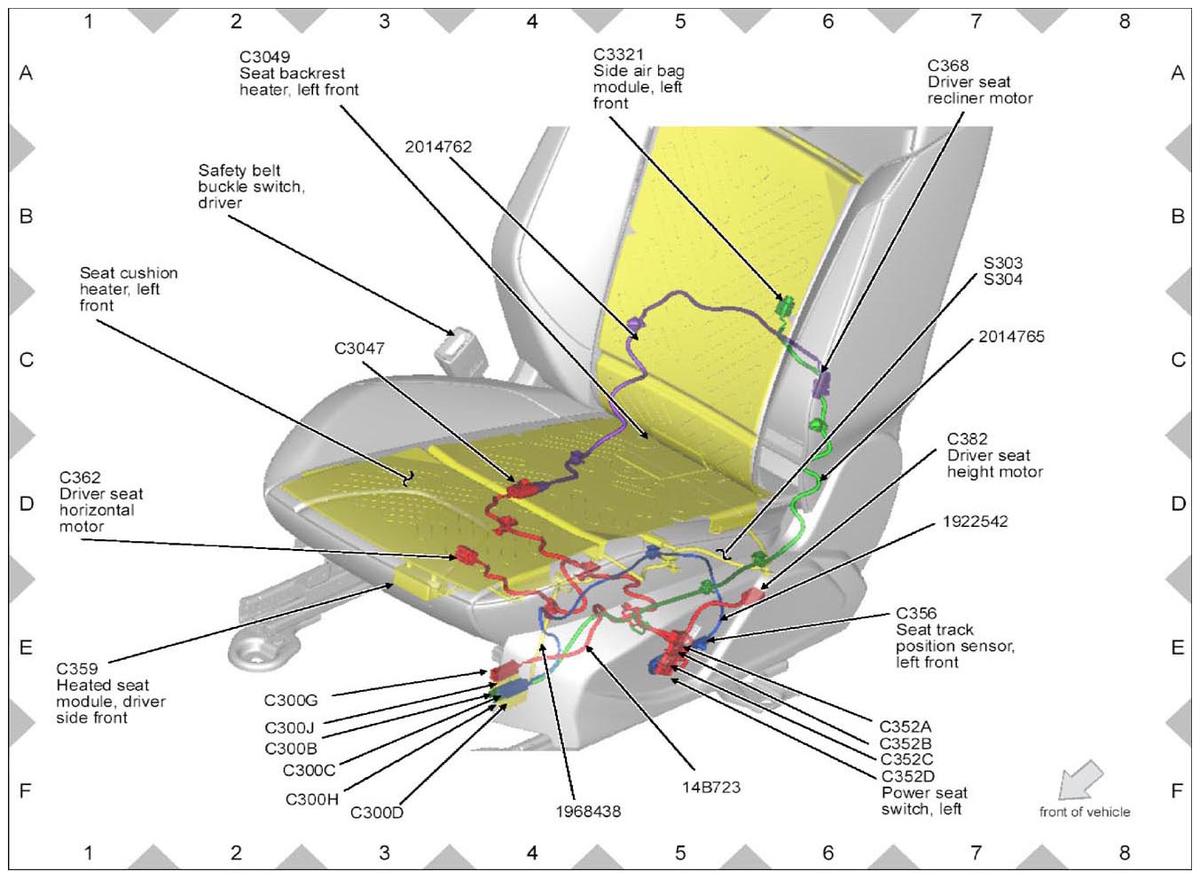

Fig 23: Driver Seat Wiring Harness Connectors Location
G09260993Courtesy of FORD MOTOR CO.

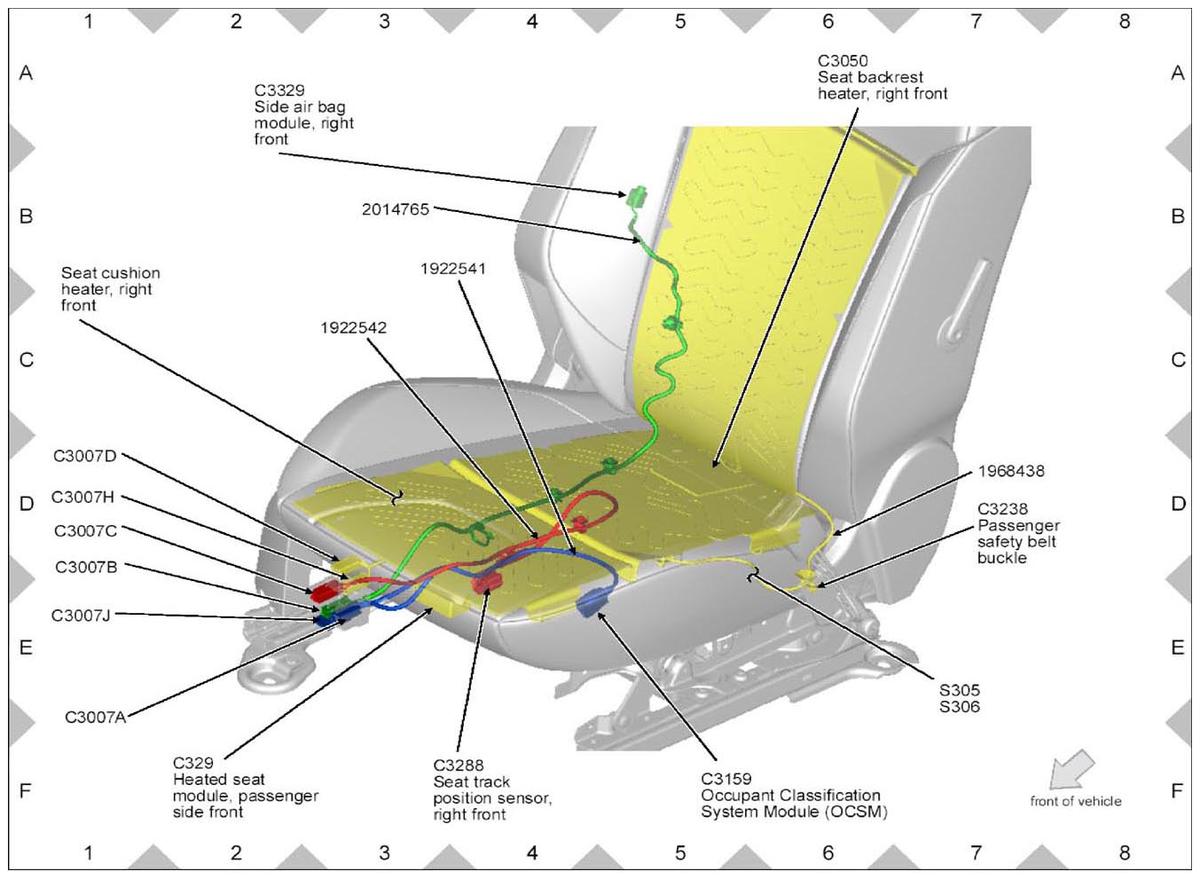

Fig 24: Passenger Seat Wiring Harness Connectors Location
G09260994Courtesy of FORD MOTOR CO.

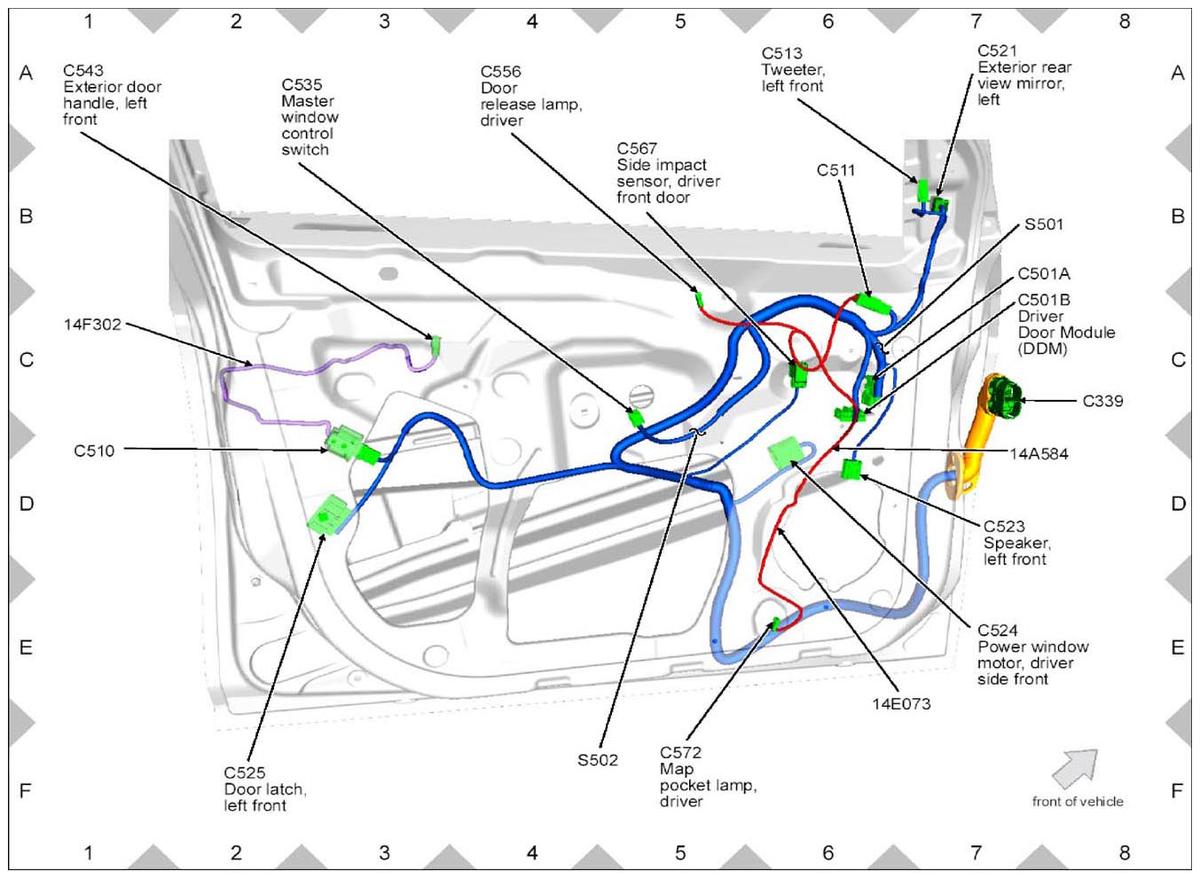

Fig 25: LH Front Door Wiring Harness Connectors Location
G09260995Courtesy of FORD MOTOR CO.

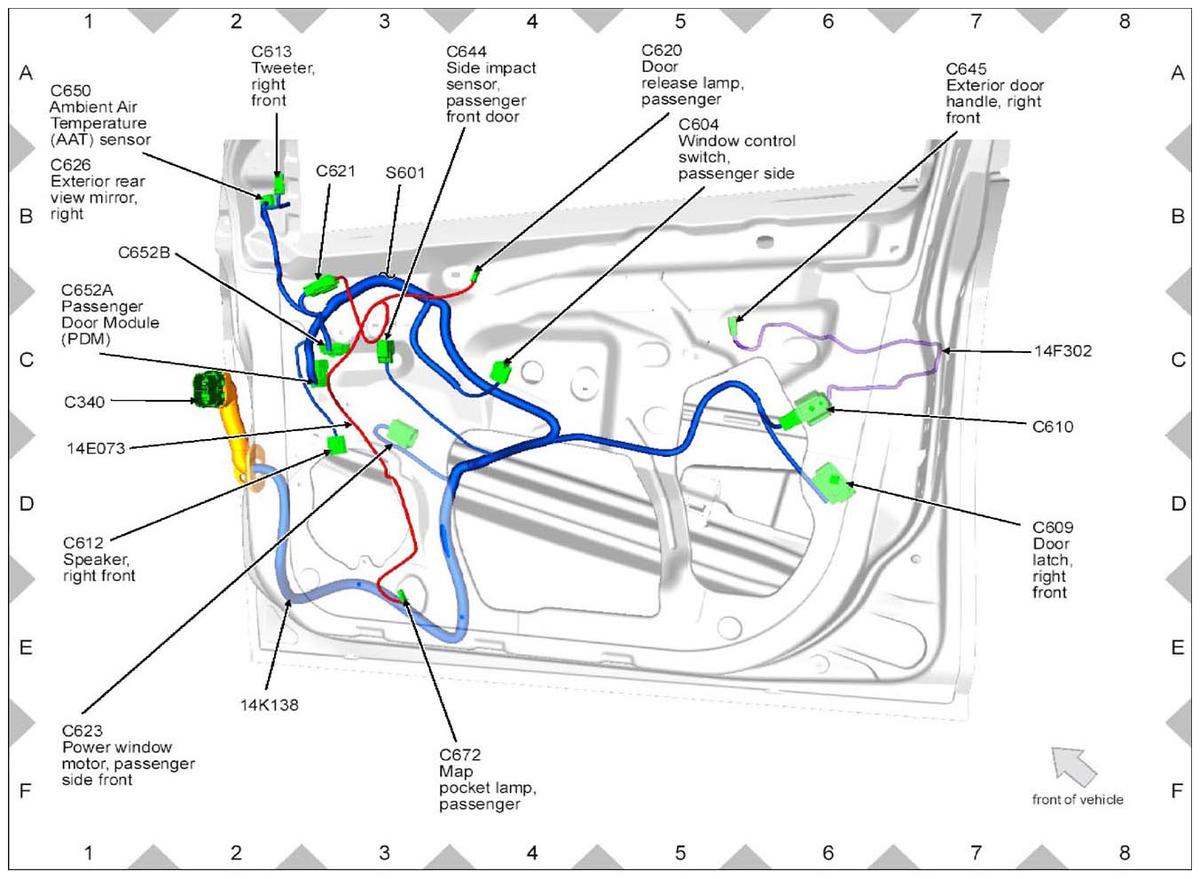

Fig 26: RH Front Door Wiring Harness Connectors Location
G09260996Courtesy of FORD MOTOR CO.

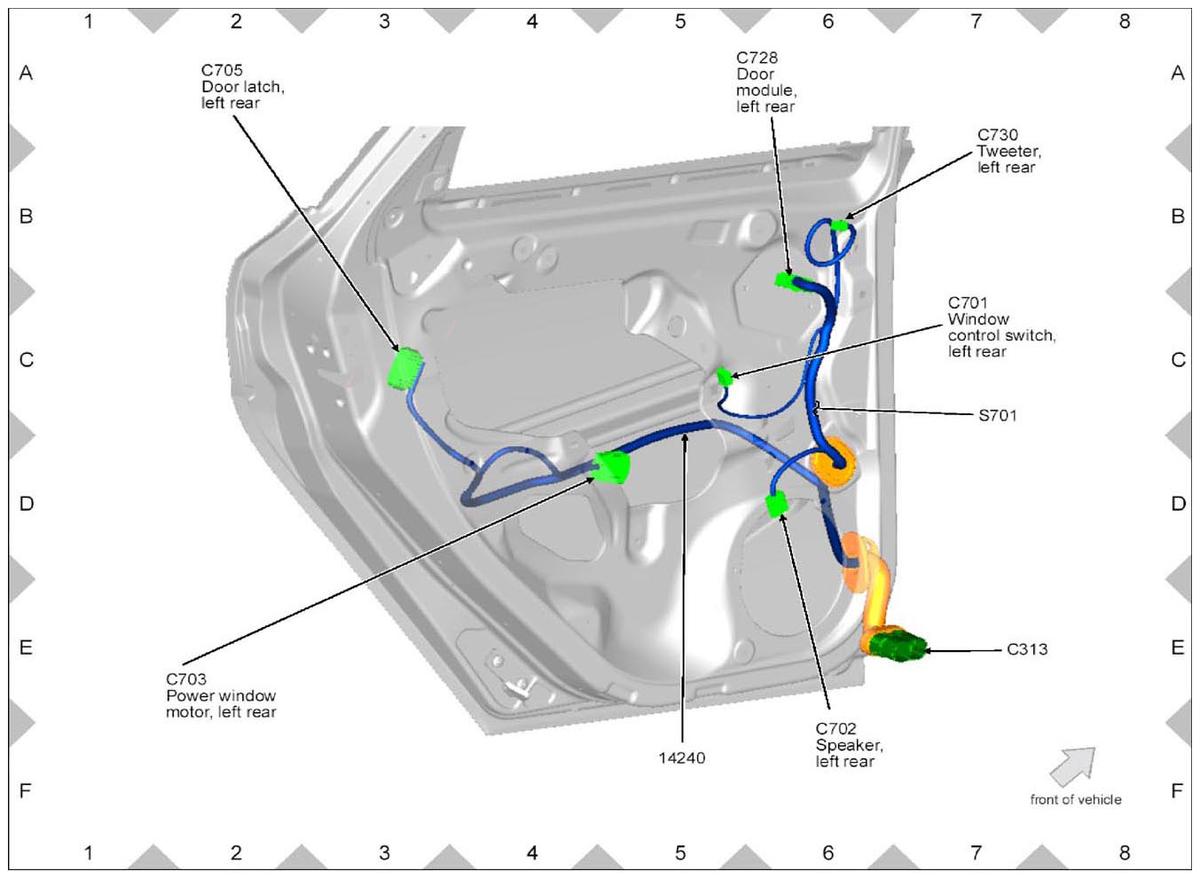

Fig 27: LH Rear Door Wiring Harness Connectors Location
G09260997Courtesy of FORD MOTOR CO.

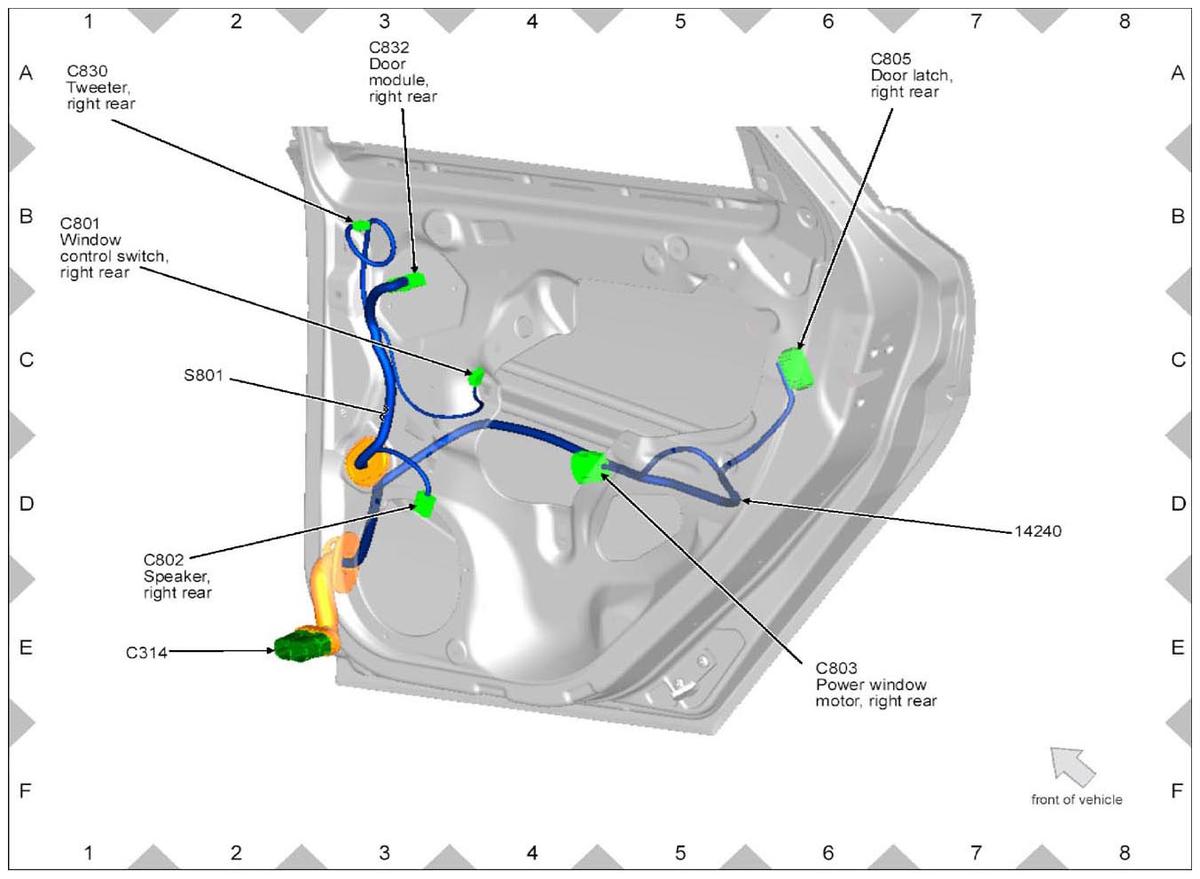

Fig 28: RH Rear Door Wiring Harness Connectors Location
G09260998Courtesy of FORD MOTOR CO.

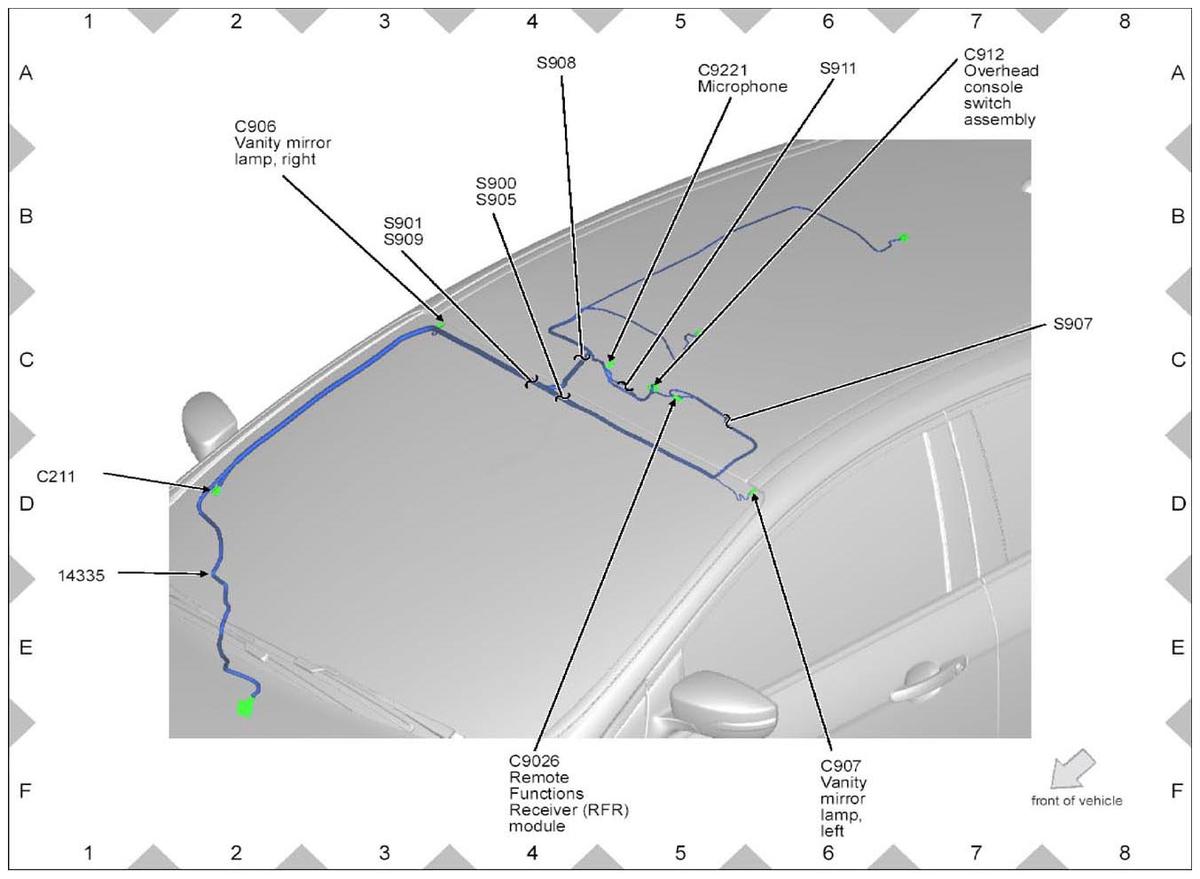

Fig 29: Roof Wiring Harness Connectors Location (1 Of 2)
G09260999Courtesy of FORD MOTOR CO.

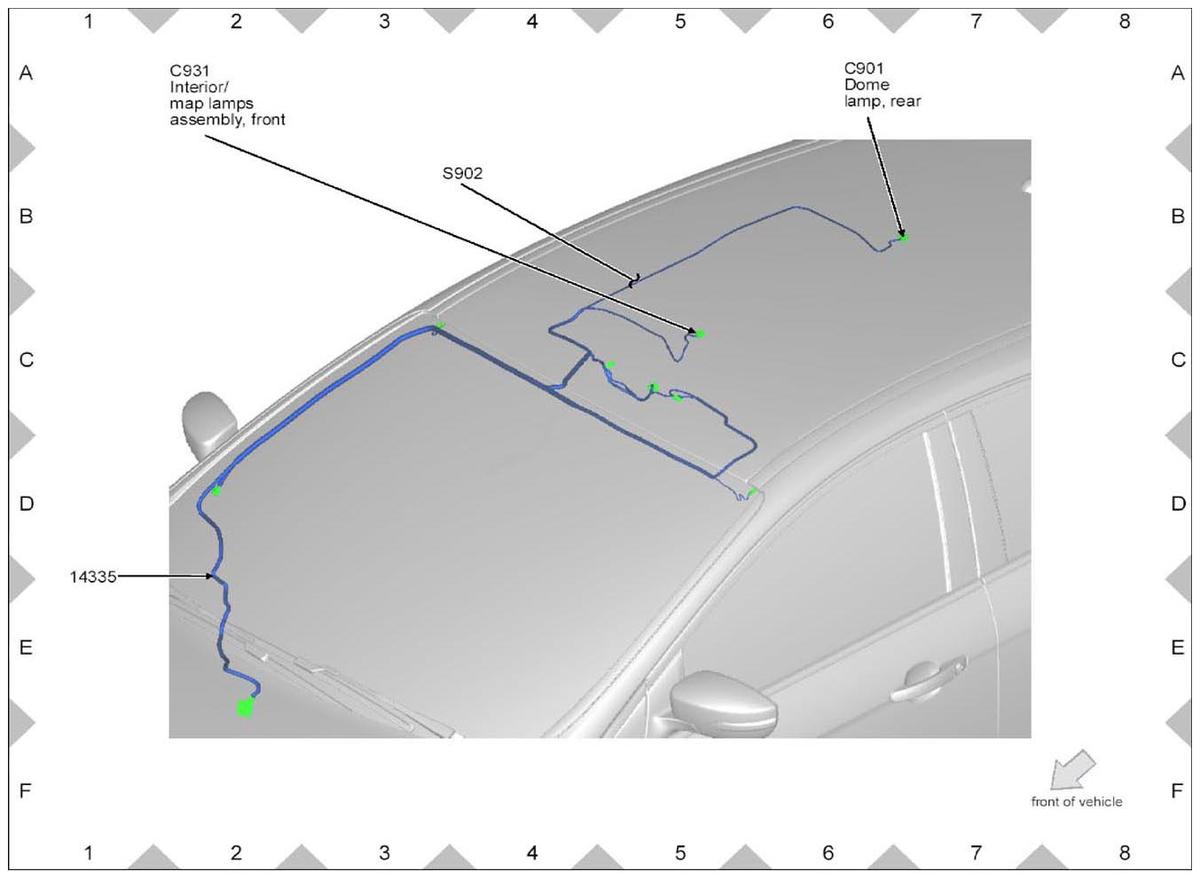

Fig 30: Roof Wiring Harness Connectors Location (2 Of 2)
G09261000Courtesy of FORD MOTOR CO.
