Component Location Charts

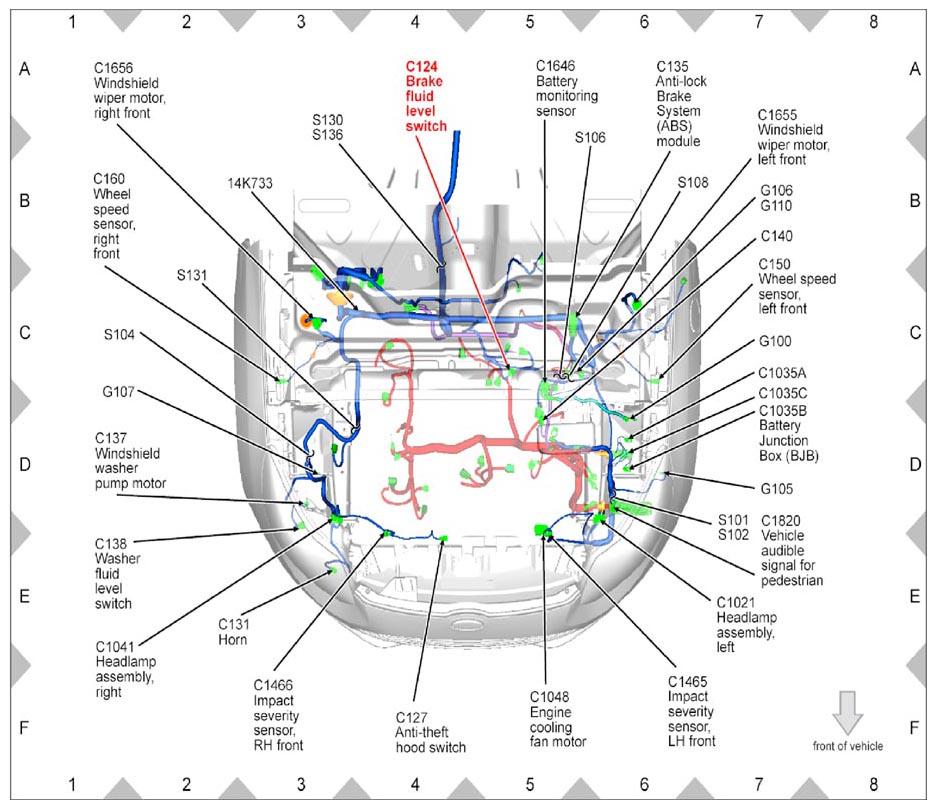

Fig 1: Identifying Brake Fluid Level Switch Connector (C124)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Anti-Theft Hood Switch Connector (C127)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Horn Connector (C131)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Anti-Lock Brake System Module Connector (C135)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Windshield Washer Pump Motor Connector (C137)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Washer Fluid Level Switch Connector (C138)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Connector (C140)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Brake Booster Travel Sensor Connector (C149)

Courtesy of FORD MOTOR CO.

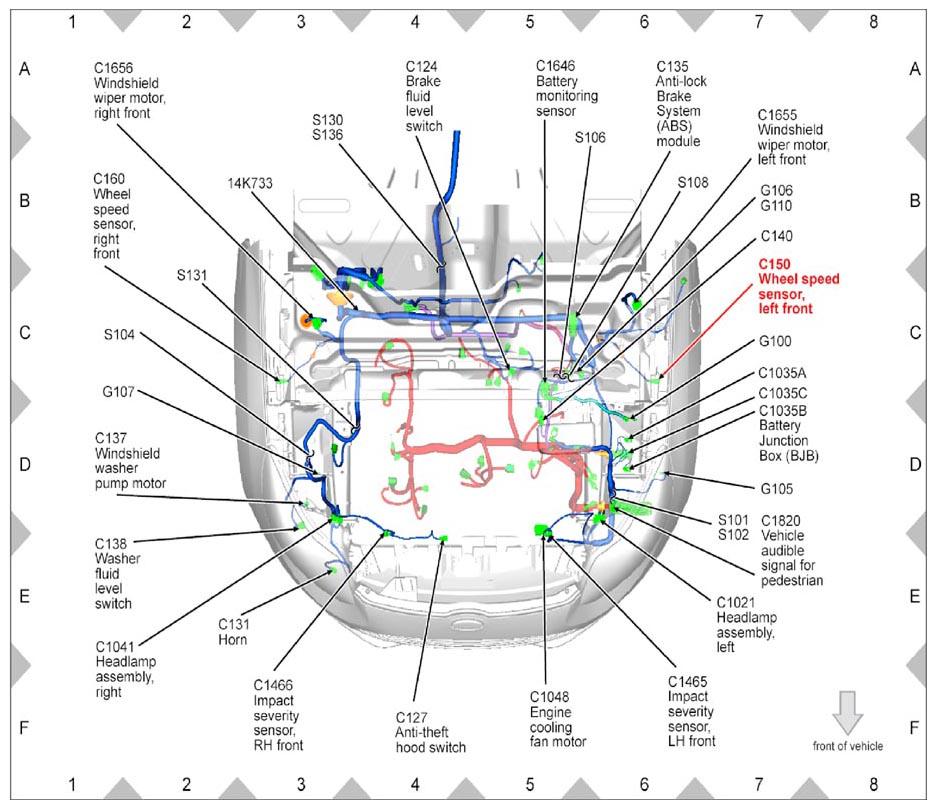

Fig 9: Identifying Wheel Speed Sensor, Left Front Connector (C150)

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Wheel Speed Sensor, Right Front Connector (C160)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Powertrain Control Module Connector (C175A)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying Powertrain Control Module Connector (C175B)

Courtesy of FORD MOTOR CO.

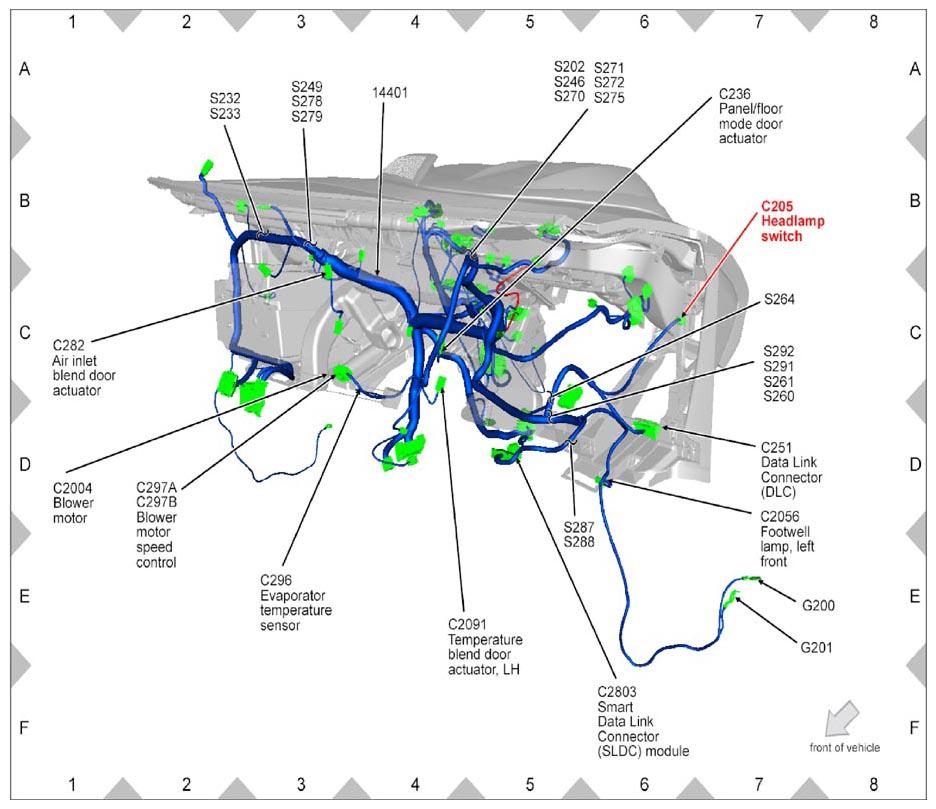

Fig 13: Identifying Headlamp Switch Connector (C205)

Courtesy of FORD MOTOR CO.

Fig 14: Identifying Connector (C210)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Connector (C211)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Connector (C213)

Courtesy of FORD MOTOR CO.

Fig 17: Identifying Connector (C214)

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Connector (C215)

Courtesy of FORD MOTOR CO.

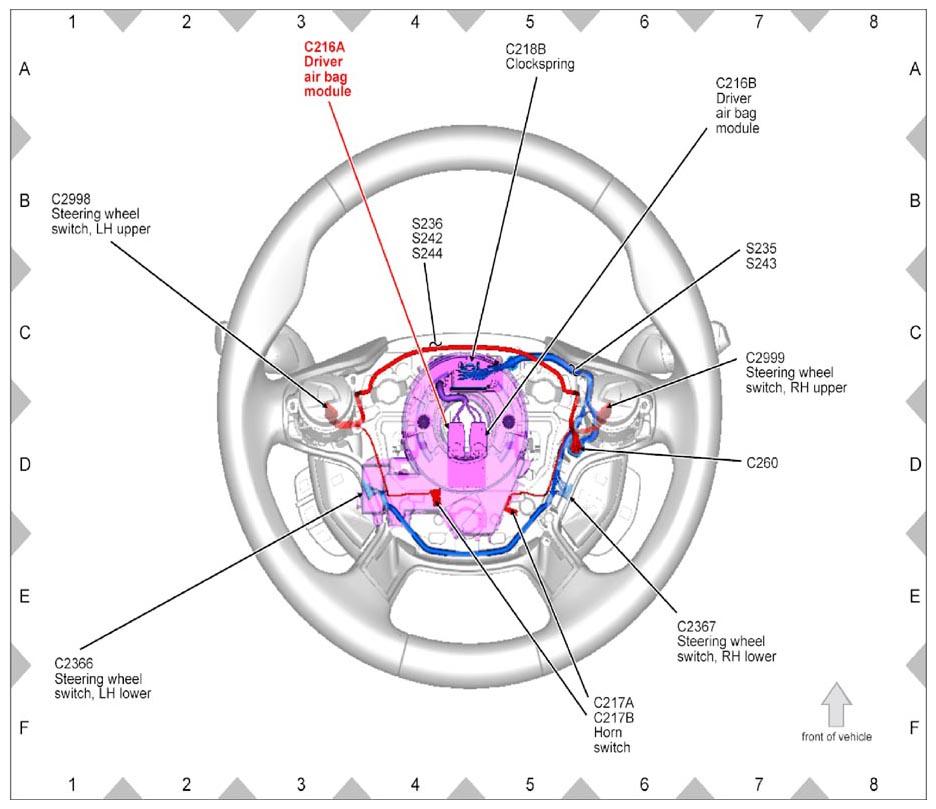

Fig 19: Identifying Driver Air Bag Module Connector (C216A)

Courtesy of FORD MOTOR CO.

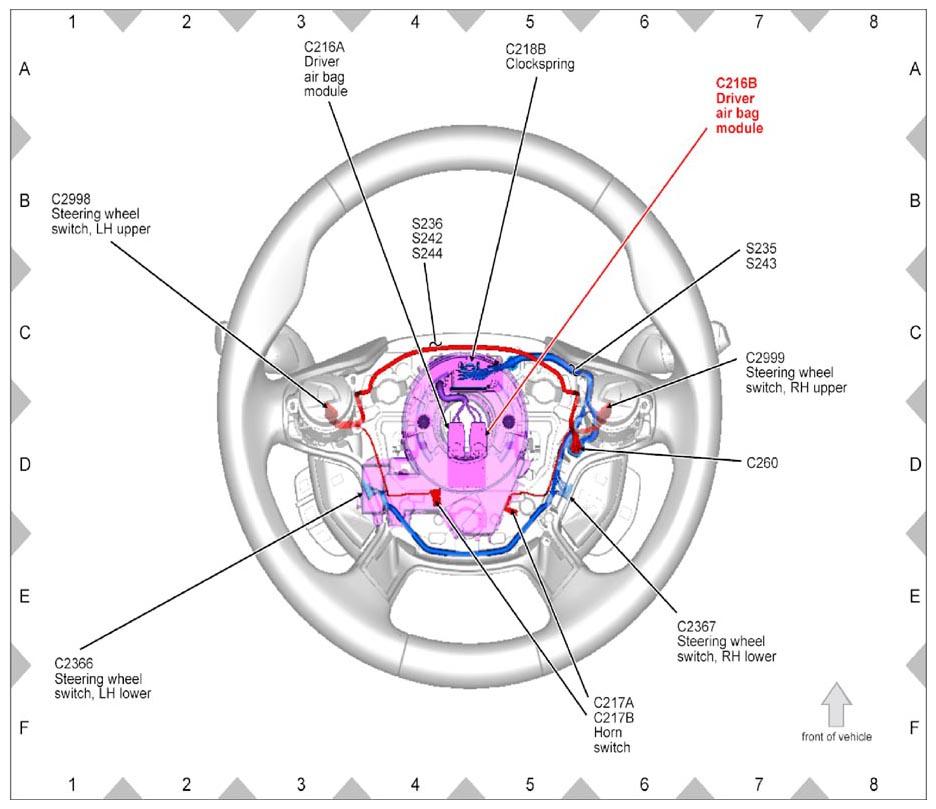

Fig 20: Identifying Driver Air Bag Module Connector (C216B)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Horn Switch Connector (C217A)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying Horn Switch Connector (C217B)

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Clockspring Connector (C218A)

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying Clockspring Connector (C218C)

Courtesy of FORD MOTOR CO.

Fig 26: Identifying Clockspring Connector (C218D)

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Instrument Panel Cluster Connector (C220)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Connector (C221)

Courtesy of FORD MOTOR CO.

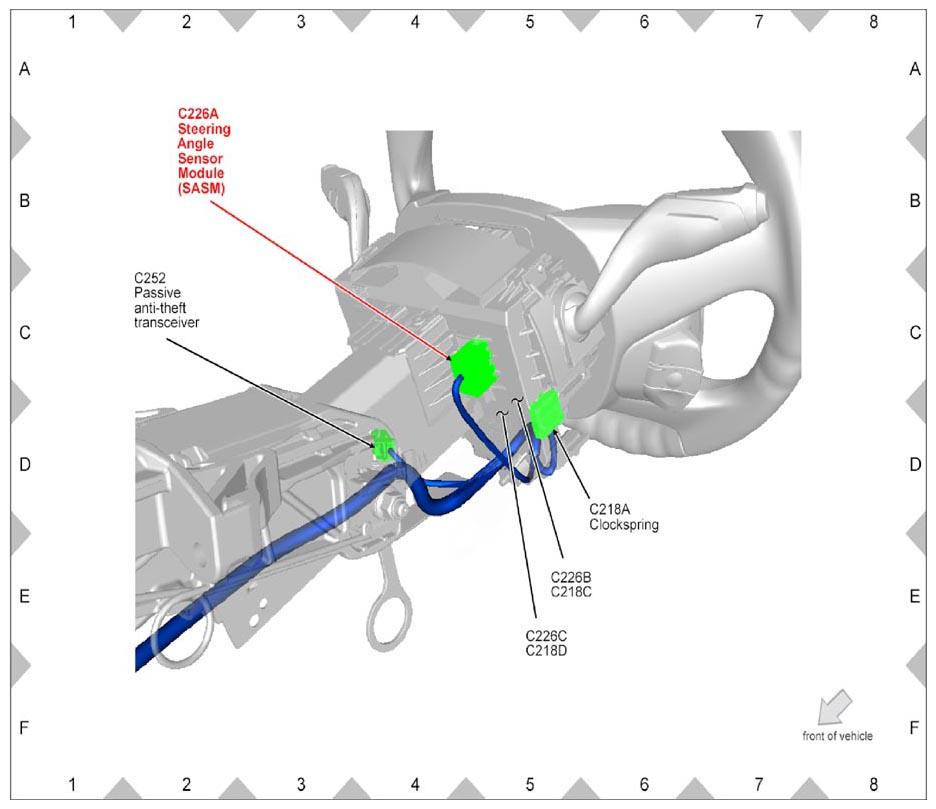

Fig 29: Identifying Steering Angle Sensor Module Connector (C226A)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Steering Angle Sensor Module Connector (C226B)

Courtesy of FORD MOTOR CO.

Fig 31: Identifying Steering Angle Sensor Module Connector (C226C)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying HVAC Module Connector (C228A)

Courtesy of FORD MOTOR CO.

Fig 33: Identifying HVAC Module Connector (C228B)

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Defrost Mode Door Actuator Connector (C232)

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Panel/Floor Mode Door Actuator Connector (C236)

Courtesy of FORD MOTOR CO.

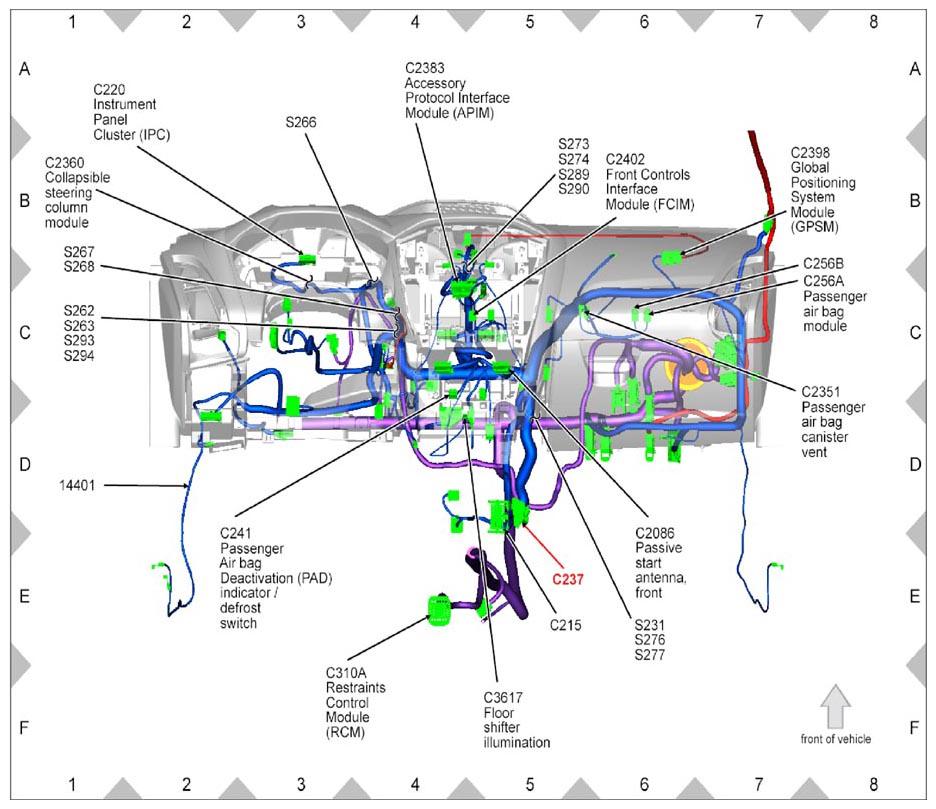

Fig 36: Identifying Connector (C237)

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Connector (C238)

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Audio Control Module Connector (C240A)

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Audio Control Module Connector (C240B)

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Passenger Air Bag Deactivation Indicator/Defrost Switch Connector (C241)

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Connector (C248)

Courtesy of FORD MOTOR CO.

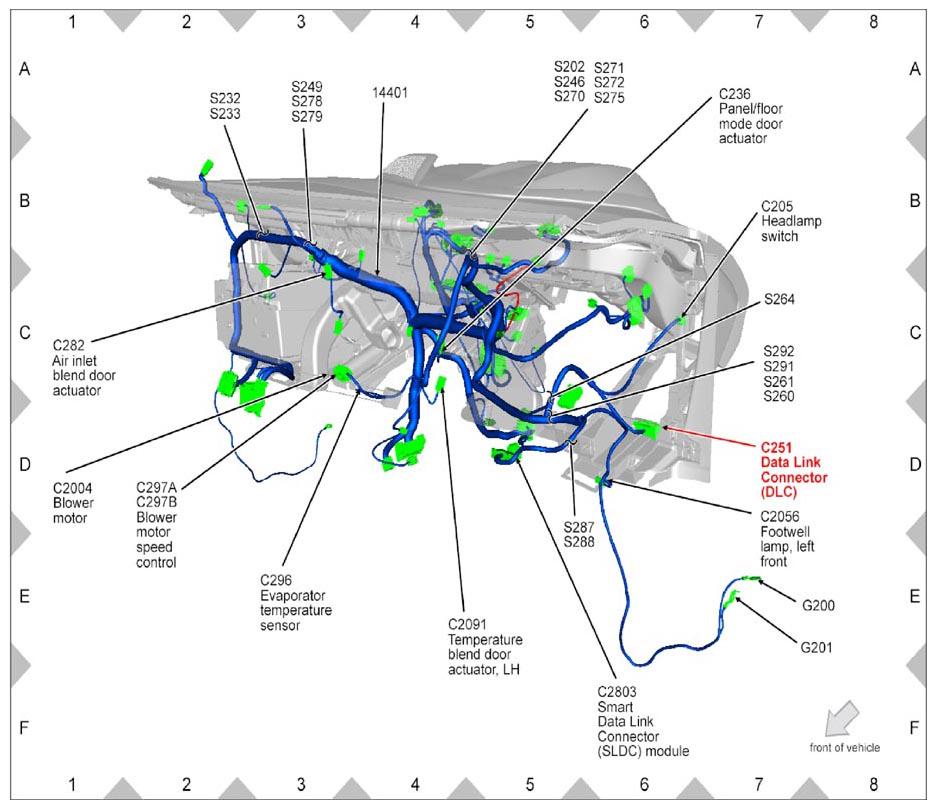

Fig 42: Identifying Data Link Connector (C251)

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

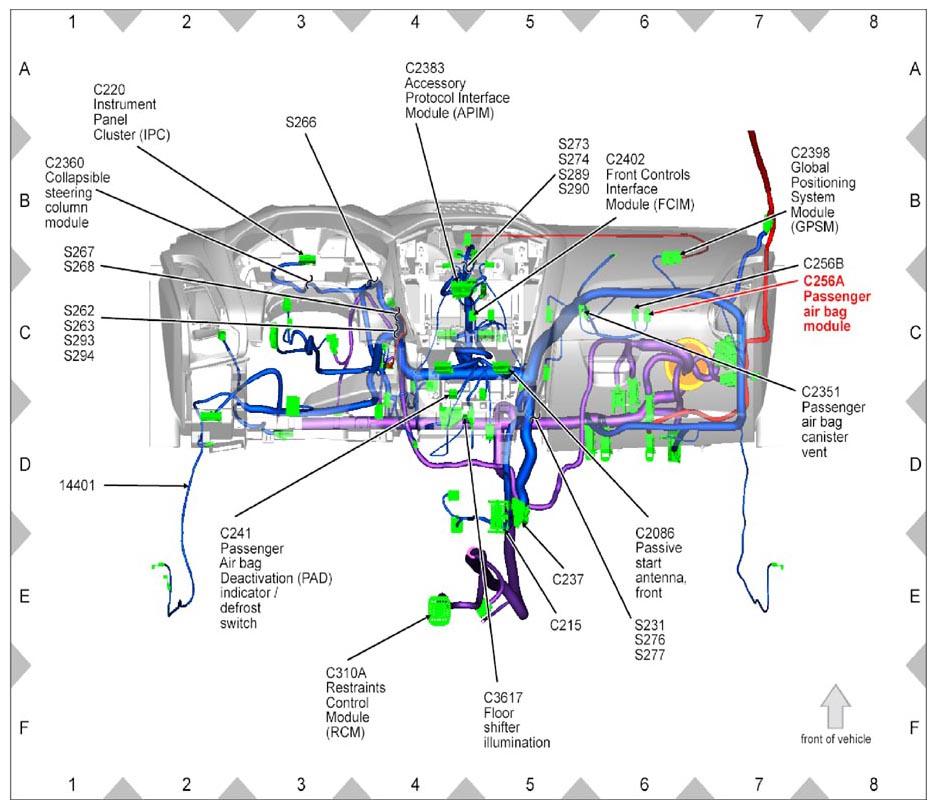

Fig 44: Identifying Passenger Air Bag Module Connector (C256A)

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Passenger Air Bag Module Connector (C256B)

Courtesy of FORD MOTOR CO.

Fig 46: Identifying Connector (C260)

Courtesy of FORD MOTOR CO.

Fig 47: Identifying Brake Pedal Position Switch Connector (C278)

Courtesy of FORD MOTOR CO.

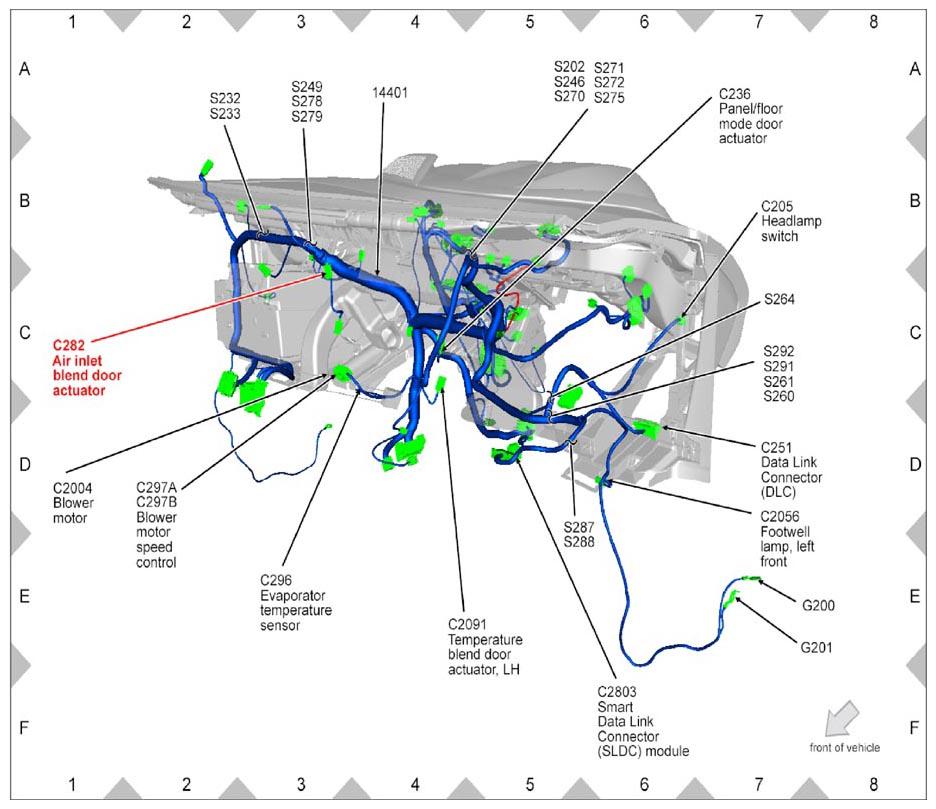

Fig 48: Identifying Air Inlet Blend Door Actuator Connector (C282)

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Autolamp/Sunload Sensor Connector (C3286)

Courtesy of FORD MOTOR CO.

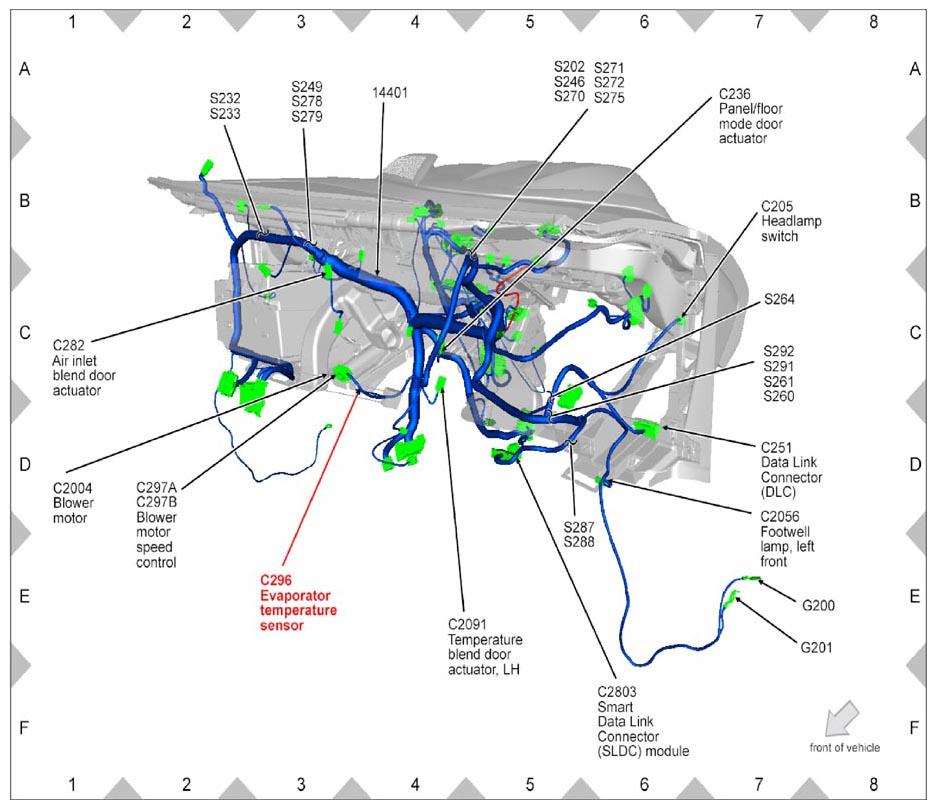

Fig 50: Identifying Evaporator Temperature Sensor Connector (C296)

Courtesy of FORD MOTOR CO.

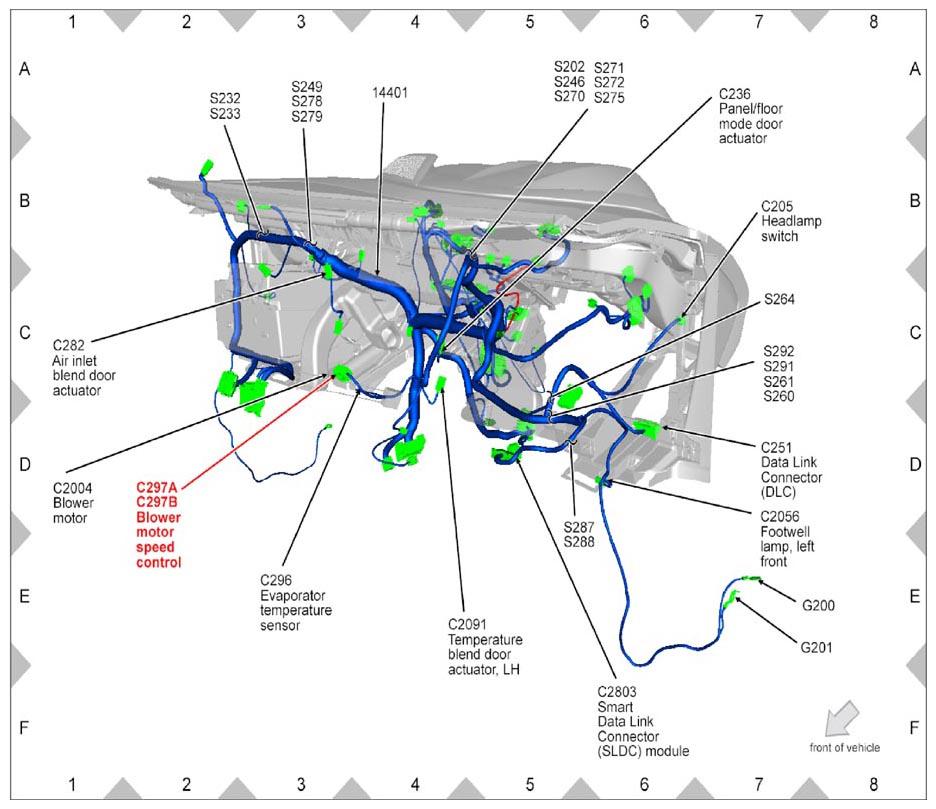

Fig 51: Identifying Blower Motor Speed Control Connector (C297A)

Courtesy of FORD MOTOR CO.

Fig 52: Identifying Blower Motor Speed Control Connector (C297B)

Courtesy of FORD MOTOR CO.

Fig 53: Identifying Connector (C300B)

Courtesy of FORD MOTOR CO.

Fig 54: Identifying Connector (C300C)

Courtesy of FORD MOTOR CO.

Fig 55: Identifying Connector (C300D)

Courtesy of FORD MOTOR CO.

Fig 56: Identifying Connector (C300G)

Courtesy of FORD MOTOR CO.

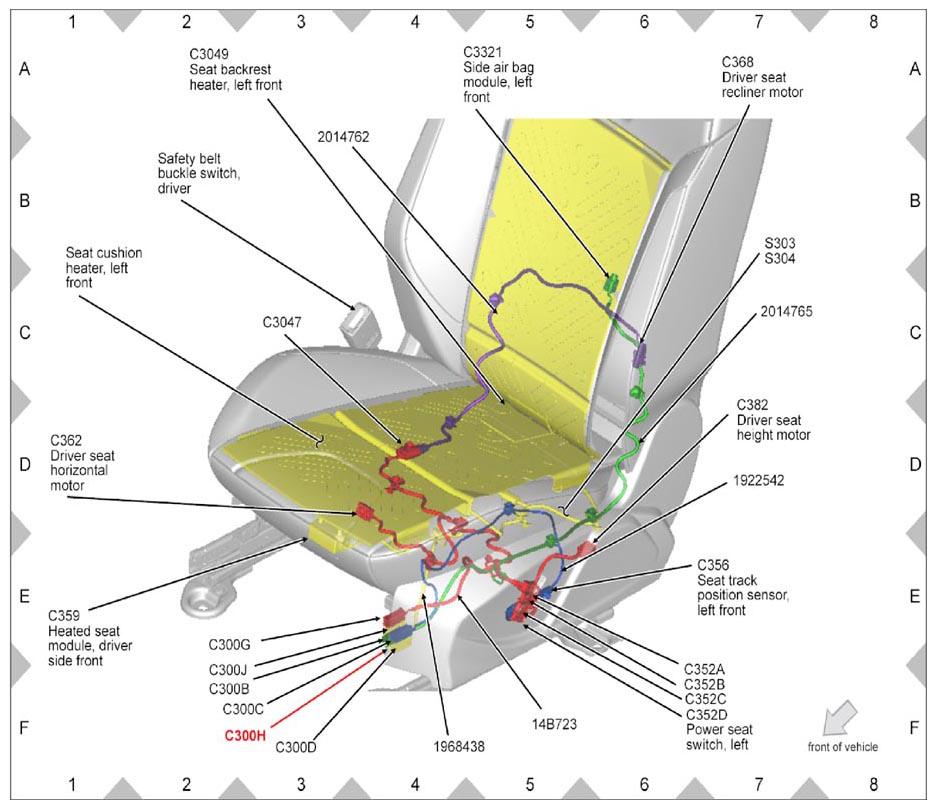

Fig 57: Identifying Connector (C300H)

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Connector (C300J)

Courtesy of FORD MOTOR CO.

Fig 59: Identifying Safety Belt Retractor Pretensioner, Passenger Connector (C303)

Courtesy of FORD MOTOR CO.

Fig 60: Identifying Restraints Control Module Connector (C310A)

Courtesy of FORD MOTOR CO.

Fig 61: Identifying Restraints Control Module Connector (C310B)

Courtesy of FORD MOTOR CO.

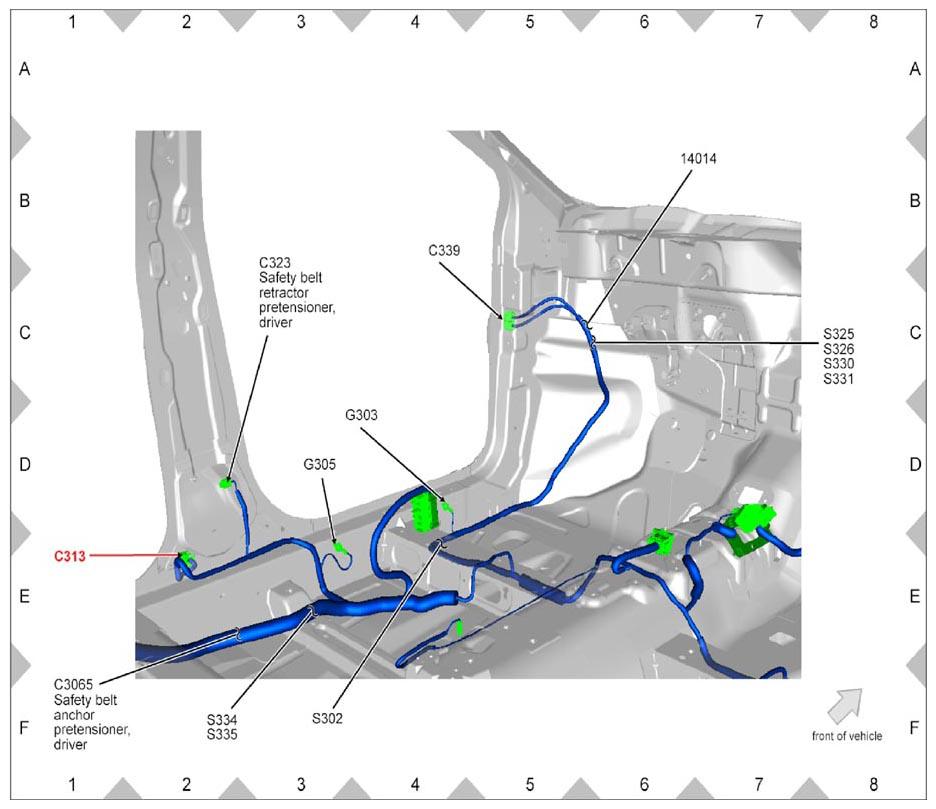

Fig 62: Identifying Connector (C313)

Courtesy of FORD MOTOR CO.

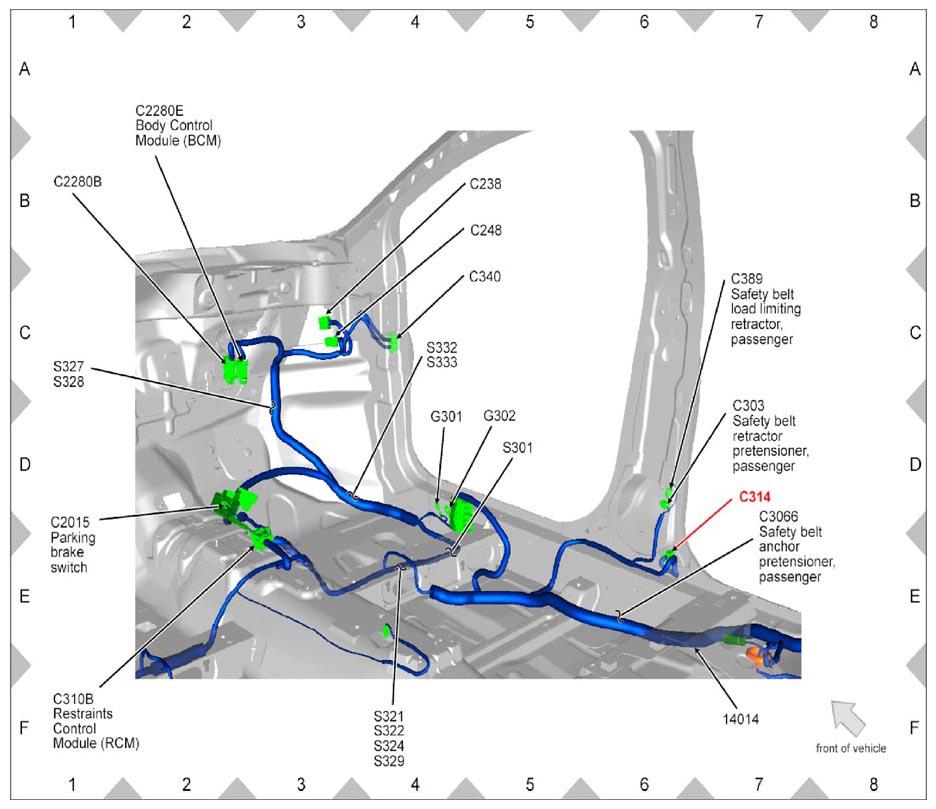

Fig 63: Identifying Connector (C314)

Courtesy of FORD MOTOR CO.

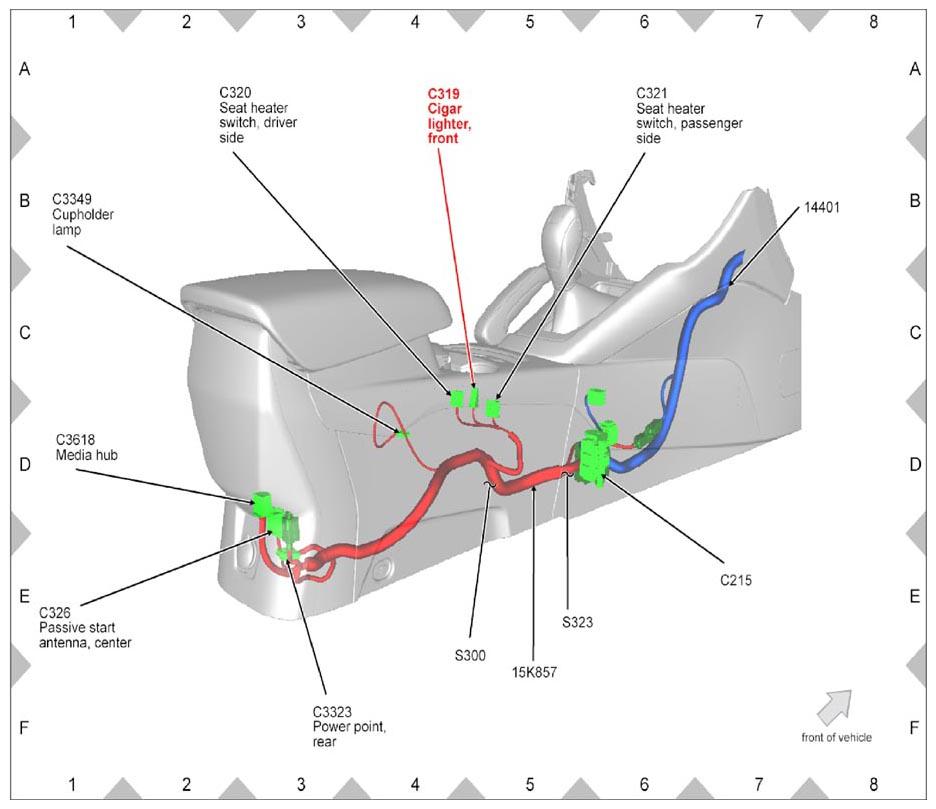

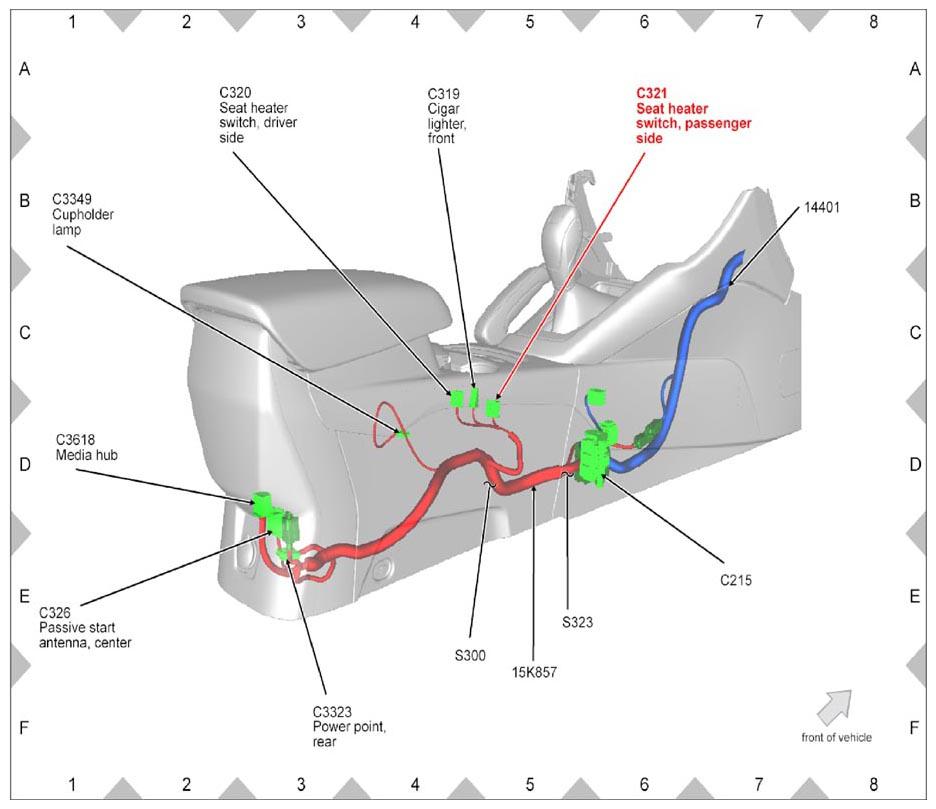

Fig 64: Identifying Cigar Lighter, Front Connector (C319)

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Seat Heater Switch, Driver Side Connector (C320)

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Seat Heater Switch, Passenger Side Connector (C321)

Courtesy of FORD MOTOR CO.

Fig 67: Identifying Safety Belt Retractor Pretensioner, Driver Connector (C323)

Courtesy of FORD MOTOR CO.

Fig 68: Identifying Passive Start Antenna, Center Connector (C326)

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Heated Seat Module, Passenger Side Front Connector (C329)

Courtesy of FORD MOTOR CO.

Fig 70: Identifying Connector (C339)

Courtesy of FORD MOTOR CO.

Fig 71: Identifying Connector (C340)

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Driver's Seat Power Seat Swith Connector (C352A)

Courtesy of FORD MOTOR CO.

Fig 73: Identifying Driver's Seat Power Seat Swith Connector (C352B)

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Driver's Seat Power Seat Swith Connector (C352C)

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Driver's Seat Power Seat Swith Connector (C352D)

Courtesy of FORD MOTOR CO.

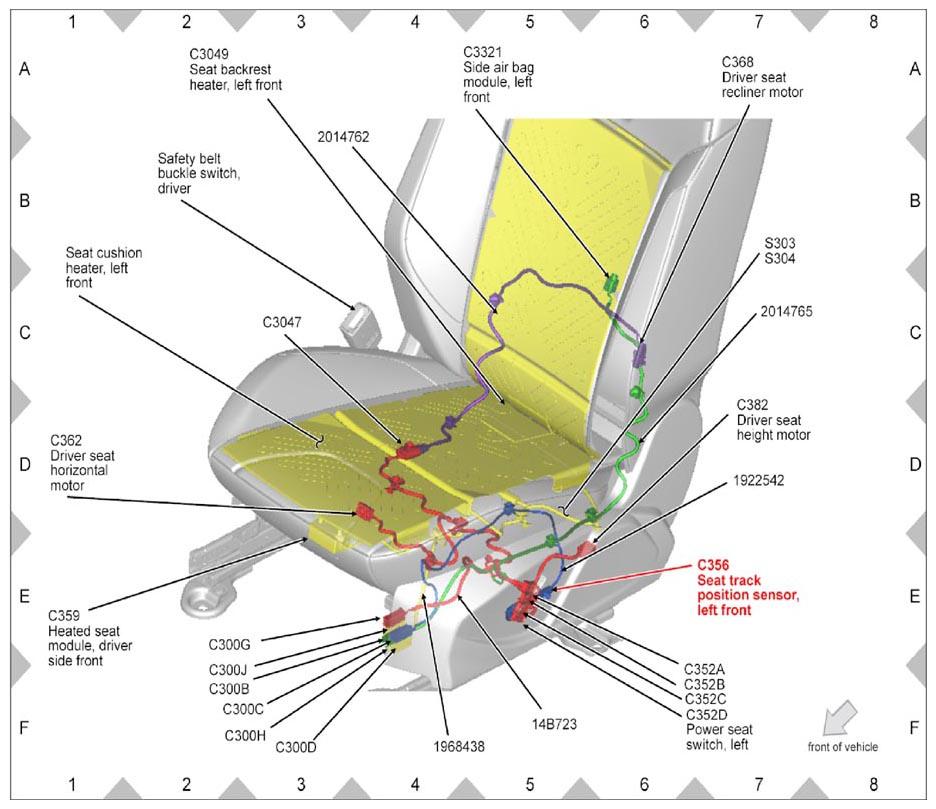

Fig 76: Identifying Seat Track Position Sensor, Left Front Connector (C356)

Courtesy of FORD MOTOR CO.

Fig 77: Identifying Heated Seat Module, Driver Side Front Connector (C359)

Courtesy of FORD MOTOR CO.

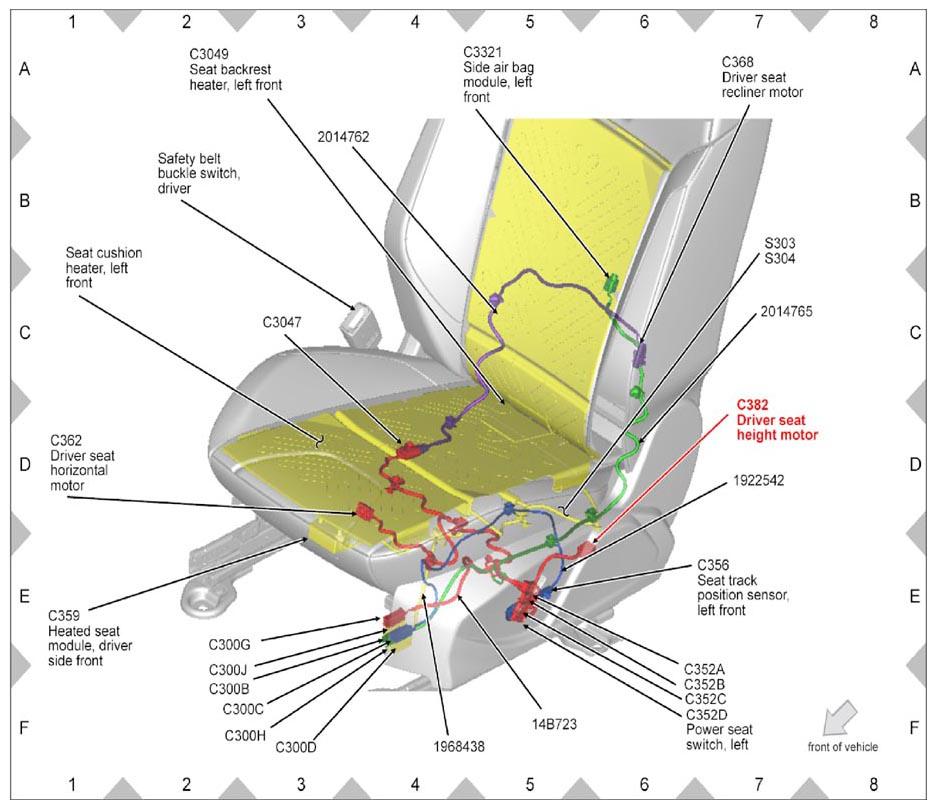

Fig 78: Identifying Driver Seat Horizontal Motor Connector (C362)

Courtesy of FORD MOTOR CO.

Fig 79: Identifying Driver Seat Recliner Motor Connector (C368)

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Driver Seat Height Motor Connector (C382)

Courtesy of FORD MOTOR CO.

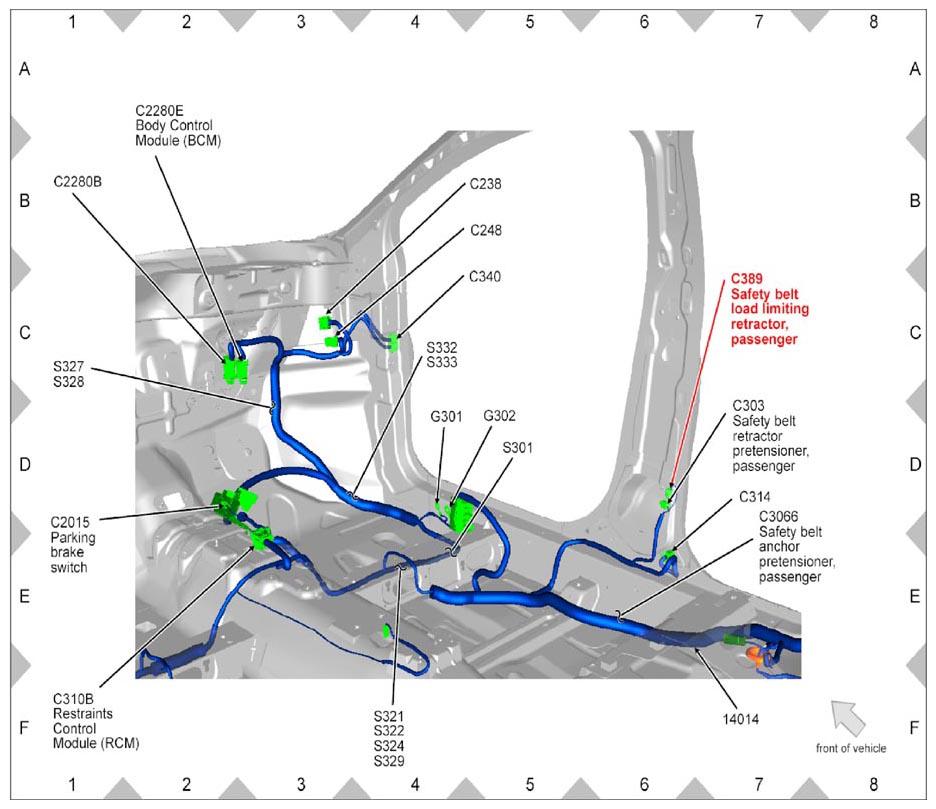

Fig 81: Identifying Safety Belt Load Limiting Retractor, Passenger Connector (C389)

Courtesy of FORD MOTOR CO.

Fig 82: Identifying Rear Window Defrost Grid Connector (C402A) (With RVC)

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Rear Window Defrost Grid Connector (C402A) (Without RVC)

Courtesy of FORD MOTOR CO.

Fig 84: Identifying Rear Window Defrost Grid Connector (C402B)

Courtesy of FORD MOTOR CO.

Fig 85: Identifying Connector (C405)

Courtesy of FORD MOTOR CO.

Fig 86: Identifying Connector (C406)

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Connector (C411)

Courtesy of FORD MOTOR CO.

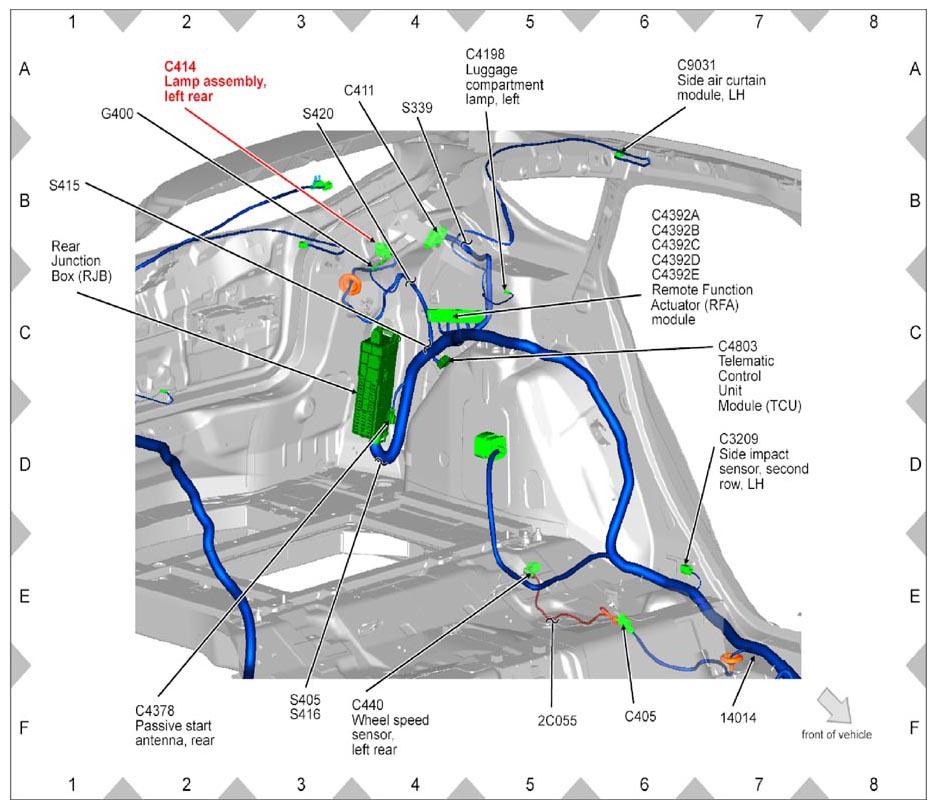

Fig 88: Identifying Lamp Assembly, Left Rear Connector (C414)

Courtesy of FORD MOTOR CO.

Fig 89: Identifying Lamp Assembly, Right Rear Connector (C417)

Courtesy of FORD MOTOR CO.

Fig 90: Identifying Wheel Speed Sensor, Right Rear Connector (C426)

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Connector (C431)

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Wheel Speed Sensor, Left Rear Connector (C440)

Courtesy of FORD MOTOR CO.

Fig 93: Identifying Connector (C494)

Courtesy of FORD MOTOR CO.

Fig 94: Identifying Connector (C494)

Courtesy of FORD MOTOR CO.

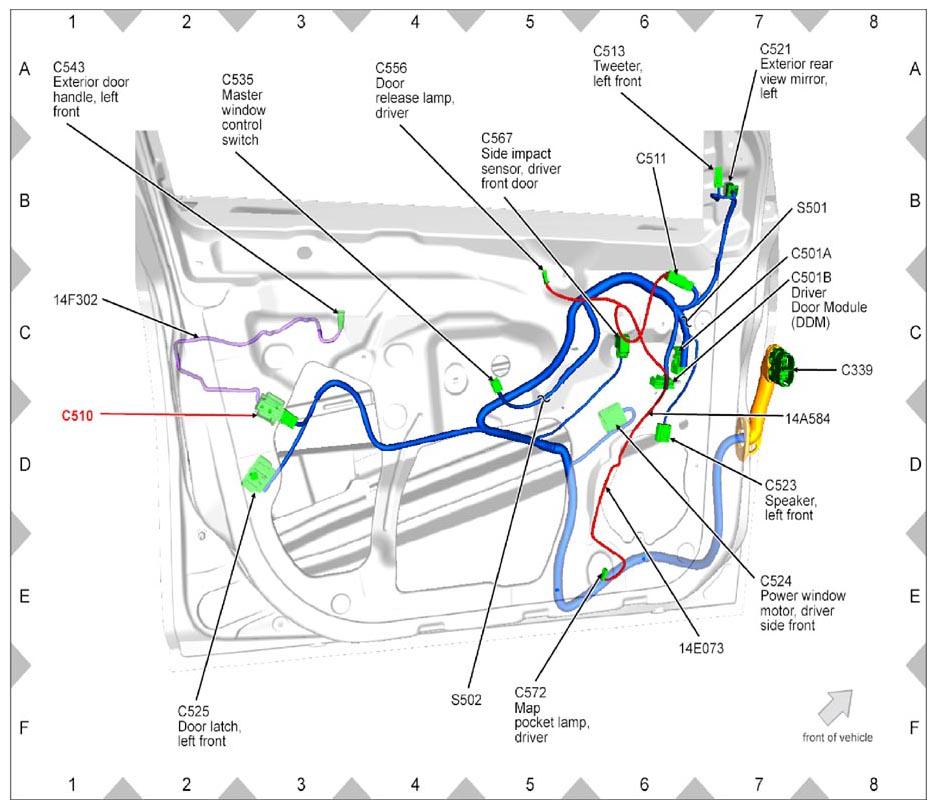

Fig 95: Identifying Driver Door Module Connector (C501A)

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Driver Door Module Connector (C501B)

Courtesy of FORD MOTOR CO.

Fig 97: Identifying Connector (C510)

Courtesy of FORD MOTOR CO.

Fig 98: Identifying Connector (C511)

Courtesy of FORD MOTOR CO.

Fig 99: Identifying Tweeter, Left Front Connector (C513)

Courtesy of FORD MOTOR CO.

Fig 100: Identifying Exterior Rear View Mirror, Left Connector (C521)

Courtesy of FORD MOTOR CO.

Fig 101: Identifying Speaker, Left Front Connector (C523)

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Power Window Motor, Driver Side Front Connector (C524)

Courtesy of FORD MOTOR CO.

Fig 103: Identifying Door Latch, Left Front Connector (C525)

Courtesy of FORD MOTOR CO.

Fig 104: Identifying Master Window Control Switch Connector (C535)

Courtesy of FORD MOTOR CO.

Fig 105: Identifying Exterior Door Handle, Left Front Connector (C543)

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Door Release Lamp, Driver Connector (C556)

Courtesy of FORD MOTOR CO.

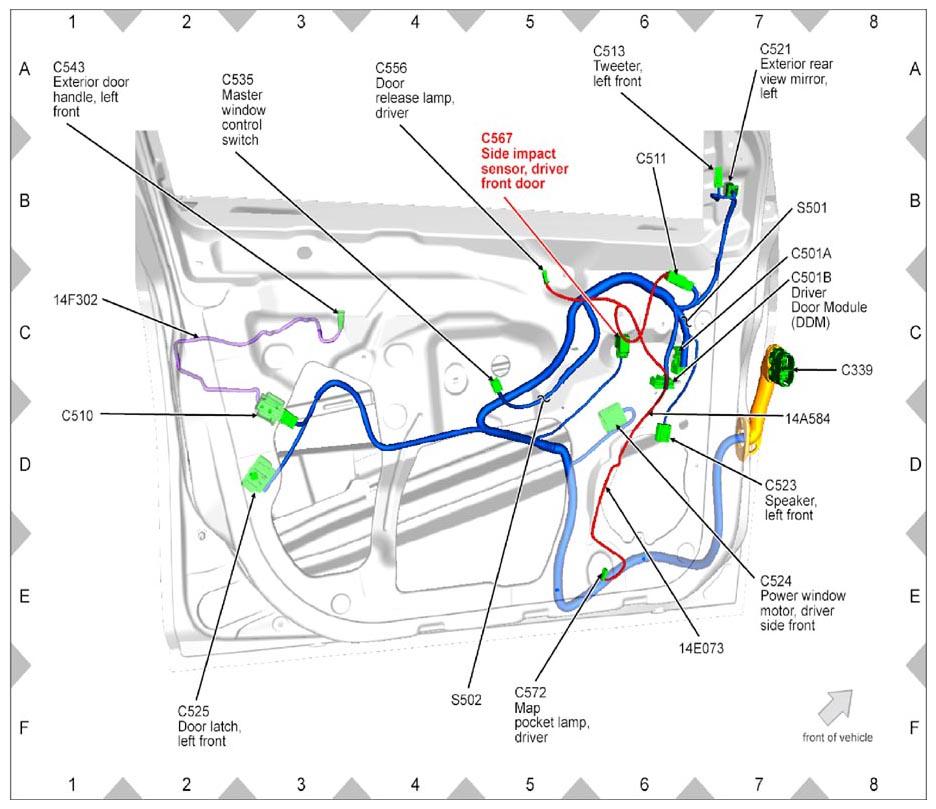

Fig 107: Identifying Side Impact Sensor, Driver Front Door Connector (C567)

Courtesy of FORD MOTOR CO.

Fig 108: Identifying Map Pocket Lamp, Driver Connector (C572)

Courtesy of FORD MOTOR CO.

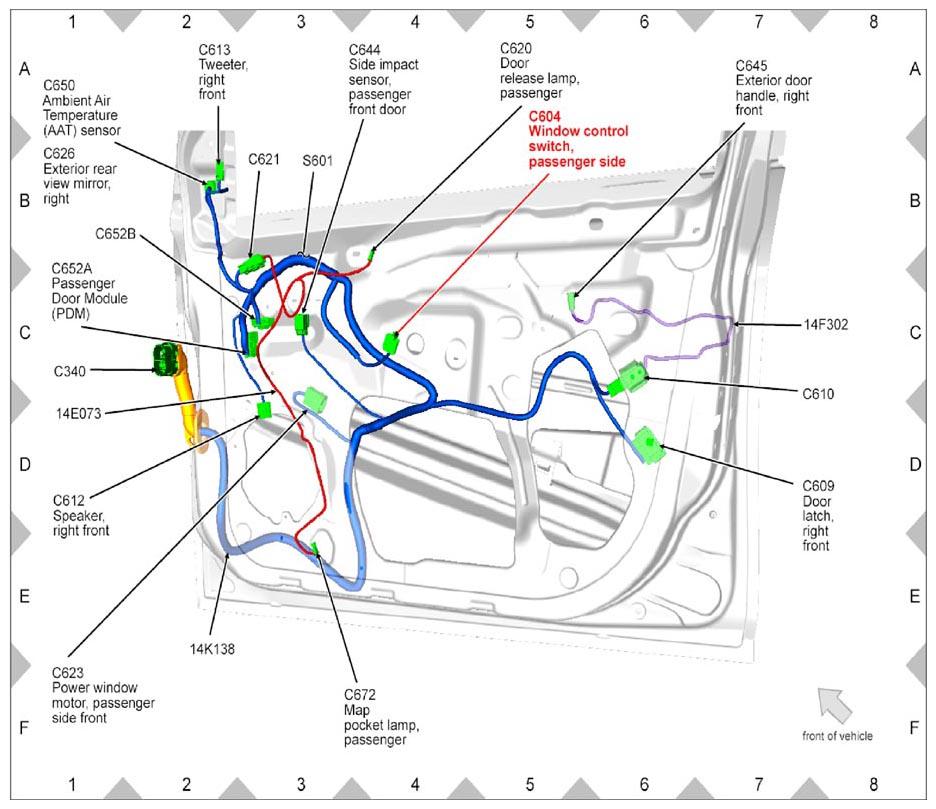

Fig 109: Identifying Window Control Switch, Passenger Side Connector (C604)

Courtesy of FORD MOTOR CO.

Fig 110: Identifying Door Latch, Right Front Connector (C609)

Courtesy of FORD MOTOR CO.

Fig 111: Identifying Connector (C610)

Courtesy of FORD MOTOR CO.

Fig 112: Identifying Speaker, Right Front Connector (C612)

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Tweeter, Right Front Connector (C613)

Courtesy of FORD MOTOR CO.

Fig 114: Identifying Door Release Lamp, Passenger Connector (C620)

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Connector (C621)

Courtesy of FORD MOTOR CO.

Fig 116: Identifying Power Window Motor, Passenger Side Front Connector (C623)

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Exterior Rear View Mirror, Right Connector (C626)

Courtesy of FORD MOTOR CO.

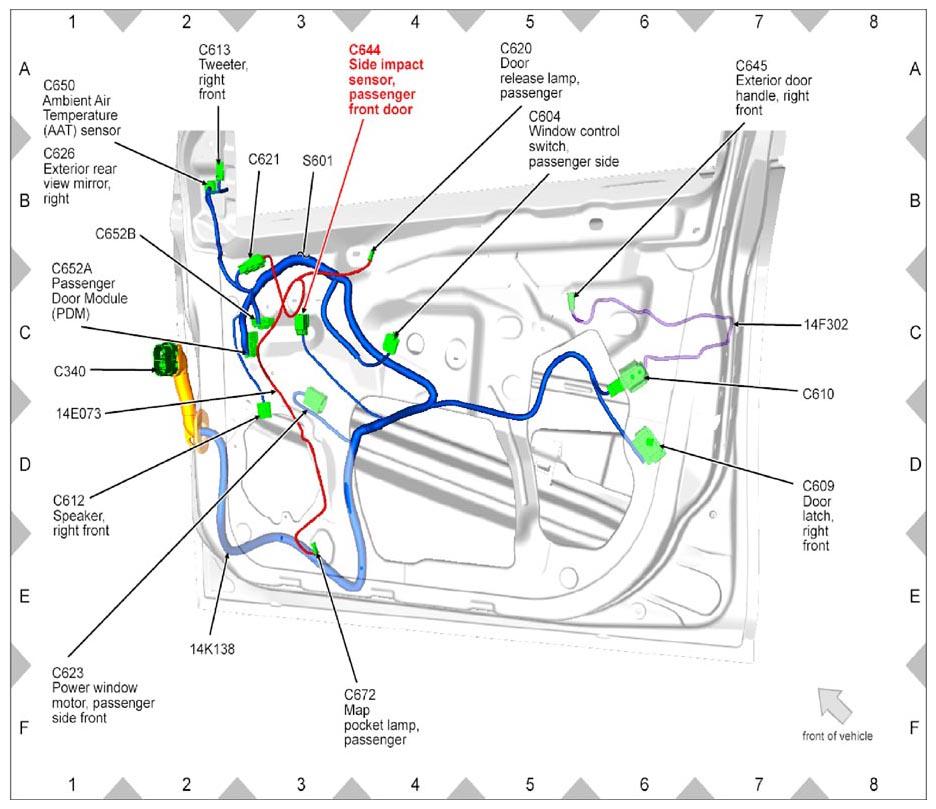

Fig 118: Identifying Side Impact Sensor, Passenger Front Door Connector (C644)

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Exterior Door Handle, Right Front Connector (C645)

Courtesy of FORD MOTOR CO.

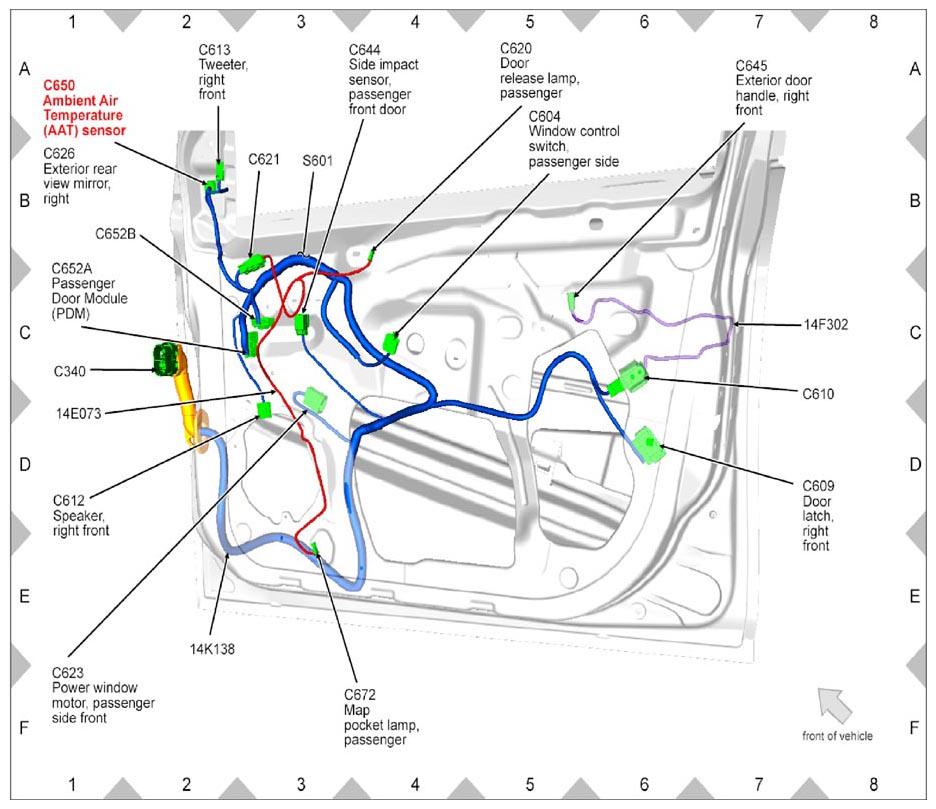

Fig 120: Identifying Ambient Air Temperature Sensor Connector (C650)

Courtesy of FORD MOTOR CO.

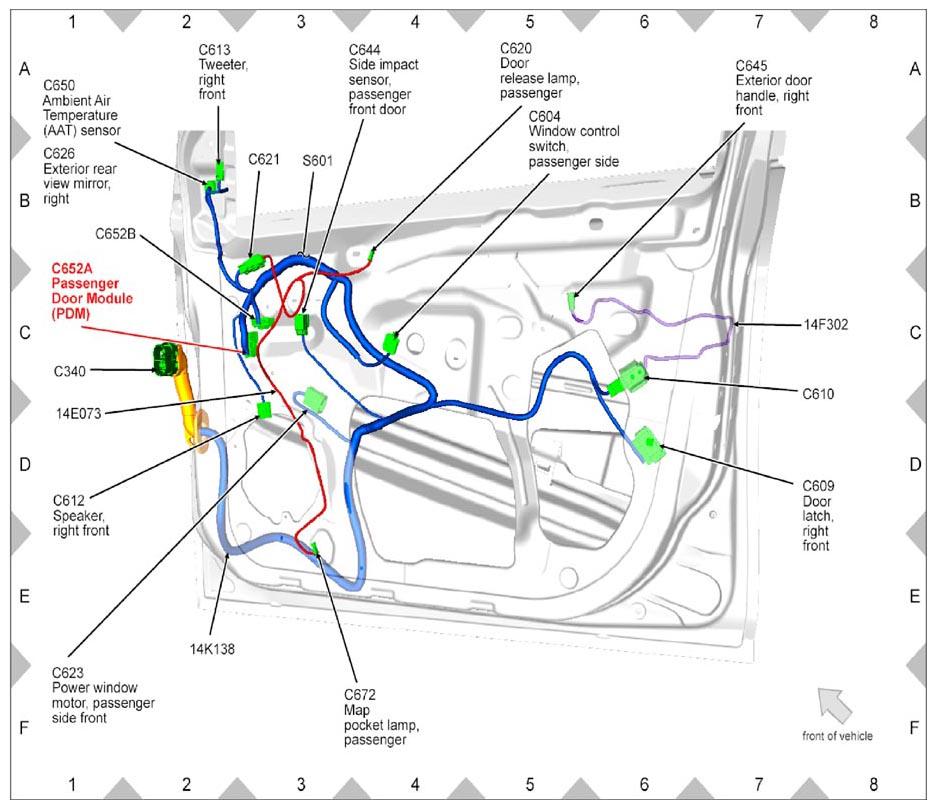

Fig 121: Identifying Passenger Door Module Connector (C652A)

Courtesy of FORD MOTOR CO.

Fig 122: Identifying Connector (C652B)

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Map Pocket Lamp, Passenger Connector (C672)

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Window Control Switch, Left Rear Connector (C701)

Courtesy of FORD MOTOR CO.

Fig 125: Identifying Speaker, Left Rear Connector (C702)

Courtesy of FORD MOTOR CO.

Fig 126: Identifying Power Window Motor, Left Rear Connector (C703)

Courtesy of FORD MOTOR CO.

Fig 127: Identifying Door Latch, Left Rear Connector (C705)

Courtesy of FORD MOTOR CO.

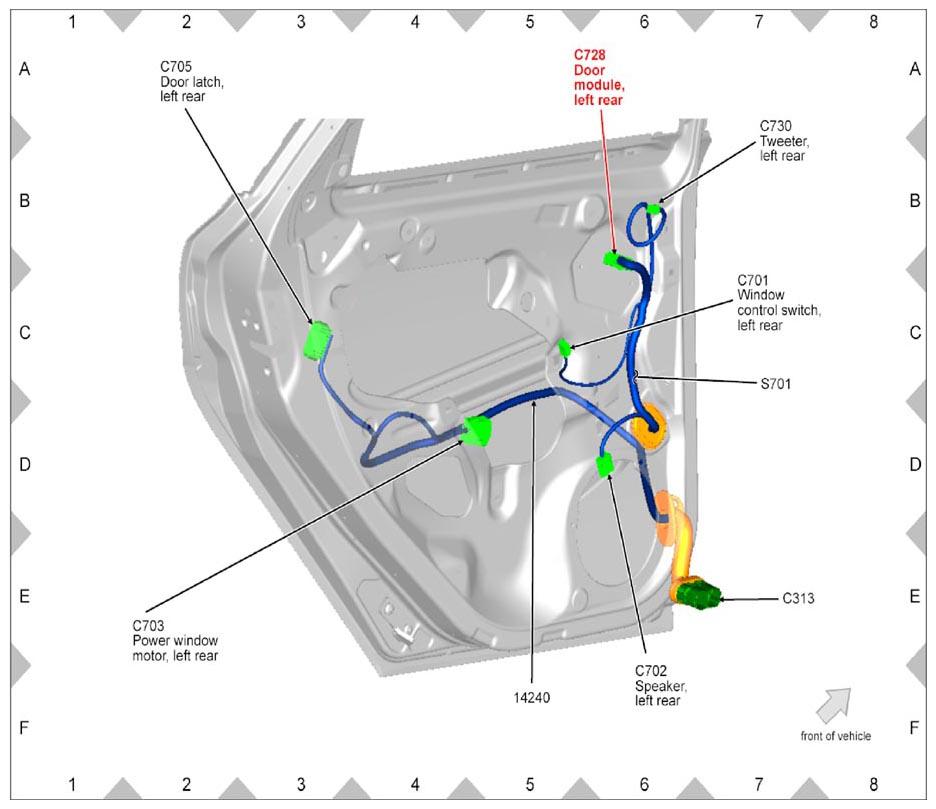

Fig 128: Identifying Door Module, Left Rear Connector (C728)

Courtesy of FORD MOTOR CO.

Fig 129: Identifying Tweeter, Left Rear Connector (C730)

Courtesy of FORD MOTOR CO.

Fig 130: Identifying Window Control Switch, Right Rear Connector (C801)

Courtesy of FORD MOTOR CO.

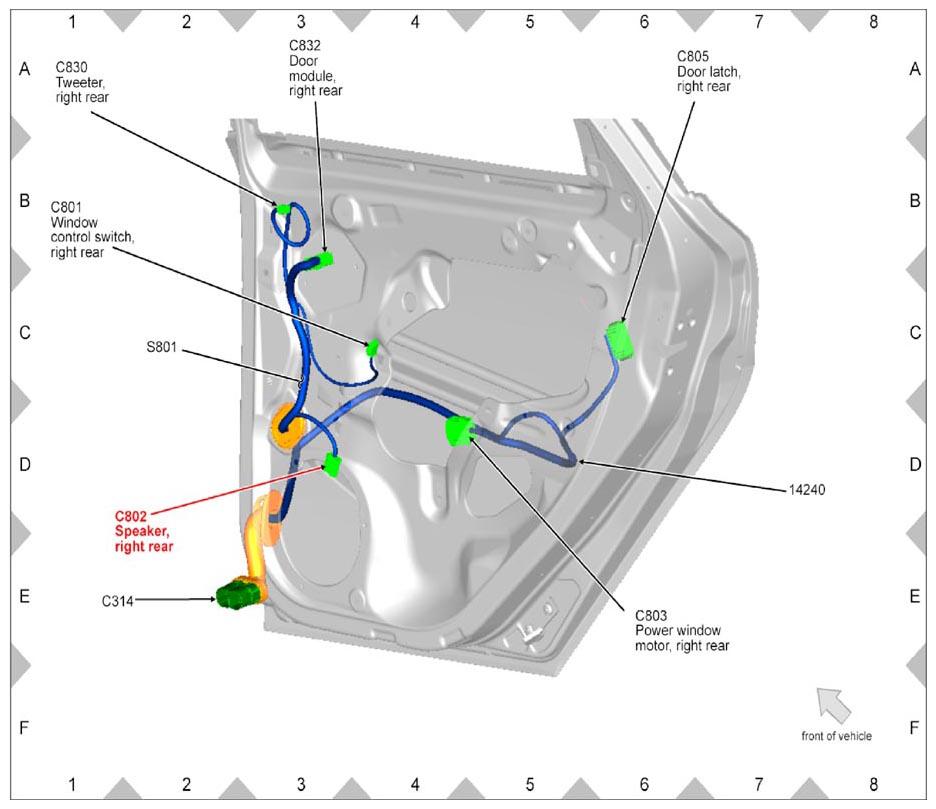

Fig 131: Identifying Speaker, Right Rear Connector (C802)

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Power Window Motor, Right Rear Connector (C803)

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Door Latch, Right Rear Connector (C805)

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Tweeter, Right Rear Connector (C830)

Courtesy of FORD MOTOR CO.

Fig 135: Identifying Door Module, Right Rear Connector (C832)

Courtesy of FORD MOTOR CO.

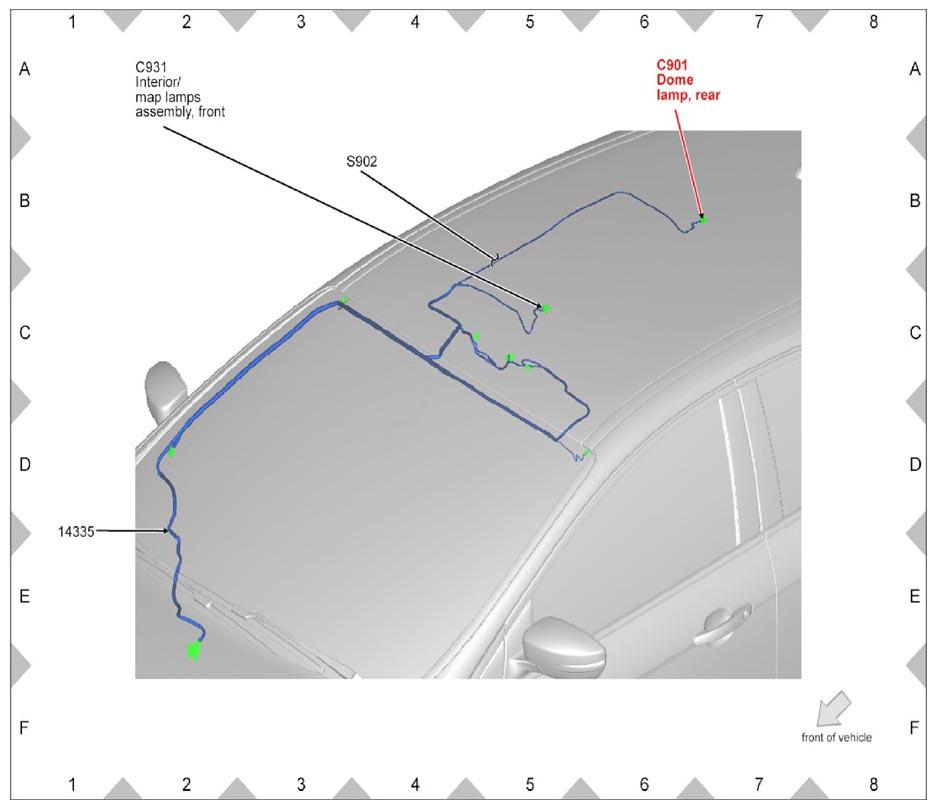

Fig 136: Identifying Dome Lamp, Rear Connector (C901)

Courtesy of FORD MOTOR CO.

Fig 137: Identifying High Mounted Stoplamp Connector (C904)

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Vanity Mirror Lamp, Right Connector (C906)

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Vanity Mirror Lamp, Left Connector (C907)

Courtesy of FORD MOTOR CO.

Fig 140: Identifying Overhead Console Switch Assembly Connector (C912)

Courtesy of FORD MOTOR CO.

Fig 141: Identifying Connector (C913)

Courtesy of FORD MOTOR CO.

Fig 142: Identifying Connector (C919)

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Interior/Map Lamps Assembly, Front Connector (C931)

Courtesy of FORD MOTOR CO.

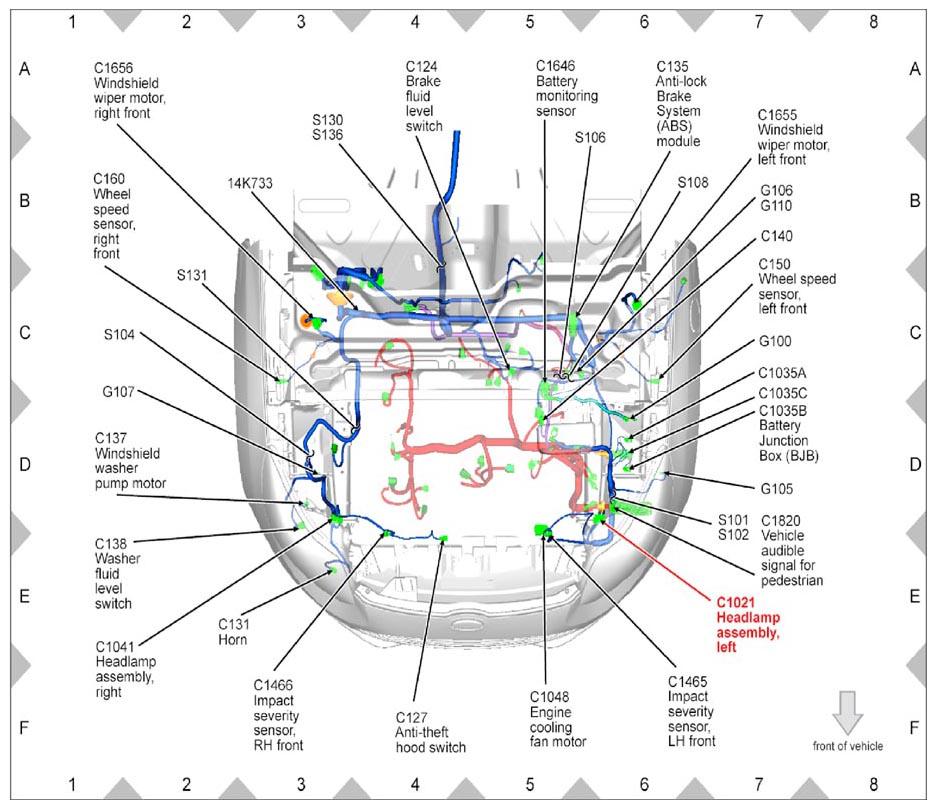

Fig 144: Identifying Headlamp Assembly, Left Connector (C1021)

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Battery Junction Box Connector (C1035A)

Courtesy of FORD MOTOR CO.

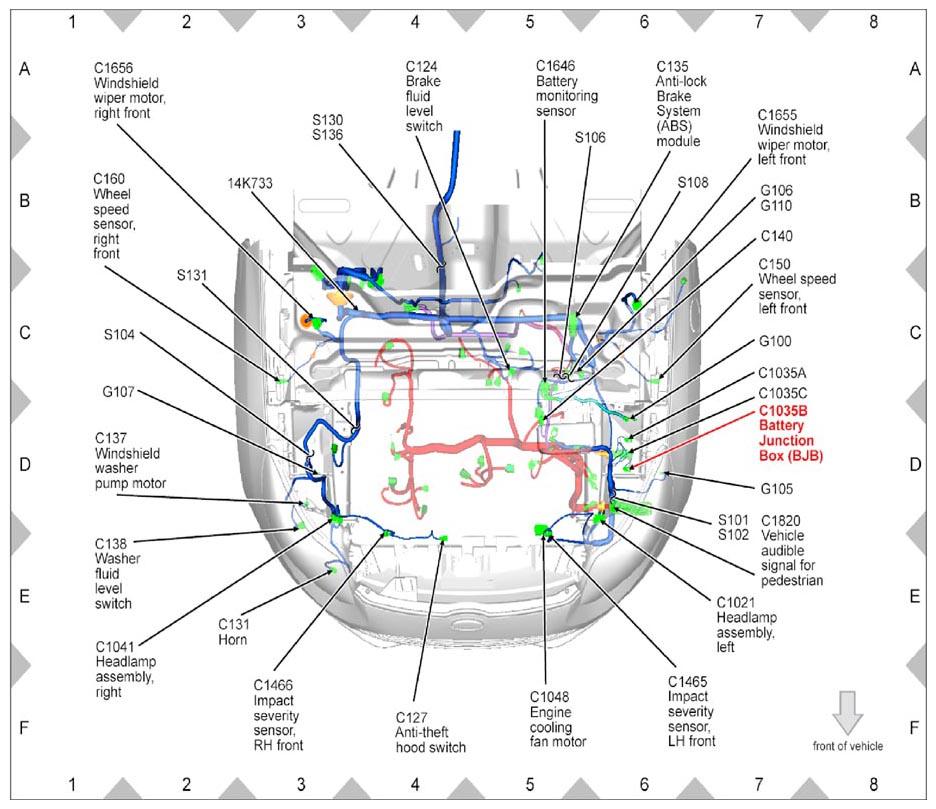

Fig 146: Identifying Battery Junction Box Connector (C1035B)

Courtesy of FORD MOTOR CO.

Fig 147: Identifying Battery Junction Box Connector (C1035C)

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Headlamp Assembly, Right Connector (C1041)

Courtesy of FORD MOTOR CO.

Fig 149: Identifying Engine Cooling Fan Motor Connector (C1048)

Courtesy of FORD MOTOR CO.

Fig 150: Identifying Battery Connector (C1100A)

Courtesy of FORD MOTOR CO.

Fig 151: Identifying Battery Connector (C1100B)

Courtesy of FORD MOTOR CO.

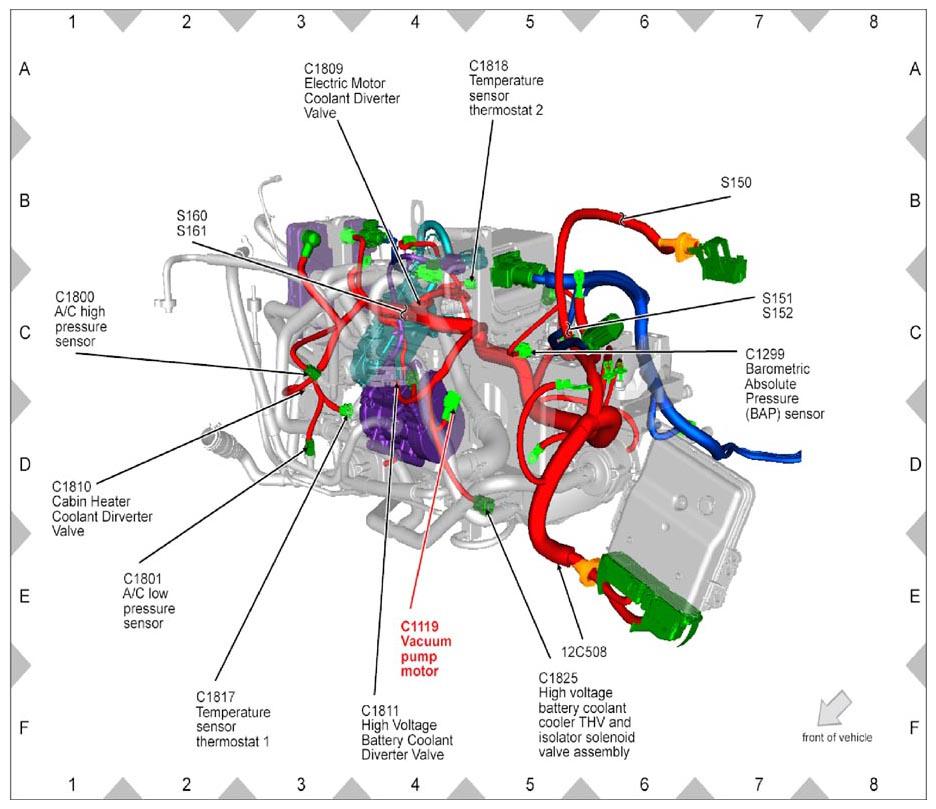

Fig 152: Identifying Vacuum Pump Motor Connector (C1119)

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Barometric Absolute Pressure Sensor Connector (C1299)

Courtesy of FORD MOTOR CO.

Fig 154: Identifying DC TO DC Converter Control Module Connector (C1457A)

Courtesy of FORD MOTOR CO.

Fig 155: Identifying DC TO DC Converter Control Module Connector (C1457B)

Courtesy of FORD MOTOR CO.

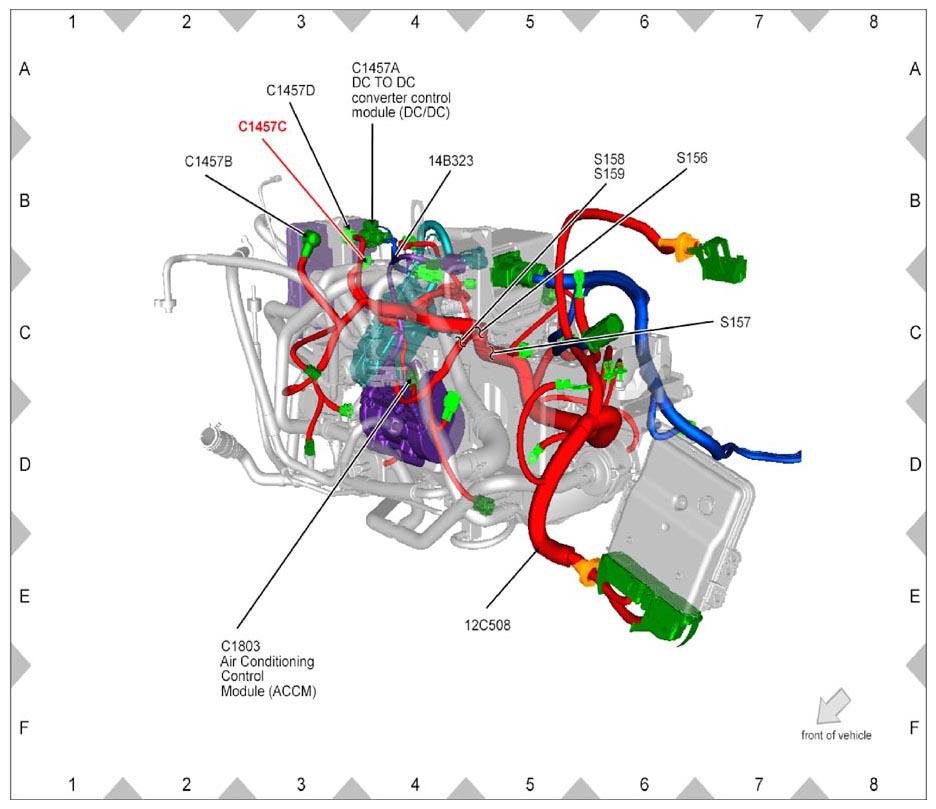

Fig 156: Identifying DC TO DC Converter Control Module Connector (C1457C)

Courtesy of FORD MOTOR CO.

Fig 157: Identifying DC TO DC Converter Control Module Connector (C1457D)

Courtesy of FORD MOTOR CO.

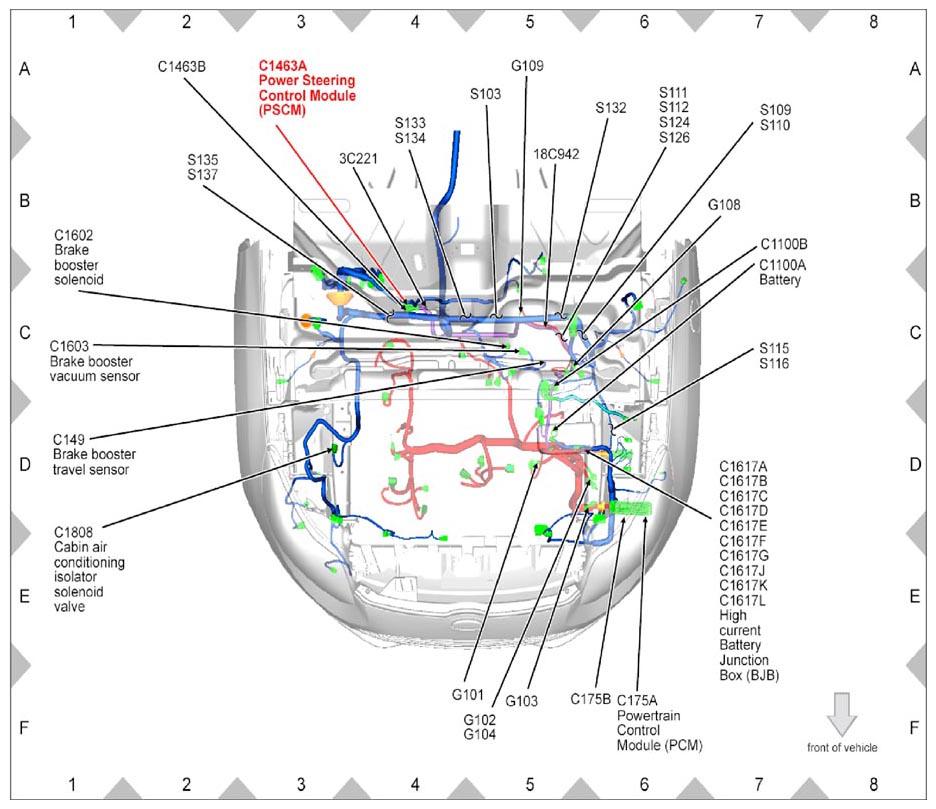

Fig 158: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Power Steering Control Module Connector (C1463B)

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Impact Severity Sensor, LH Front Connector (C1465)

Courtesy of FORD MOTOR CO.

Fig 161: Identifying Impact Severity Sensor, RH Front Connector (C1466)

Courtesy of FORD MOTOR CO.

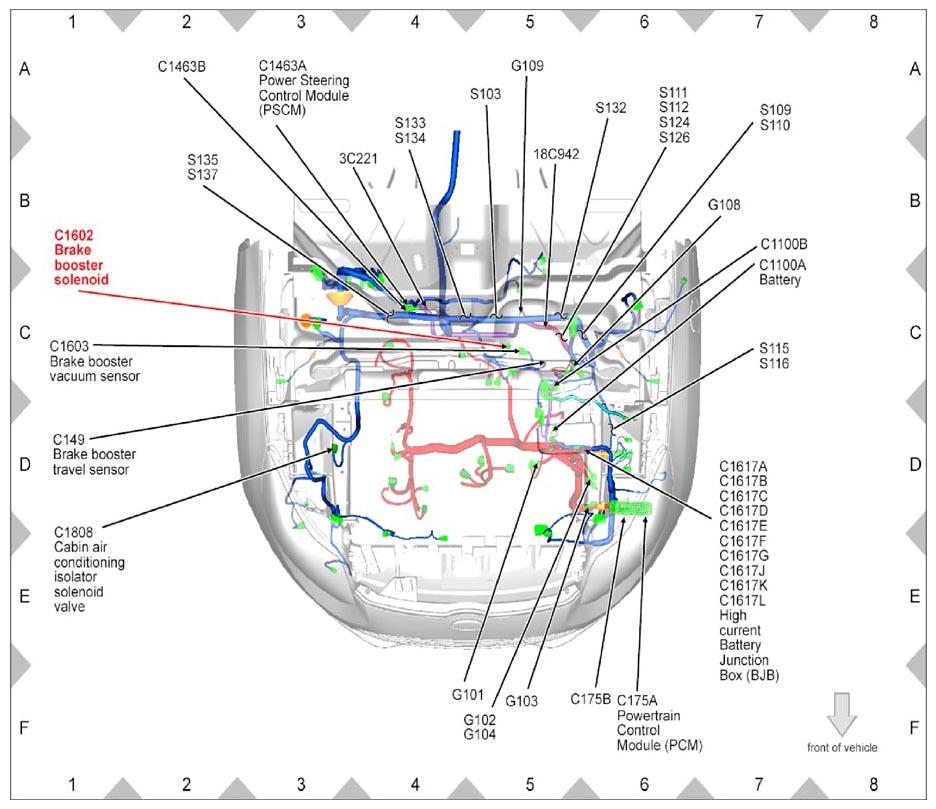

Fig 162: Identifying Brake Booster Solenoid Connector (C1602)

Courtesy of FORD MOTOR CO.

Fig 163: Identifying Brake Booster Vacuum Sensor Connector (C1603)

Courtesy of FORD MOTOR CO.

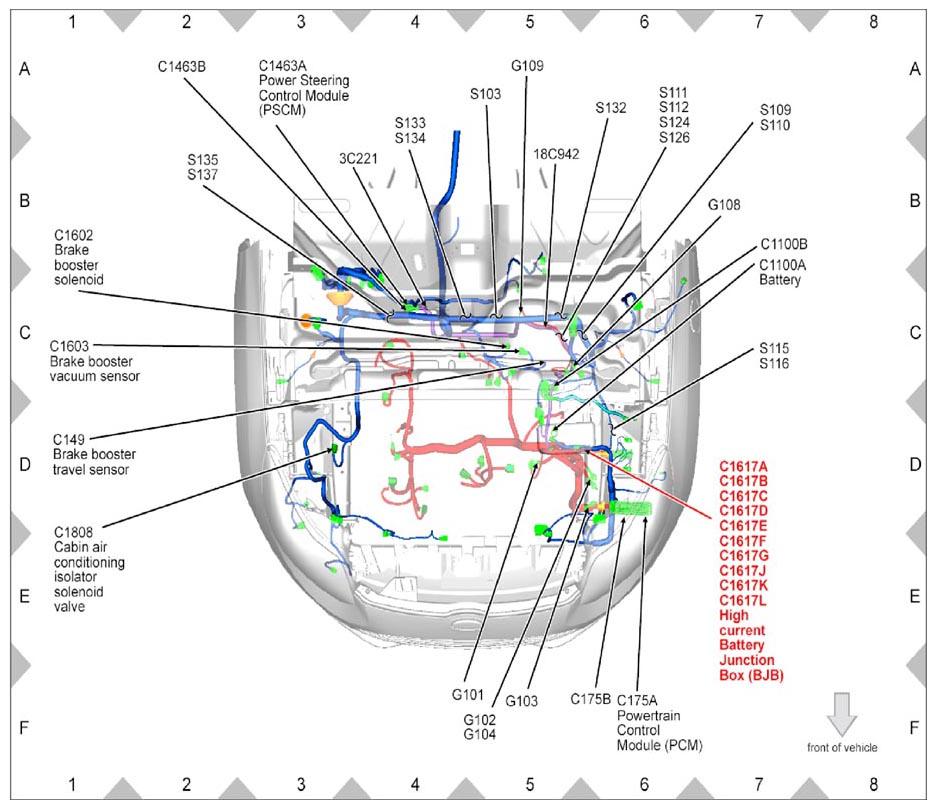

Fig 164: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617F, C1617G, C1617J, C1617K, And C1617L)

Courtesy of FORD MOTOR CO.

Fig 165: Identifying High Current Battery Junction Box Connector (C1617B)

Courtesy of FORD MOTOR CO.

Fig 166: Identifying High Current Battery Junction Box Connector (C1617C)

Courtesy of FORD MOTOR CO.

Fig 167: Identifying High Current Battery Junction Box Connector (C1617D)

Courtesy of FORD MOTOR CO.

Fig 168: Identifying High Current Battery Junction Box Connector (C1617E)

Courtesy of FORD MOTOR CO.

Fig 169: Identifying High Current Battery Junction Box Connector (C1617F)

Courtesy of FORD MOTOR CO.

Fig 170: Identifying High Current Battery Junction Box Connector (C1617G)

Courtesy of FORD MOTOR CO.

Fig 171: Identifying High Current Battery Junction Box Connector (C1617J)

Courtesy of FORD MOTOR CO.

Fig 172: Identifying High Current Battery Junction Box Connector (C1617k)

Courtesy of FORD MOTOR CO.

Fig 173: Identifying High Current Battery Junction Box Connector (C1617L)

Courtesy of FORD MOTOR CO.

Fig 174: Identifying Battery Monitoring Sensor Connector (C1646)

Courtesy of FORD MOTOR CO.

Fig 175: Identifying Windshield Wiper Motor, Left Front Connector (C1655)

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Windshield Wiper Motor, Right Front Connector (C1656)

Courtesy of FORD MOTOR CO.

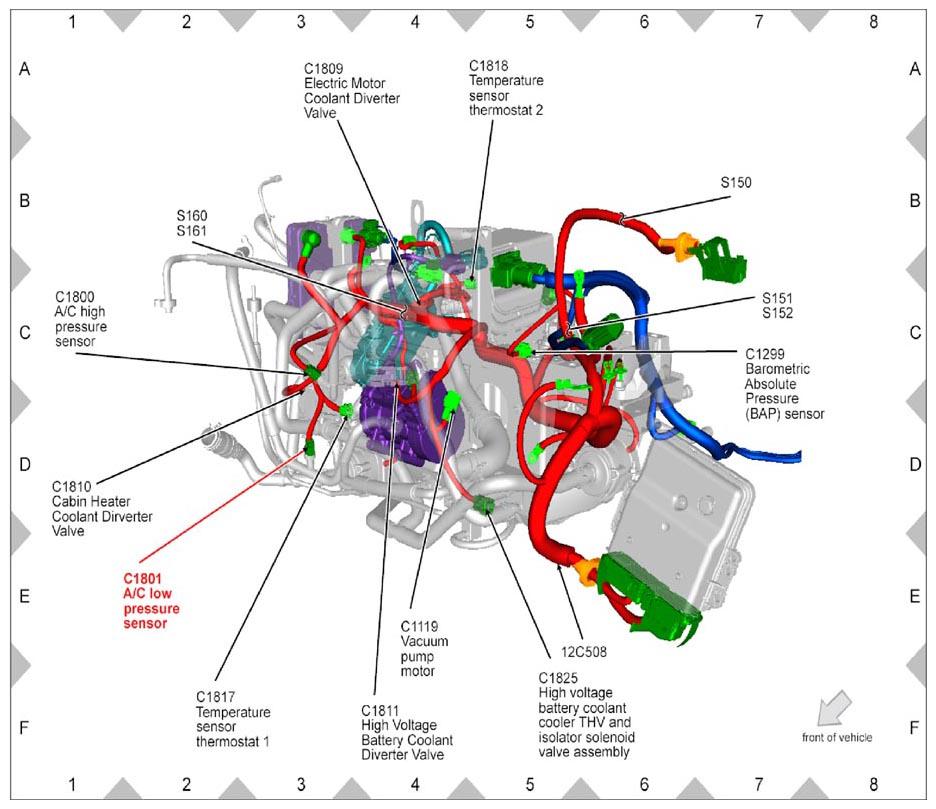

Fig 177: Identifying A/C High Pressure Sensor Connector (C1800)

Courtesy of FORD MOTOR CO.

Fig 178: Identifying A/C Low Pressure Sensor Connector (C1801)

Courtesy of FORD MOTOR CO.

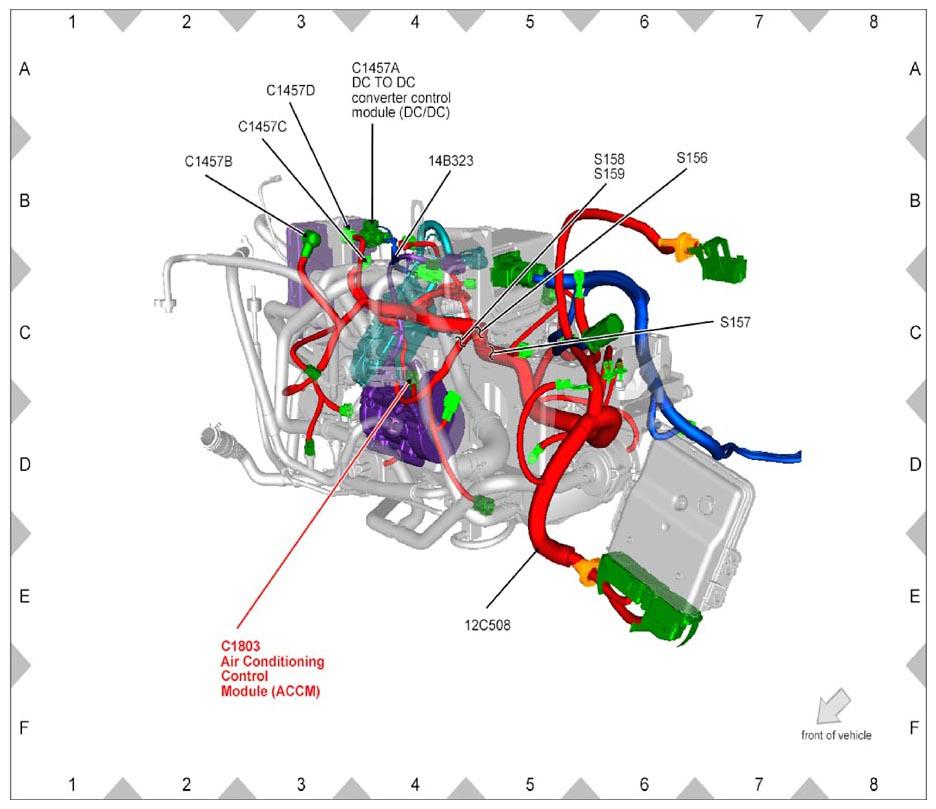

Fig 179: Identifying Air Conditioning Control Module Connector (C1803)

Courtesy of FORD MOTOR CO.

Fig 180: Identifying Charge Port Light Ring Connector (C1806)

Courtesy of FORD MOTOR CO.

Fig 181: Identifying Charge Port Connector (C1807)

Courtesy of FORD MOTOR CO.

Fig 182: Identifying Cabin Air Conditioning Isolator Solenoid Valve Connector (C1808)

Courtesy of FORD MOTOR CO.

Fig 183: Identifying Electric Motor Coolant Diverter Valve Connector (C1809)

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Cabin Heater Coolant Diverter Valve Connector (C1810)

Courtesy of FORD MOTOR CO.

Fig 185: Identifying High Voltage Battery Coolant Diverter Valve Connector (C1811)

Courtesy of FORD MOTOR CO.

Fig 186: Identifying Cabin Heater Coolant Pump Connector (C1812)

Courtesy of FORD MOTOR CO.

Fig 187: Identifying Electric Motor Coolant Pump Connector (C1813)

Courtesy of FORD MOTOR CO.

Fig 188: Identifying High Voltage Battery Coolant Pump Connector (C1814)

Courtesy of FORD MOTOR CO.

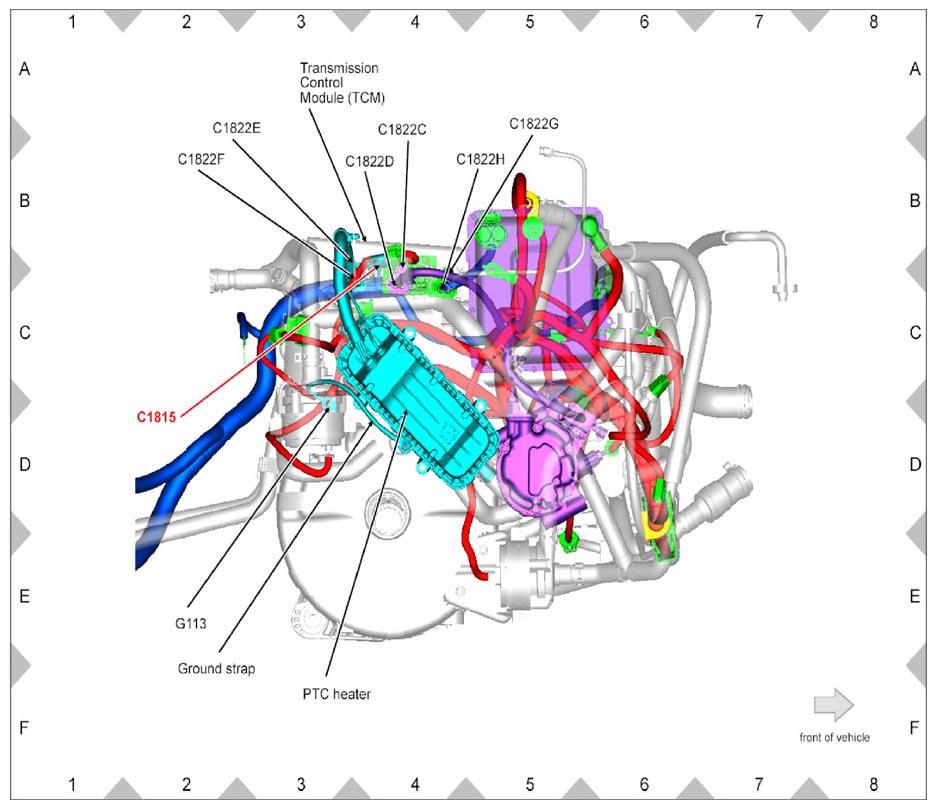

Fig 189: Identifying Connector (C1815)

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Gear Neutral Sensor Connector (C1816)

Courtesy of FORD MOTOR CO.

Fig 191: Identifying Temperature Sensor Thermostat 1 Connector (C1817)

Courtesy of FORD MOTOR CO.

Fig 192: Identifying Temperature Sensor Thermostat 2 Connector (C1818)

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Temperature Sensor Thermostat 3 Connector (C1819)

Courtesy of FORD MOTOR CO.

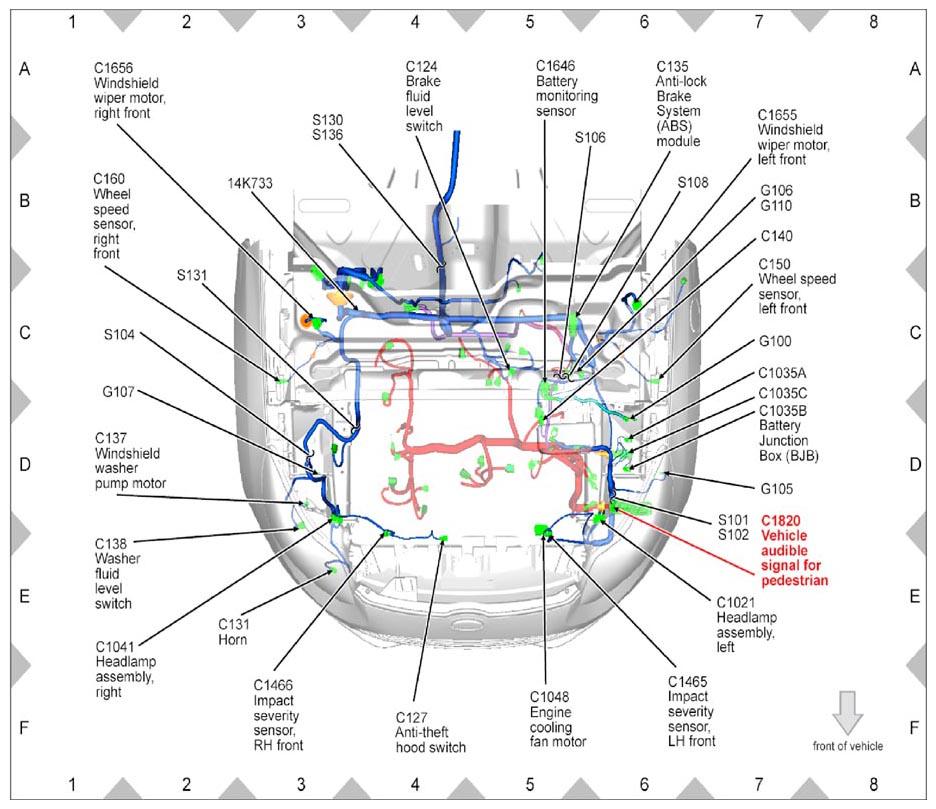

Fig 194: Identifying Vehicle Audible Signal For Pedestrian Connector (C1820)

Courtesy of FORD MOTOR CO.

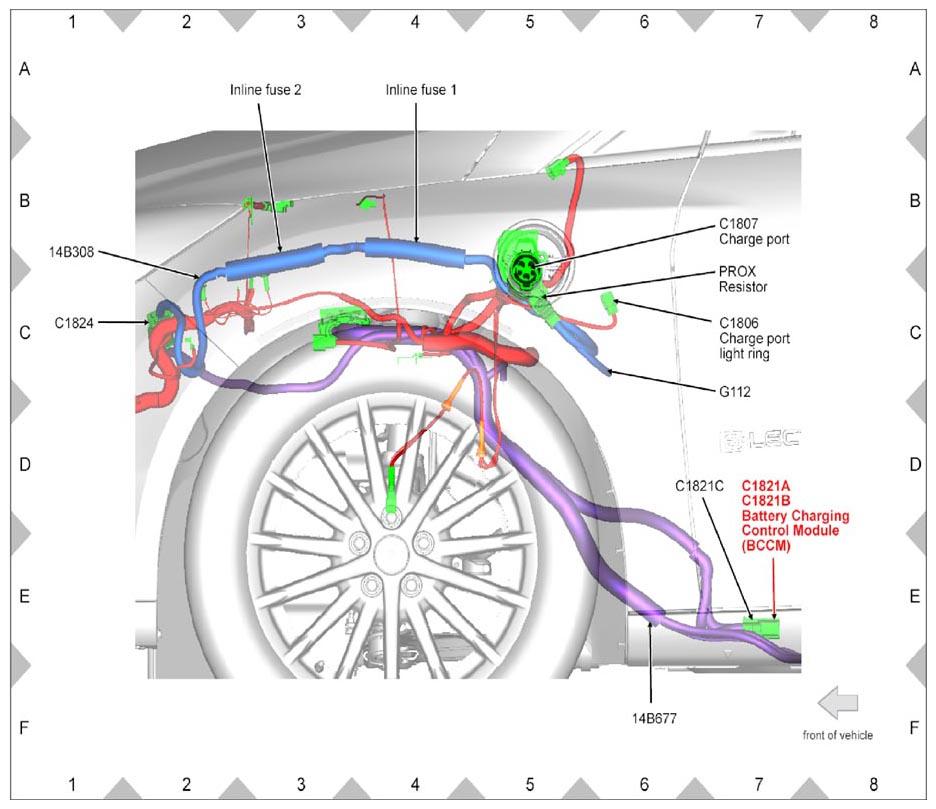

Fig 195: Identifying Battery Charging Control Module Connector (C1821A)

Courtesy of FORD MOTOR CO.

Fig 196: Identifying Battery Charging Control Module Connector (C1821B)

Courtesy of FORD MOTOR CO.

Fig 197: Identifying Battery Charging Control Module Connector (C1821C)

Courtesy of FORD MOTOR CO.

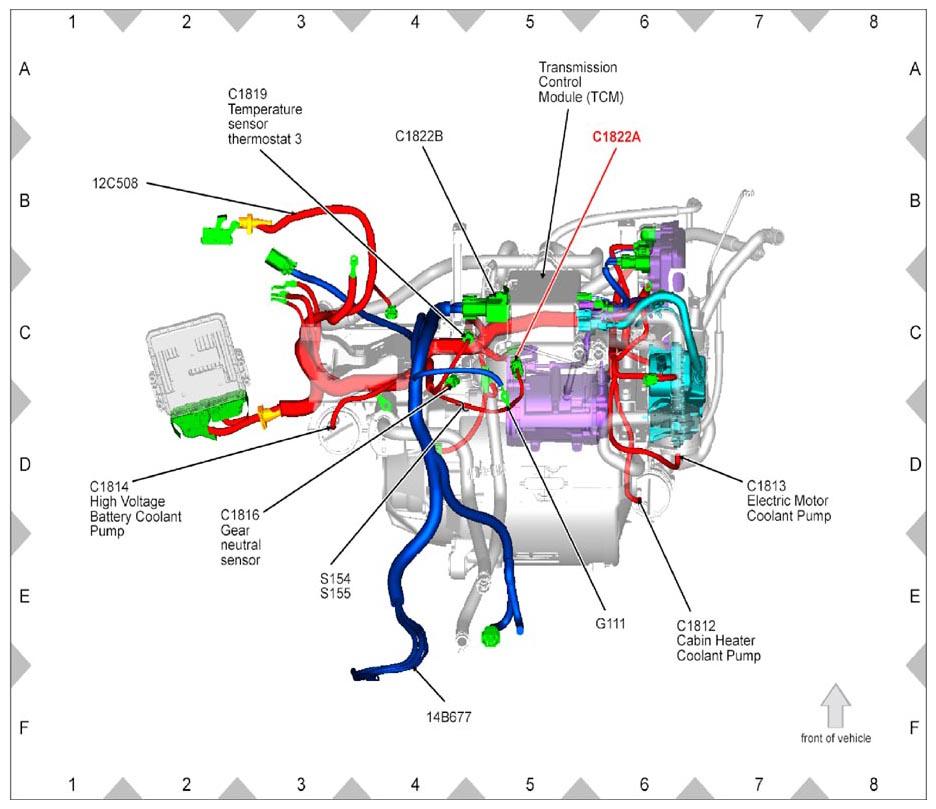

Fig 198: Identifying Transmission Control Module Connector (C1822A)

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Transmission Control Module Connector (C1822B)

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Transmission Control Module Connector (C1822C)

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Transmission Control Module Connector (C1822D)

Courtesy of FORD MOTOR CO.

Fig 202: Identifying Transmission Control Module Connector (C1822E)

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Transmission Control Module Connector (C1822F)

Courtesy of FORD MOTOR CO.

Fig 204: Identifying Transmission Control Module Connector (C1822G)

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Transmission Control Module Connector (C1822H)

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Connector (C1824)

Courtesy of FORD MOTOR CO.

Fig 207: Identifying High Voltage Battery Coolant Cooler THV And Isolator Solenoid Valve Assembly Connector (C1825)

Courtesy of FORD MOTOR CO.

Fig 208: Identifying Blower Motor Connector (C2004)

Courtesy of FORD MOTOR CO.

Fig 209: Identifying Parking Brake Switch Connector (C2015)

Courtesy of FORD MOTOR CO.

Fig 210: Identifying Accelerator Pedal Position Sensor Connector (C2040)

Courtesy of FORD MOTOR CO.

Fig 211: Identifying Footwell Lamp, Left Front Connector (C2056)

Courtesy of FORD MOTOR CO.

Fig 212: Identifying Footwell Lamp, Right Front Connector (C2057)

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Passive Start Antenna, Front Connector (C2086)

Courtesy of FORD MOTOR CO.

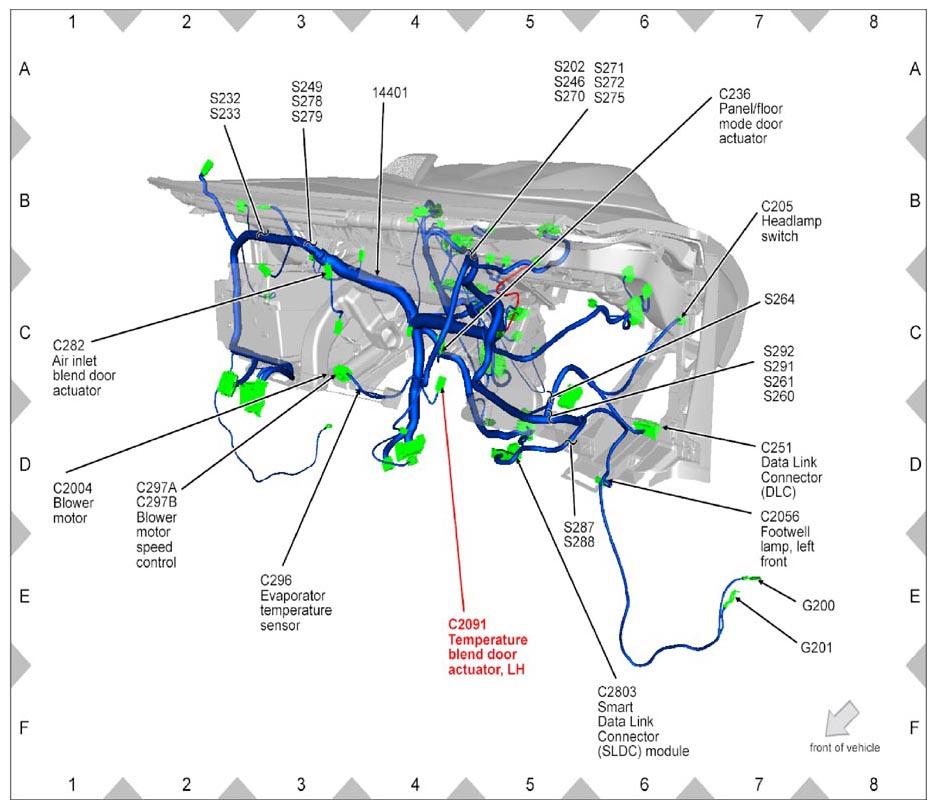

Fig 214: Identifying Temperature Blend Door Actuator, LH Connector (C2091)

Courtesy of FORD MOTOR CO.

Fig 215: Identifying Temperature Blend Door Actuator, RH Connector (C2092)

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Start/Stop Switch Connector (C2195)

Courtesy of FORD MOTOR CO.

Fig 217: Identifying In-Vehicle Temperature/Humidity Sensor Connector (C2247)

Courtesy of FORD MOTOR CO.

Fig 218: Identifying Body Control Module Connector (C2280A)

Courtesy of FORD MOTOR CO.

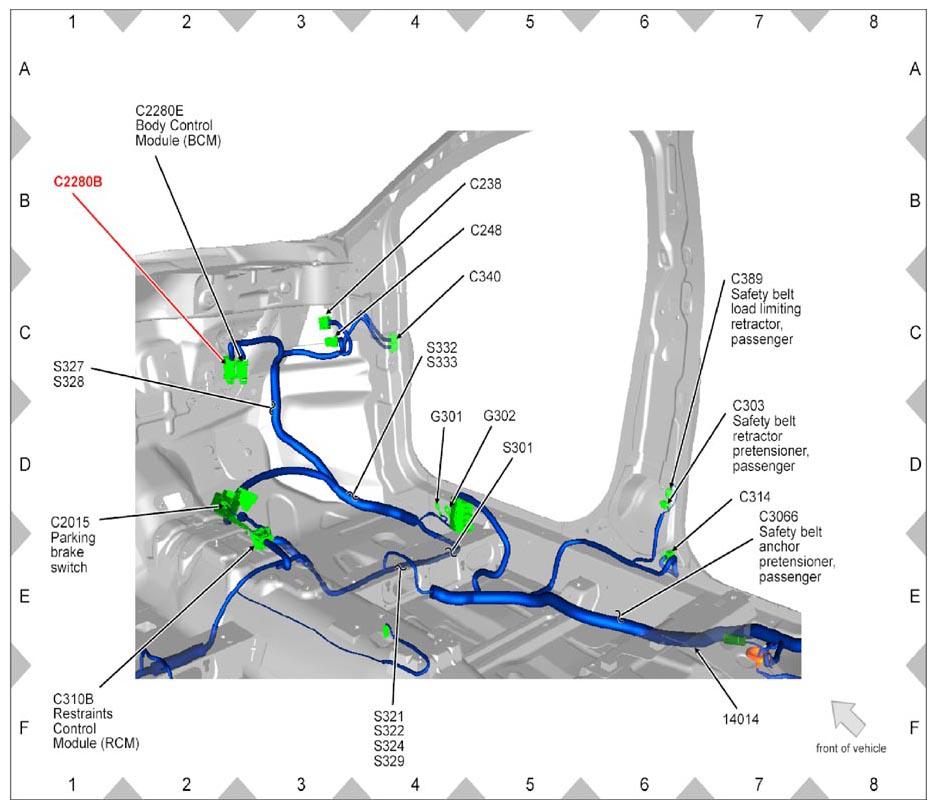

Fig 219: Identifying Body Control Module Connector (C2280B)

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Body Control Module Connector (C2280C)

Courtesy of FORD MOTOR CO.

Fig 221: Identifying Body Control Module Connector (C2280D)

Courtesy of FORD MOTOR CO.

Fig 222: Identifying Body Control Module Connector (C2280E)

Courtesy of FORD MOTOR CO.

Fig 223: Identifying Body Control Module Connector (C2280F)

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Body Control Module Connector (C2280G)

Courtesy of FORD MOTOR CO.

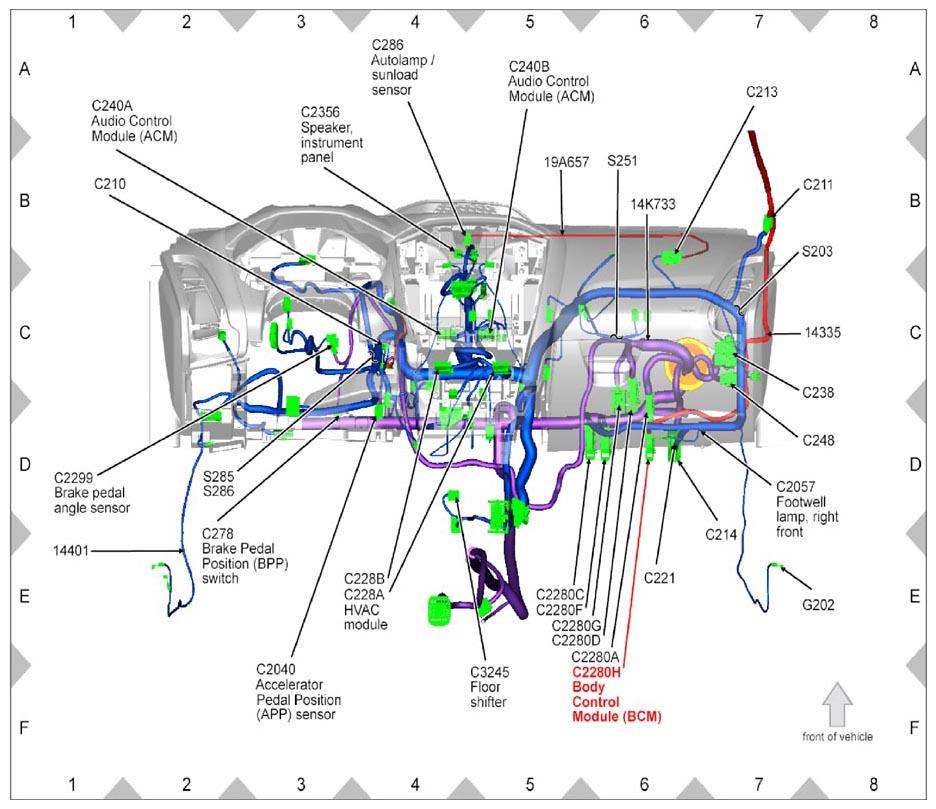

Fig 225: Identifying Body Control Module Connector (C2280H)

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Brake Pedal Angle Sensor Connector (C2299)

Courtesy of FORD MOTOR CO.

Fig 227: Identifying Passenger Air Bag Canister Vent Connector (C2351)

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Speaker, Instrument Panel Connector (C2356)

Courtesy of FORD MOTOR CO.

Fig 229: Identifying Collapsible Steering Column Module Connector (C2360)

Courtesy of FORD MOTOR CO.

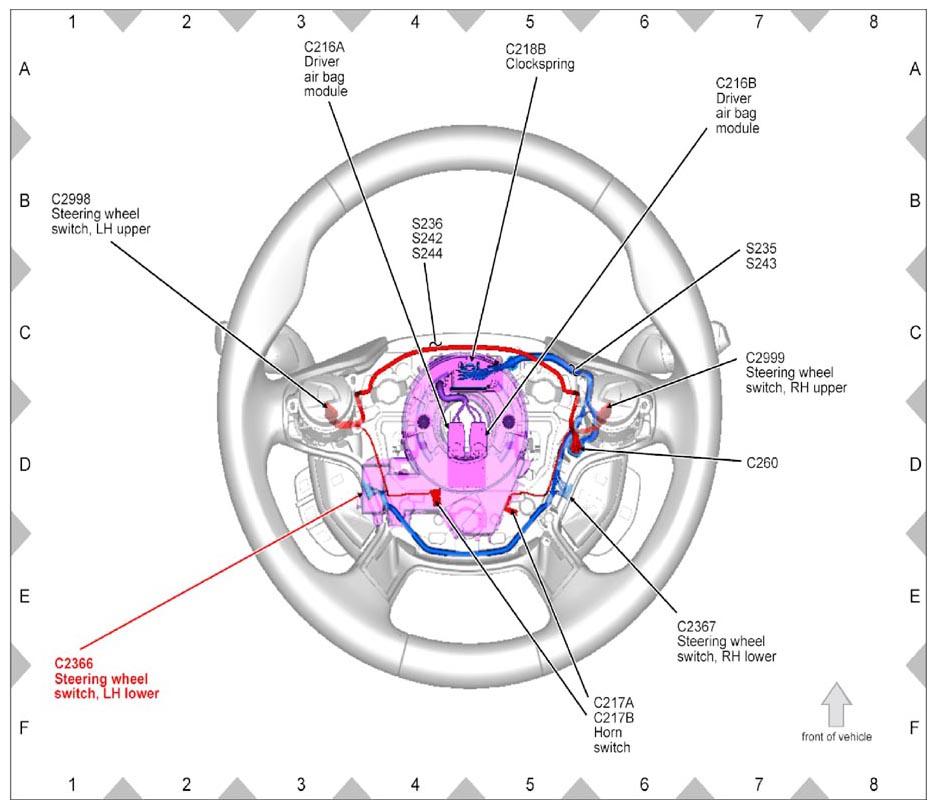

Fig 230: Identifying Steering Wheel Switch, LH Lower Connector (C2366)

Courtesy of FORD MOTOR CO.

Fig 231: Identifying Steering Wheel Switch, RH Lower Connector (C2367)

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Accessory Protocol Interface Module Connector (C2283)

Courtesy of FORD MOTOR CO.

Fig 233: Identifying Global Positioning System Module Connector (C2398)

Courtesy of FORD MOTOR CO.

Fig 234: Identifying Front Controls Interface Module Connector (C2402)

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Driver Lower Air Bag Module Connector (C2432)

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Footwell Air Discharge Temperature Sensor, LH Connector (C2436)

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Footwell Air Discharge Temperature Sensor, RH Connector (C2437)

Courtesy of FORD MOTOR CO.

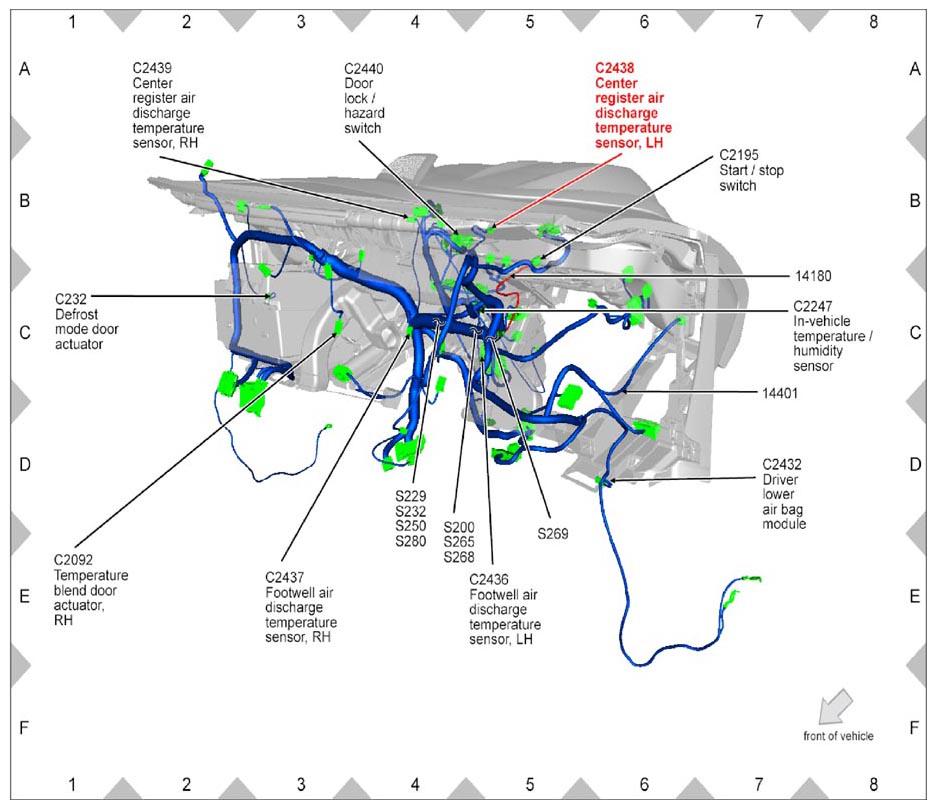

Fig 238: Identifying Center Register Air Discharge Temperature Sensor, LH Connector (C2438)

Courtesy of FORD MOTOR CO.

Fig 239: Identifying Center Register Air Discharge Temperature Sensor, RH Connector (C2439)

Courtesy of FORD MOTOR CO.

Fig 240: Identifying Door Lock/Hazard Switch Connector (C2440)

Courtesy of FORD MOTOR CO.

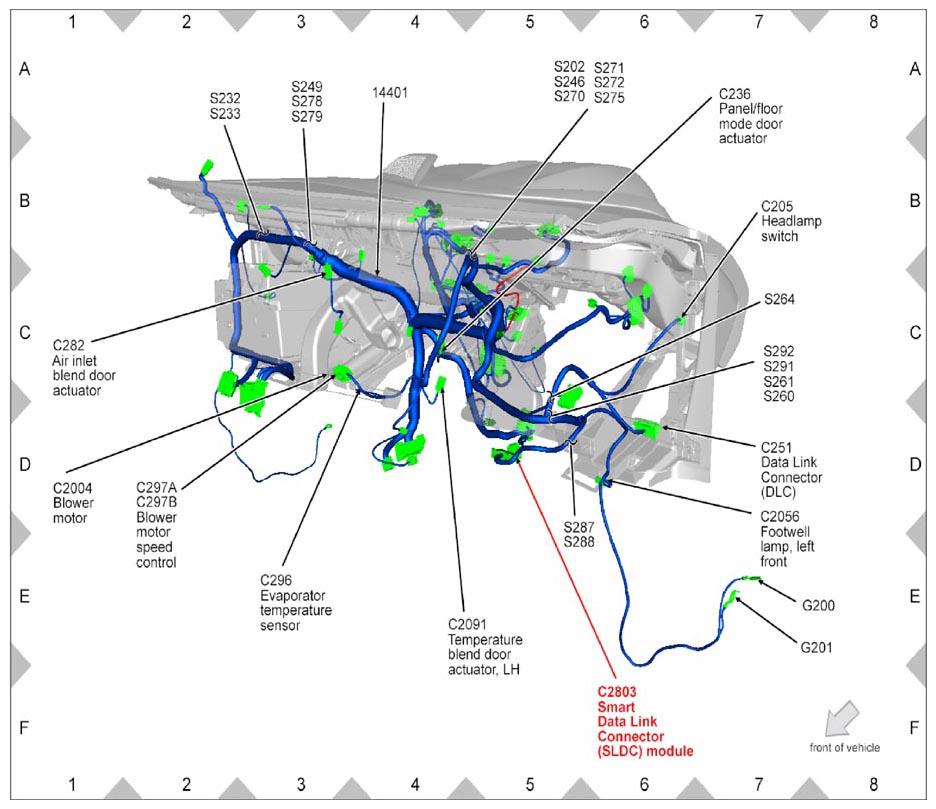

Fig 241: Identifying Smart Data Link Connector Module Connector (C2803)

Courtesy of FORD MOTOR CO.

Fig 242: Identifying Steering Wheel Switch, LH Upper Connector (C2998)

Courtesy of FORD MOTOR CO.

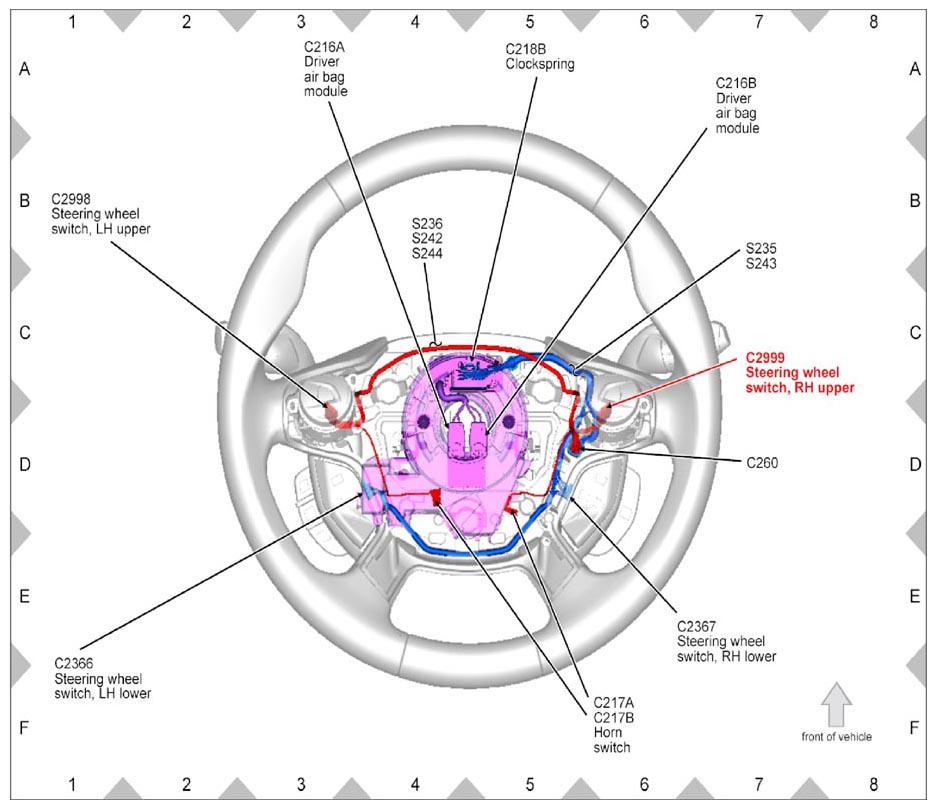

Fig 243: Identifying Steering Wheel Switch, RH Upper Connector (C2999)

Courtesy of FORD MOTOR CO.

Fig 244: Identifying Connector (C3007A)

Courtesy of FORD MOTOR CO.

Fig 245: Identifying Connector (C3007B)

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Connector (C3007C)

Courtesy of FORD MOTOR CO.

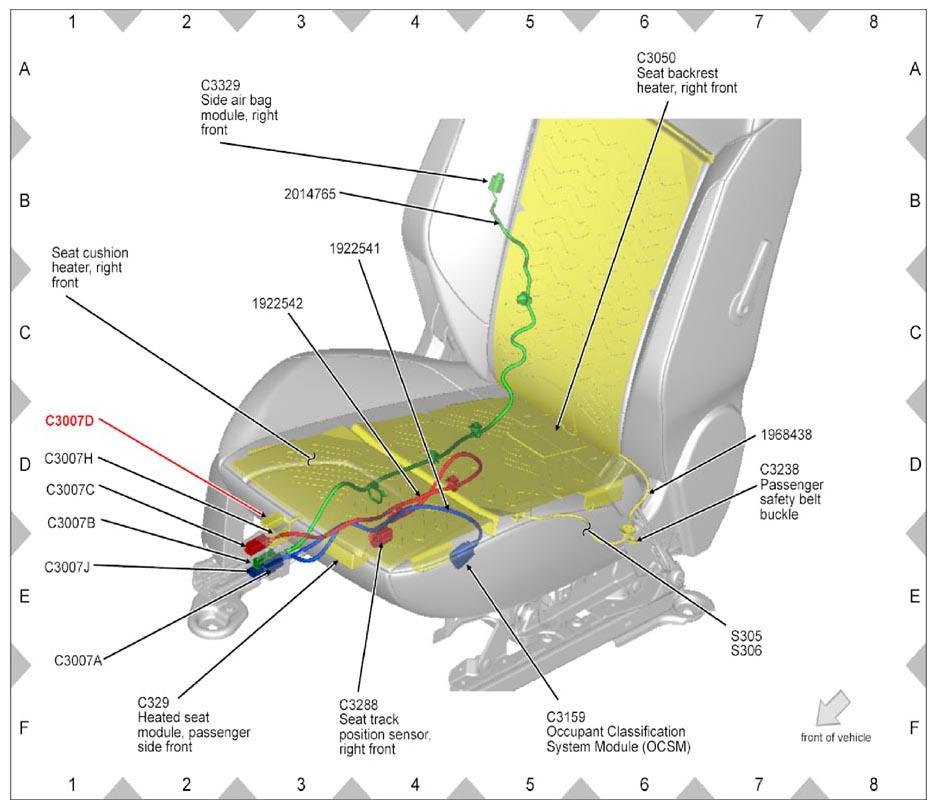

Fig 247: Identifying Connector (C3007D)

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Connector (C3007H)

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Connector (C3007J)

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Connector (C3047)

Courtesy of FORD MOTOR CO.

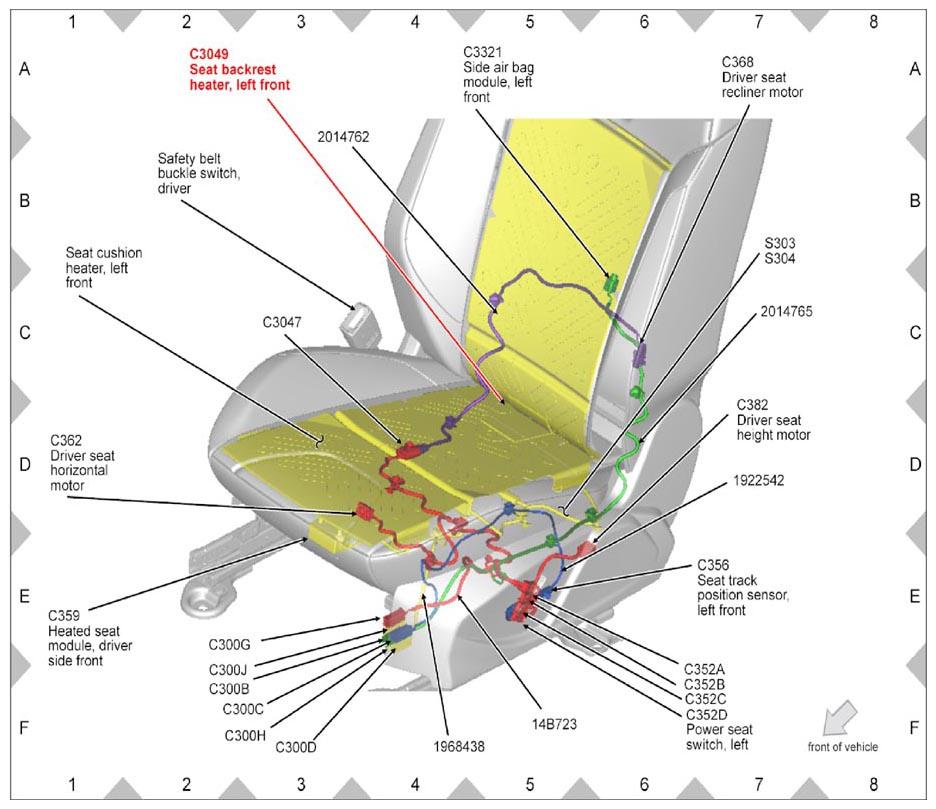

Fig 251: Identifying Seat Backrest Heater, Left Front Connector (C3049)

Courtesy of FORD MOTOR CO.

Fig 252: Identifying Seat Backrest Heater, Right Front Connector (C3050)

Courtesy of FORD MOTOR CO.

Fig 253: Identifying Safety Belt Anchor Pretensioner, Driver Connector (C3065)

Courtesy of FORD MOTOR CO.

Fig 254: Identifying Safety Belt Anchor Pretensioner, Passenger Connector (C3066)

Courtesy of FORD MOTOR CO.

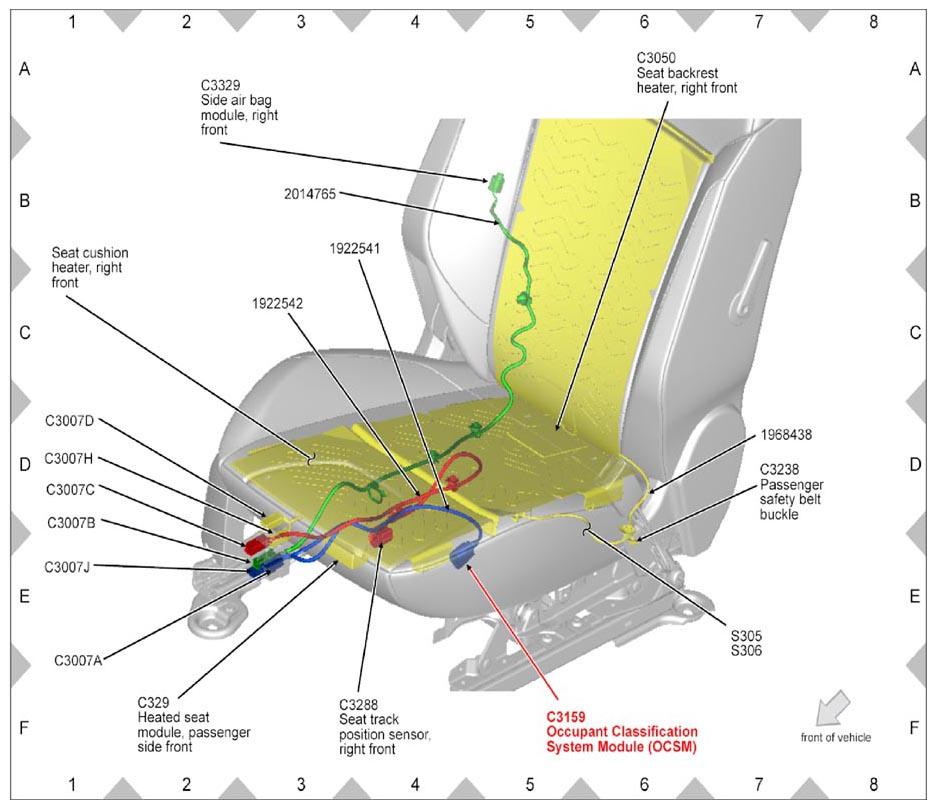

Fig 255: Identifying Occupant Classification System Module Connector (C3159)

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Side Impact Sensor, Second Row, LH Connector (C3209)

Courtesy of FORD MOTOR CO.

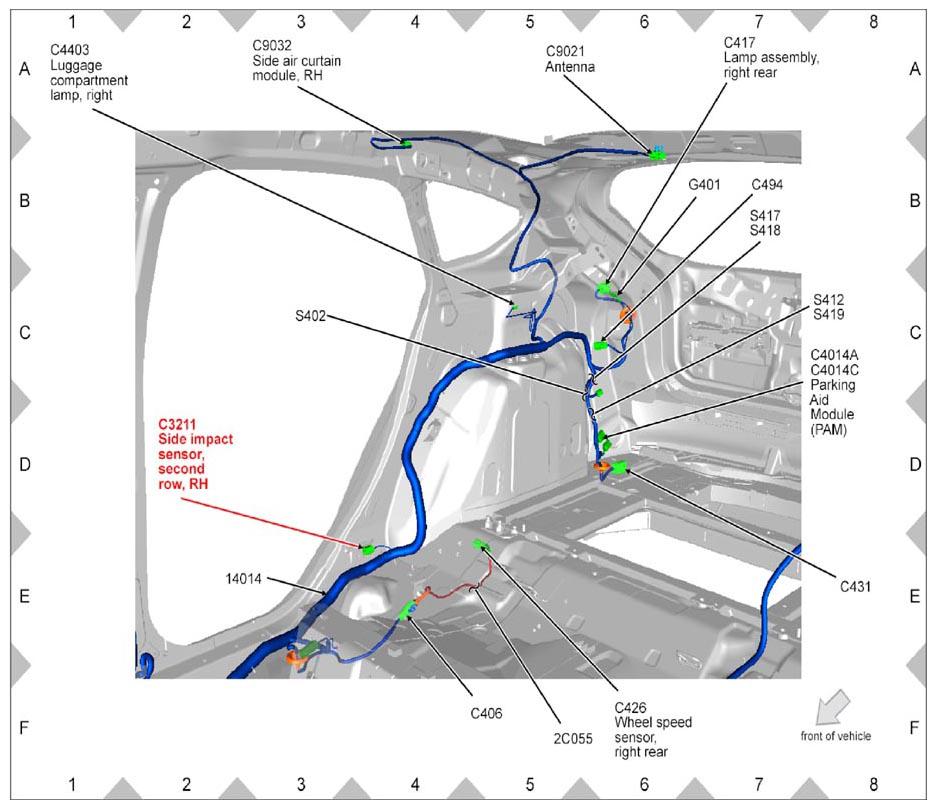

Fig 257: Identifying Side Impact Sensor, Second Row, RH Connector (C3211)

Courtesy of FORD MOTOR CO.

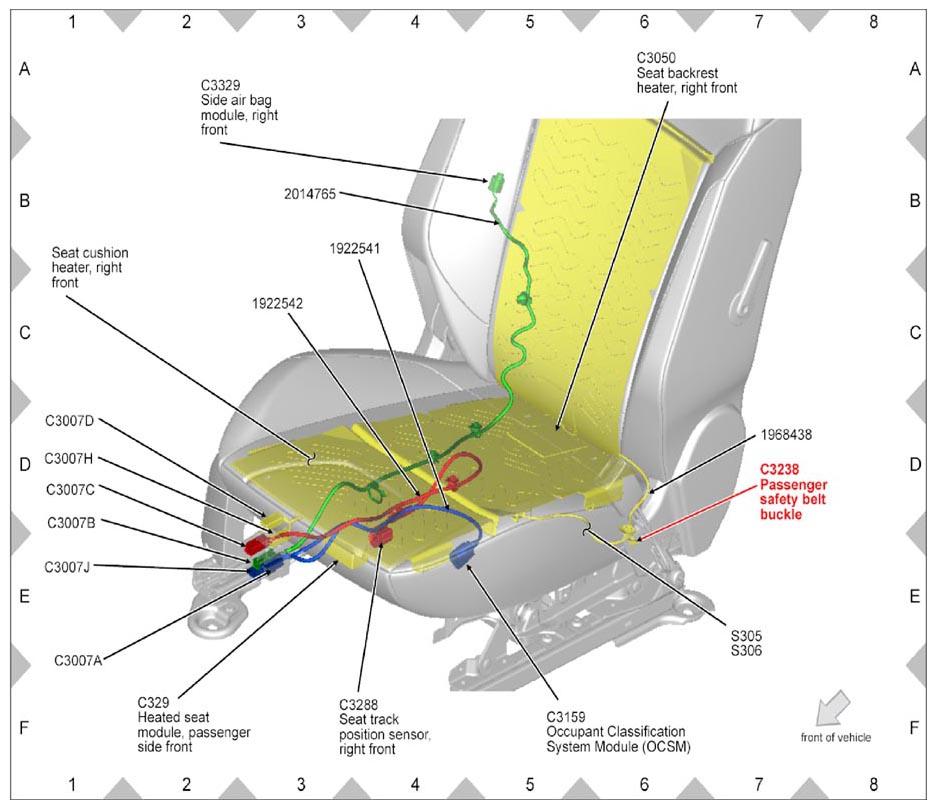

Fig 258: Identifying Passenger Safety Belt Buckle Connector (C3238)

Courtesy of FORD MOTOR CO.

Fig 259: Identifying Floor Shifter Connector (C3245)

Courtesy of FORD MOTOR CO.

Fig 260: Identifying Seat Track Position Sensor, Right Front Connector (C3288)

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Sid Air Bag Module, Left Front Connector (C3321)

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Power Point, Rear Connector (C3323)

Courtesy of FORD MOTOR CO.

Fig 263: Identifying Side Airbag Module, Right Front Connector (C3329)

Courtesy of FORD MOTOR CO.

Fig 264: Identifying Cupholder Lamp Connector (C3349)

Courtesy of FORD MOTOR CO.

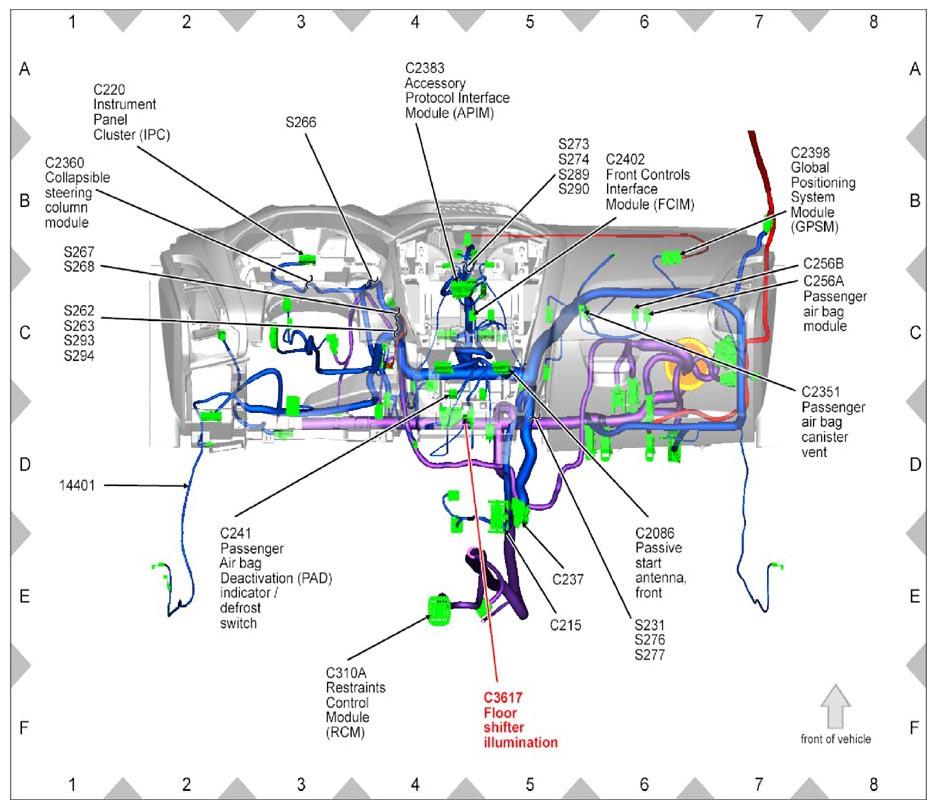

Fig 265: Identifying Floor Shifter Illumination Connector (C3617)

Courtesy of FORD MOTOR CO.

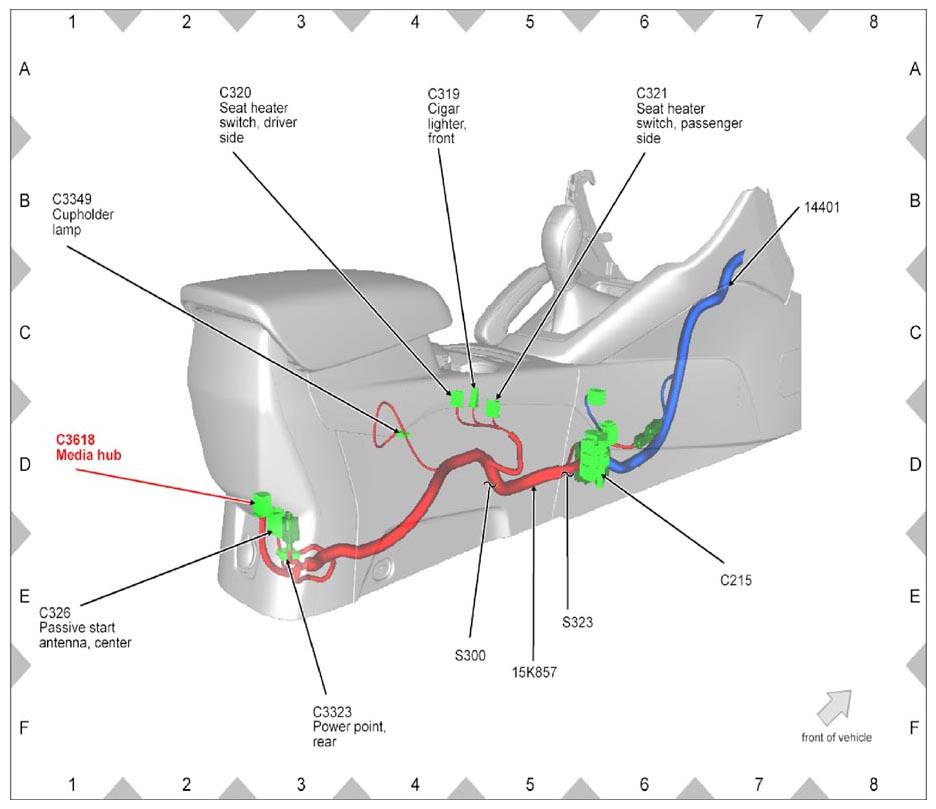

Fig 266: Identifying Media Hub Connector (C3618)

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Parking Aid Sensor Rear, Outer Left Connector (C4009)

Courtesy of FORD MOTOR CO.

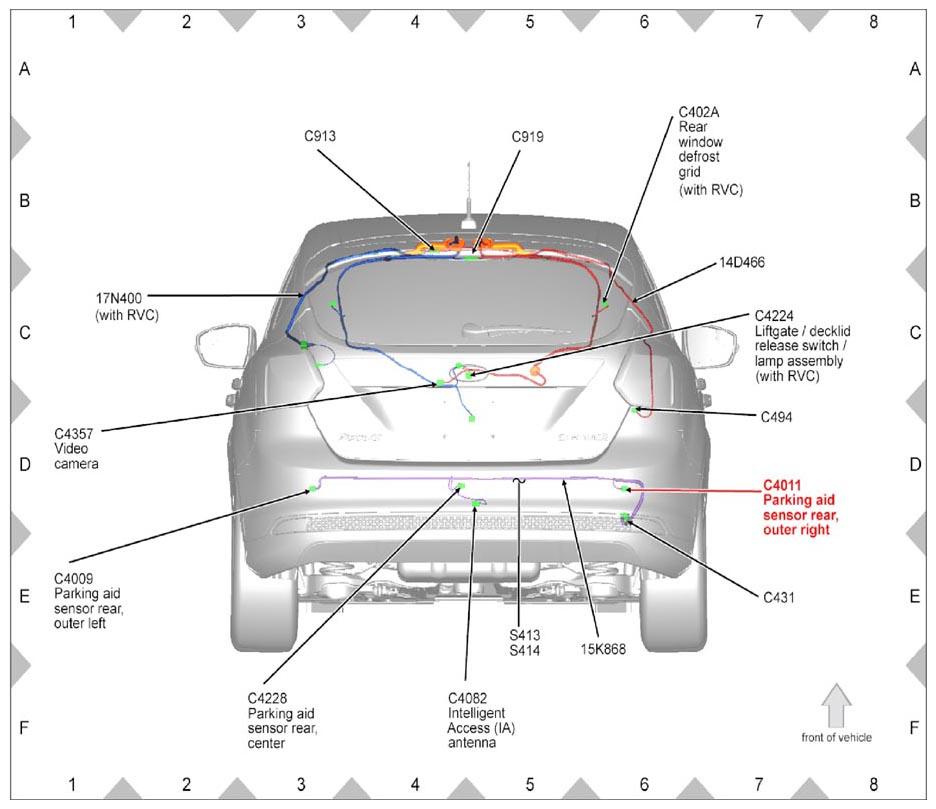

Fig 268: Identifying Parking Aid Sensor Rear, Outer Right Connector (C4011)

Courtesy of FORD MOTOR CO.

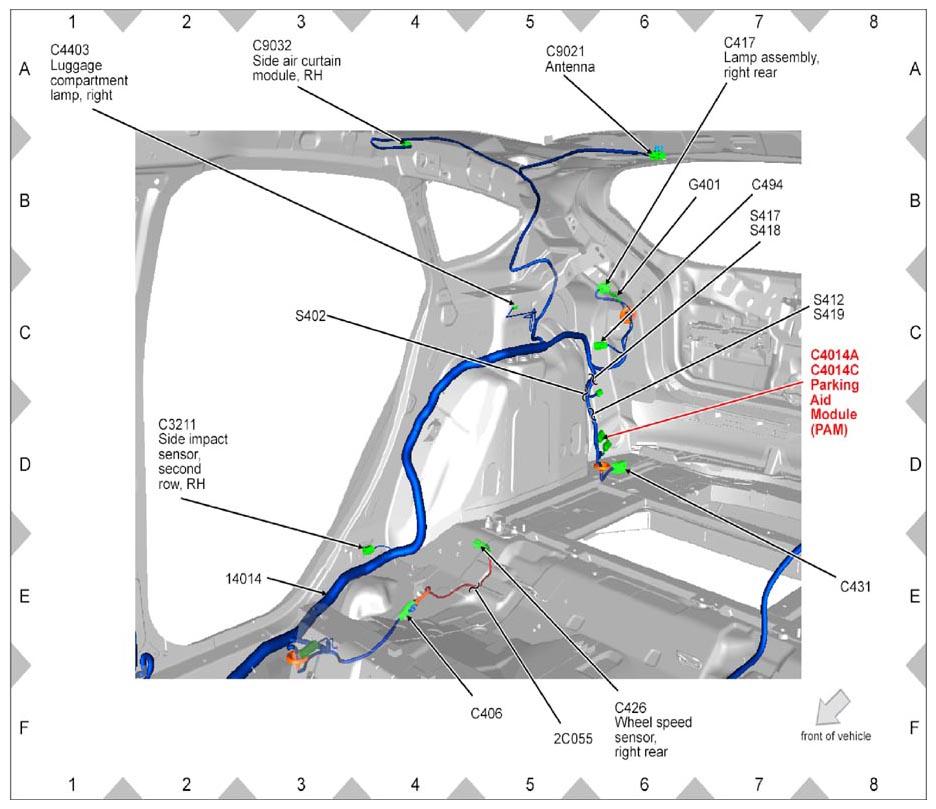

Fig 269: Identifying Parking Aid Module Connector (C4014A And C4014C)

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Parking Aid Module Connector (C4014A And C4014C)

Courtesy of FORD MOTOR CO.

Fig 271: Identifying Intelligent Access Antenna Connector (C4082)

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Luggage Compartment Lamp, Left Connector (C4198)

Courtesy of FORD MOTOR CO.

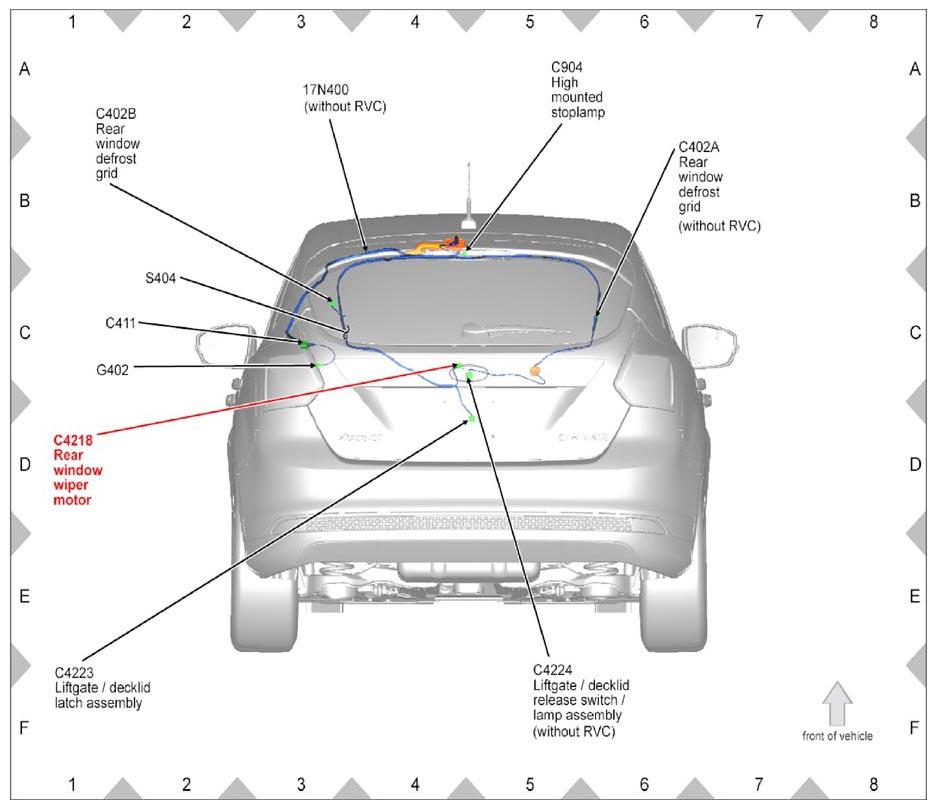

Fig 273: Identifying Rear Window Wiper Motor Connector (C4218)

Courtesy of FORD MOTOR CO.

Fig 274: Identifying Liftgate/Decklid Latch Assembly Connector (C4223)

Courtesy of FORD MOTOR CO.

Fig 275: Identifying Liftgate/Decklid Release Switch/Lamp Assembly Connector (C4224)

Courtesy of FORD MOTOR CO.

Fig 276: Identifying Liftgate/Decklid Release Switch/Lamp Assembly Connector (C4224)

Courtesy of FORD MOTOR CO.

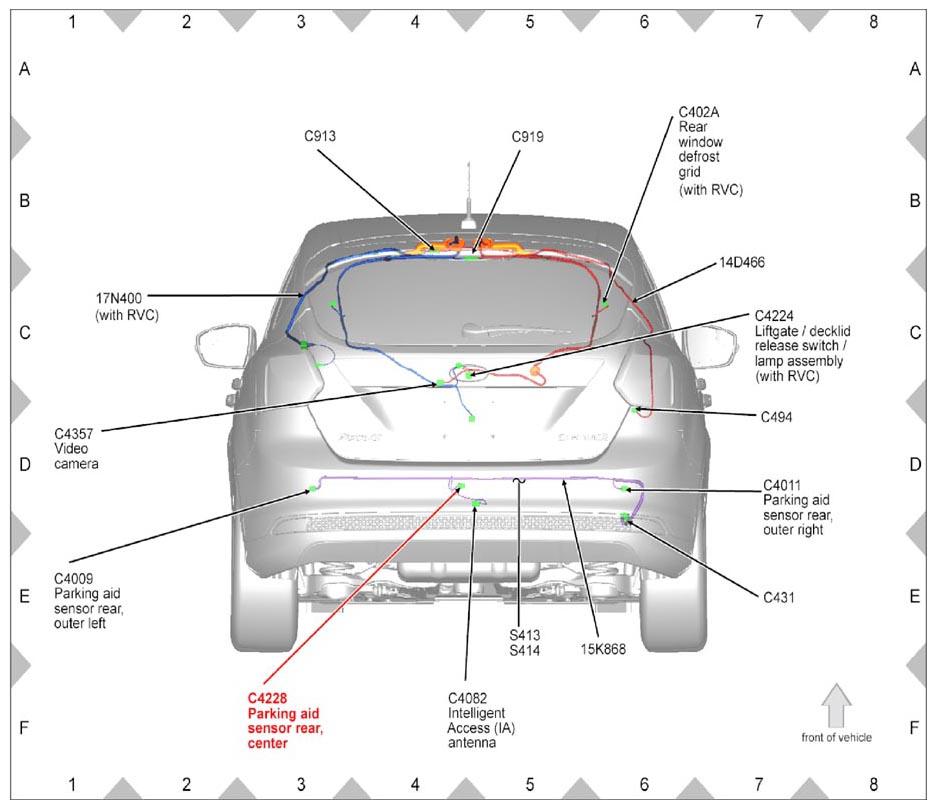

Fig 277: Identifying Parking Aid Sensor Rear, Center Connector (C4228)

Courtesy of FORD MOTOR CO.

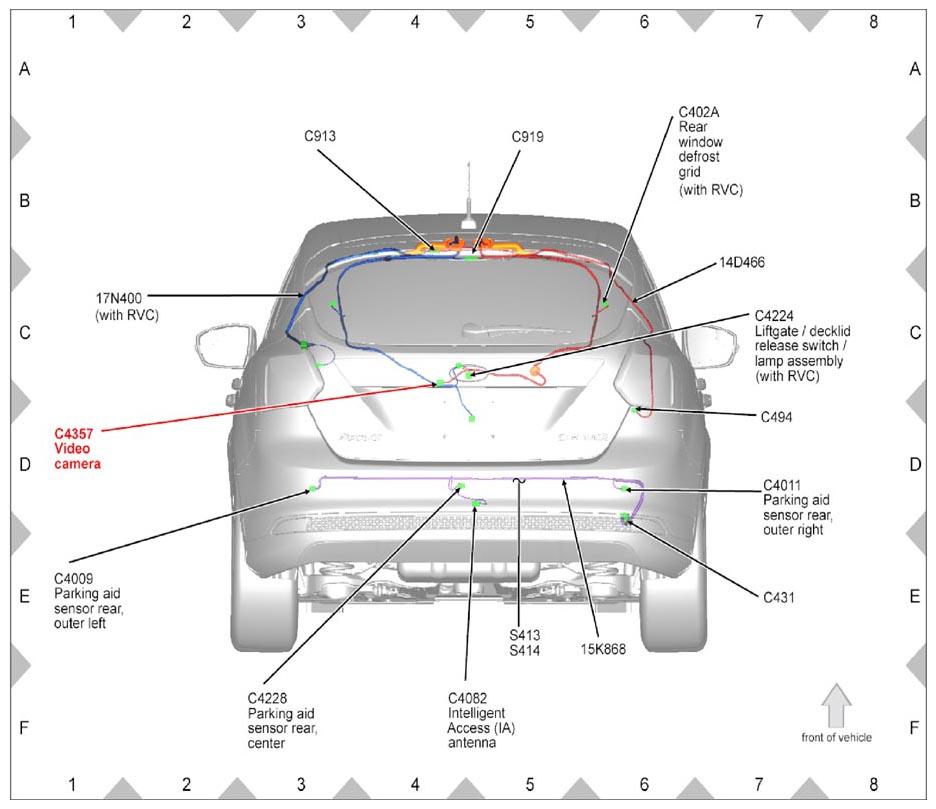

Fig 278: Identifying Video Camera Connector (C4357)

Courtesy of FORD MOTOR CO.

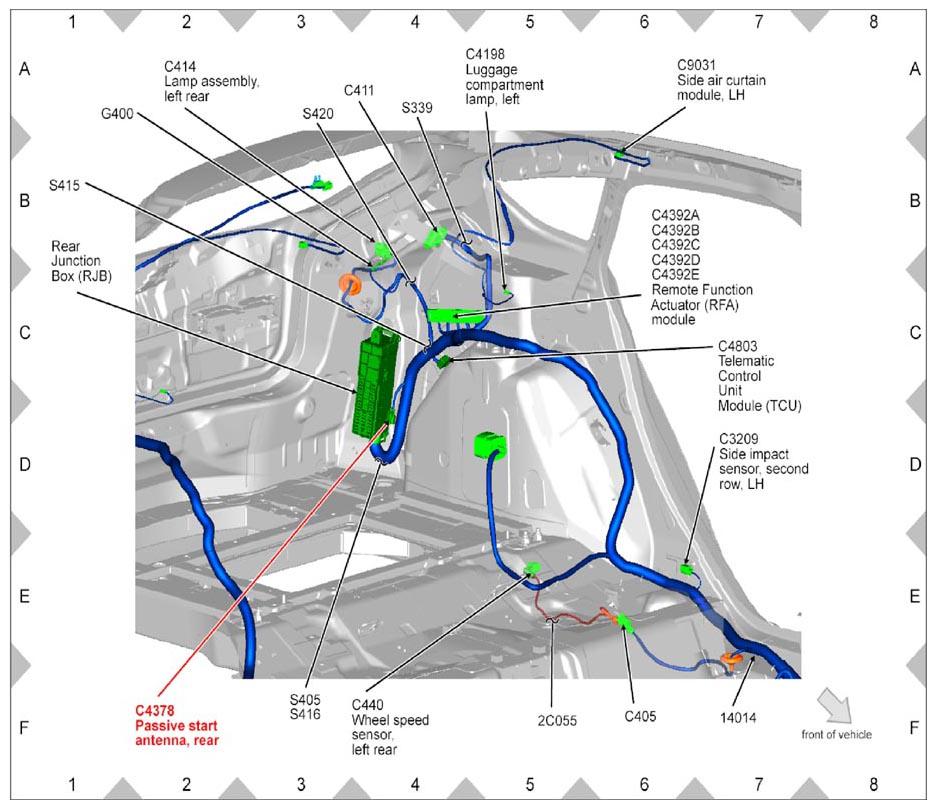

Fig 279: Identifying Passive Start Antenna, Rear Connector (C4378)

Courtesy of FORD MOTOR CO.

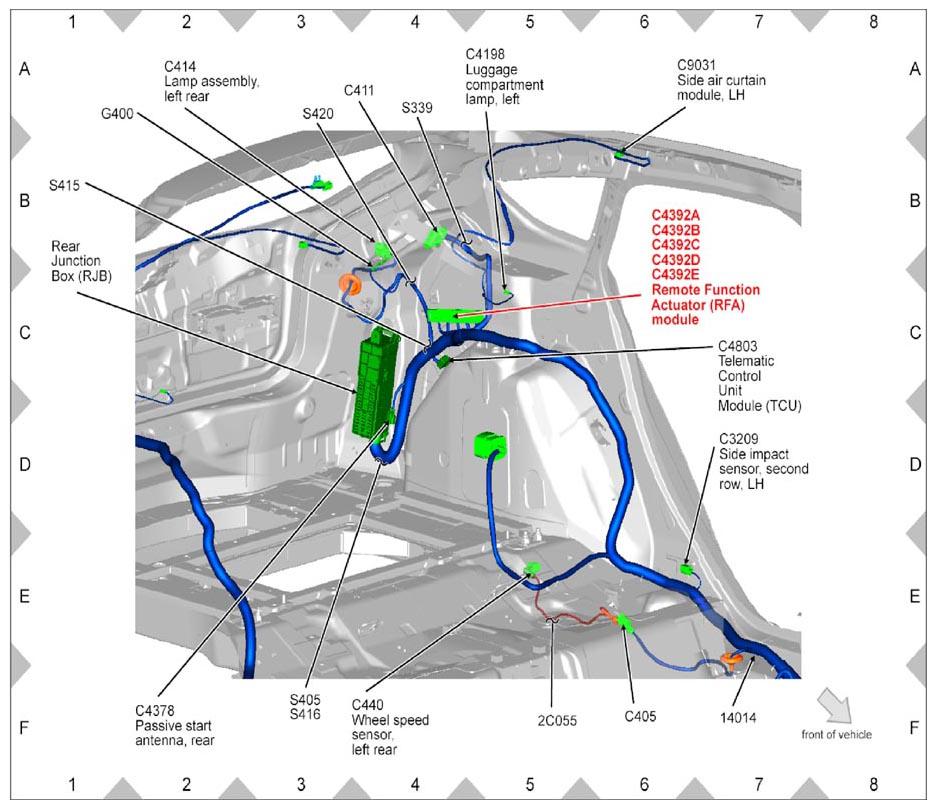

Fig 280: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E)

Courtesy of FORD MOTOR CO.

Fig 281: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E)

Courtesy of FORD MOTOR CO.

Fig 282: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E)

Courtesy of FORD MOTOR CO.

Fig 283: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E)

Courtesy of FORD MOTOR CO.

Fig 284: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E)

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Luggage Compartment Lamp, Right Connector (C4403)

Courtesy of FORD MOTOR CO.

Fig 286: Identifying Liquid Coolant PTC Element Connector (C4802)

Courtesy of FORD MOTOR CO.

Fig 287: Identifying Telematic Control Unit Module Connector (C4803)

Courtesy of FORD MOTOR CO.

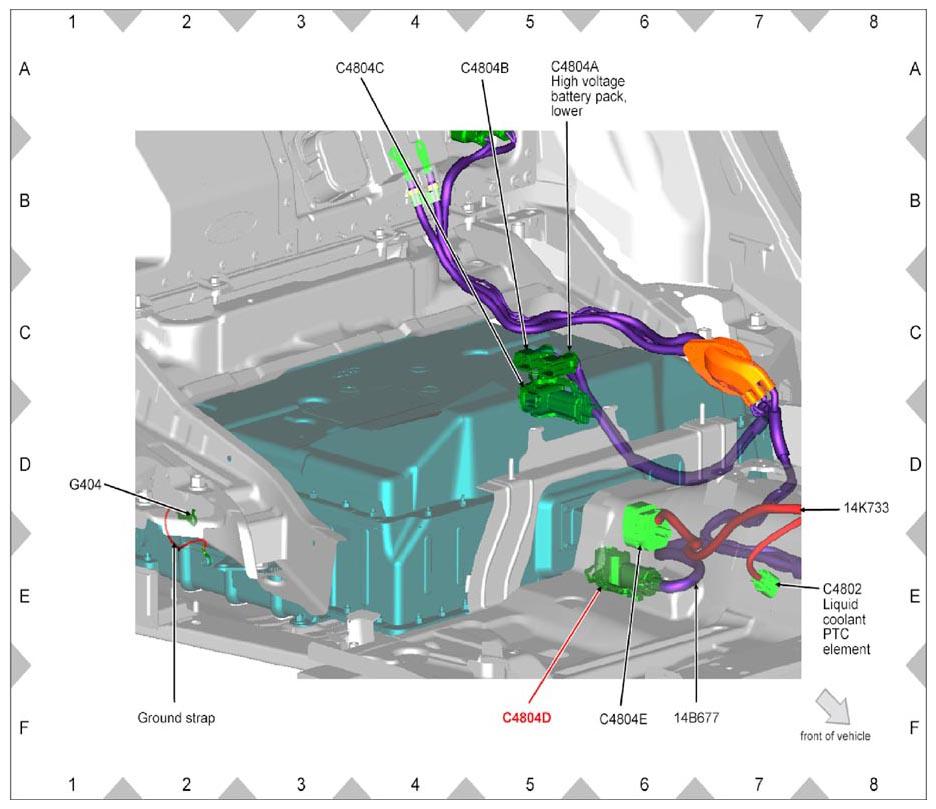

Fig 288: Identifying High Voltage Battery Pack, Lower Connector (C4804A)

Courtesy of FORD MOTOR CO.

Fig 289: Identifying High Voltage Battery Pack, Lower Connector (C4804B)

Courtesy of FORD MOTOR CO.

Fig 290: Identifying High Voltage Battery Pack, Lower Connector (C4804C)

Courtesy of FORD MOTOR CO.

Fig 291: Identifying High Voltage Battery Pack, Lower Connector (C4804D)

Courtesy of FORD MOTOR CO.

Fig 292: Identifying High Voltage Battery Pack, Lower Connector (C4804E)

Courtesy of FORD MOTOR CO.

Fig 293: Identifying High Voltage Battery Pack, Upper Connector (C4805A)

Courtesy of FORD MOTOR CO.

Fig 294: Identifying High Voltage Battery Pack, Upper Connector (C4805B)

Courtesy of FORD MOTOR CO.

Fig 295: Identifying High Voltage Battery Pack, Upper Connector (C4805C)

Courtesy of FORD MOTOR CO.

Fig 296: Identifying High Voltage Battery Pack, Upper Connector (C4805D)

Courtesy of FORD MOTOR CO.

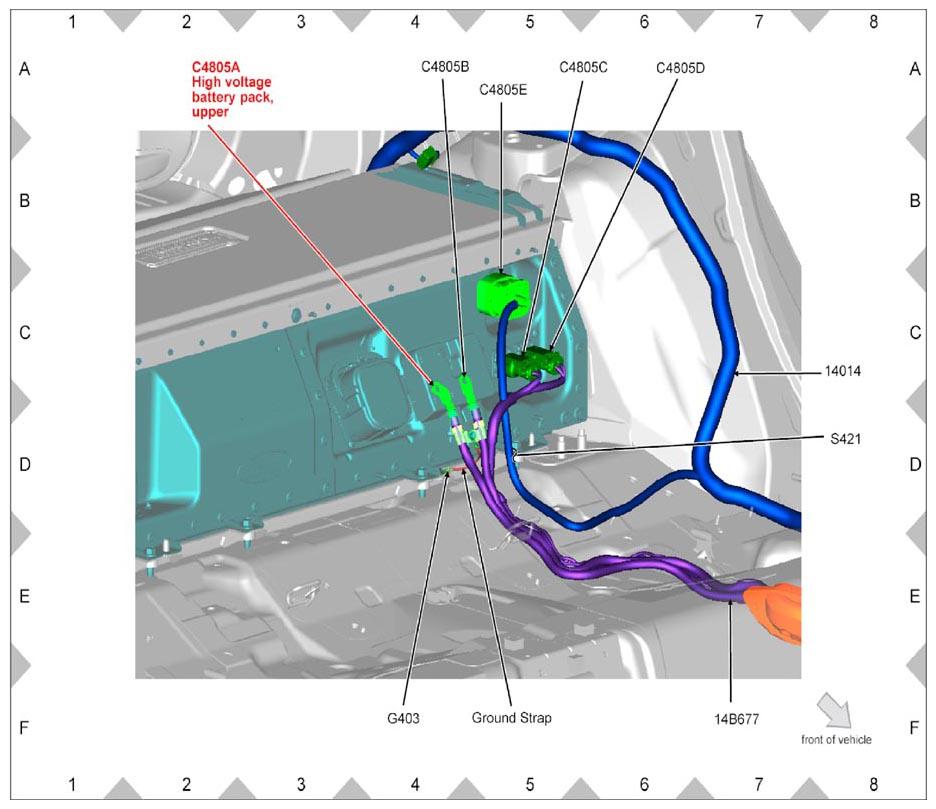

Fig 297: Identifying High Voltage Battery Pack, Upper Connector (C4805E)

Courtesy of FORD MOTOR CO.

Fig 298: Identifying Antenna Connector (C9021)

Courtesy of FORD MOTOR CO.

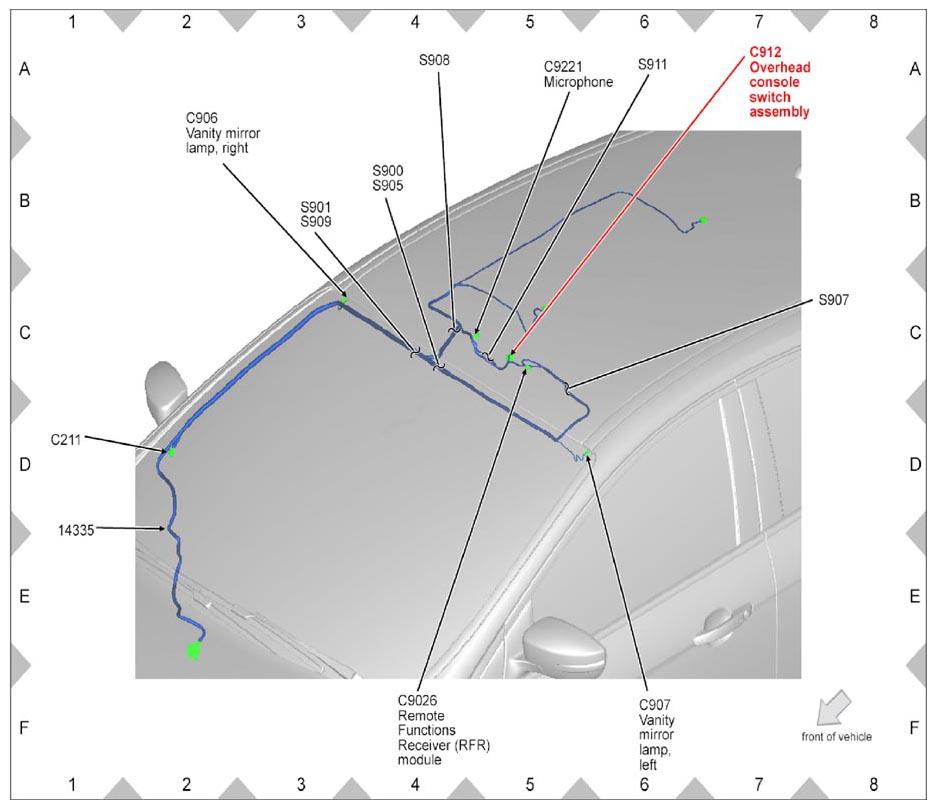

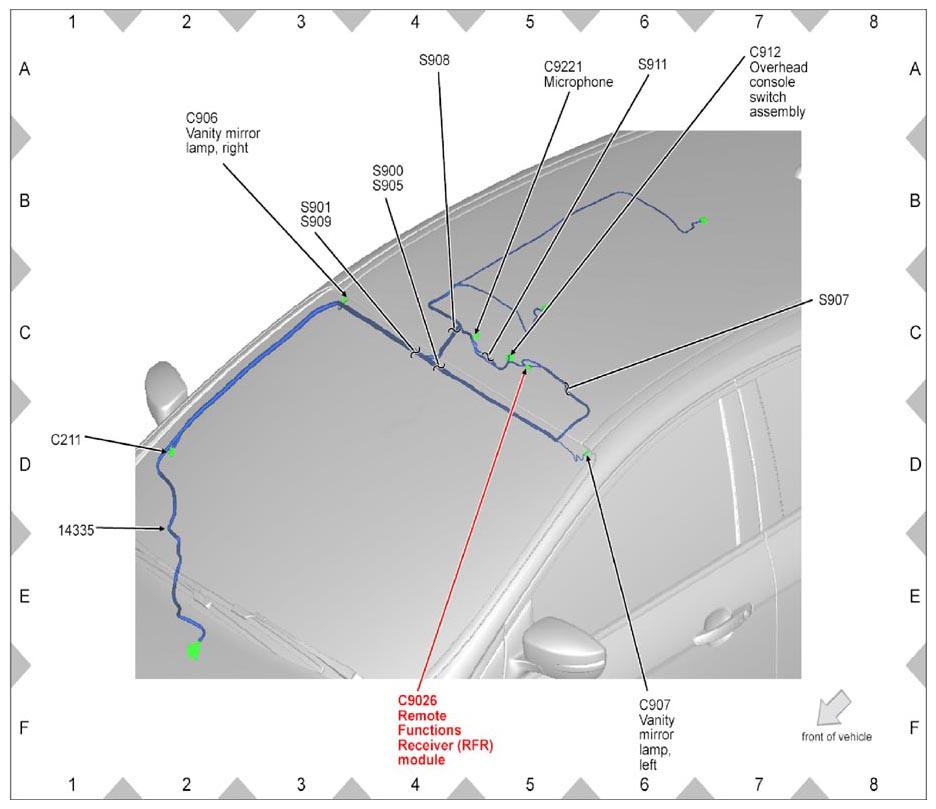

Fig 299: Identifying Remote Functions Receiver Module Connector (C9026)

Courtesy of FORD MOTOR CO.

Fig 300: Identifying Side Air Curtain Module, LH Connector (C9031)

Courtesy of FORD MOTOR CO.

Fig 301: Identifying Side Air Curtain Module, RH Connector (C9032)

Courtesy of FORD MOTOR CO.

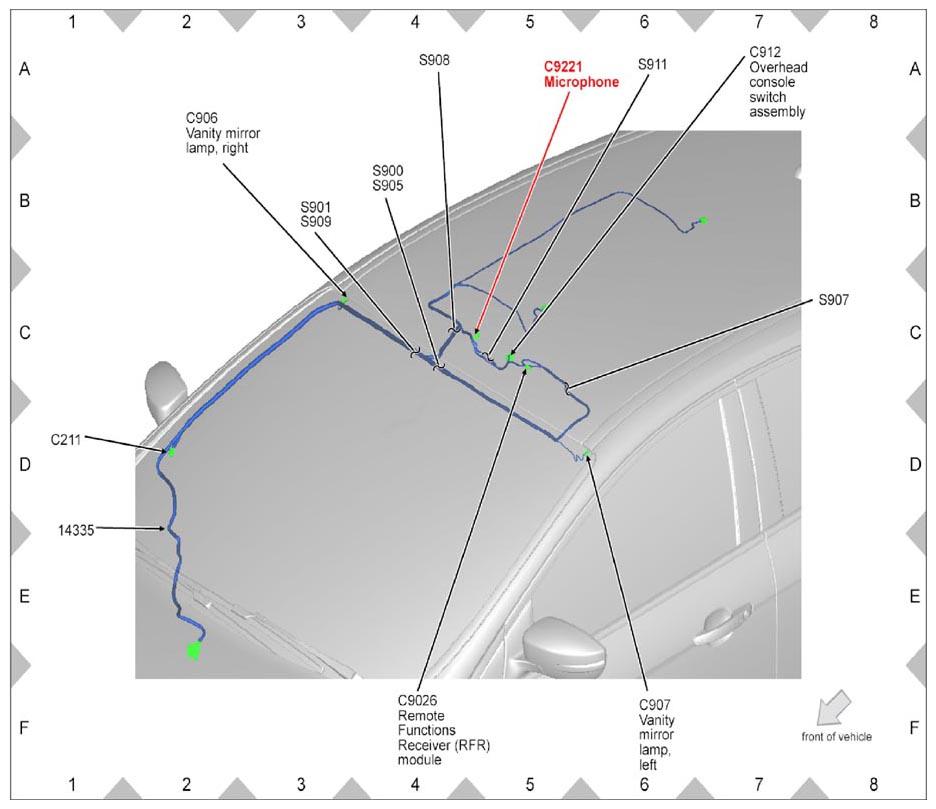

Fig 302: Identifying Microphone Connector (C9221)

Courtesy of FORD MOTOR CO.
