Wiper And Washers
Wiper And Washers

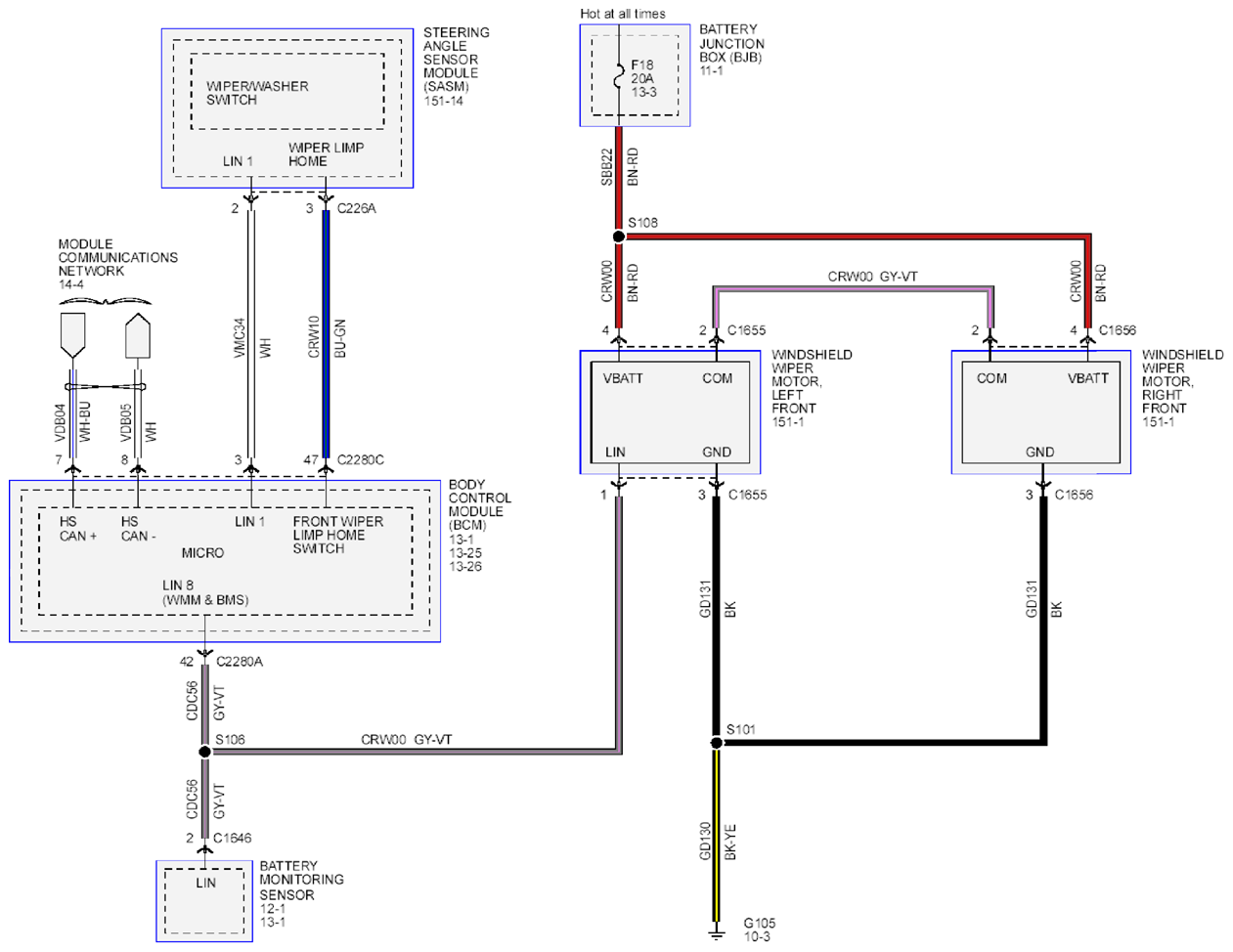

Fig 1: Wiper And Washers - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

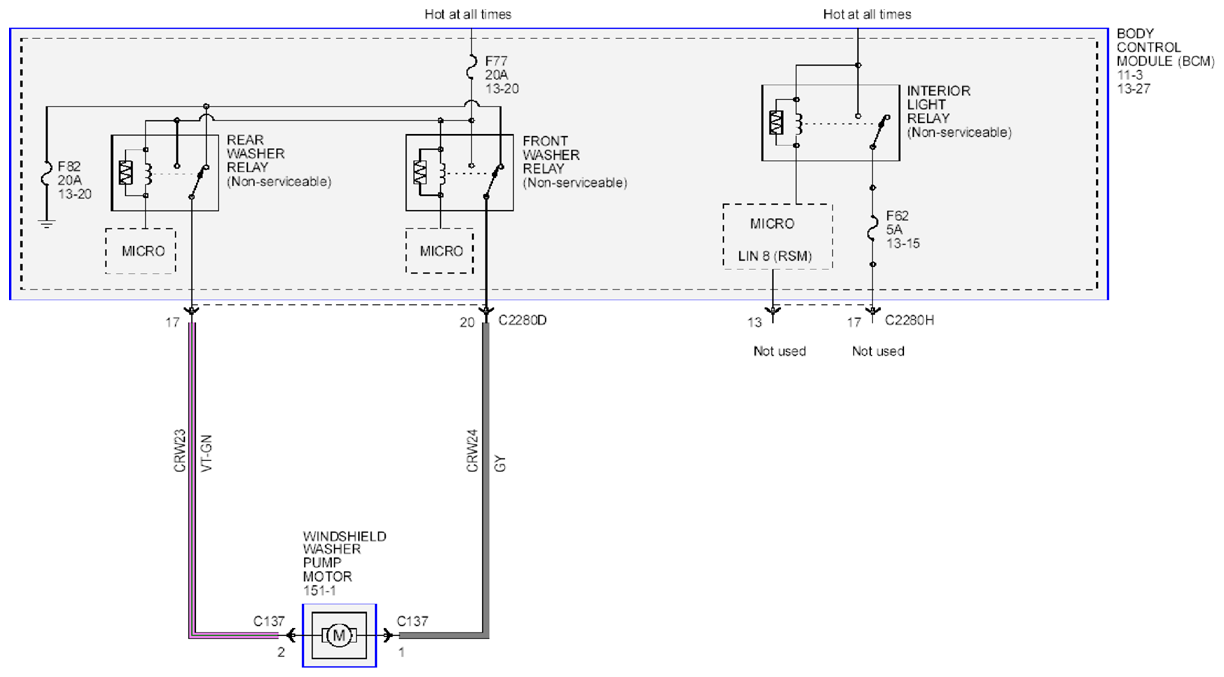

Fig 2: Wiper And Washers - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

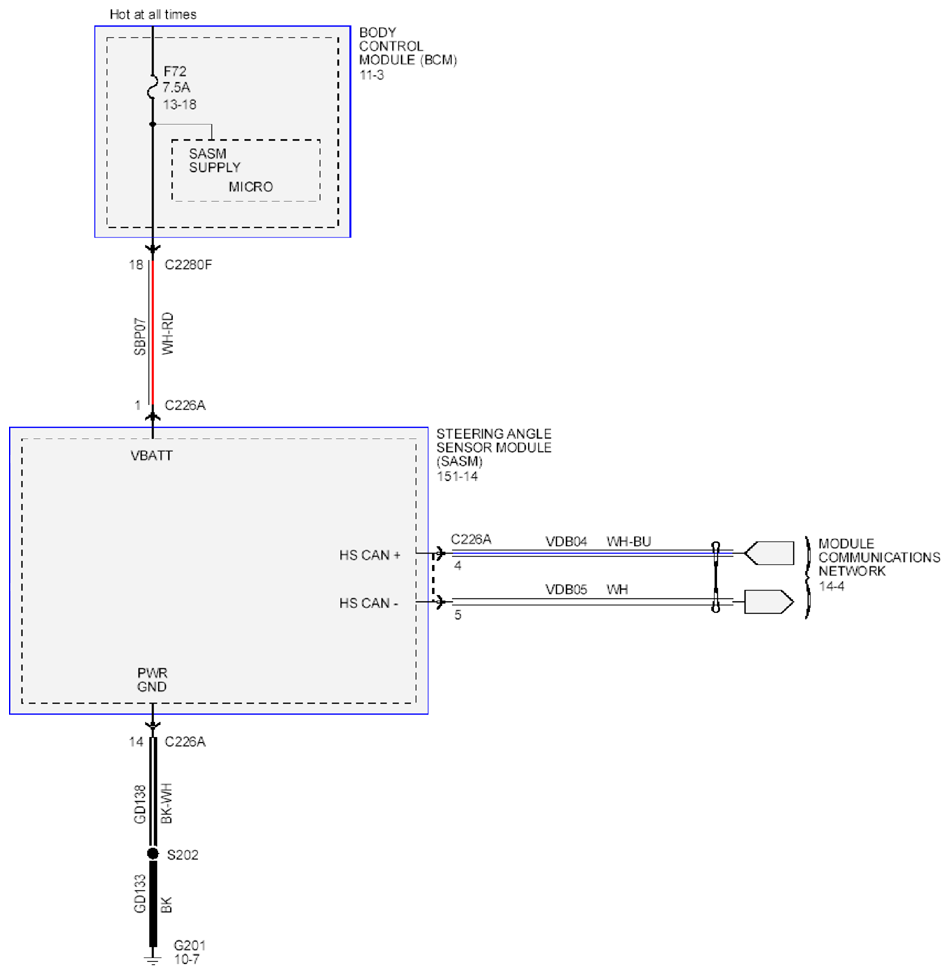

Fig 3: Wiper And Washers - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

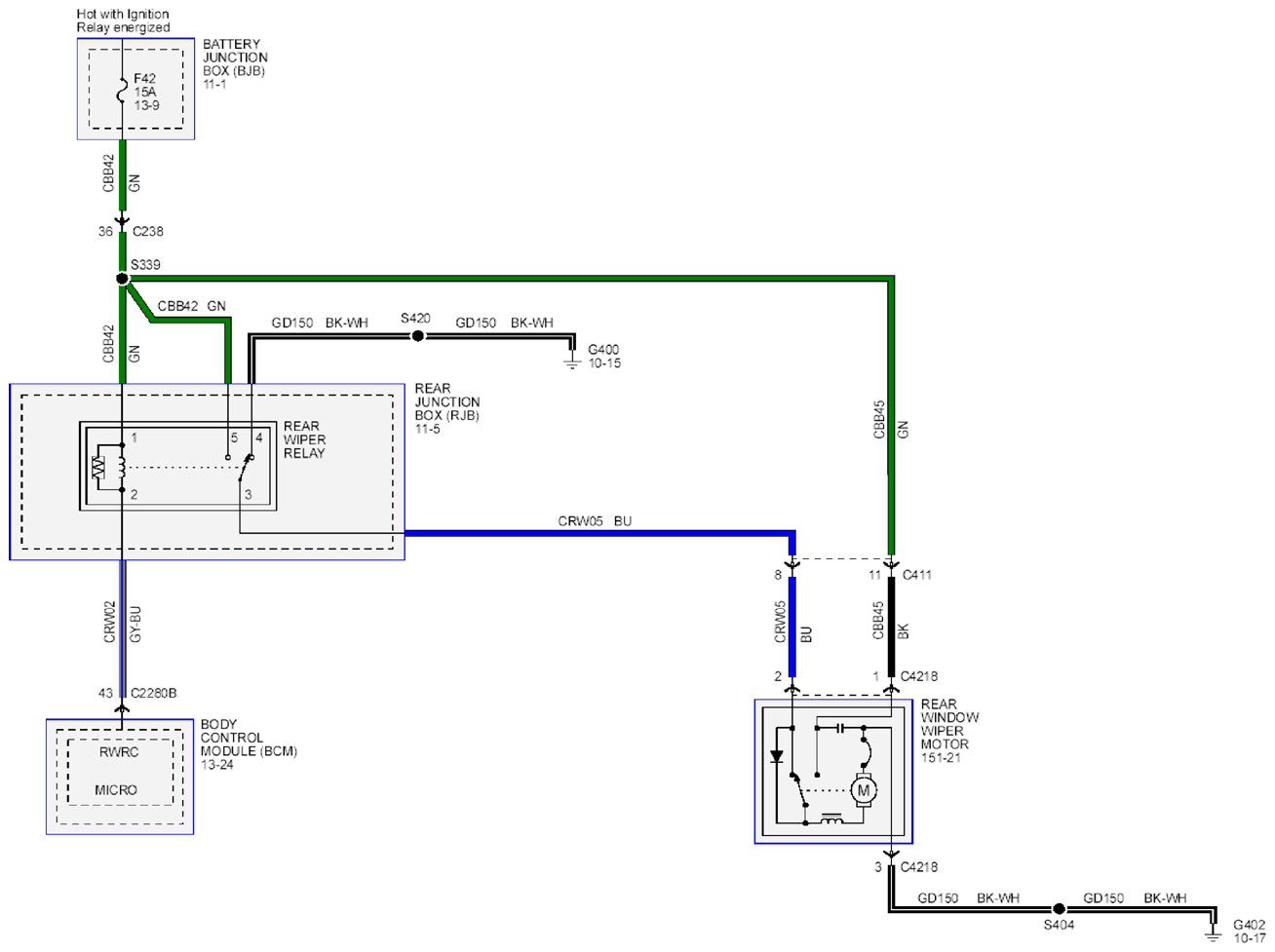

Fig 4: Wiper And Washers - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
