Ford
>>
2014
>>
Focus Electric
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Electric
>>
Vehicle Dynamic System
Vehicle Dynamic System

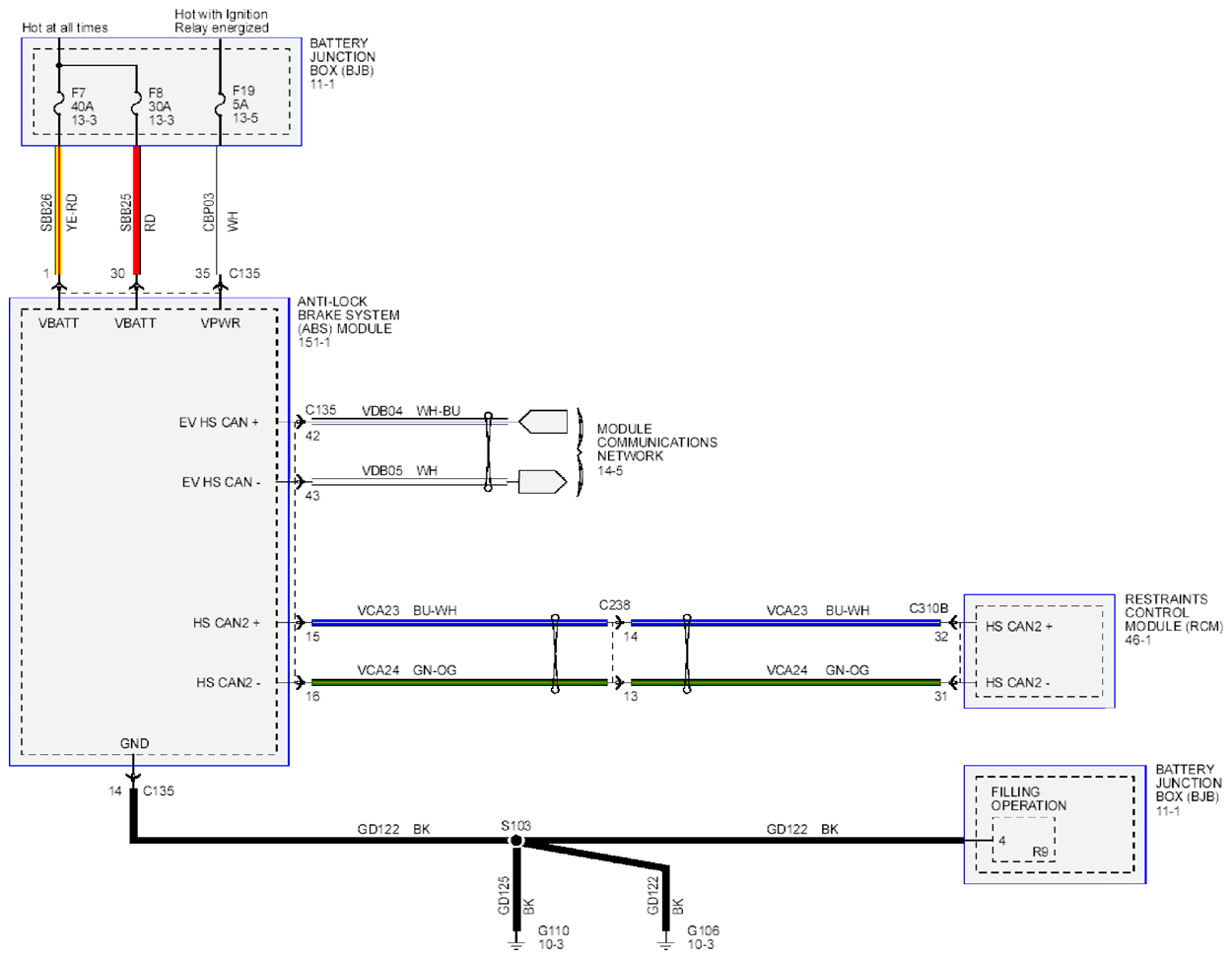

Fig 1: Vehicle Dynamic System - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

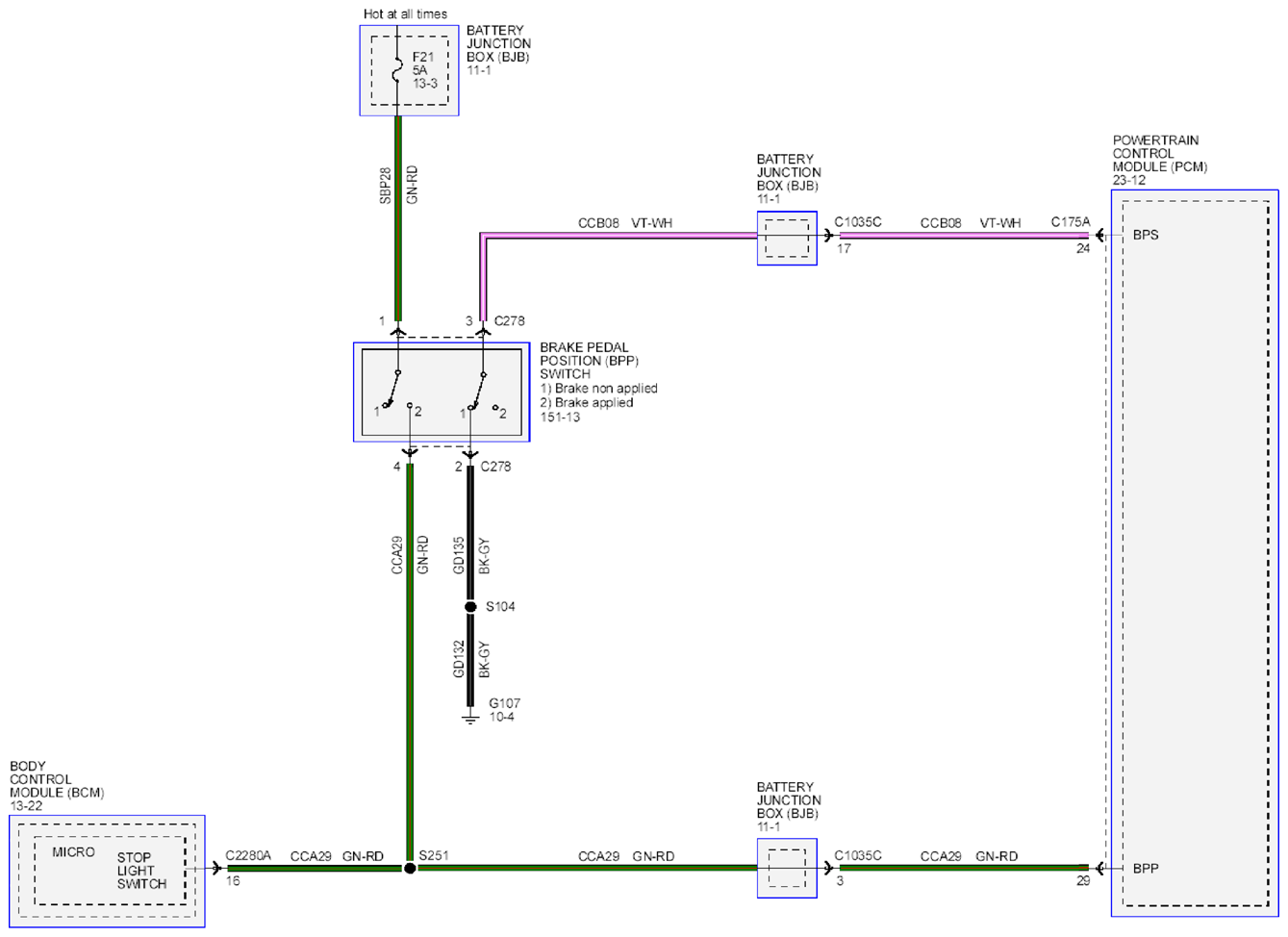

Fig 2: Vehicle Dynamic System - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

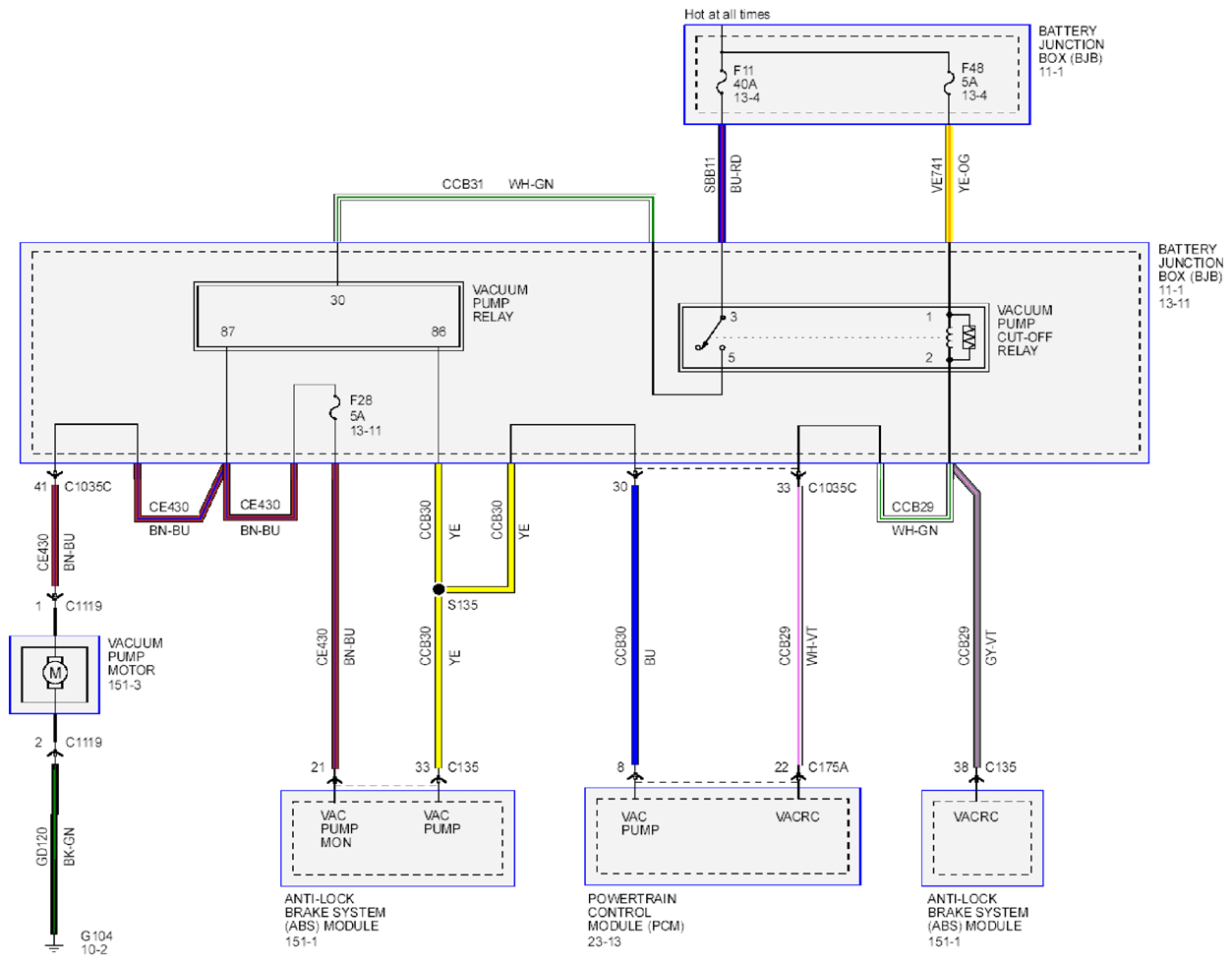

Fig 3: Vehicle Dynamic System - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

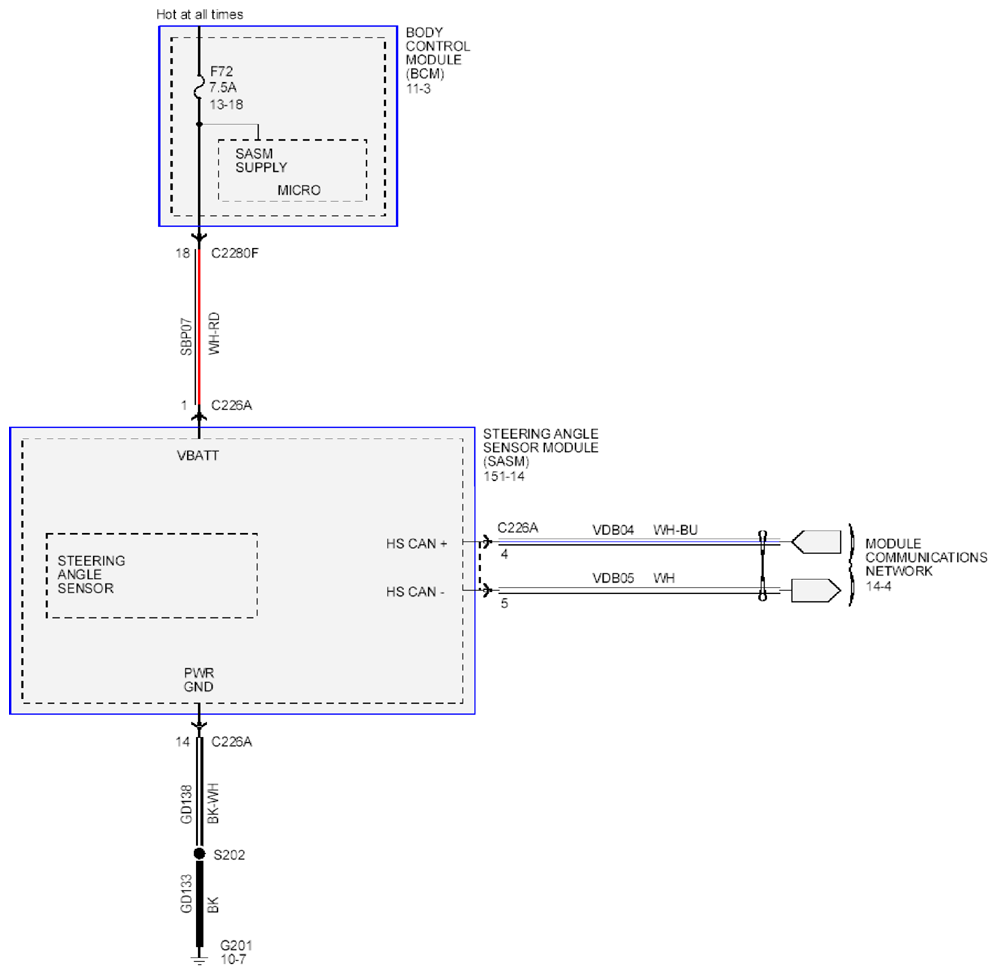

Fig 4: Vehicle Dynamic System - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

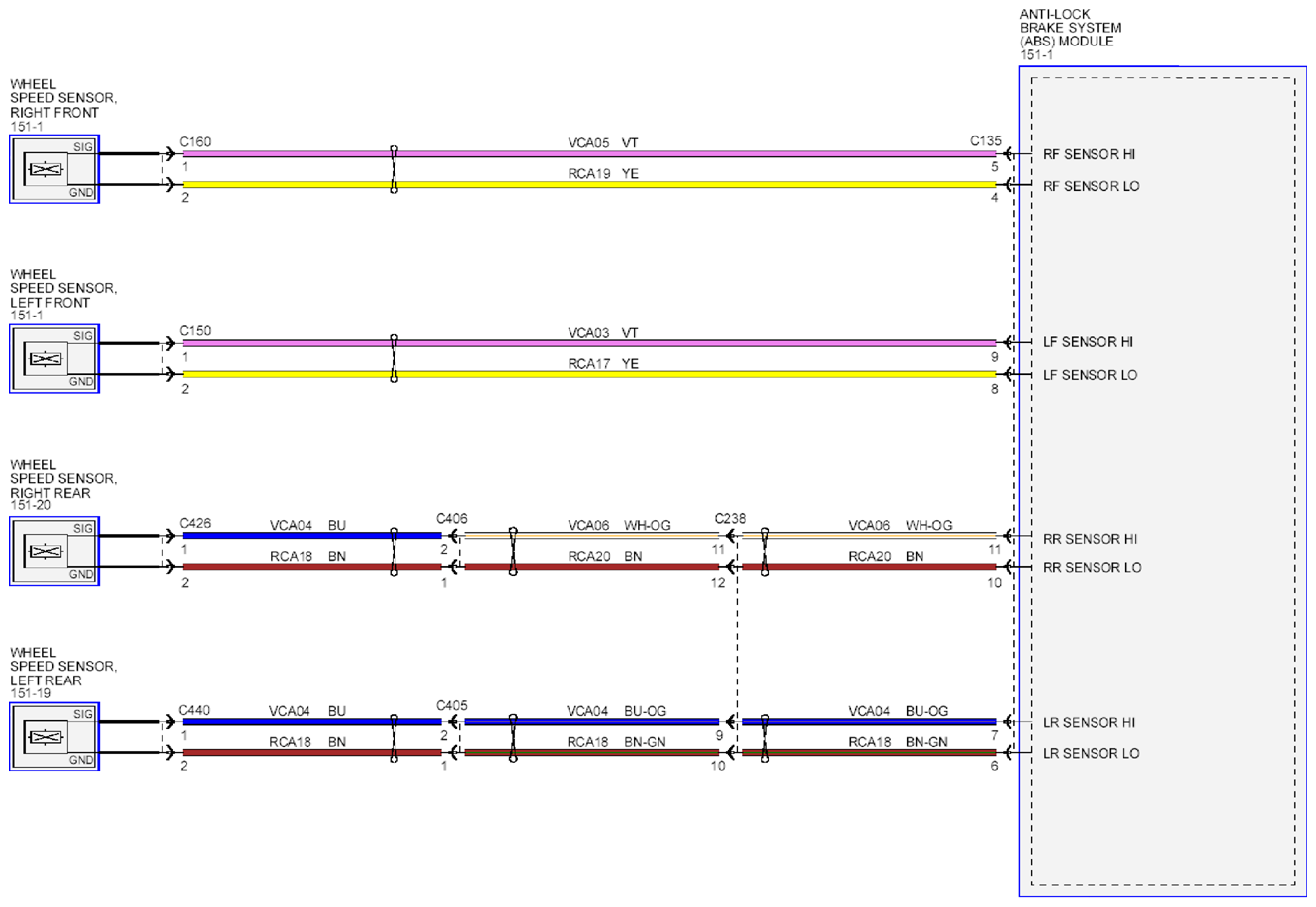

Fig 5: Vehicle Dynamic System - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

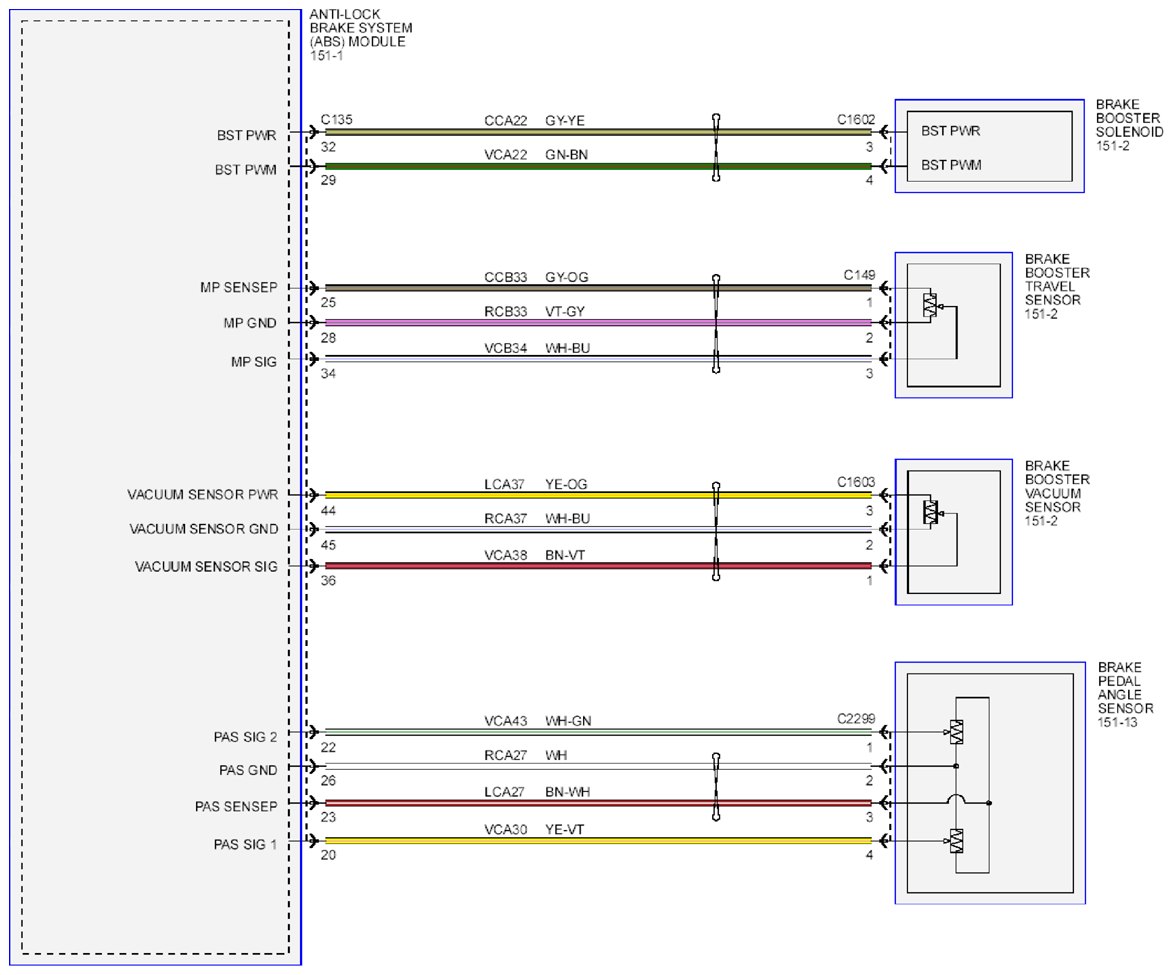

Fig 6: Vehicle Dynamic System - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
