With LEDS

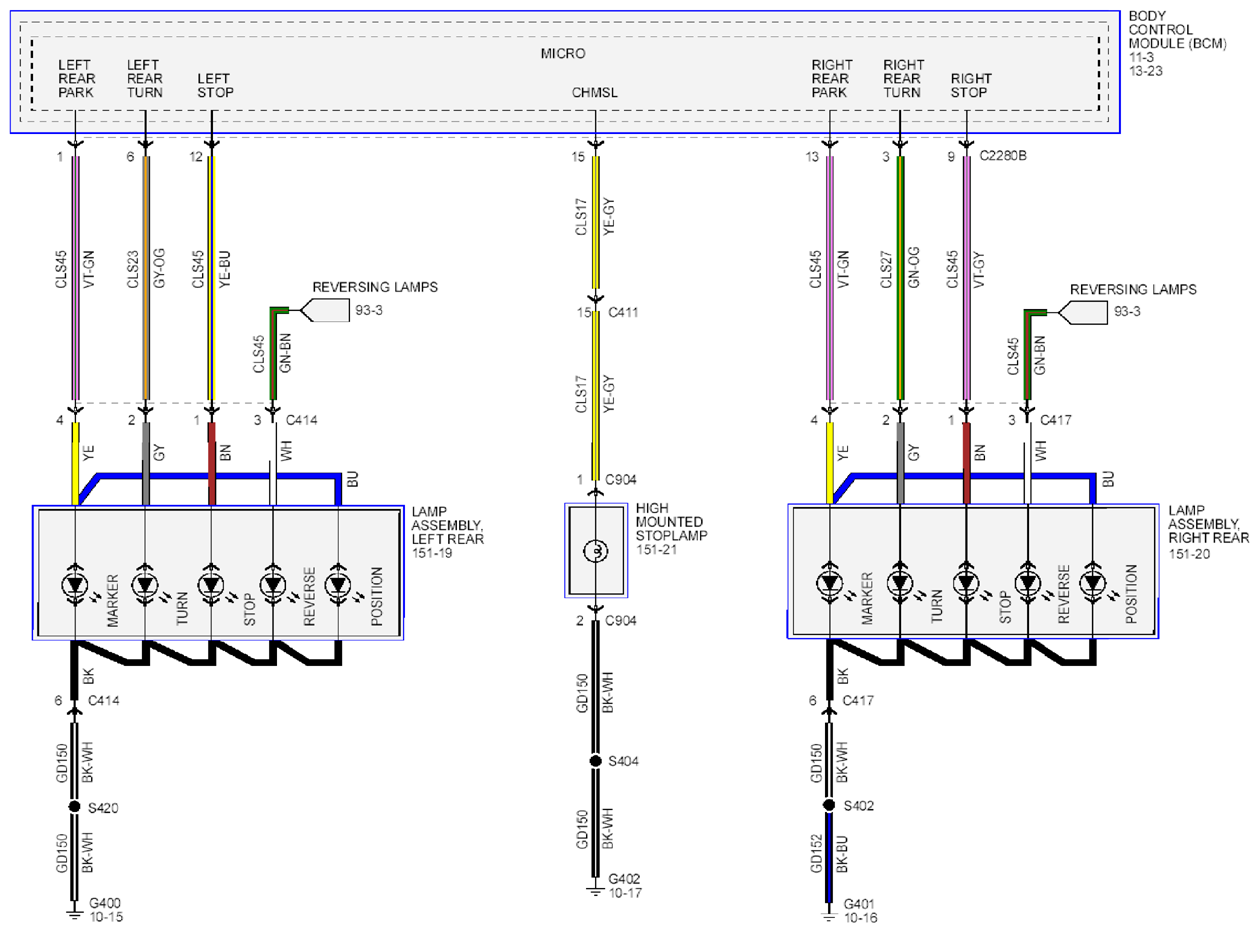

Fig 1: Turn Signal Stop Hazard Lamps - Wiring Diagram (With LEDS)

G09260898

Courtesy of FORD MOTOR CO.
