OEM Wiring Diagrams -- Electric
>>
Turn Signal/ Stop Hazard Lamps
>>
With Bulbs
With Bulbs

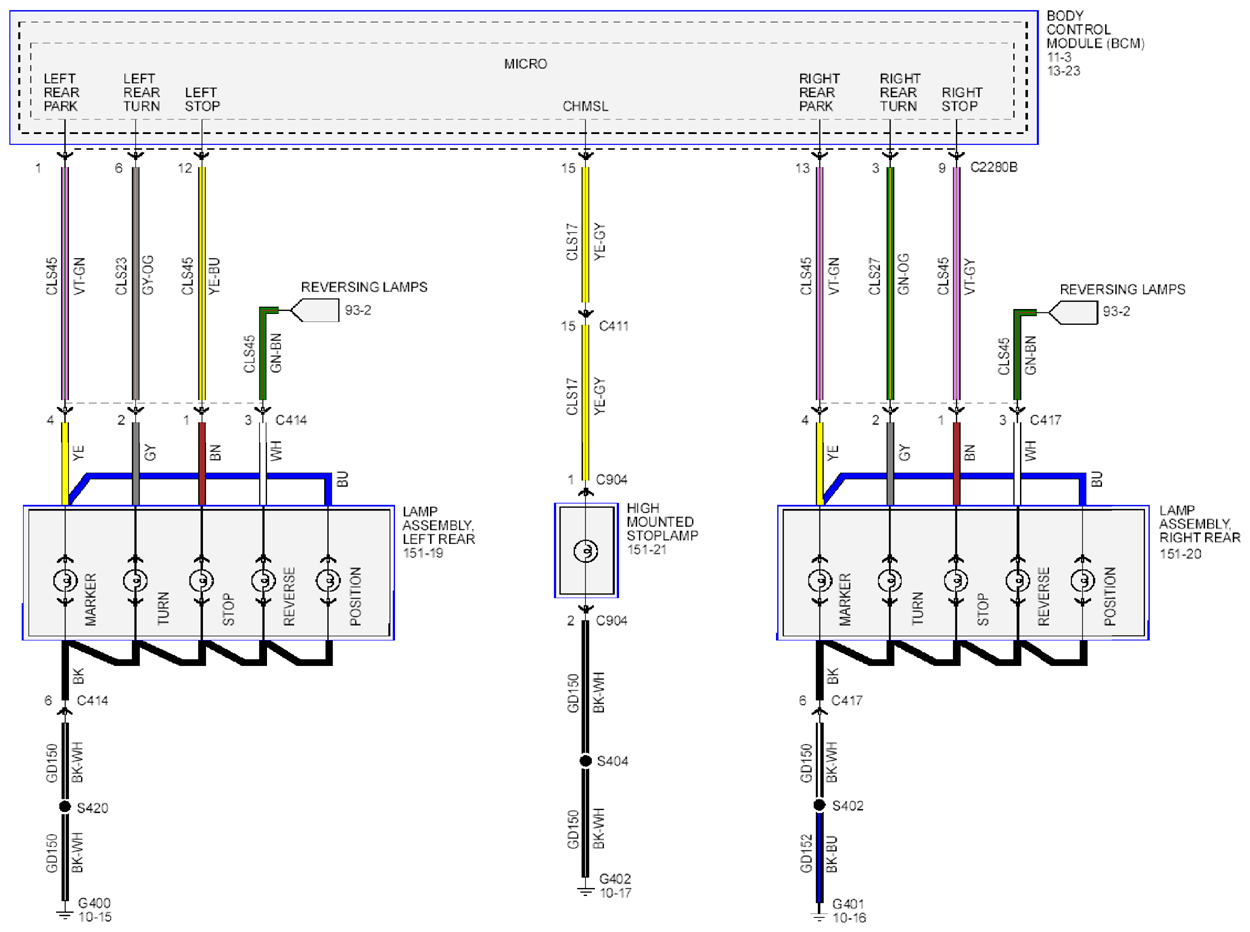

Fig 1: Turn Signal Stop Hazard Lamps - Wiring Diagram (With Bulbs)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
