Turn Signal/ Stop Hazard Lamps: Notes

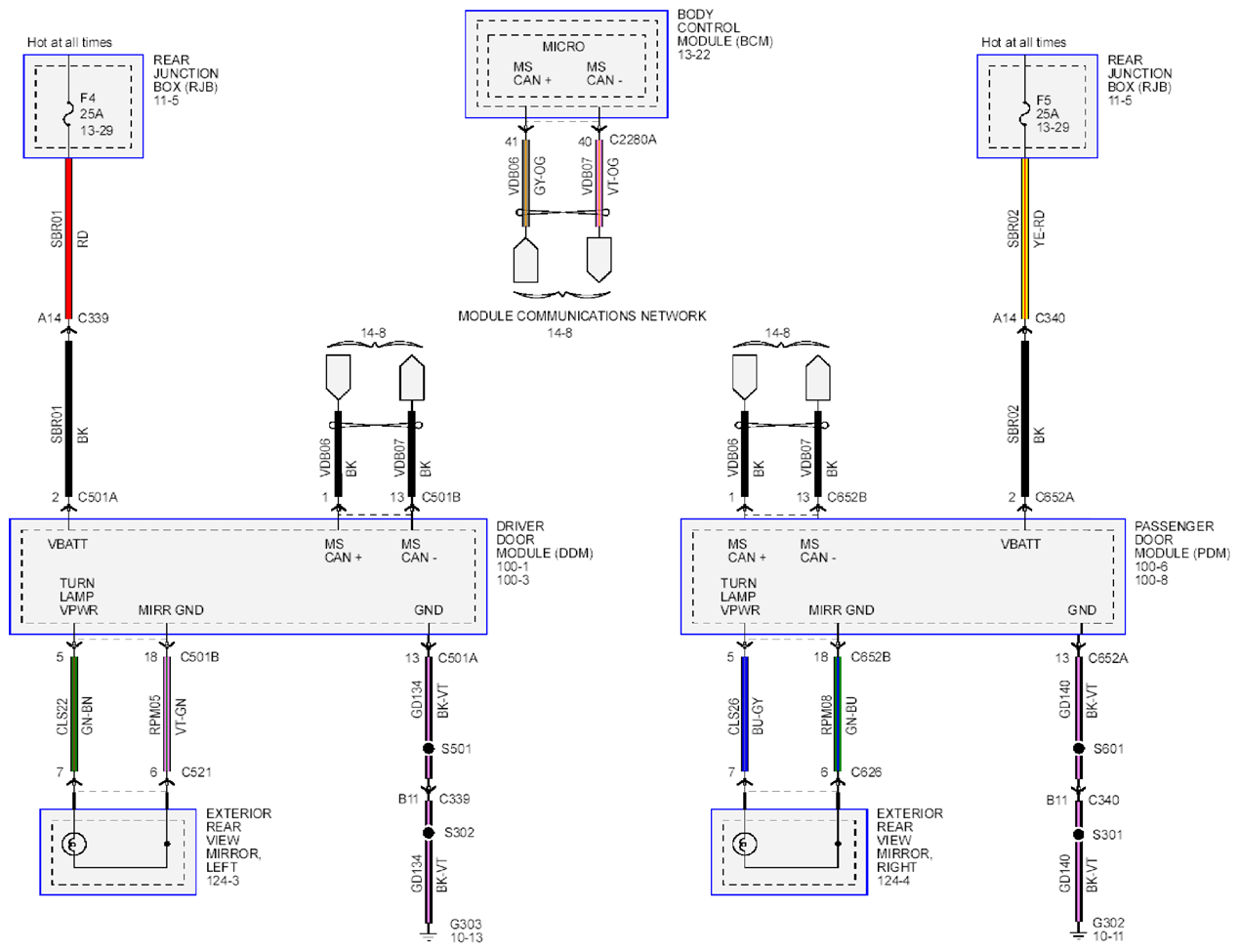

Fig 1: Turn Signal Stop Hazard Lamps - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

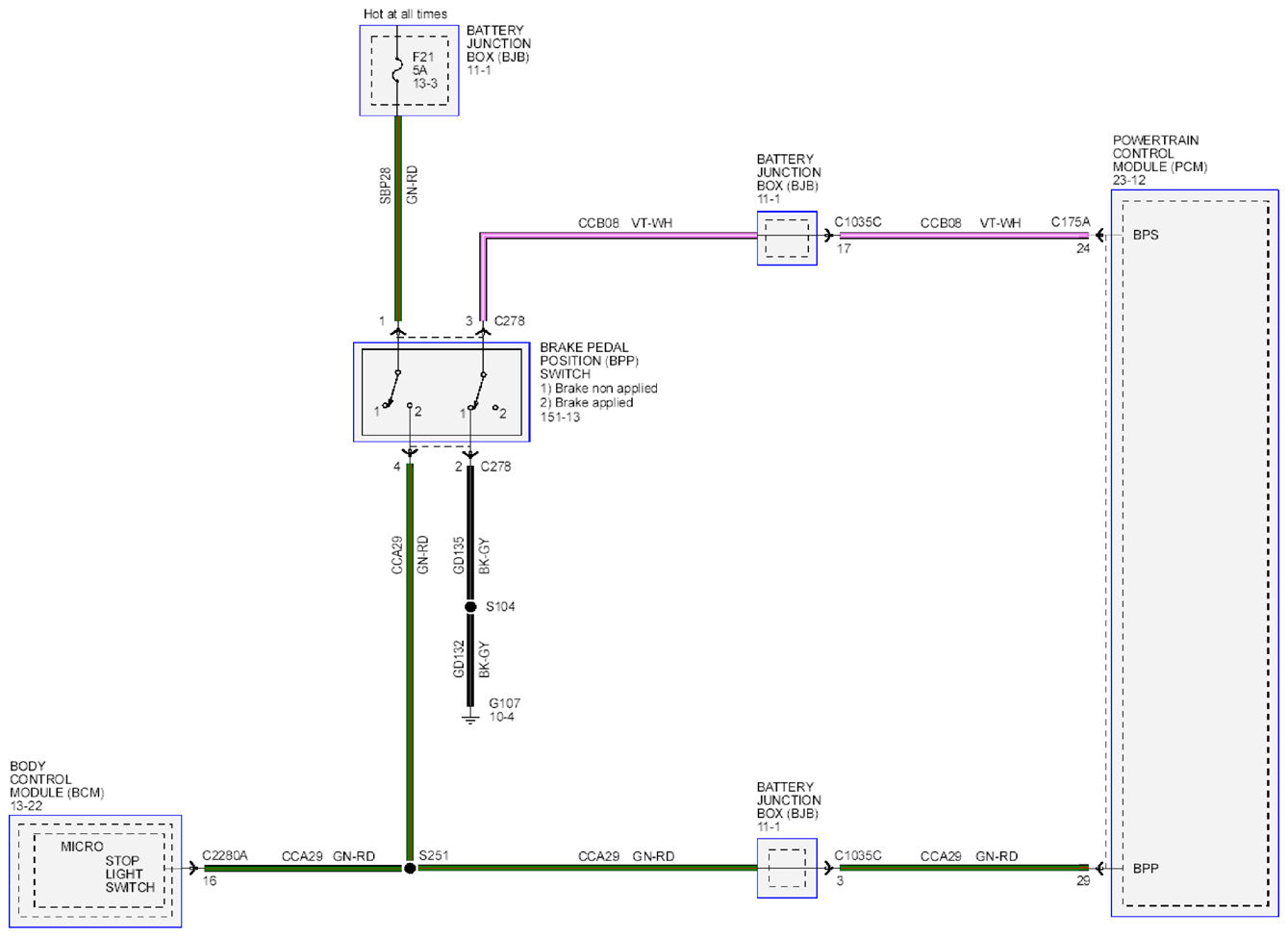

Fig 2: Turn Signal Stop Hazard Lamps - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

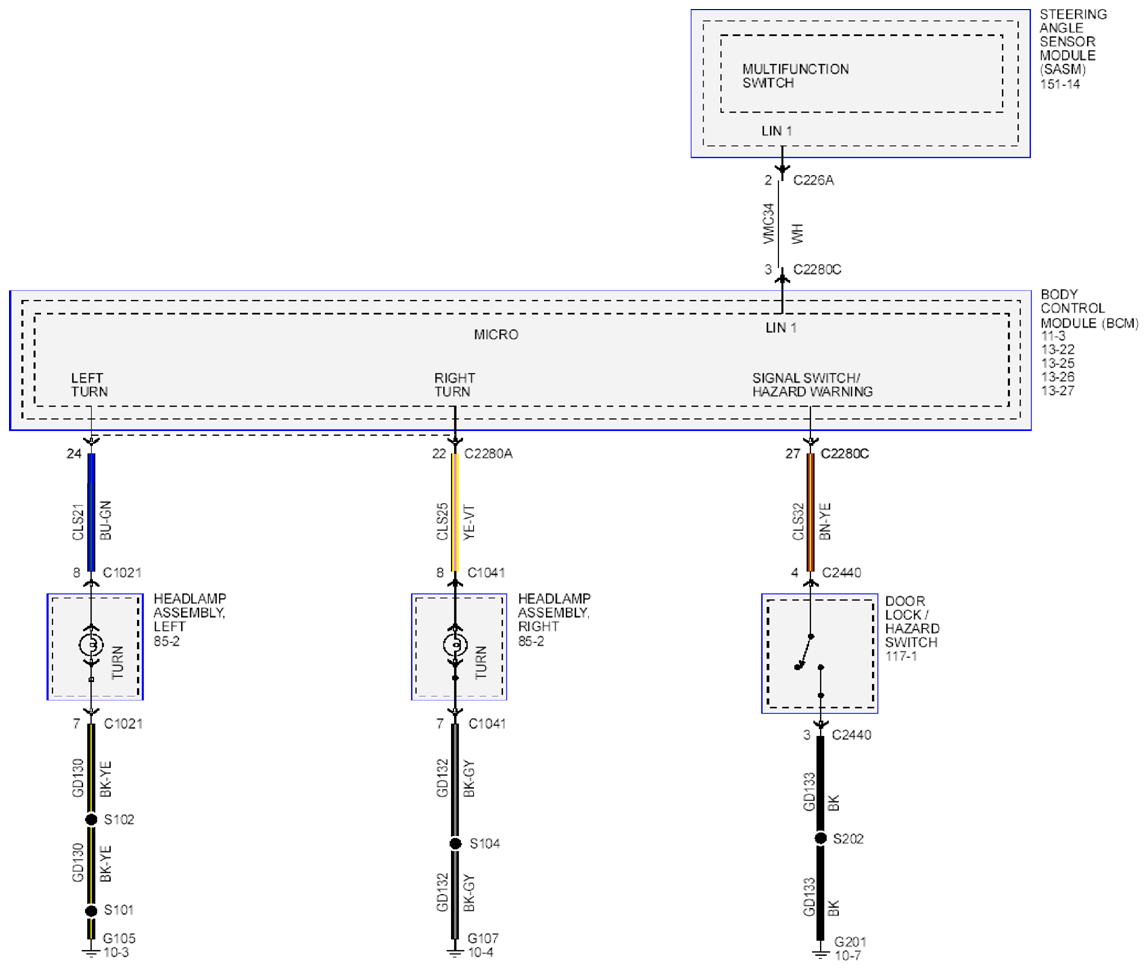

Fig 3: Turn Signal Stop Hazard Lamps - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
