Transmission Controls

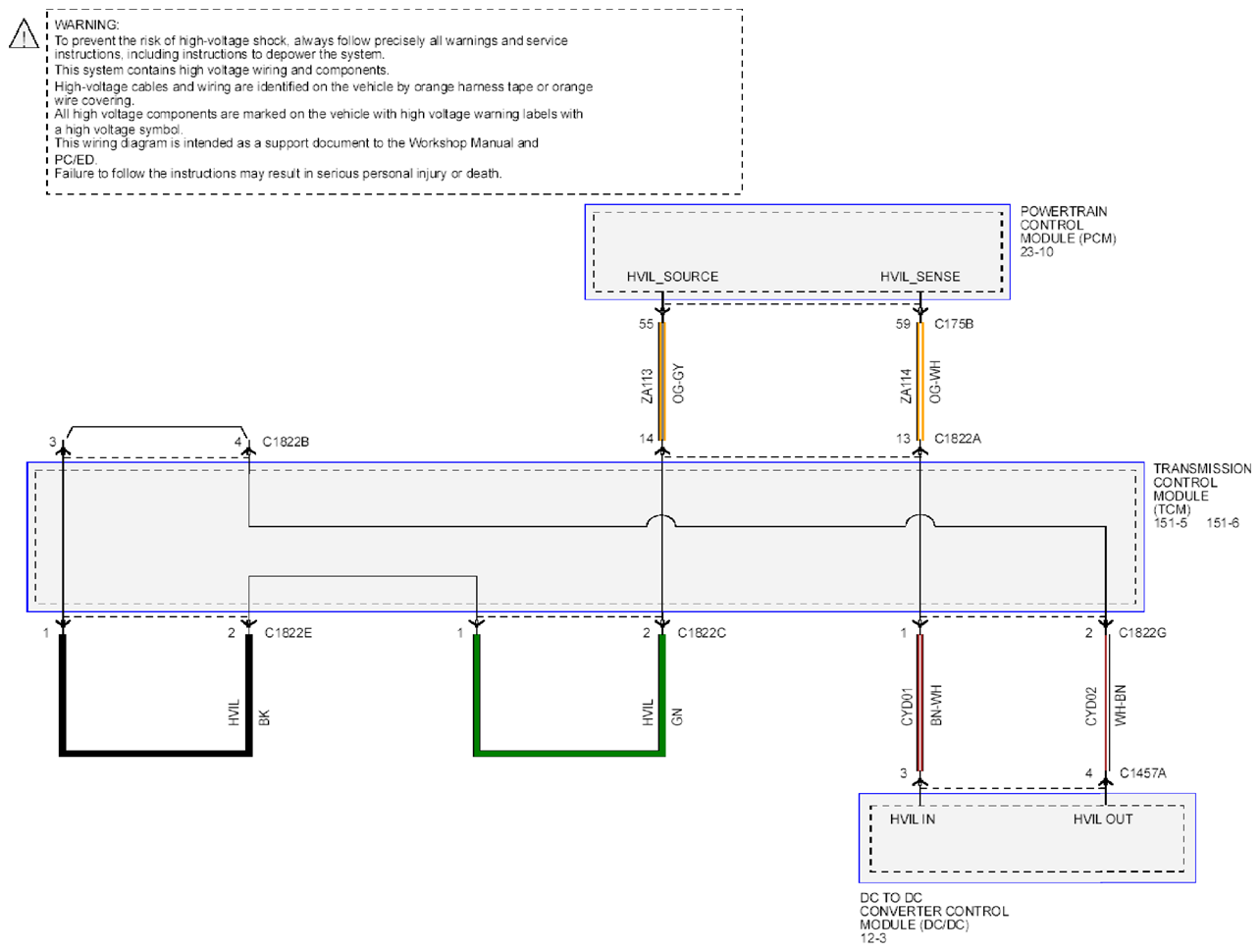

Fig 1: Transmission Controls System - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

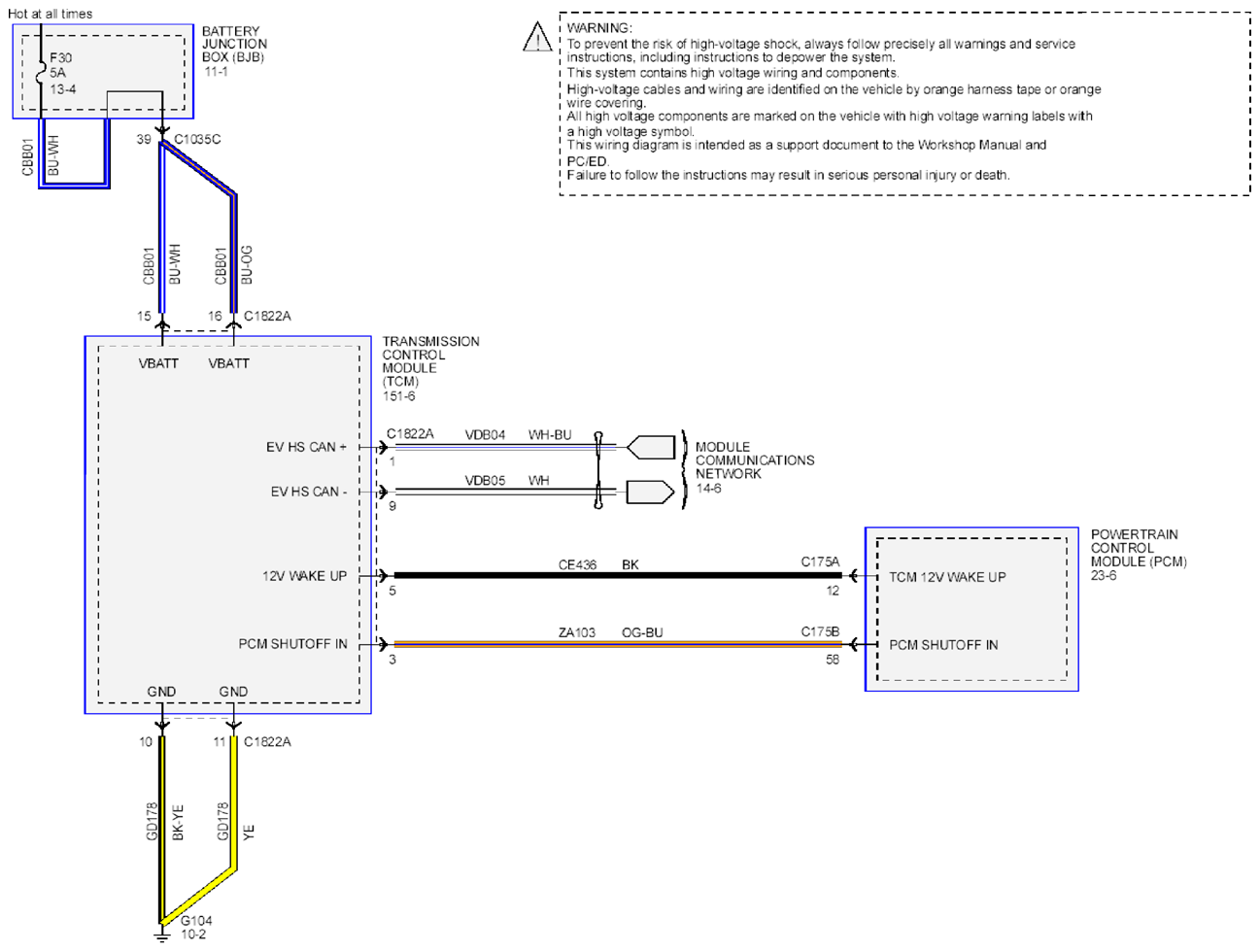

Fig 2: Transmission Controls System - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

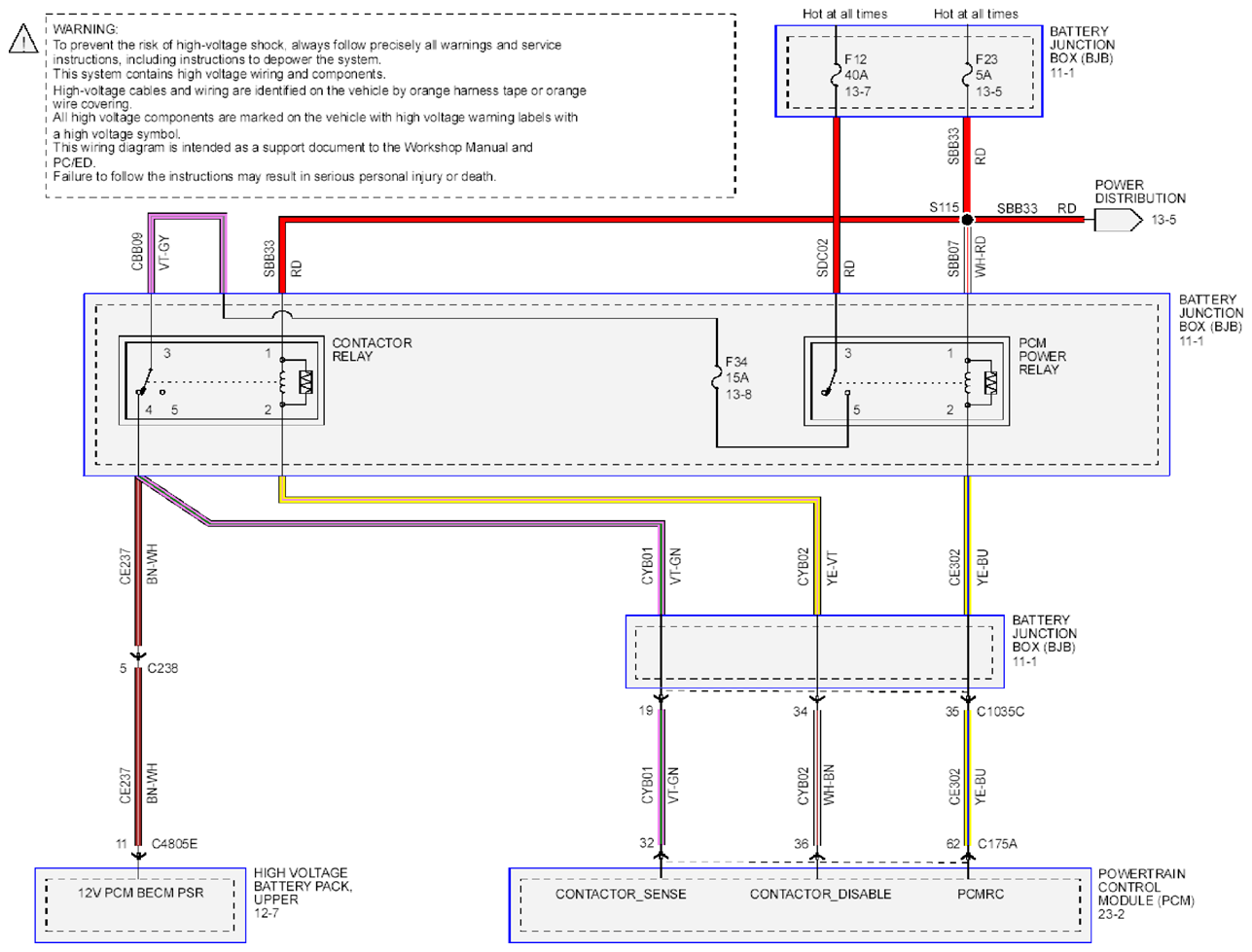

Fig 3: Transmission Controls System - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

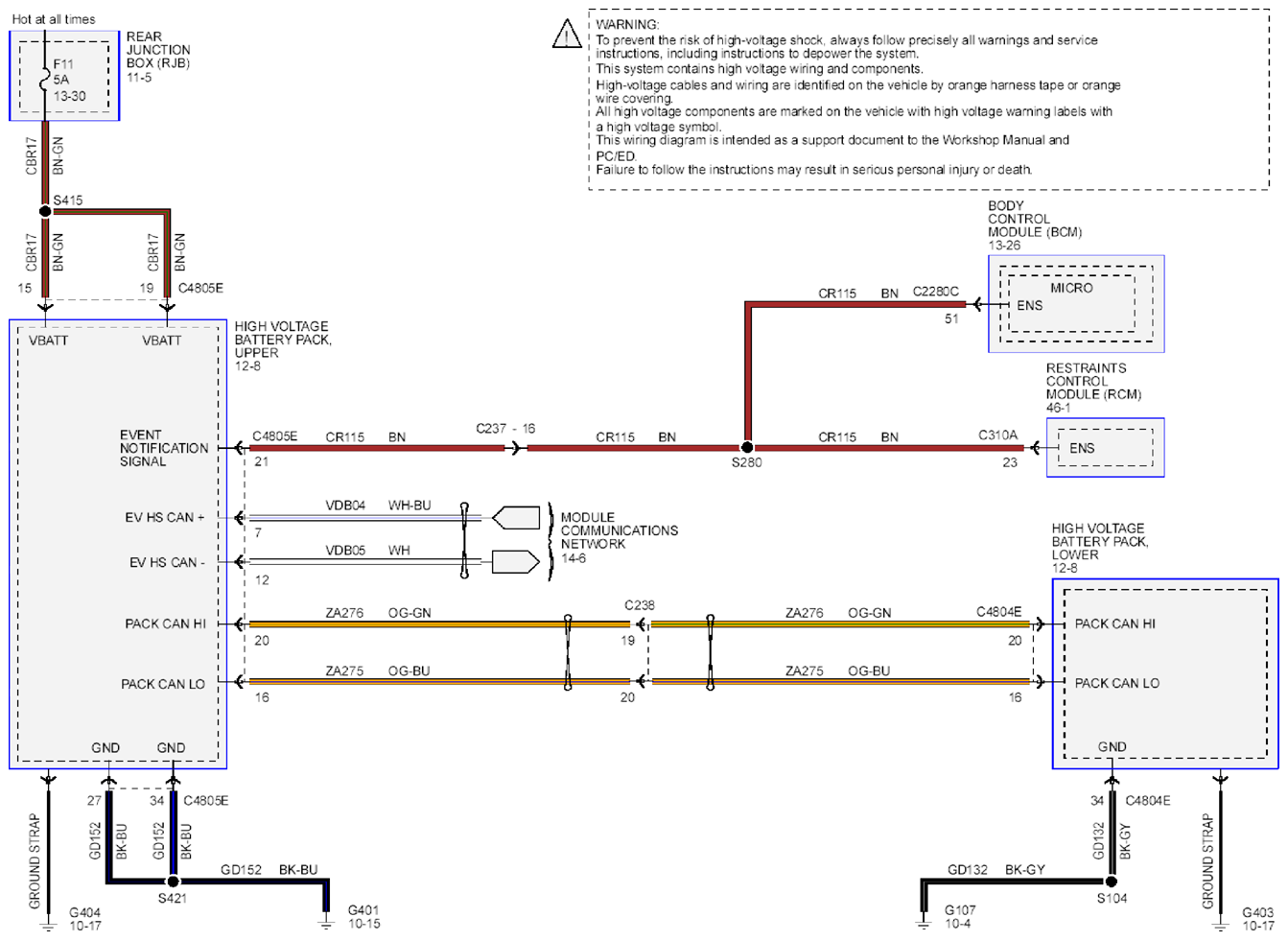

Fig 4: Transmission Controls System - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

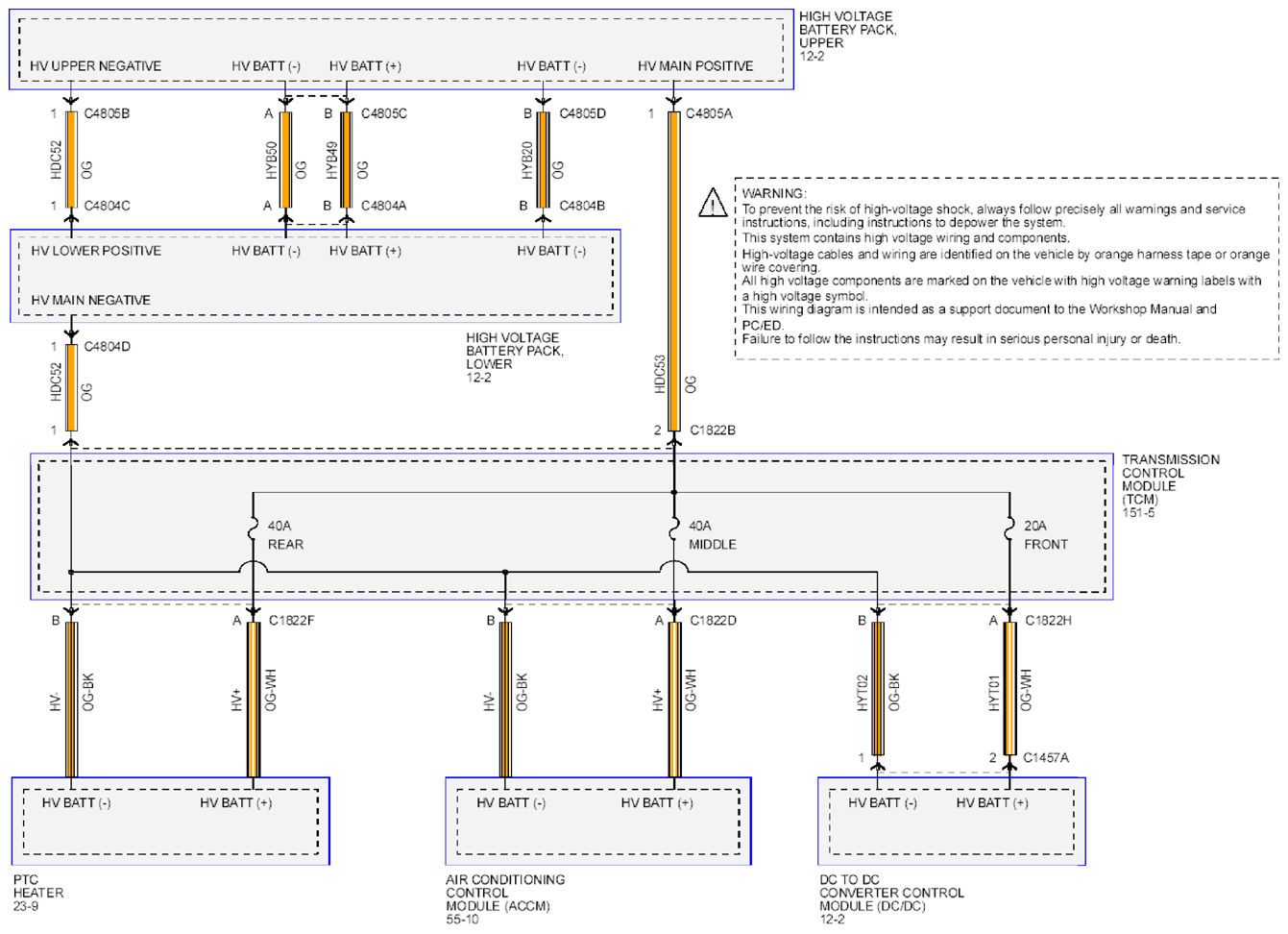

Fig 5: Transmission Controls System - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

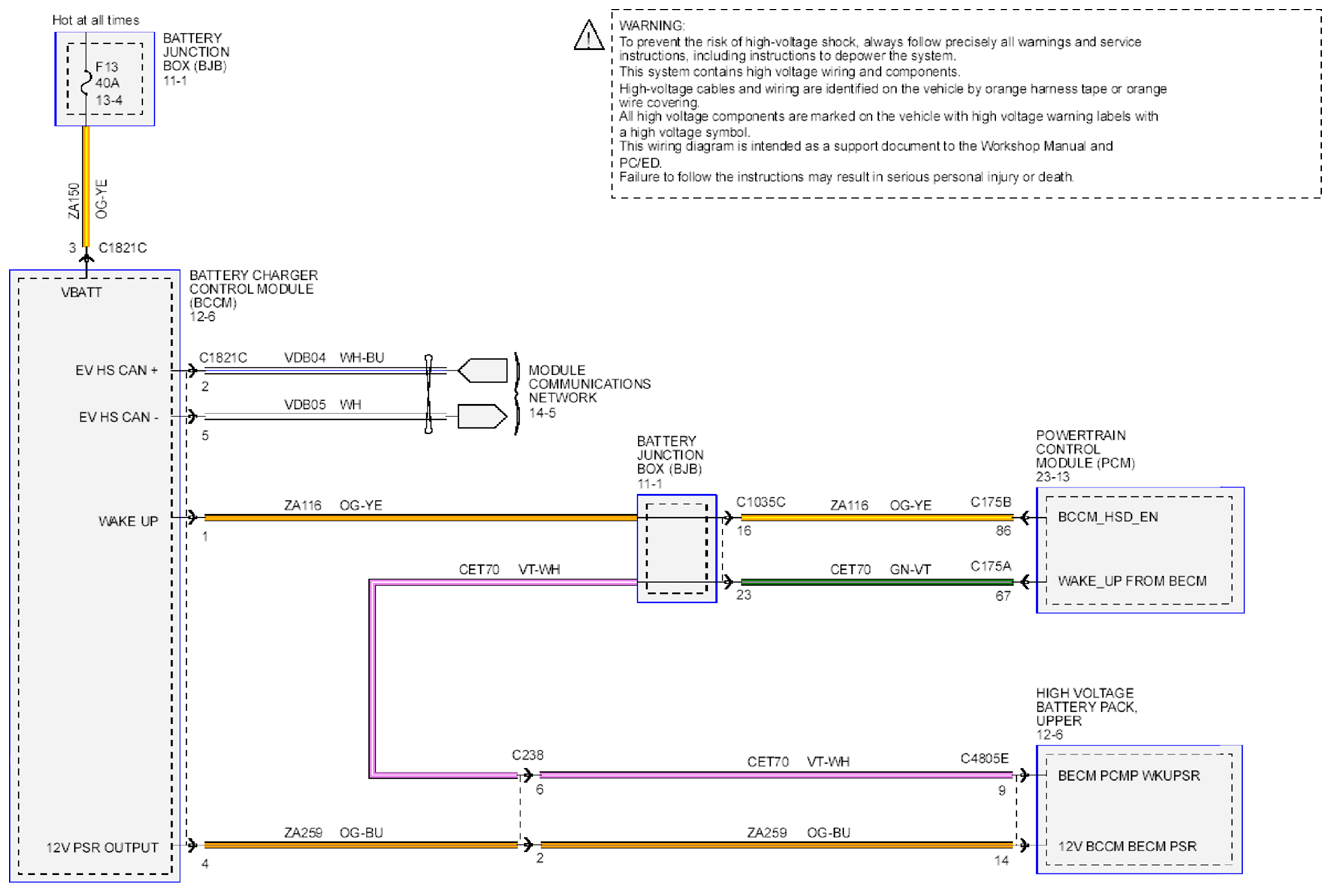

Fig 6: Transmission Controls System - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
