Starting System
Starting System

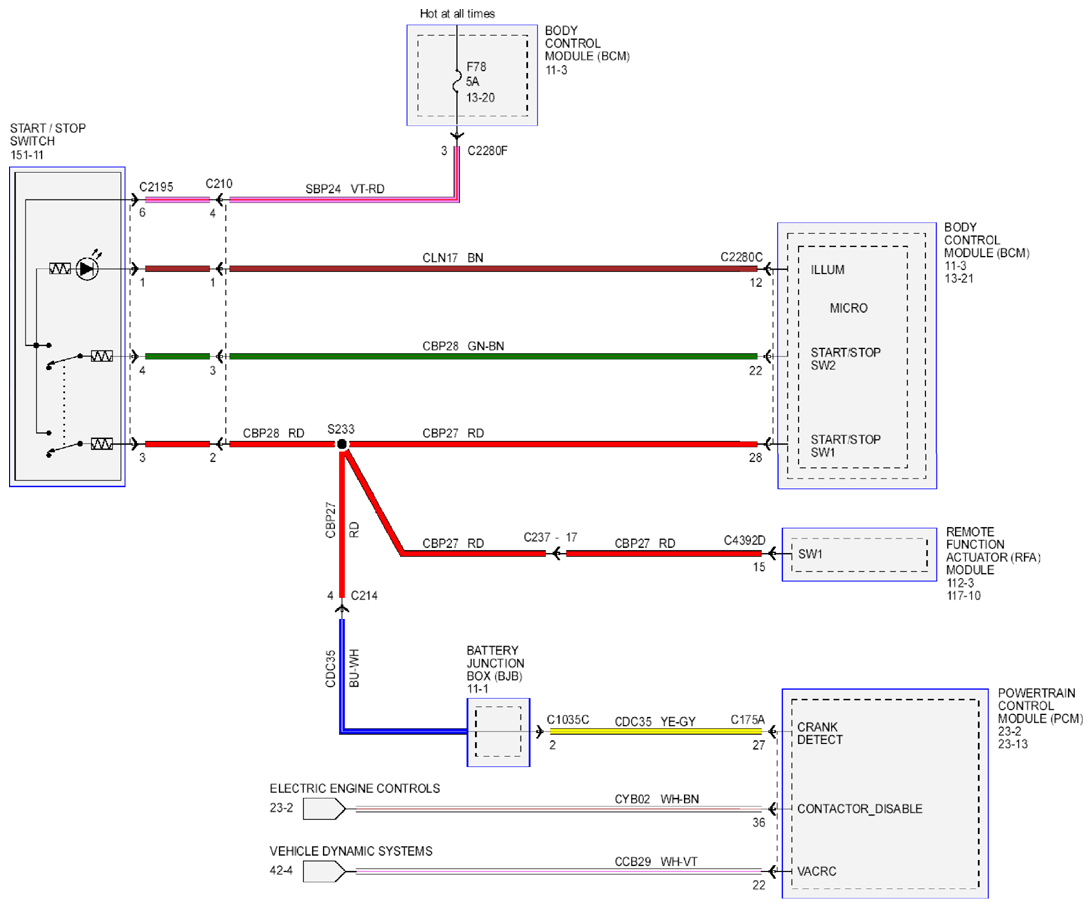

Fig 1: Starting System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
