Shift Interlock
Shift Interlock

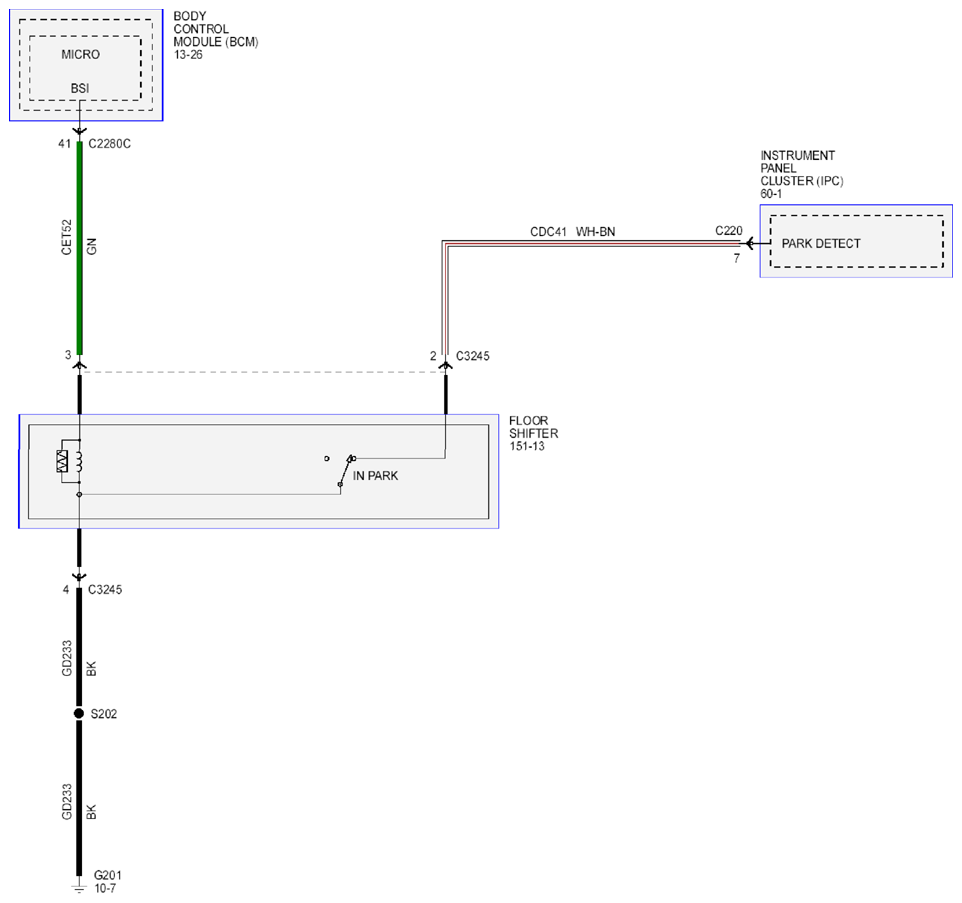

Fig 1: Shift Interlock System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
