With LEDS

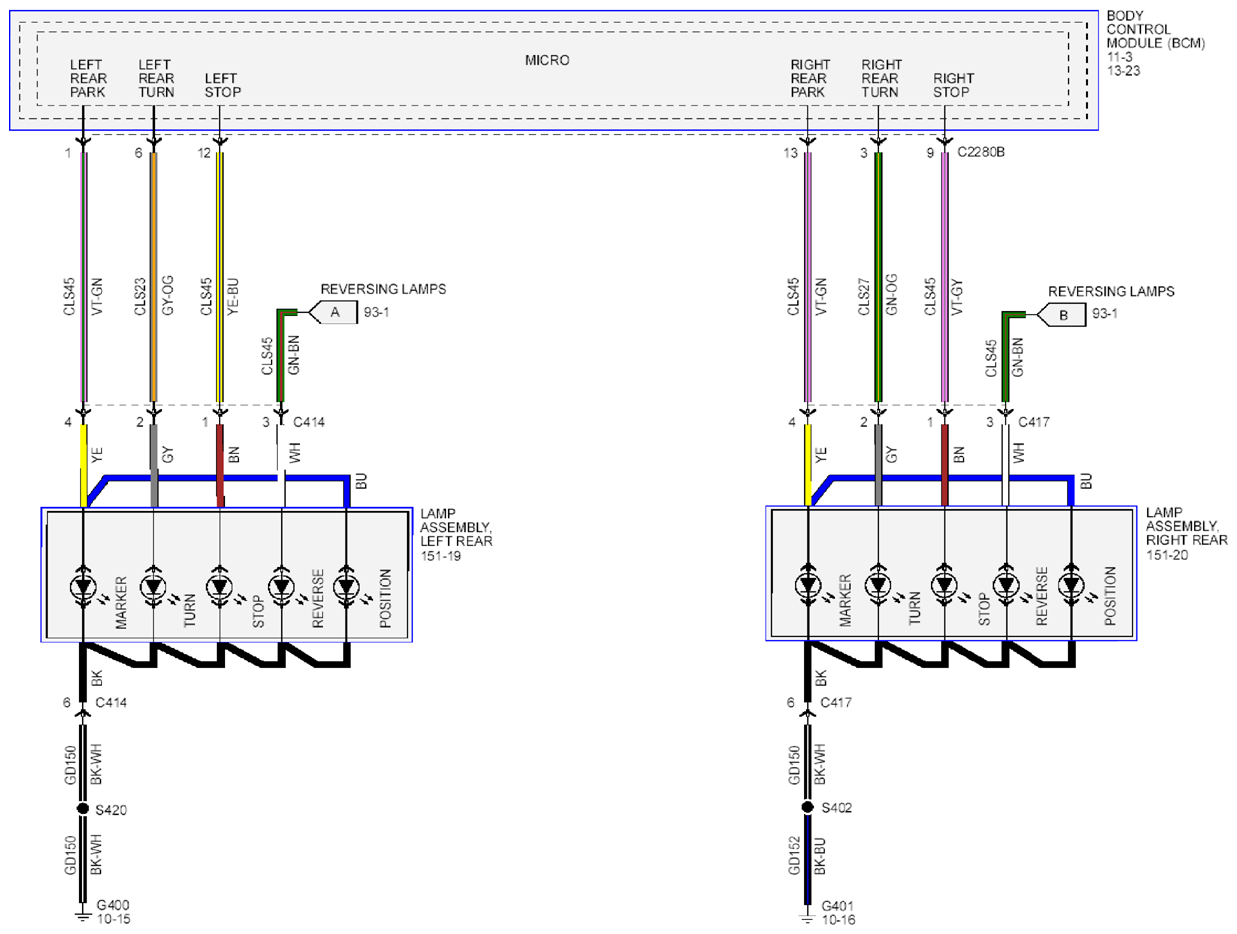

Fig 1: Reversing Lamps - Wiring Diagram (With LEDS)

G09260905

Courtesy of FORD MOTOR CO.
