OEM Wiring Diagrams -- Electric
>>
Reversing Lamps
>>
With Bulbs
With Bulbs

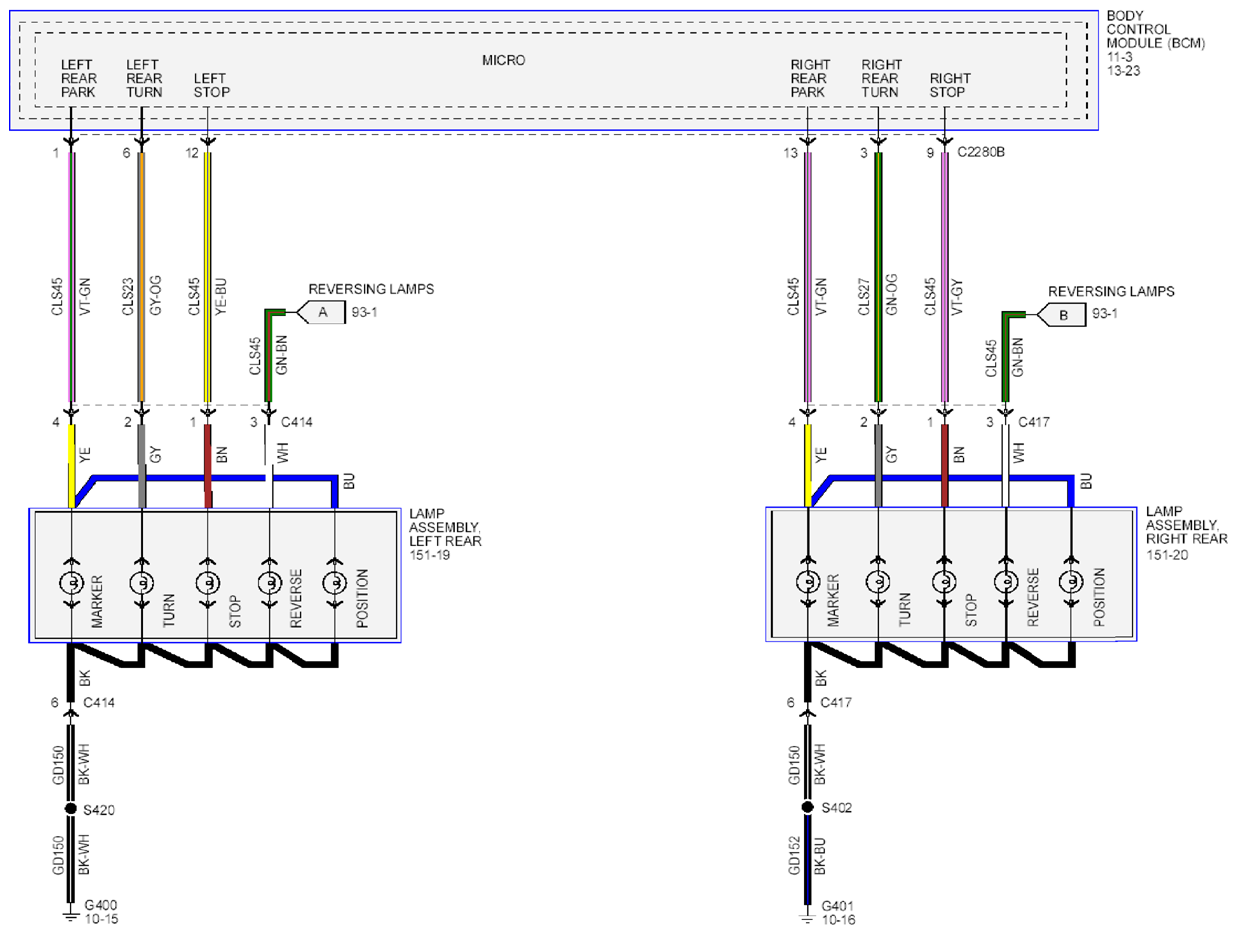

Fig 1: Reversing Lamps - Wiring Diagram (With Bulbs)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
