Reversing Lamps: Notes

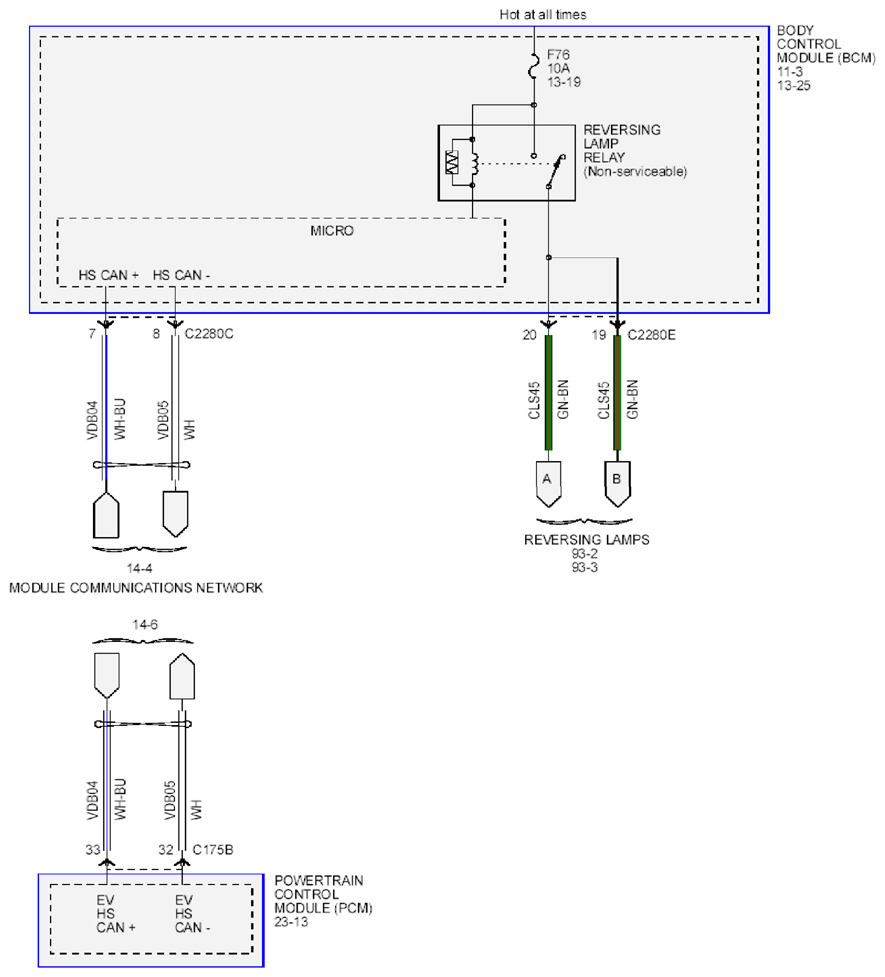

Fig 1: Reversing Lamps - Wiring Diagram

G09260903

Courtesy of FORD MOTOR CO.
