Remote Keyless Entry And Alarm

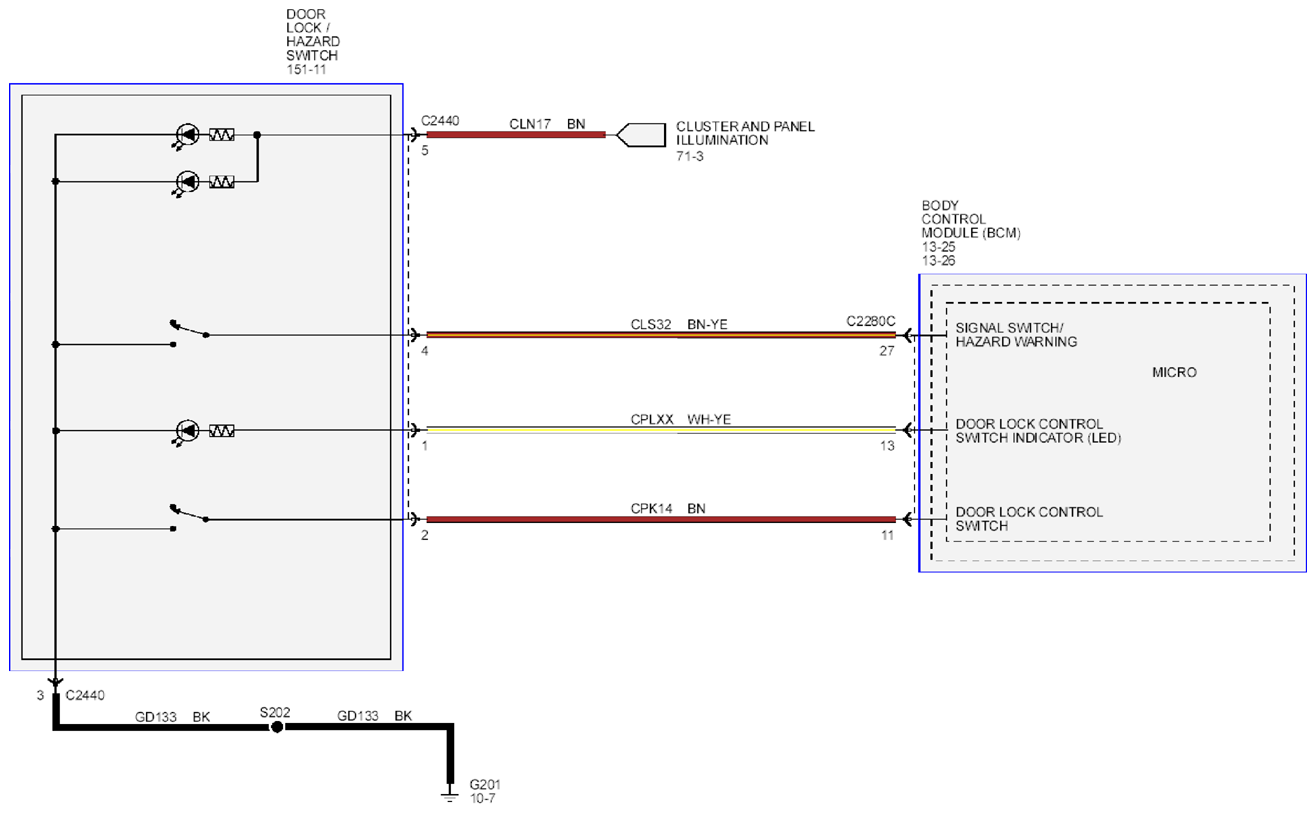

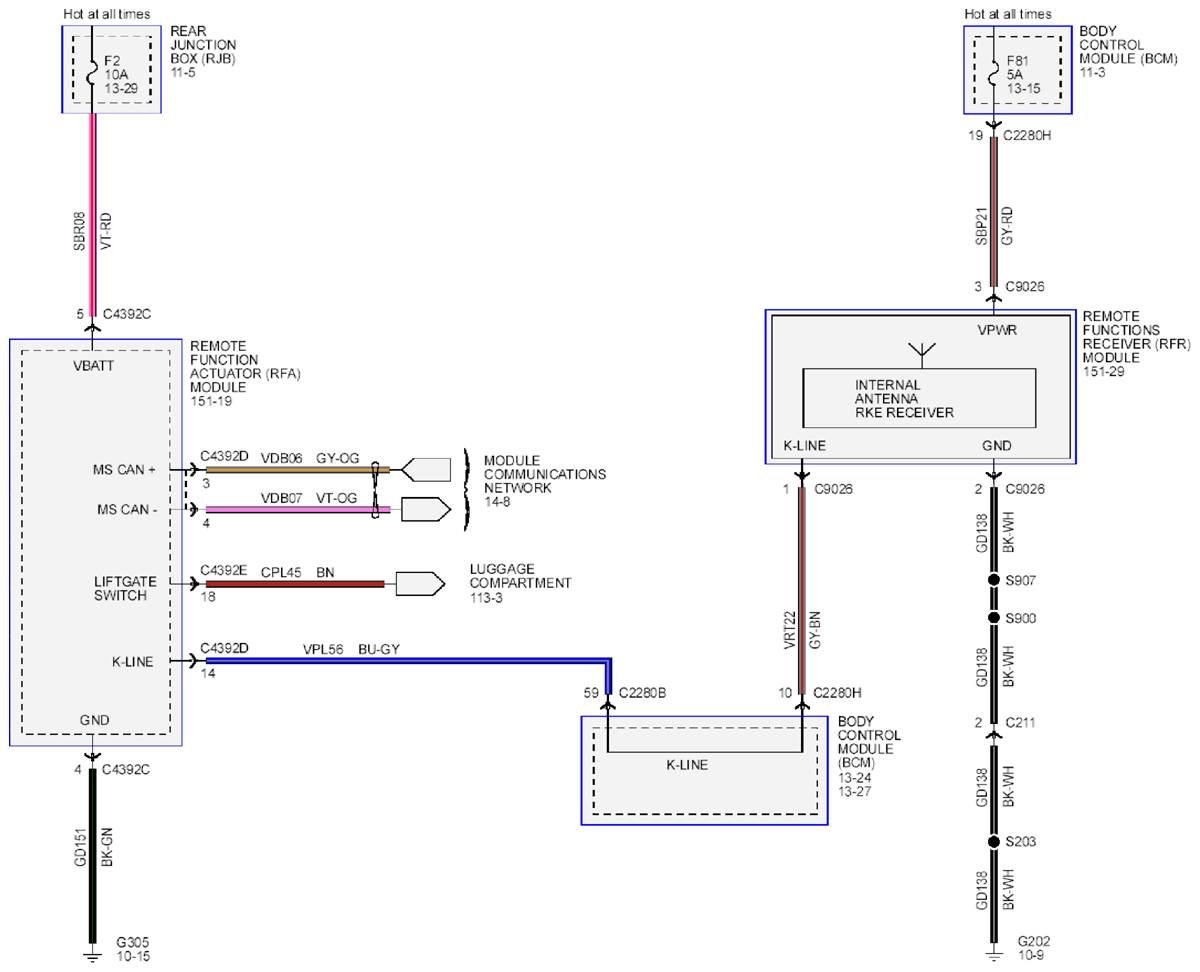

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR CO.

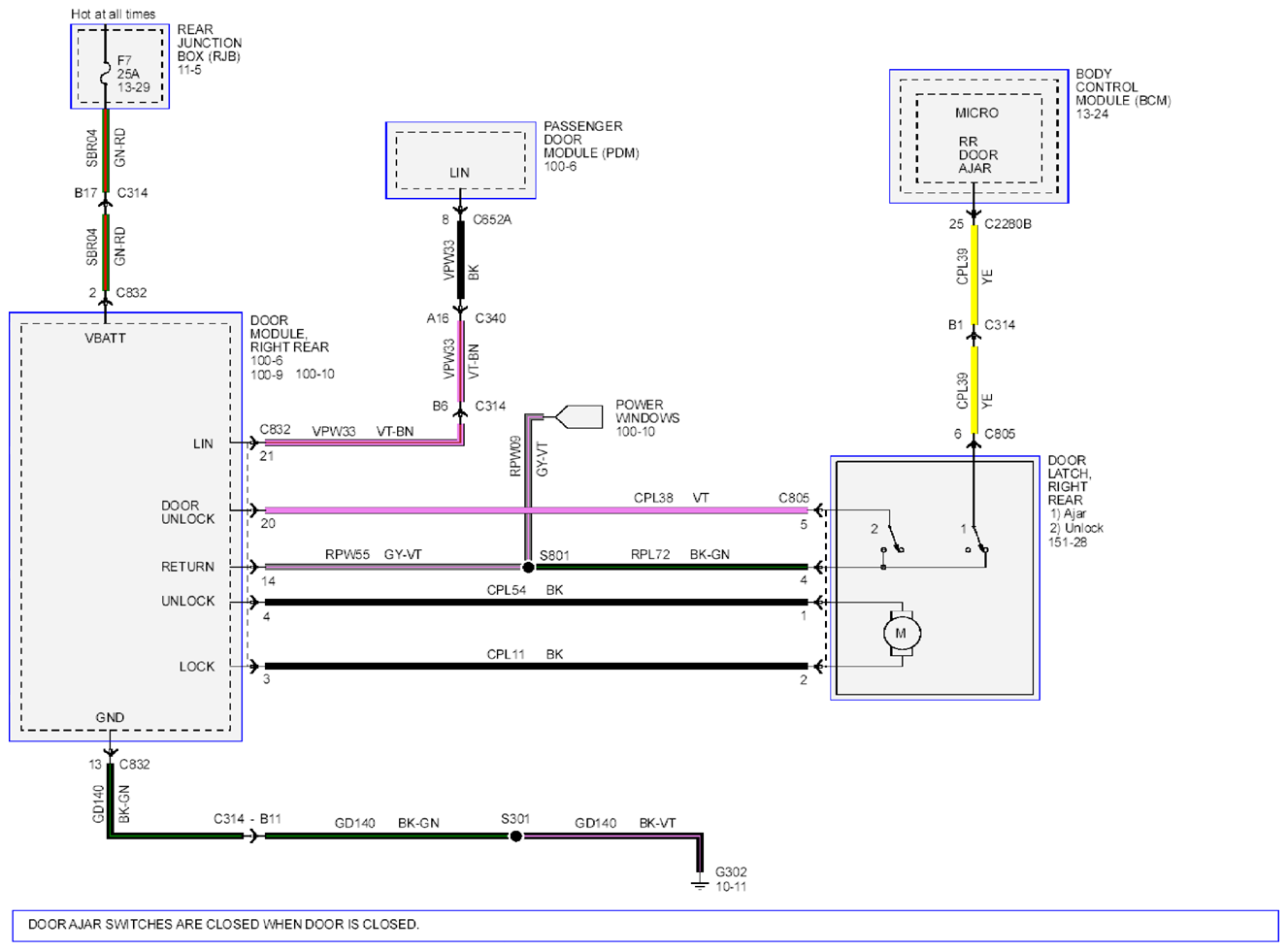

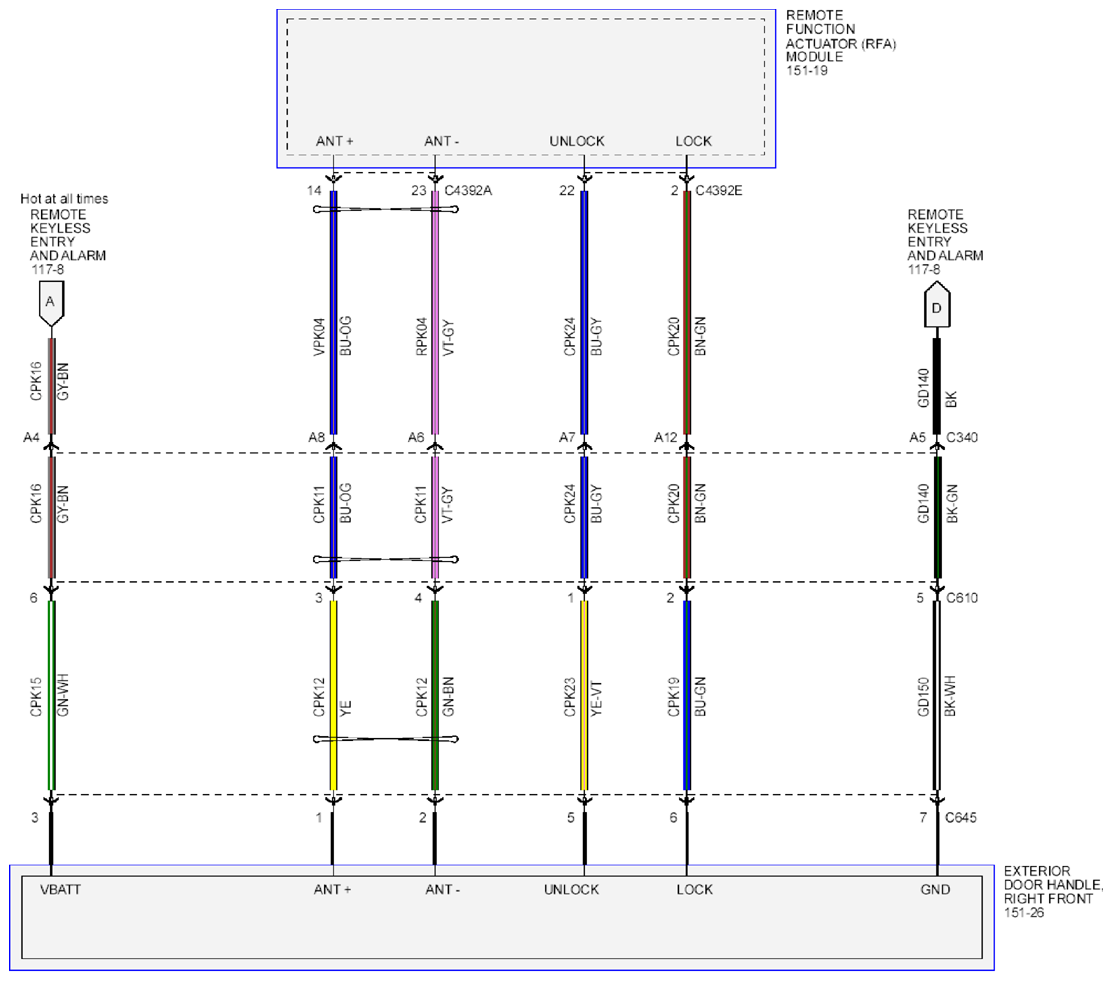

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR CO.

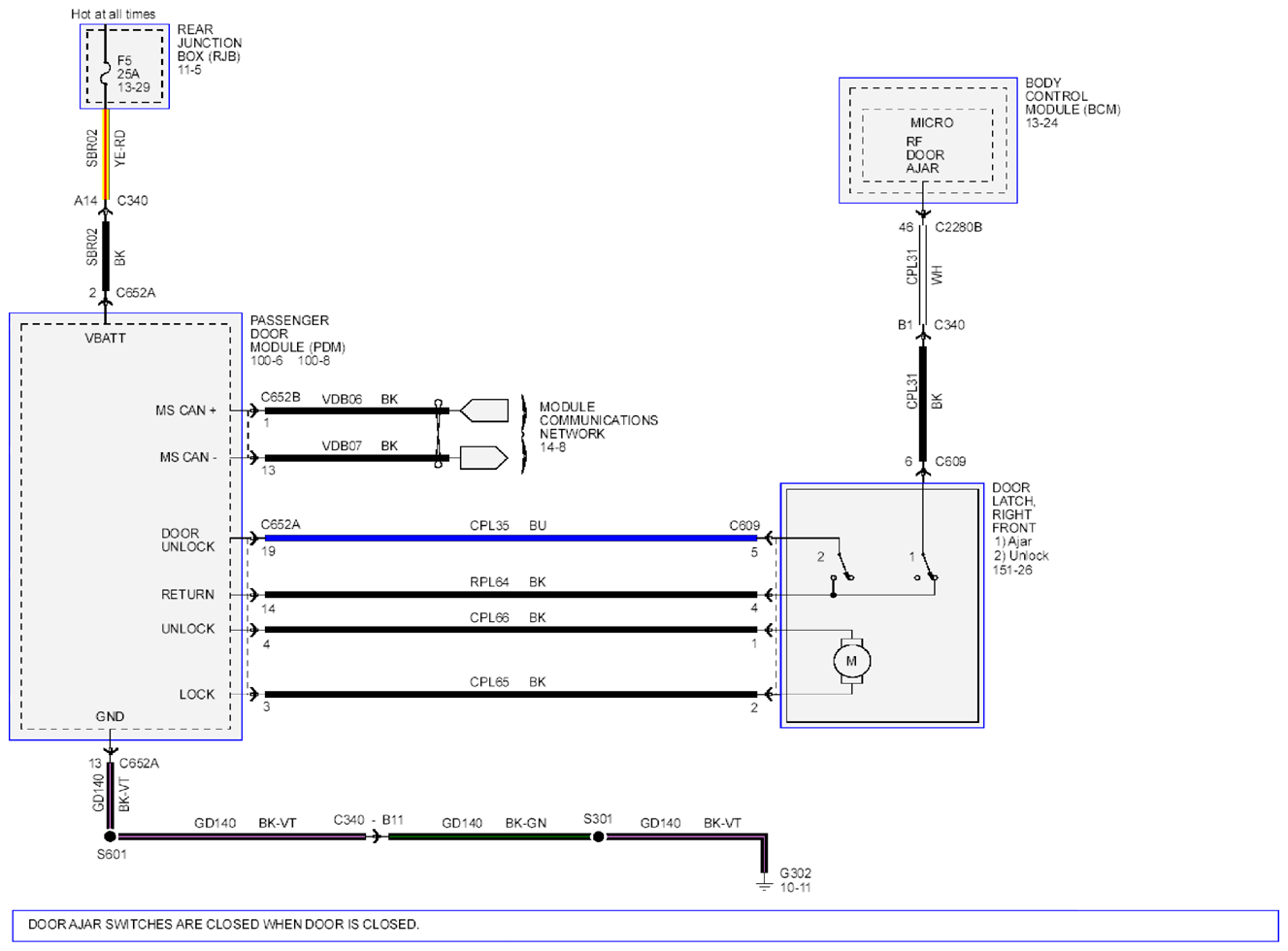

Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR CO.

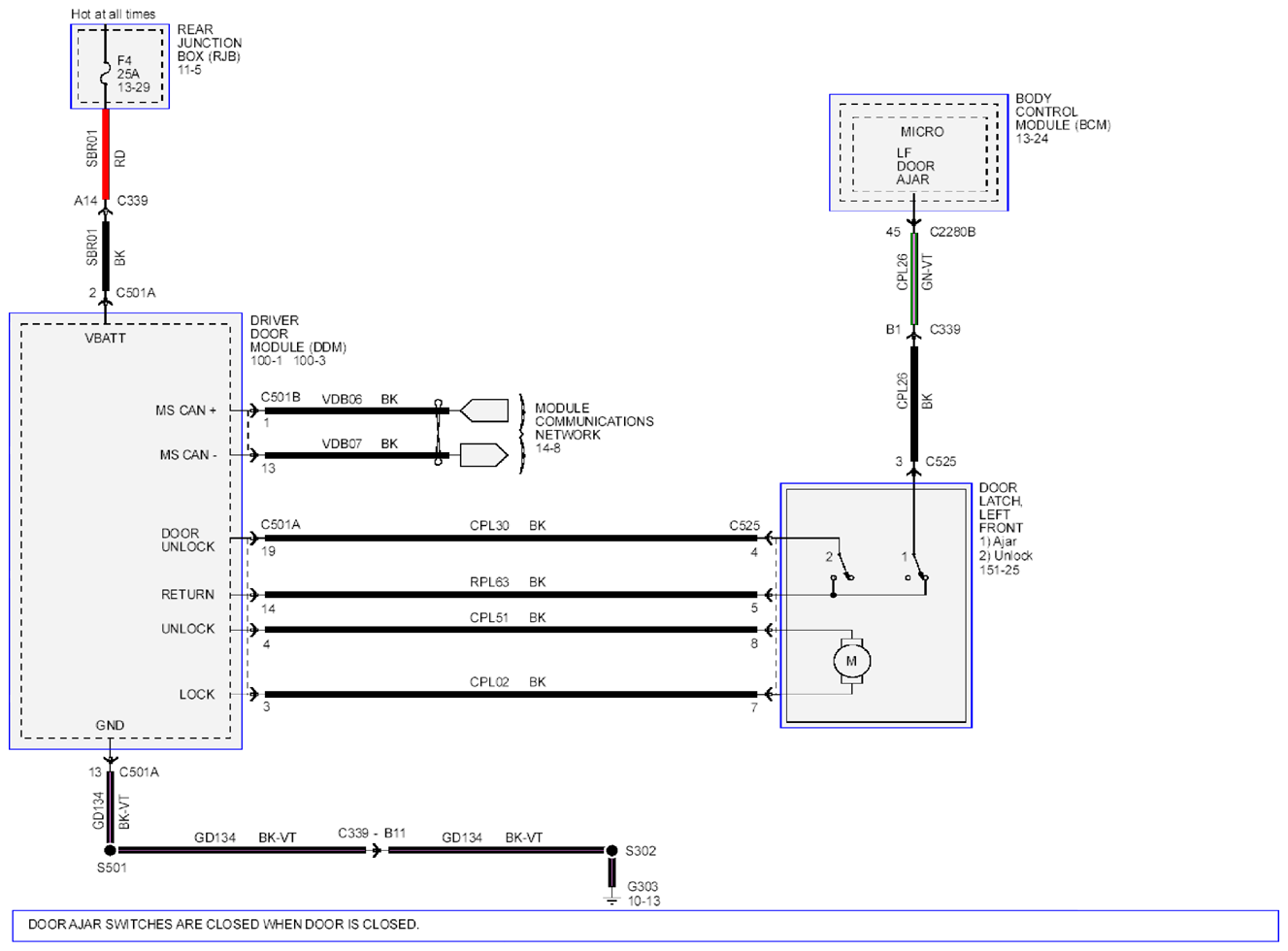

Fig 4: Remote Keyless Entry And Alarm - Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR CO.

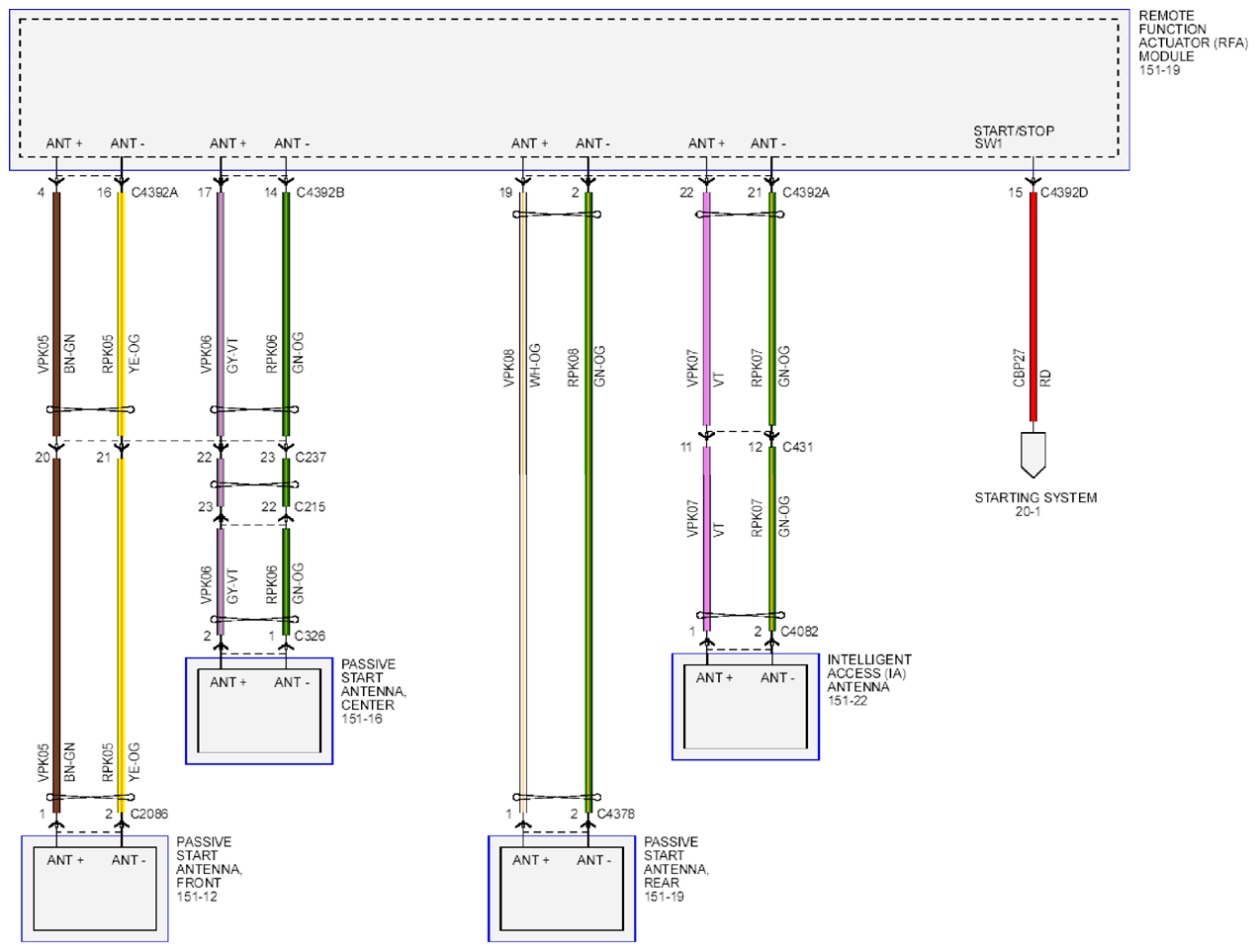

Fig 5: Remote Keyless Entry And Alarm - Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR CO.

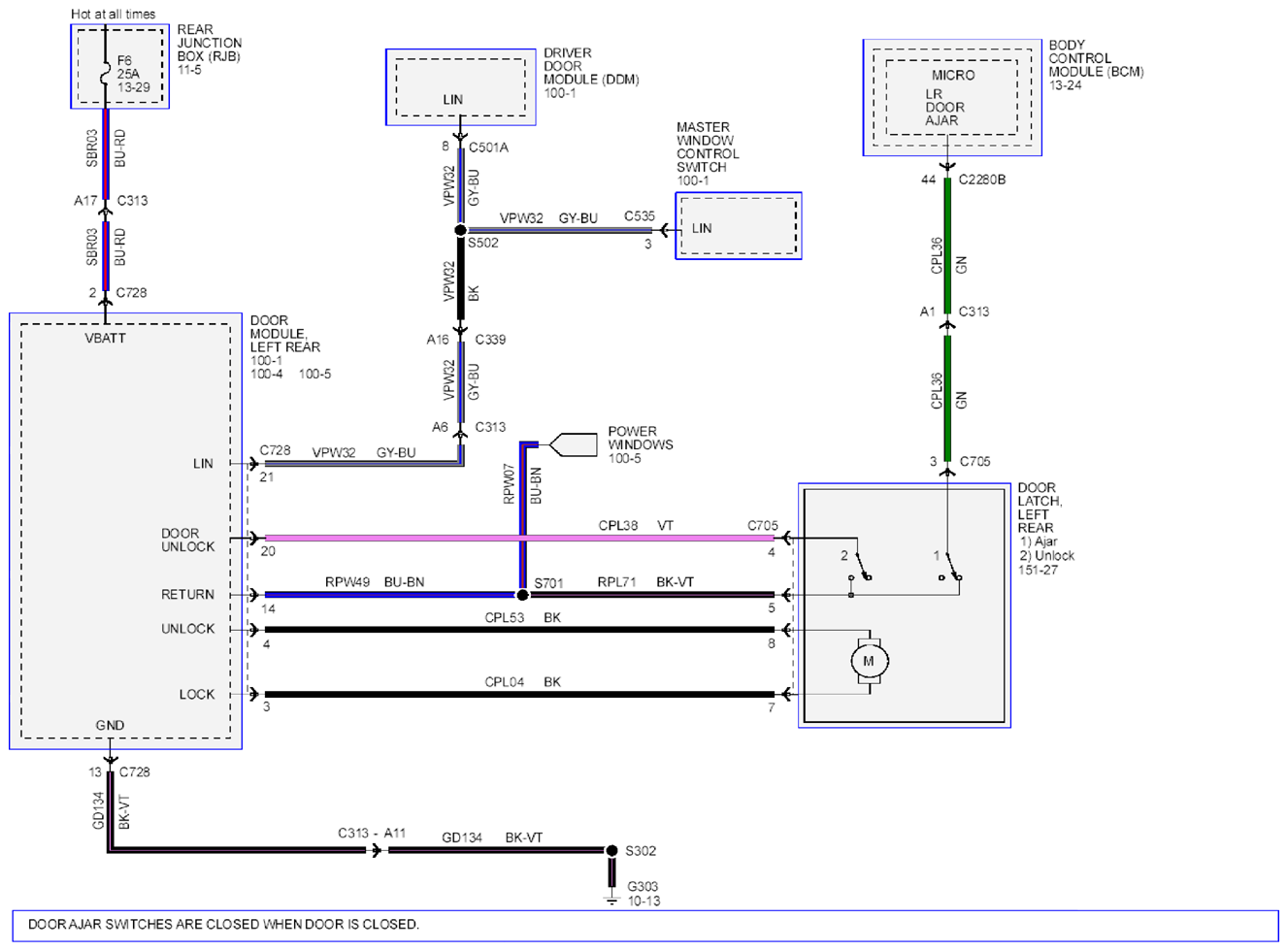

Fig 6: Remote Keyless Entry And Alarm - Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR CO.

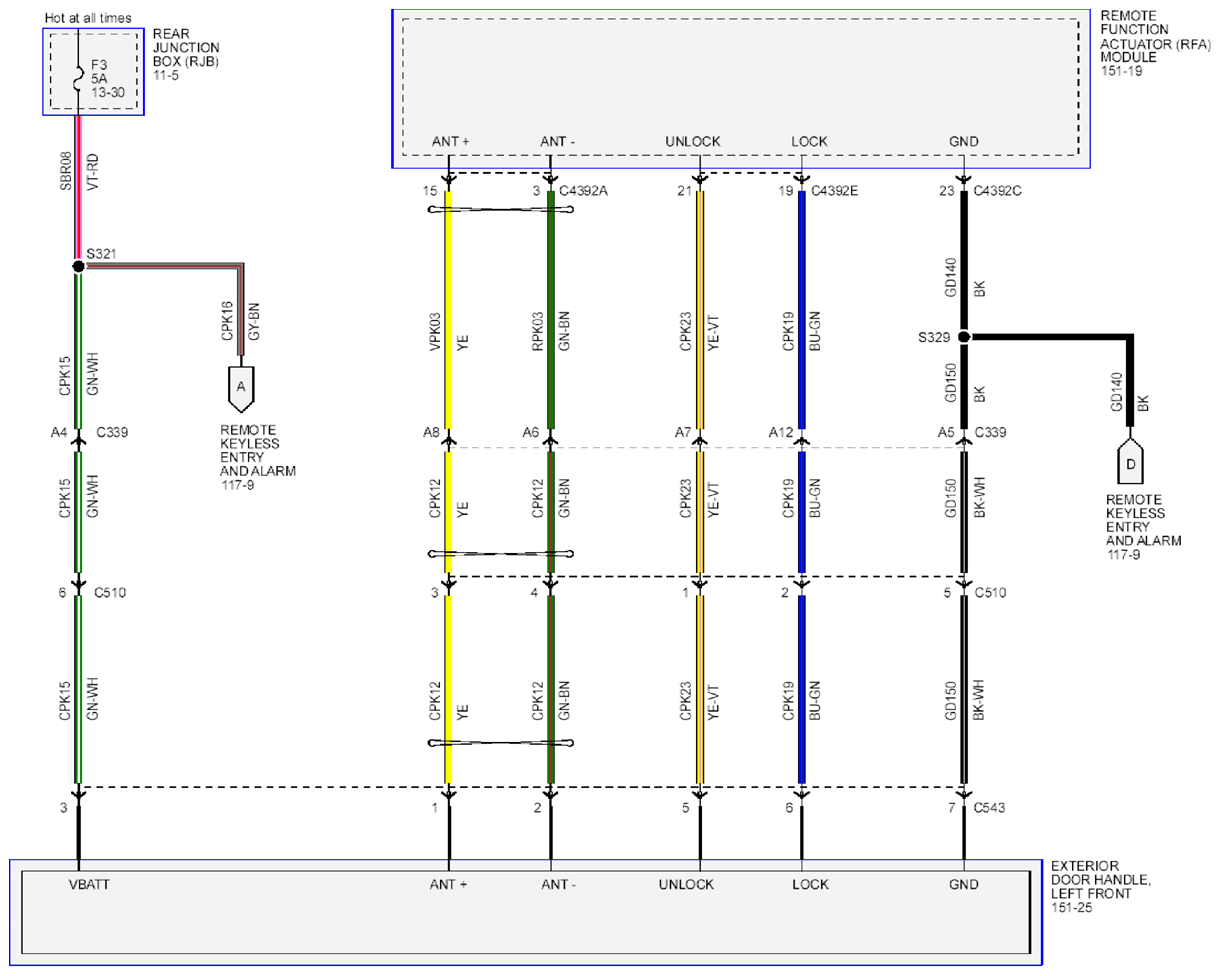

Fig 7: Remote Keyless Entry And Alarm - Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR CO.

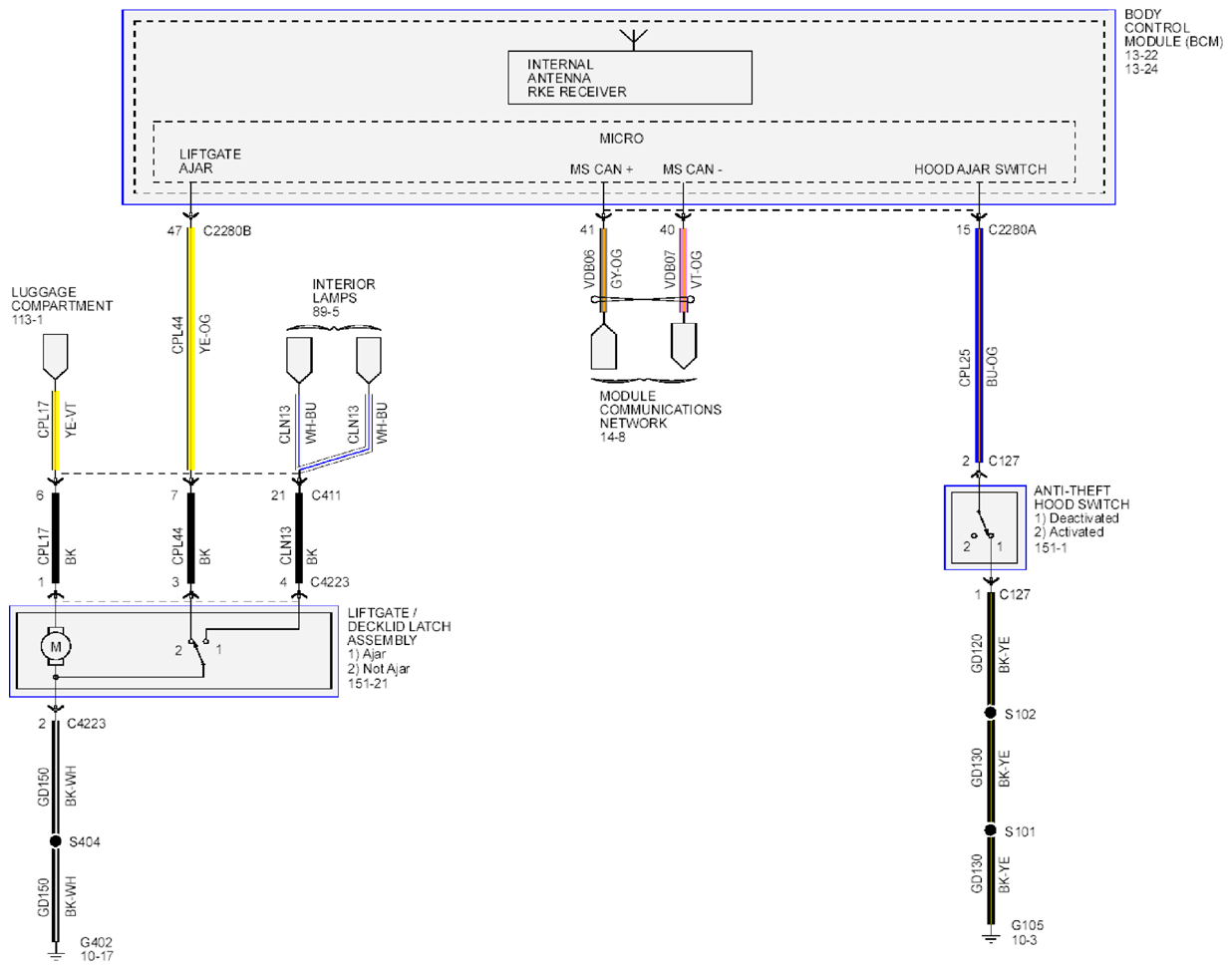

Fig 8: Remote Keyless Entry And Alarm - Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Remote Keyless Entry And Alarm - Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Remote Keyless Entry And Alarm - Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Remote Keyless Entry And Alarm - Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR CO.
