Power Windows

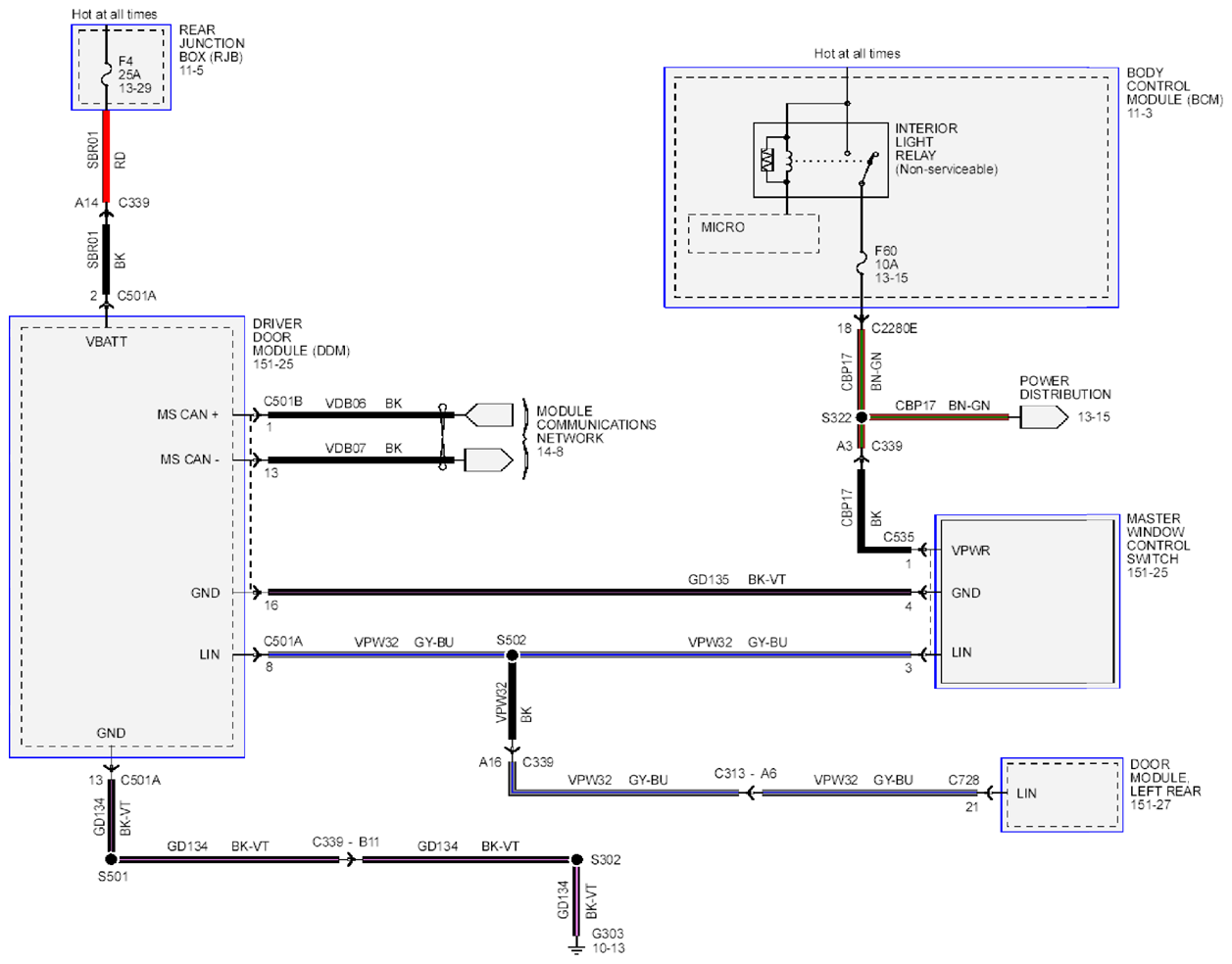

Fig 1: Power Windows - Wiring Diagram (1 Of 10)

G09260906

Courtesy of FORD MOTOR CO.

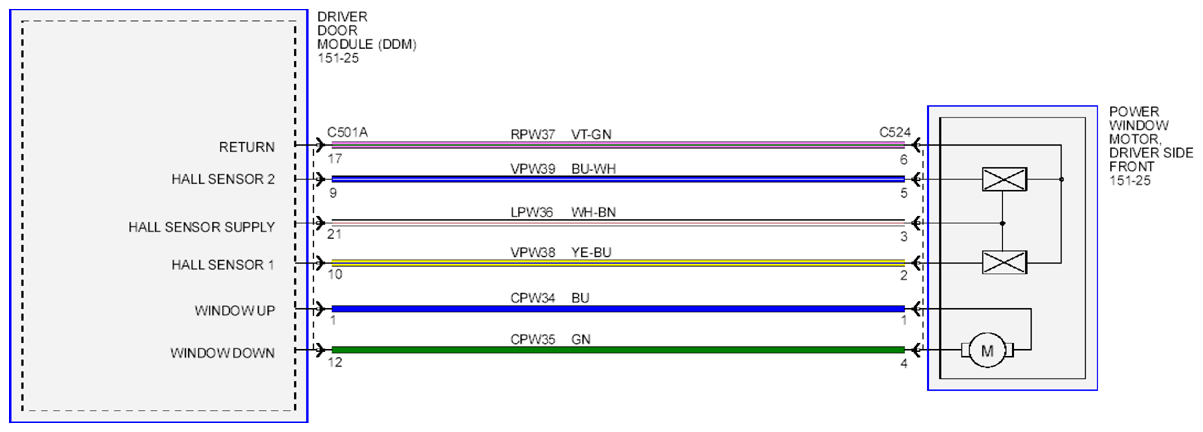

Fig 2: Power Windows - Wiring Diagram (2 Of 10)

G09260907

Courtesy of FORD MOTOR CO.

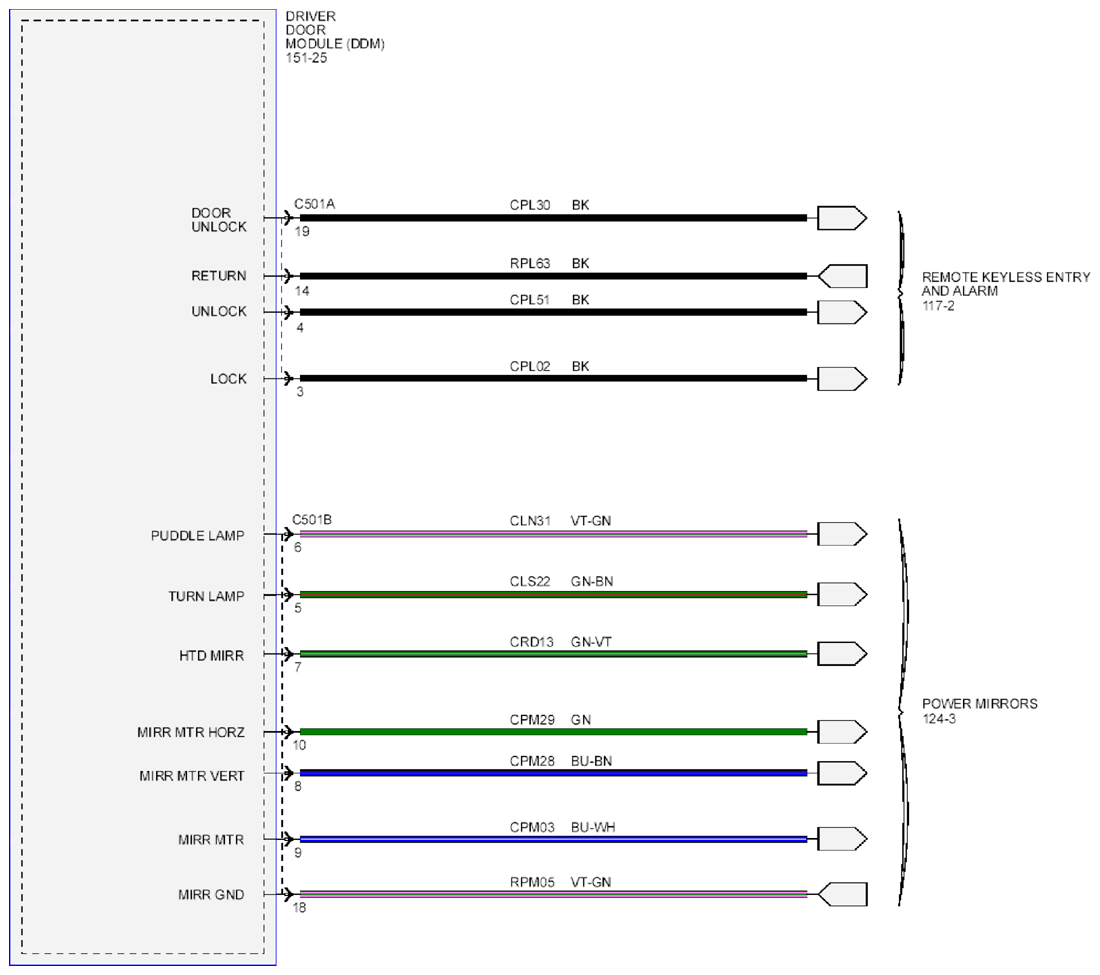

Fig 3: Power Windows - Wiring Diagram (3 Of 10)

G09260908

Courtesy of FORD MOTOR CO.

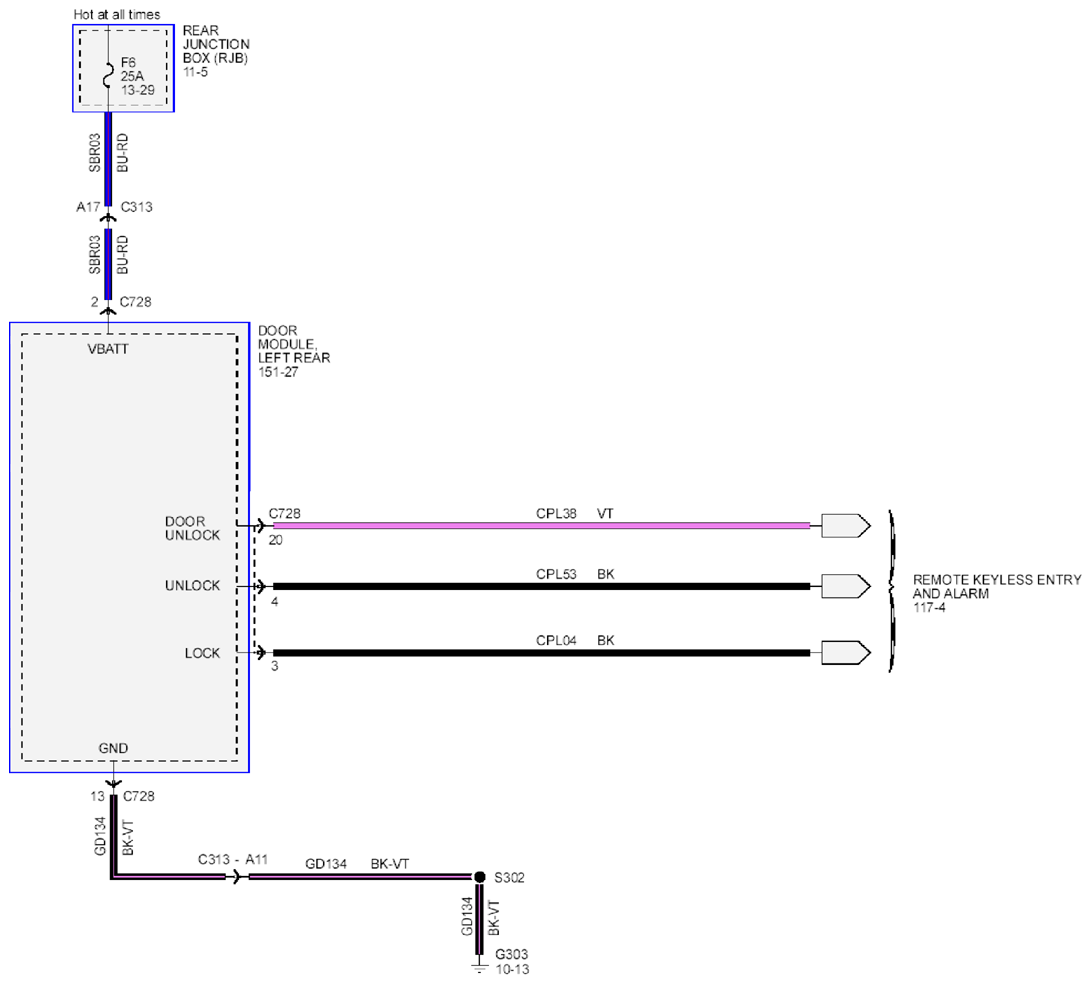

Fig 4: Power Windows - Wiring Diagram (4 Of 10)

G09260909

Courtesy of FORD MOTOR CO.

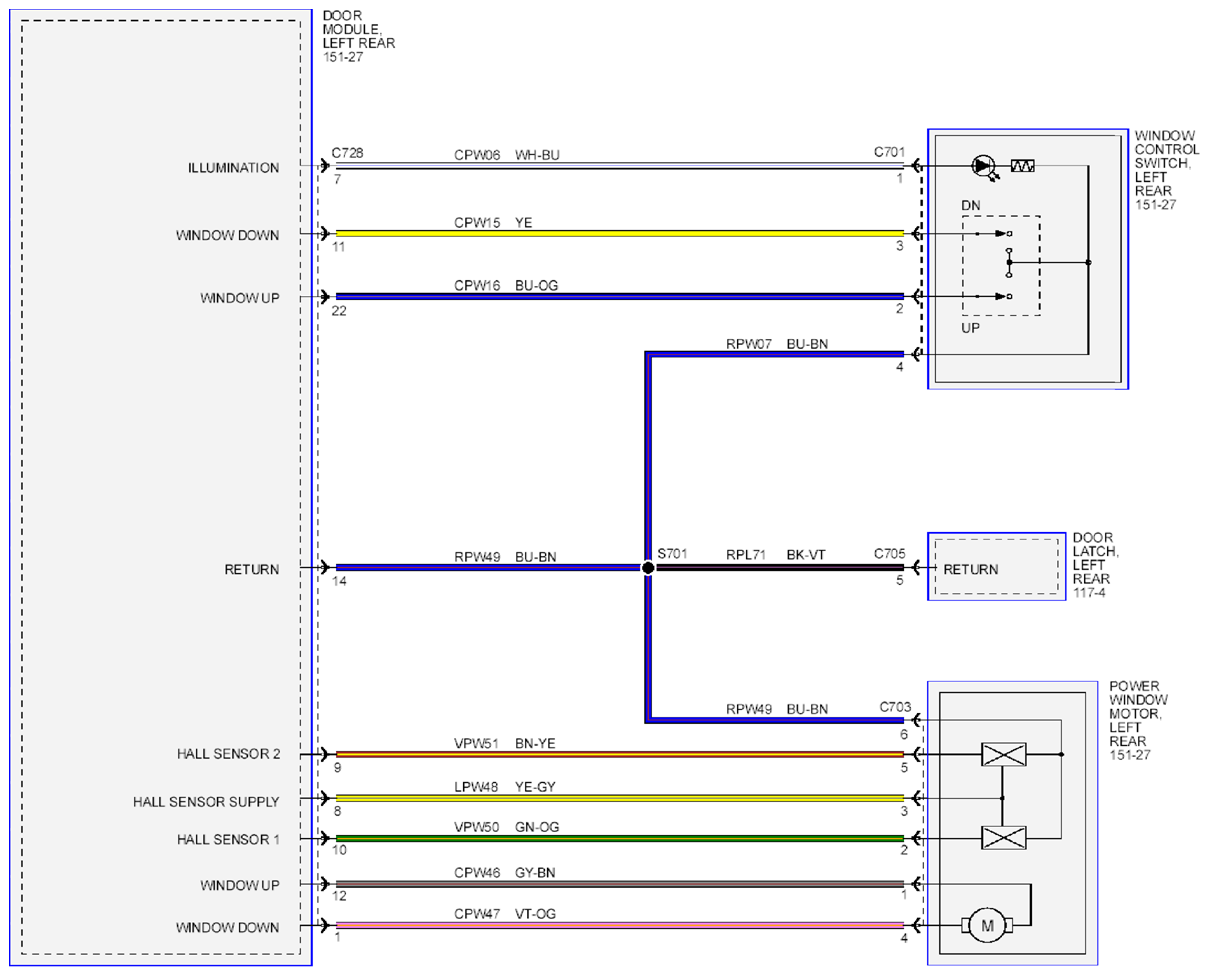

Fig 5: Power Windows - Wiring Diagram (5 Of 10)

G09260910

Courtesy of FORD MOTOR CO.

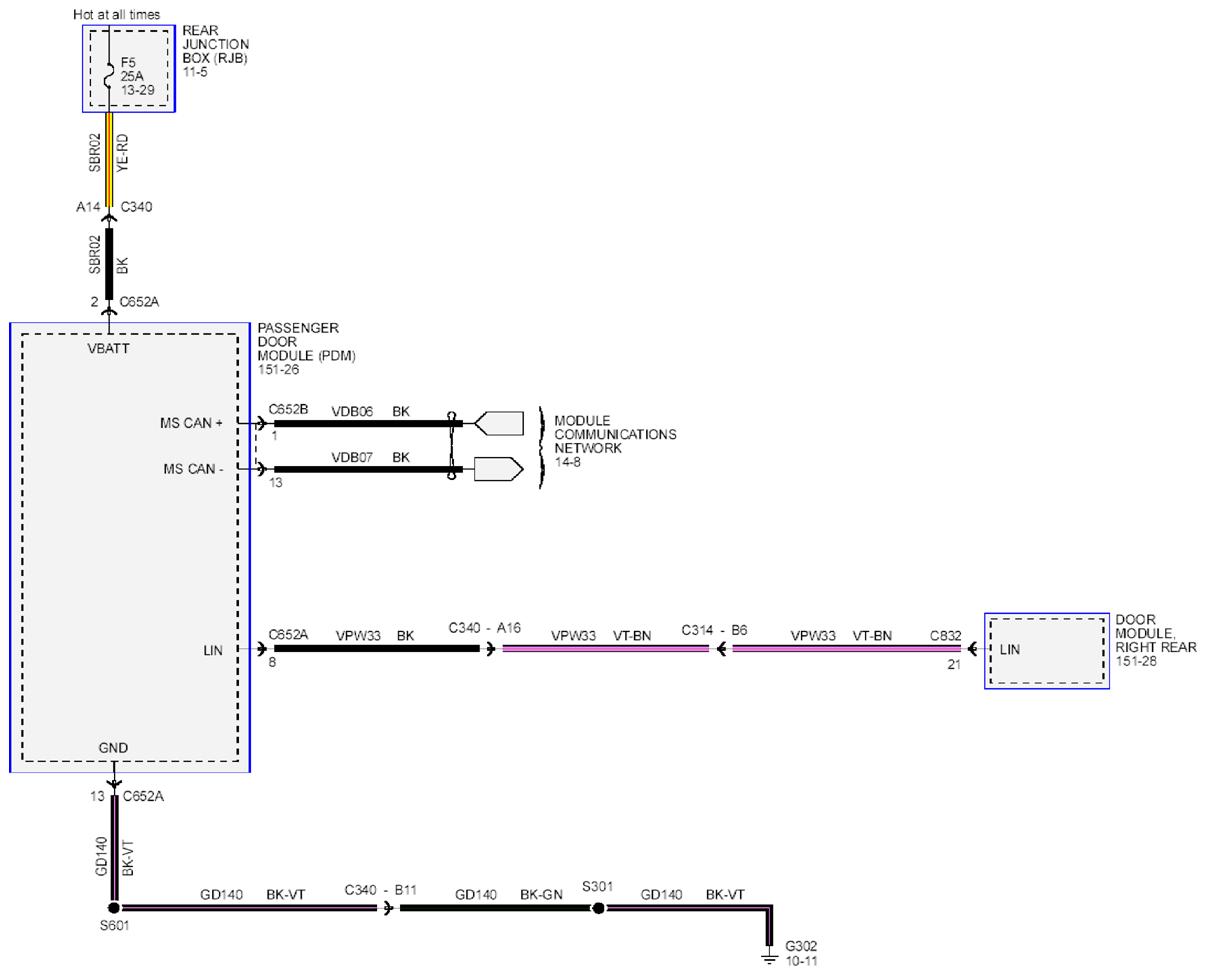

Fig 6: Power Windows - Wiring Diagram (6 Of 10)

G09260911

Courtesy of FORD MOTOR CO.

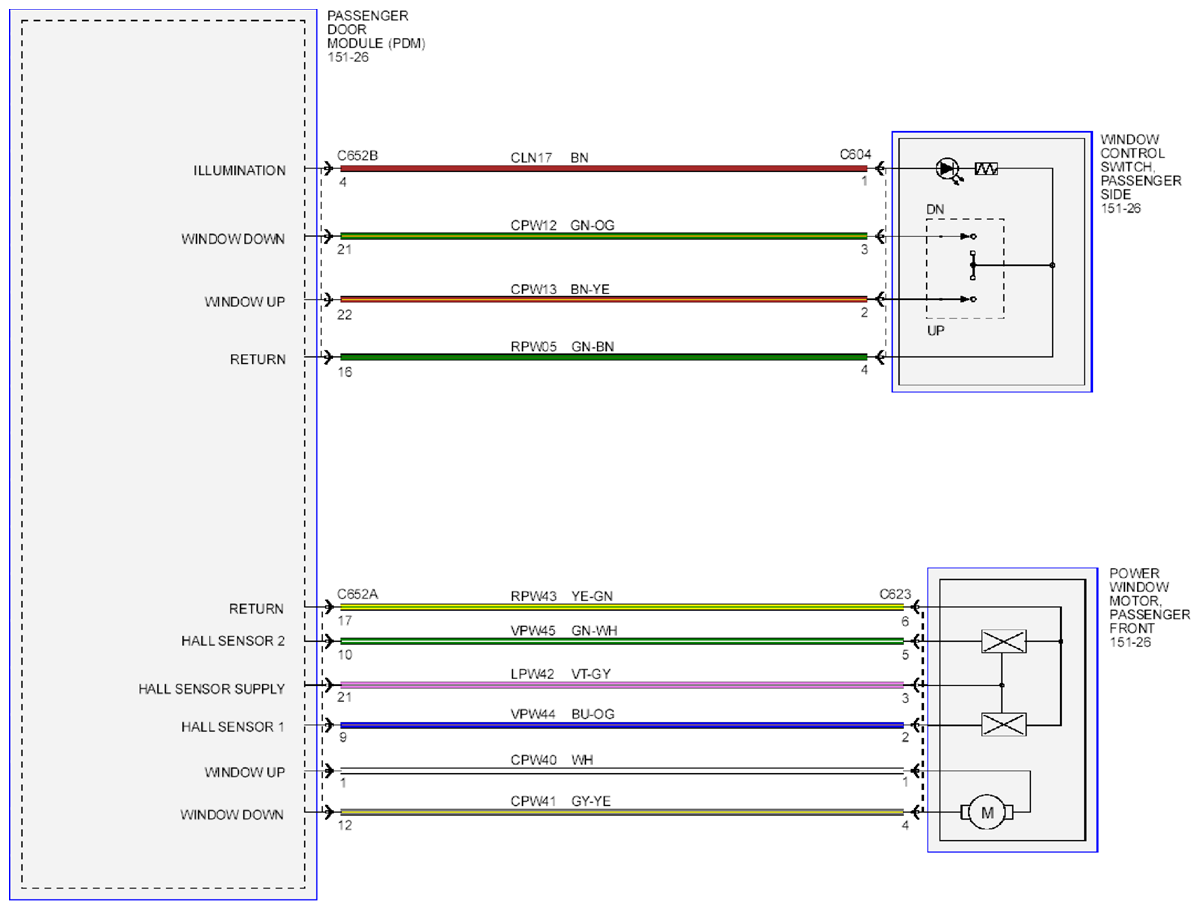

Fig 7: Power Windows - Wiring Diagram (7 Of 10)

G09260912

Courtesy of FORD MOTOR CO.

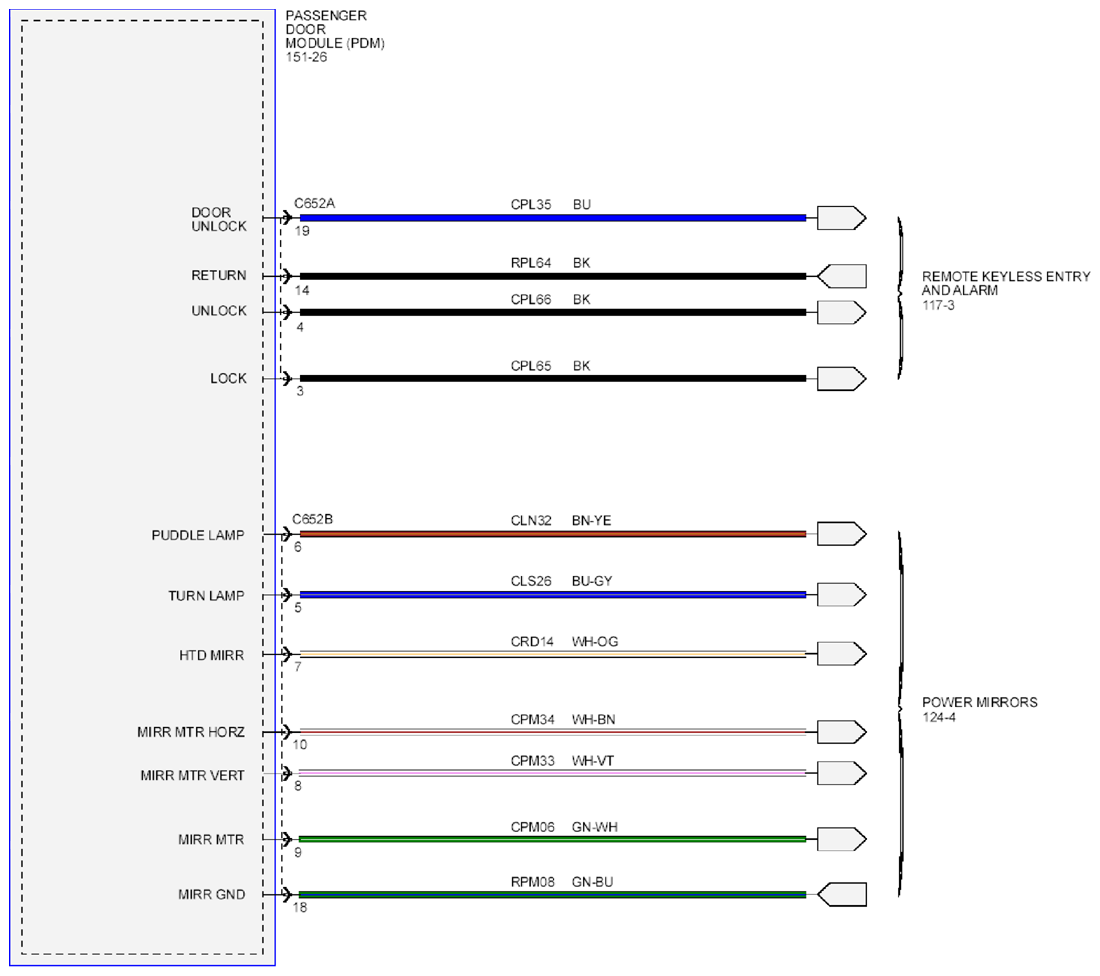

Fig 8: Power Windows - Wiring Diagram (8 Of 10)

G09260913

Courtesy of FORD MOTOR CO.

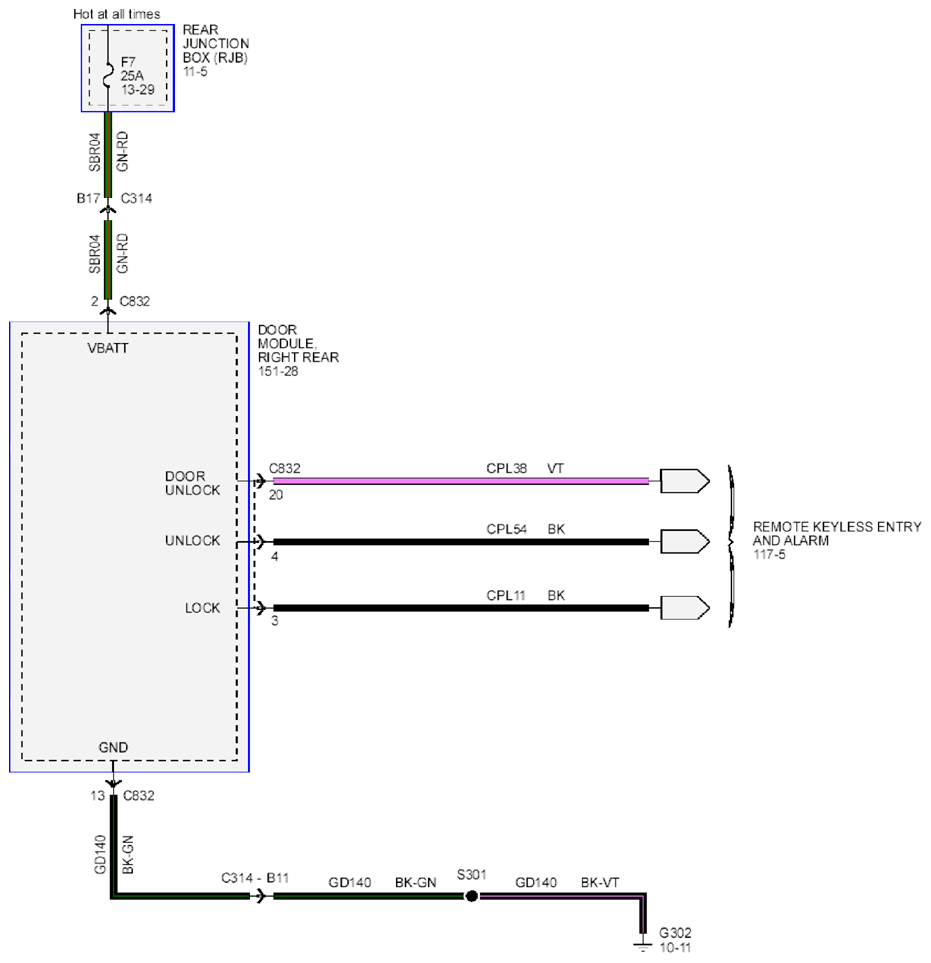

Fig 9: Power Windows - Wiring Diagram (9 Of 10)

G09260914

Courtesy of FORD MOTOR CO.

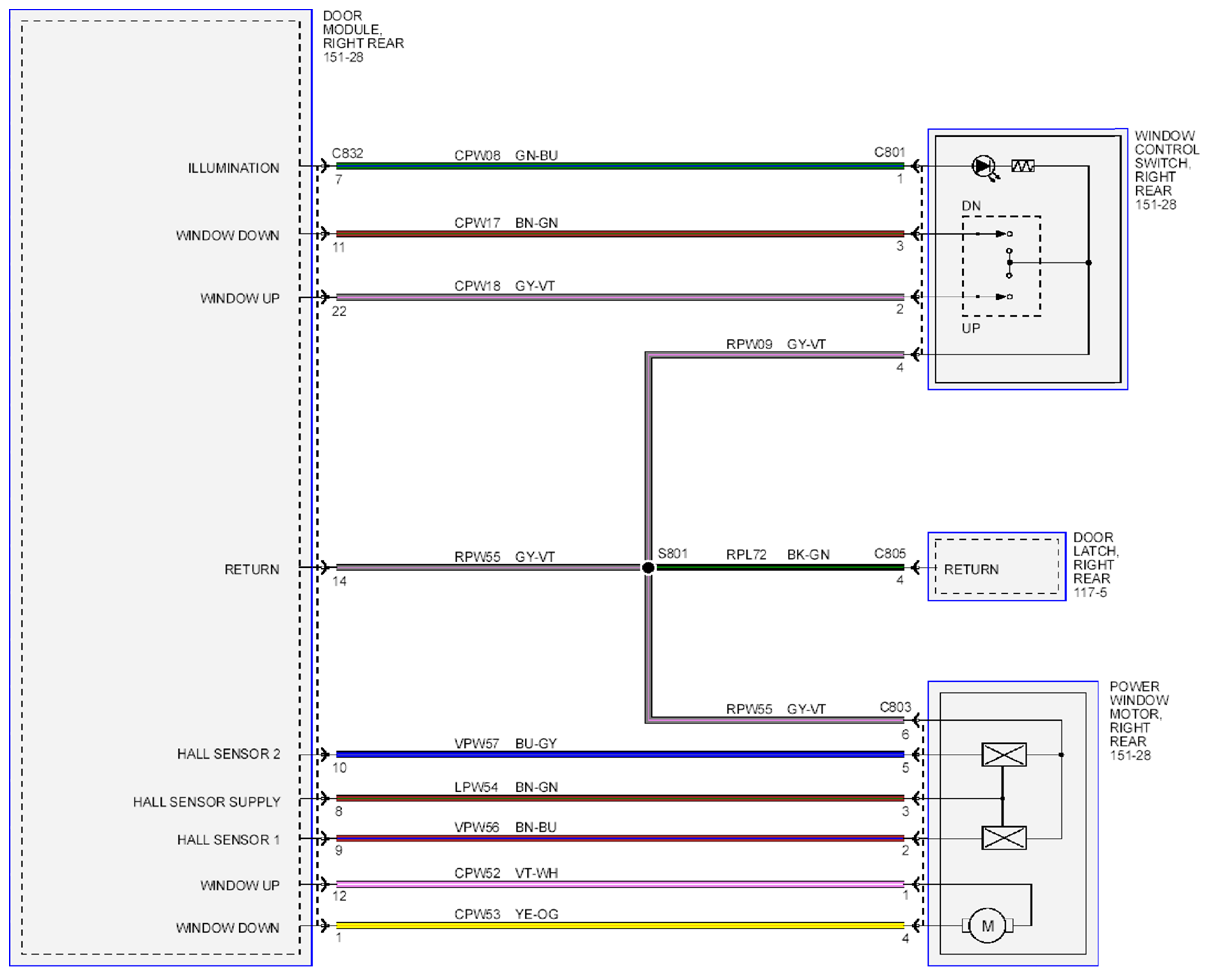

Fig 10: Power Windows - Wiring Diagram (10 Of 10)

G09260915

Courtesy of FORD MOTOR CO.
