OEM Wiring Diagrams -- Electric
>>
Power Steering Controls
Power Steering Controls

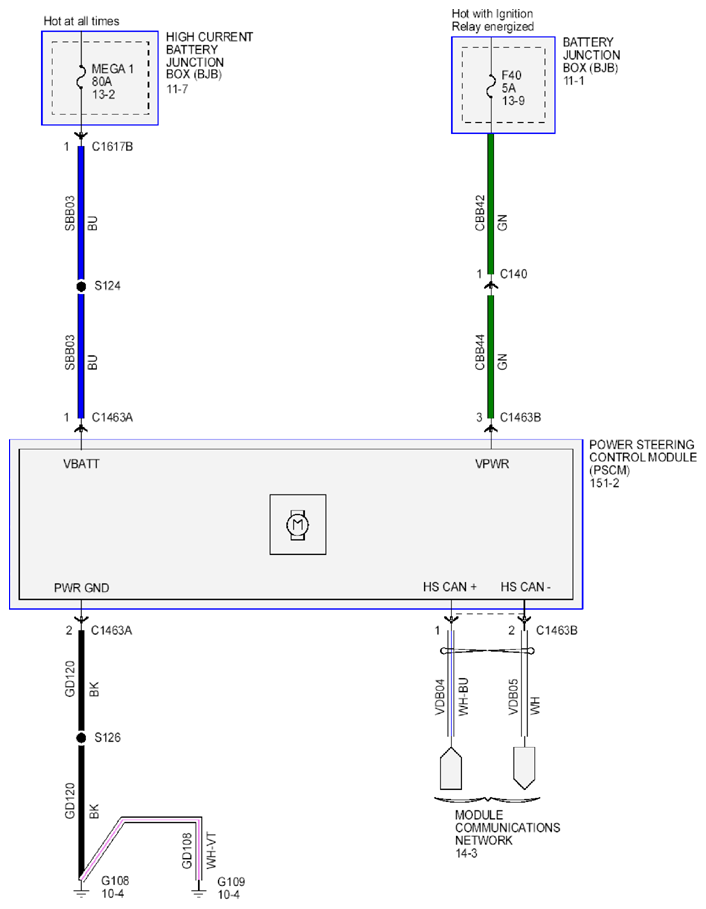

Fig 1: Power Steering Controls System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
